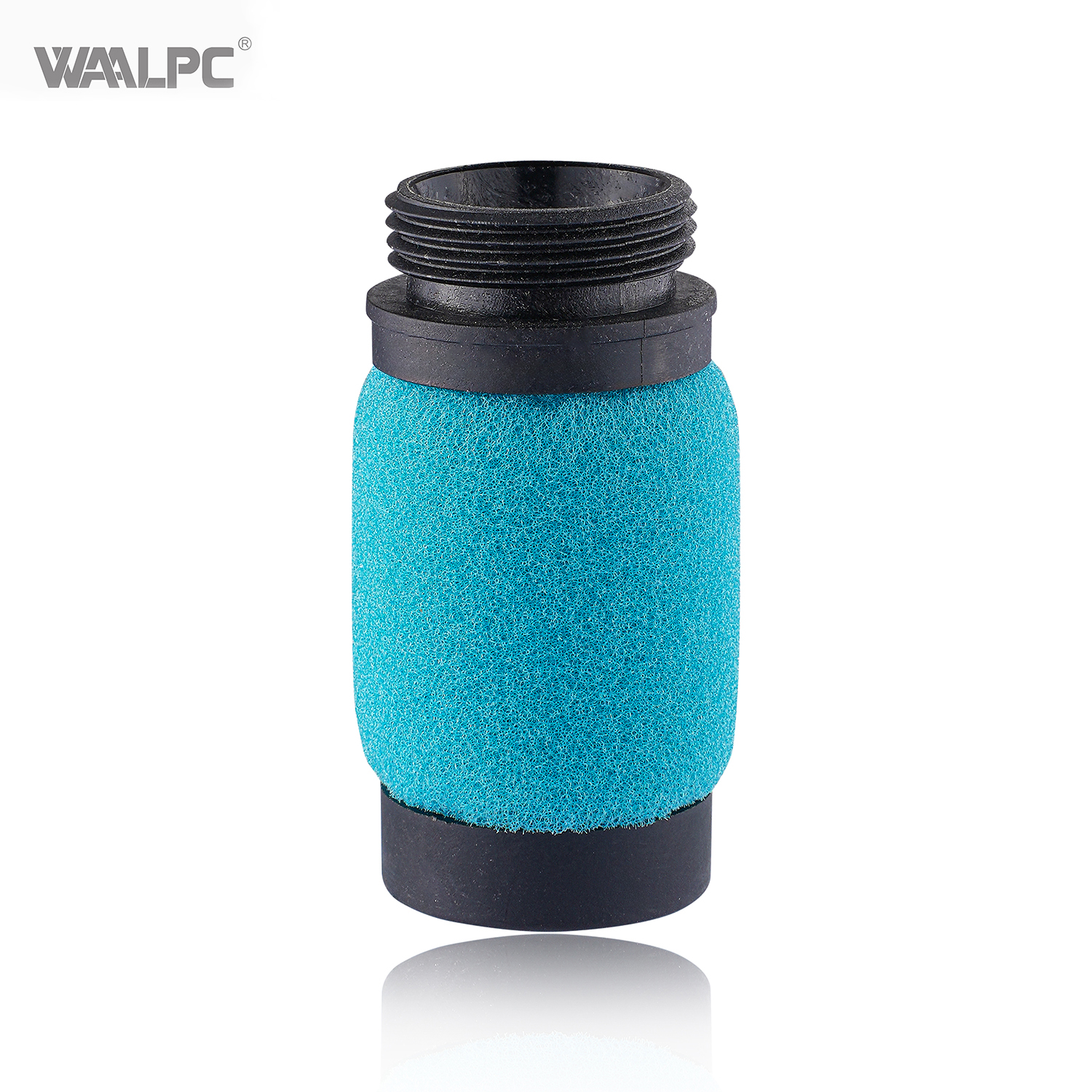

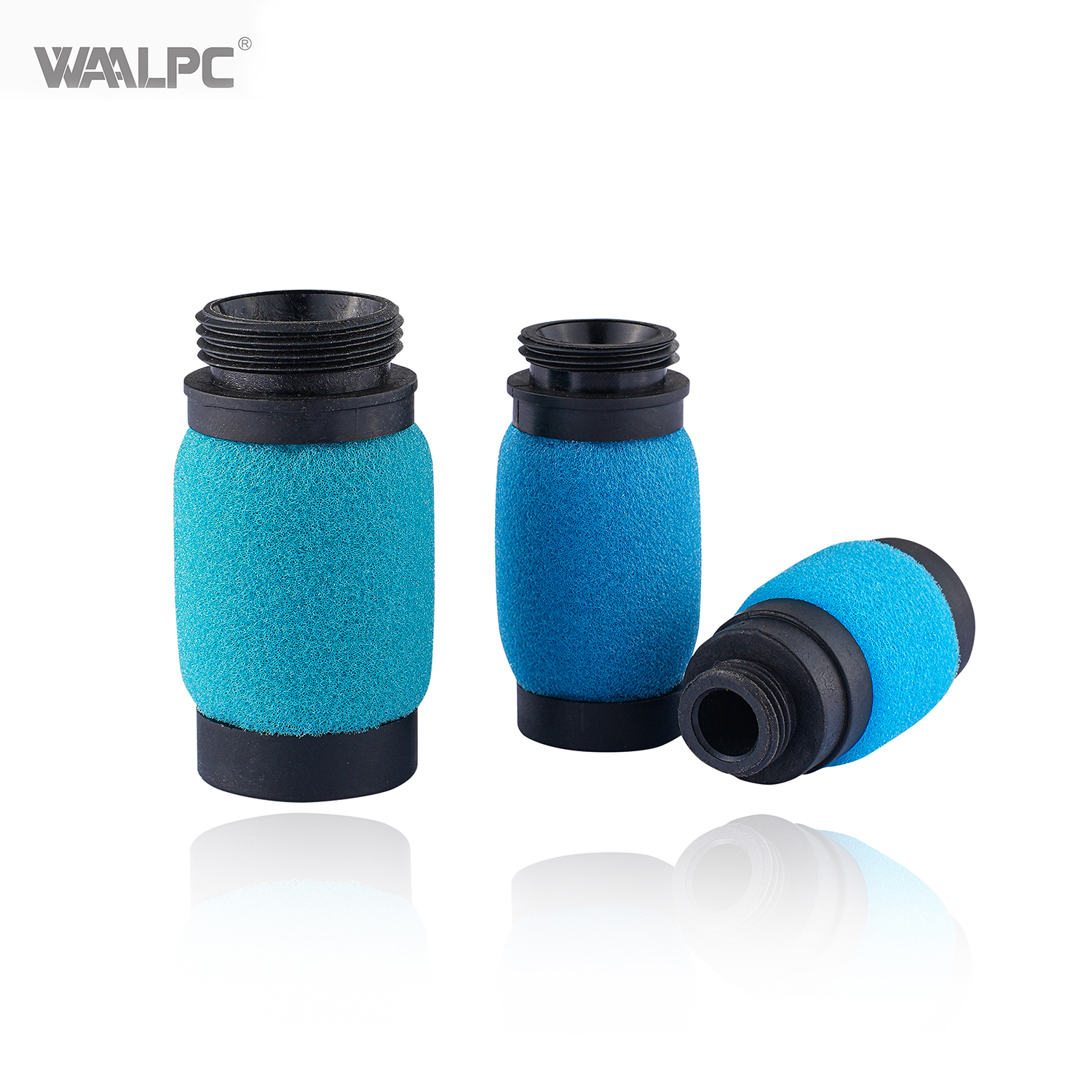

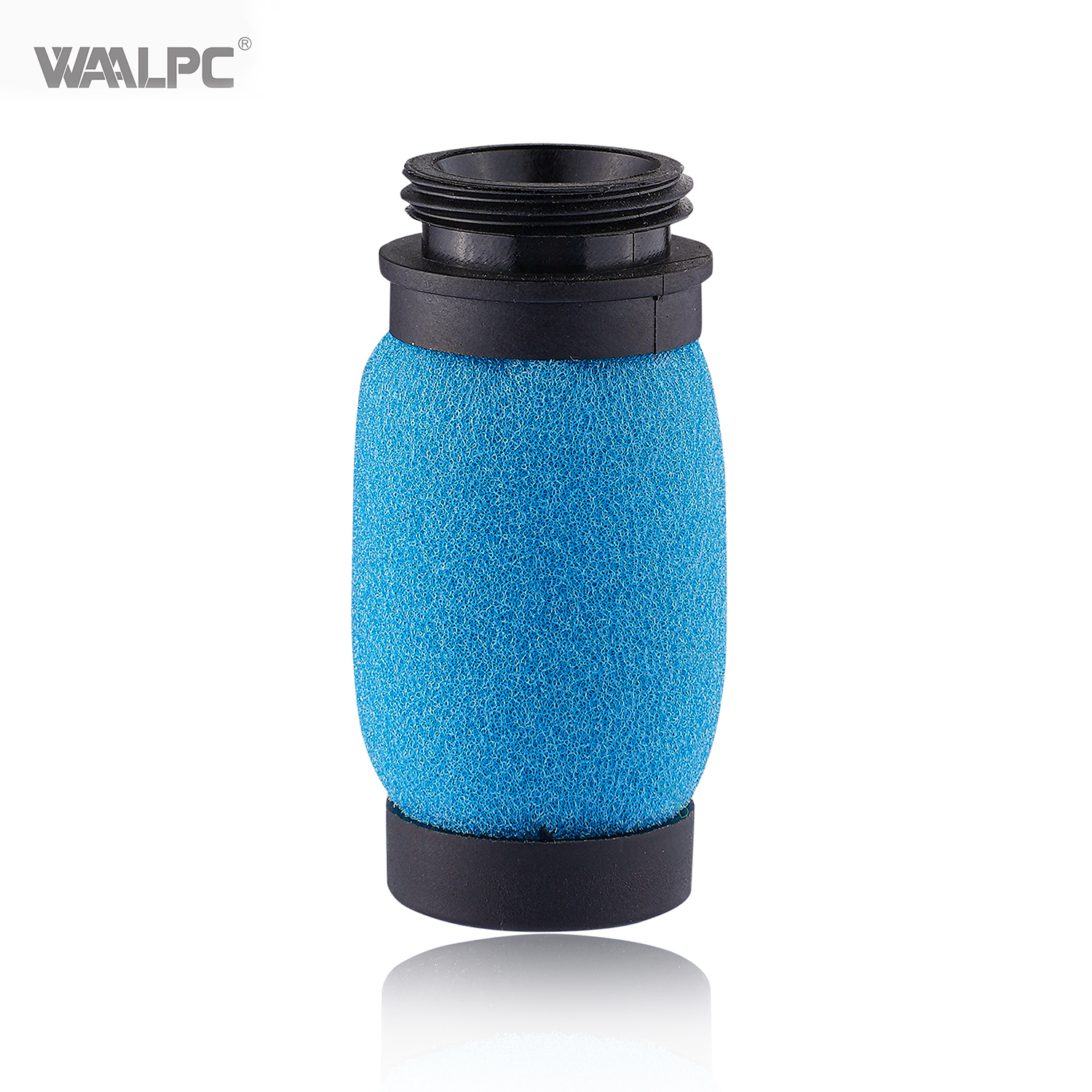

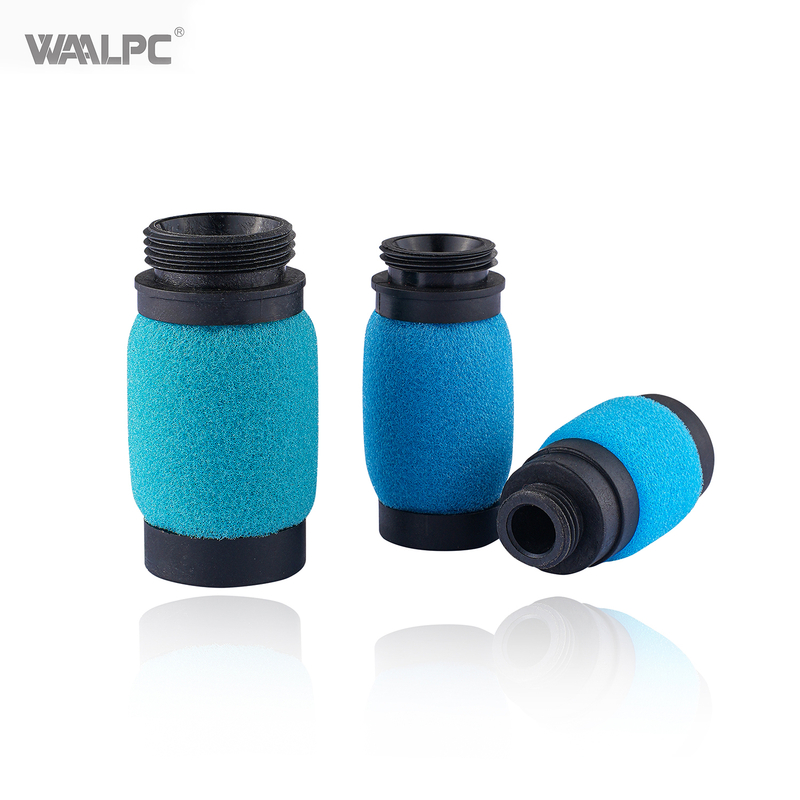

Plastic Filter Element 5um 25um 40um Pneumatic 0~1.0Mpa Compressor Air Filter Element

Plastic Filter Element 5um 25um 40um Pneumatic 0~1.0Mpa Compressor Air Filter Element


Availability:

Quantity:



Inquiry Add to Basket

Filters are the first line of defense in Air Source Treatment.

Their function is to remove impurities such as dust, debris, and moisture from the compressed air. These contaminants can damage pneumatic components, reduce efficiency, and lead to system failures.

Model:
Plastic Filter Element
Brand:
WAALPC
Code:
8421991000

Product Description

1. Stable permeability and high filtration precision.

2. Good ability to withstand thermal pressure and impact.

3. High self-strength,good plasticity, good antioxidant assembly.

4. Strong regeneration ability and long lifetime.

5. Withstand thermal stress and shock can work at higher temperatures and corrosive media can be

weldedand bonded and mechanical processing better.

6. High filtration efficiency, high tensile strength, high temperature resistance, corrosion resistance.

Technical Parameters

Working Medium	Air
Grade of Fitration	5um, 25um,40um
Operating Pressure Range	0~1.0Mpa
Pressure Resistance	1.0Mpa
Operating Temperature Range	0~60℃
Material	Brass/ Plastic
Application	Pneumatic and hydraulic components

Model No.	Size(mm)			Color	Material	Remark
Model No.	Diameter/Outer	Diameter/Inner	Height	Color	Material	Remark
	16.3	14	23	Brass	Brass	For AFR2000
	17	14.5	30	Brass	Brass	For AF2000
	22.7	20	33	Brass	Brass	For AF3000
	28.7	26.5	43	Brass	Brass	For AF4000
	29	26	43	Brass	Brass	For AF4000
	28.7	26.5	60	Brass	Brass	For AF4000
	37	34.5	67	Brass	Brass	For AF5000
	20	14.5	23	White/Blue	PE	For AFR2000
	18.5	14.3	29.8	White/Blue	PE	For AF2000
	25	20	34	White/Blue	PE	For AF3000
	31	25	43	White/Blue	PE	For AF4000
	31	25	60	White/Blue	PE	For AF4000
	40	34	65	White/Blue	PE	For AF5000
	23	8	46	Black+blue /Black+red	Plastic	For AF2000
	25	7.8	52	Black+blue /Black+red	Plastic	For AF3000
	29	10.8	59	Black+blue /Black+red	Plastic	For AF4000
	16.3	14	23	Grey	stainless steel	For AFR2000
	17	14.5	30	Grey	stainless steel	For AF2000
	22.7	20	33	Grey	stainless steel	For AF3000
	28.7	26.5	43	Grey	stainless steel	For AF4000
	29	26	43	Grey	stainless steel	For AF4000
	28.7	26.5	60	Grey	stainless steel	For AF4000
	37	34.5	67	Grey	stainless steel	For AF5000

Specification Download

WAALPC Filter Element.pdf
