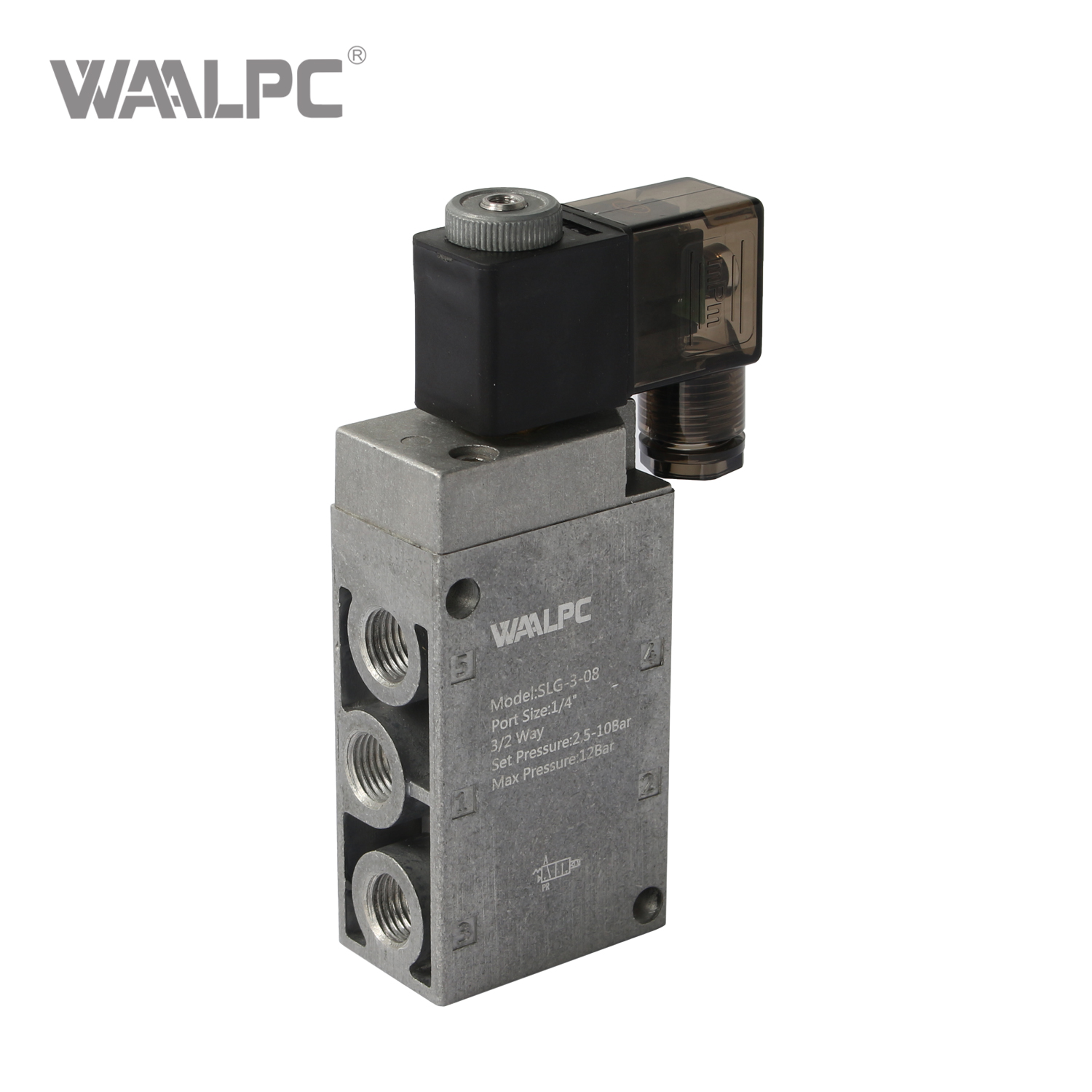

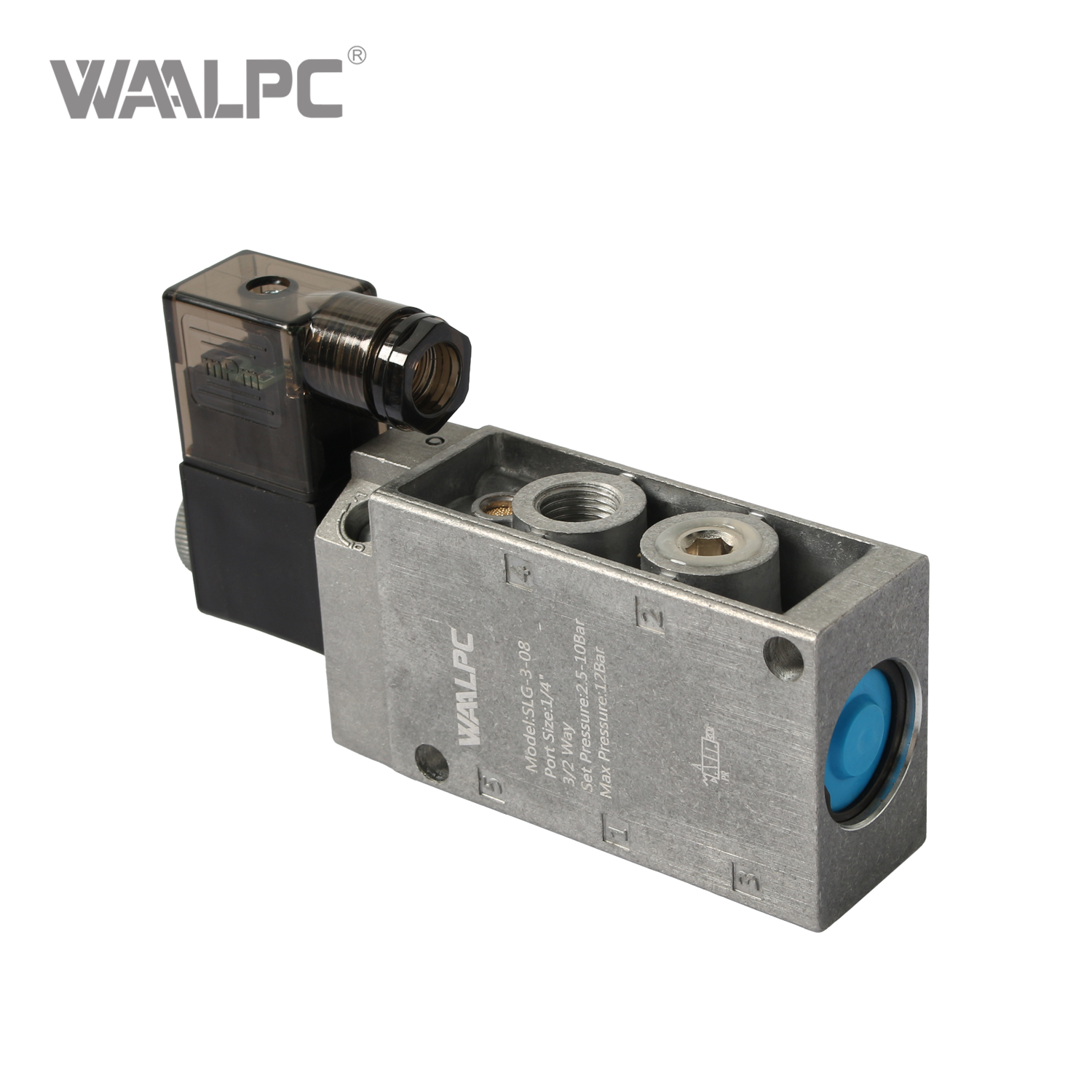

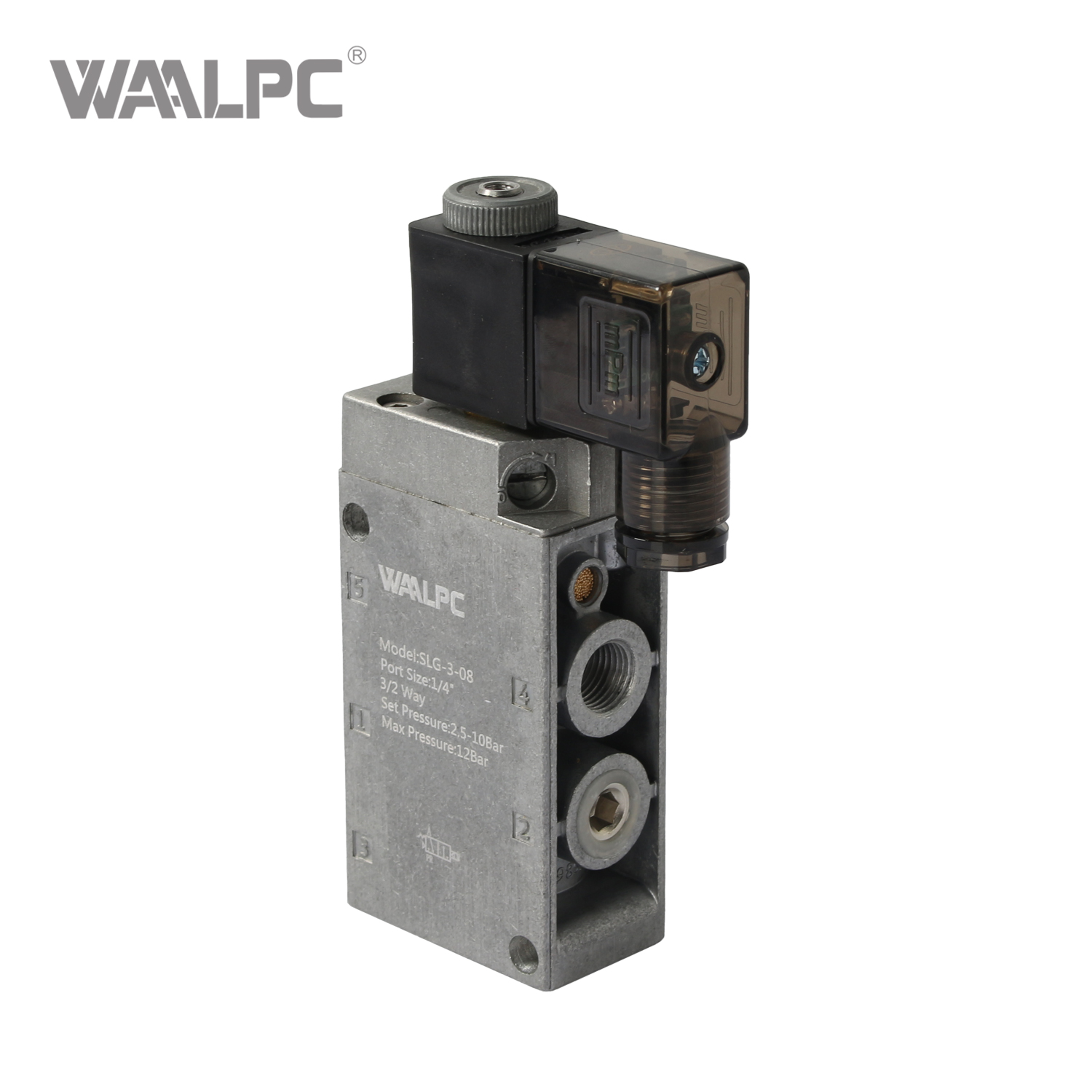

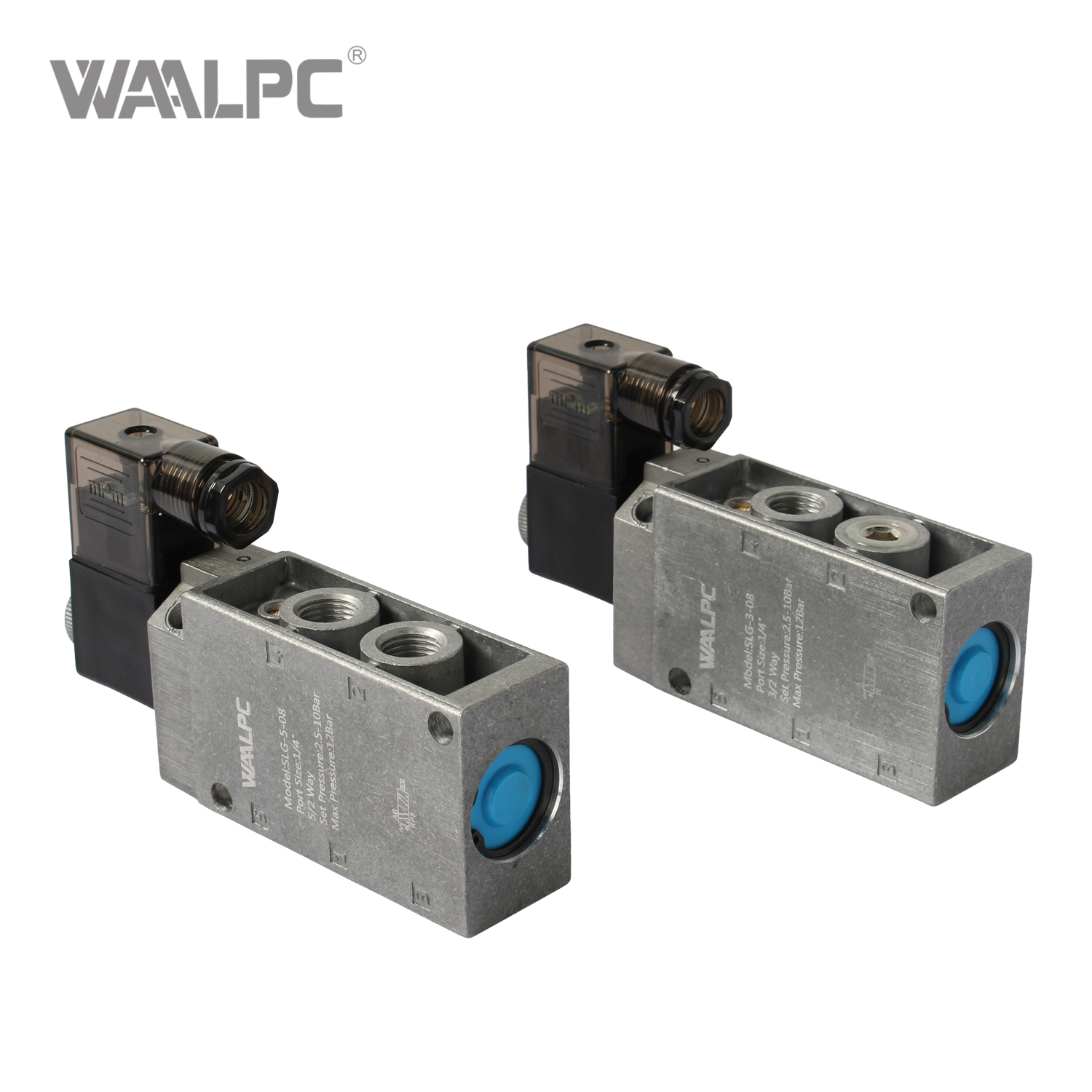

Festo Type Tiger Valve Robust & Reliable Directional Control Valve High-Flow 5/2 3/2 Way Valve Compact Design for Automation Systems

Festo Type Tiger Valve Robust & Reliable Directional Control Valve High-Flow 5/2 3/2 Way Valve Compact Design for Automation Systems


Availability:

Quantity:



Inquiry Add to Basket

Tiger Valves are renowned for their robustness, reliability, and versatility in industrial automation . They are a comprehensive range of directional control valves, primarily 5/2-way and 5/3-way configurations, suitable for controlling pneumatic actuators like cylinders.

Model:
SLG
Brand:
WAALPC
Code:
8481100090

Product Description

1. Unmatched Durability & Robustness

Poppet Valve Design: Unlike spool valves, the poppet design is highly resistant to contaminants in compressed air, ensuring reliable operation even with imperfect air quality.

Rugged Construction: Featuring die-cast aluminum housing and robust internal components, these valves withstand demanding industrial environments, including vibration, shock, and temperature variations.

Long Service Life: Engineered for millions of cycles with minimal performance degradation, significantly reducing downtime and total cost of ownership.

2. Superior High-Flow Performance

Optimized Flow Path: The internal design minimizes flow resistance, delivering maximum air volume from a compact footprint. This enables faster cylinder cycle times and improved machine productivity.

Wide Range of Cv Values: Available in various sizes to match specific flow requirements, from standard applications to high-speed operations.

Technical Parameters

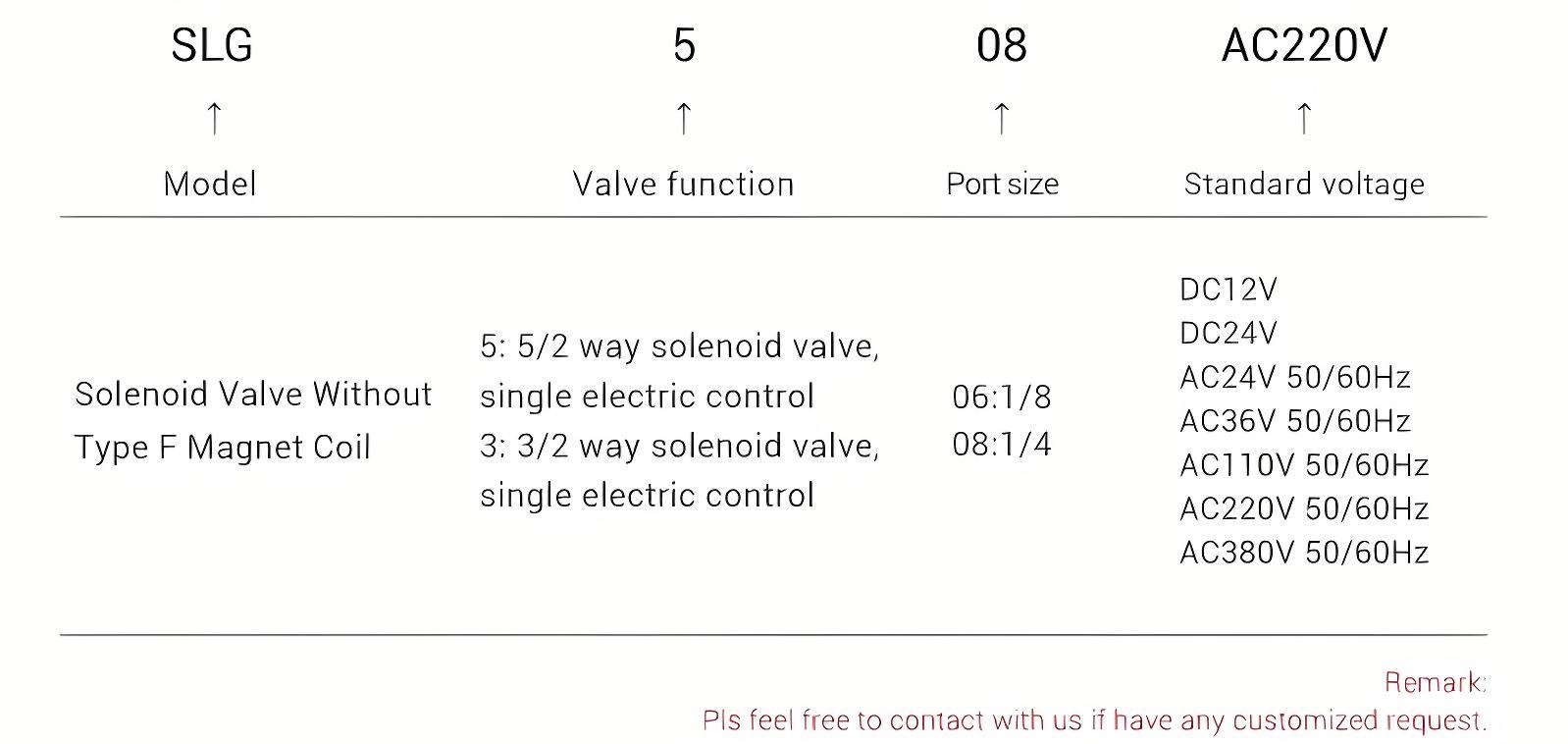

Ordering Code

Tiger valve

Product Specifications

Model	SLG
Valve Type	Two-position five-way
Effective Cross Setion Area	22.5mm²(Cv=1.32)
Port Size	Inlet, Outlet, Exhaust Port=G1/4/G1/8
Filter Precision	40 Micron Filtered Air
Operation	Internal Piloted
Working Pressure	0.25~1.0MPa
Max. Test Pressure	1.2MPa
Max. Ambient Temperature	5~50℃
Operating Voltage Tolerance	±10%
Power Consumption	AC: 5.5VA DC: 4.8W
Protection	F Class. IP65
Wiring/Connector	Cable/Lead Wire or DIN Connector
Switching Frequency	5 Cycles/Sec
Response Time	0.05 Sec.

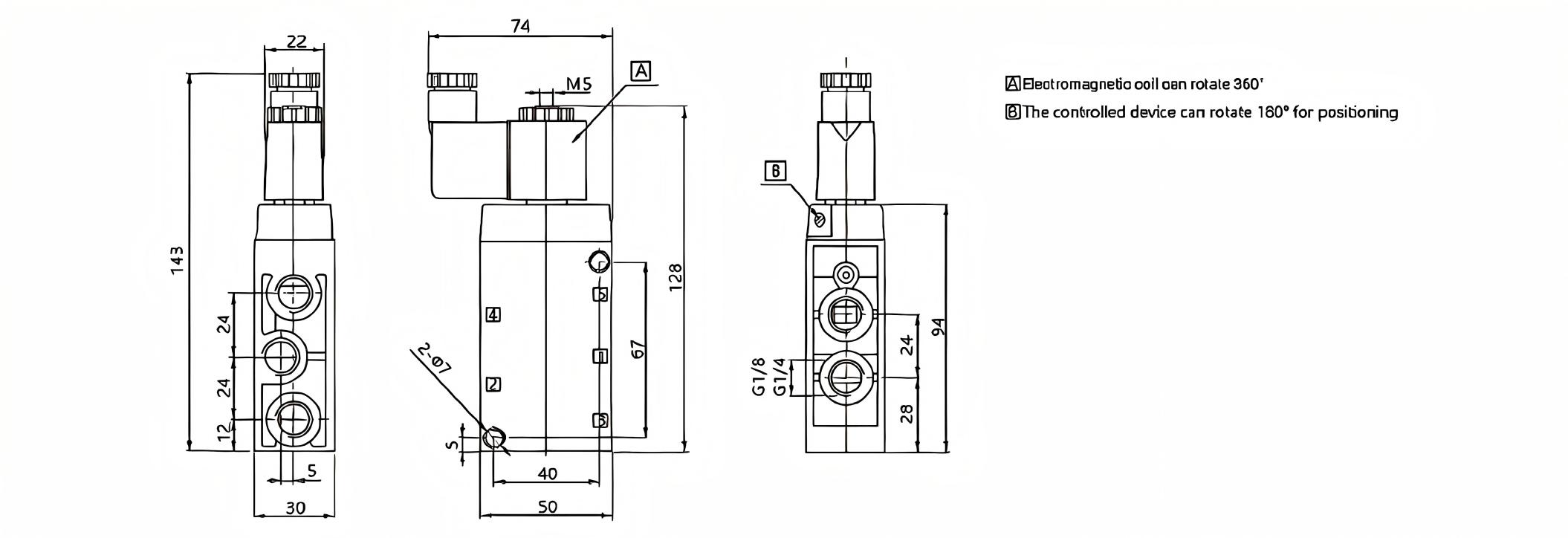

OVERALLDIMENSION&STRUCTURE

Tiger valve

Specification Download

Tiger Valve.pdf
