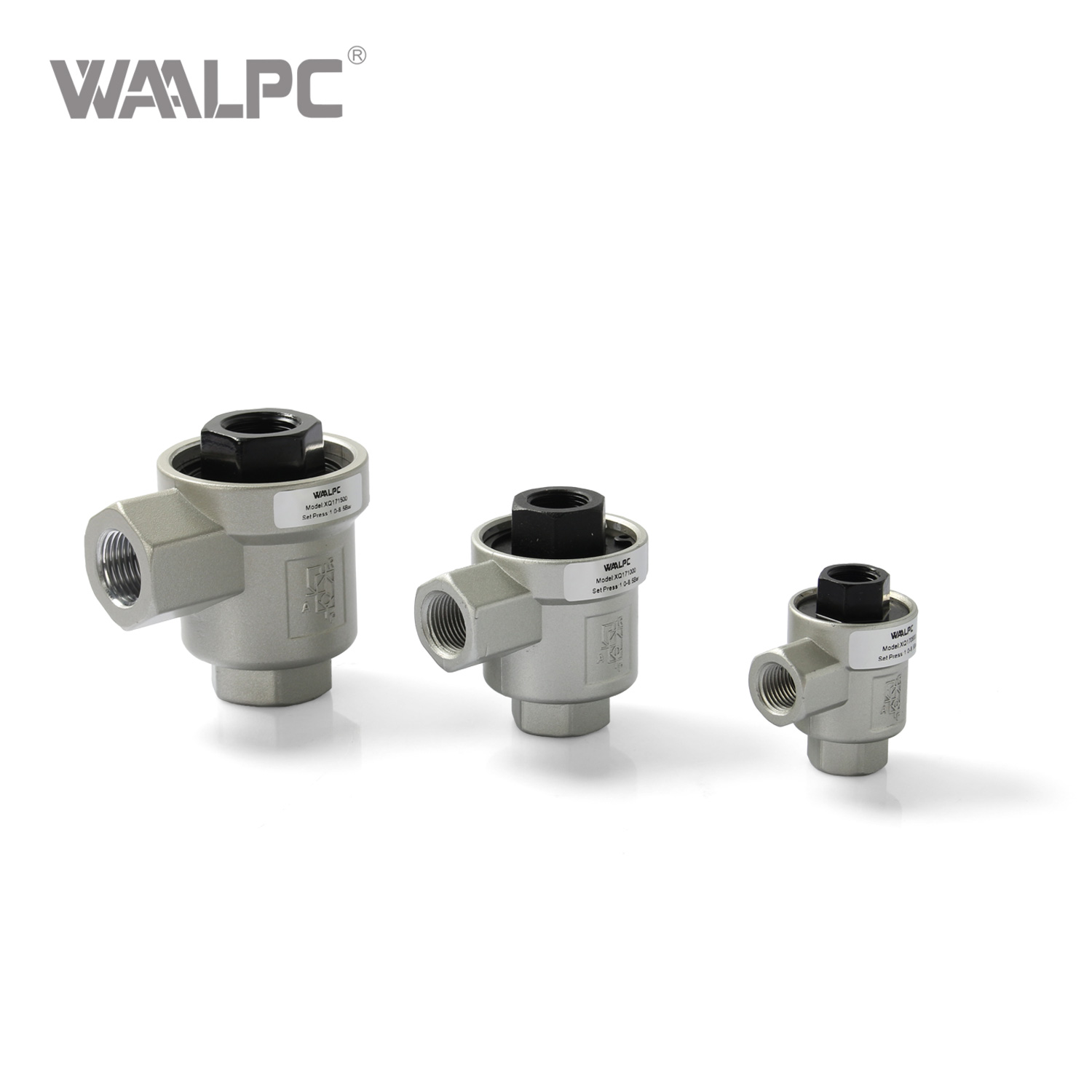

XQ Series
WAALPC
8481804090
30% Reduced Air Consumption: Minimizes compressor reload time by venting air directly to atmosphere (vs. back through lines).
1,000,000+ Cycle Lifespan(ISO 19973-3 certified) – 2× industry average, cutting replacement frequency and maintenance costs.
Direct ISO 6432 Cylinder Mount: No extra fittings – save 15 min/valve during OEM machine assembly.
G1/8'' to G1'' Ports: Drop-in replacement for SMC VXH/Festo MS-6 series (tested 100% compatibility).
DATA SHEET
Model | Port size | Nominal Dia. (mm) | Flow (m3/min) | Durability (one million time) | Operating pressure range | Switching time (s) |
XQ170600 | G1/4 | 6 | ≥0.9 | ≥200 | 1.0~8.5Bar | ≤0.03 |

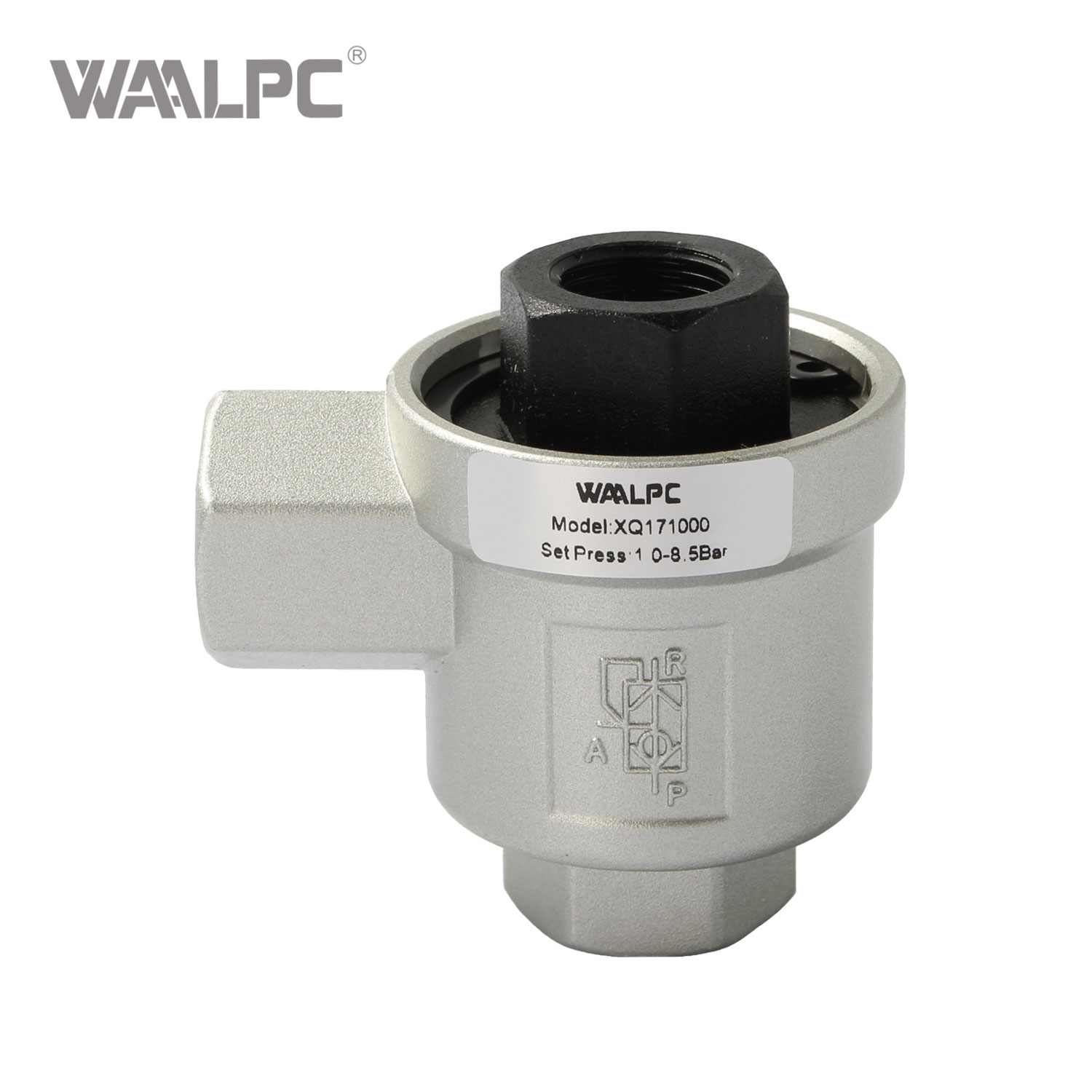

XQ171000 | G3/8 | 8 | ≥2.5 | ≤0.04 | ||
XQ171500 | G1/2 | 15 | ≥4.5 | ≤0.05 |

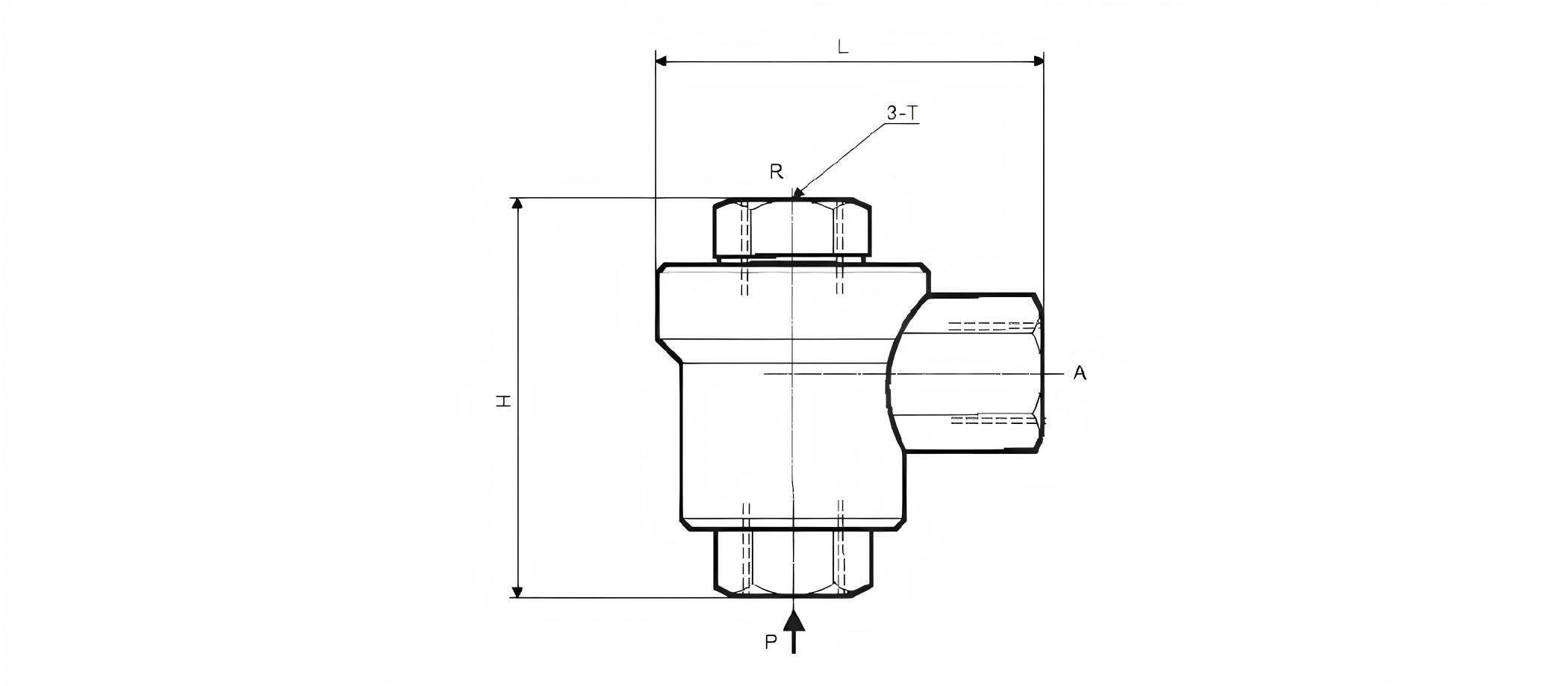

DIMENSION
Model | T | H | L |
XQ170600 | G1/4 | 51 | 45 |
XQ171000 | G3/8 | 68 | 62 |
XQ171500 | G1/2 | 77 | 86 |
