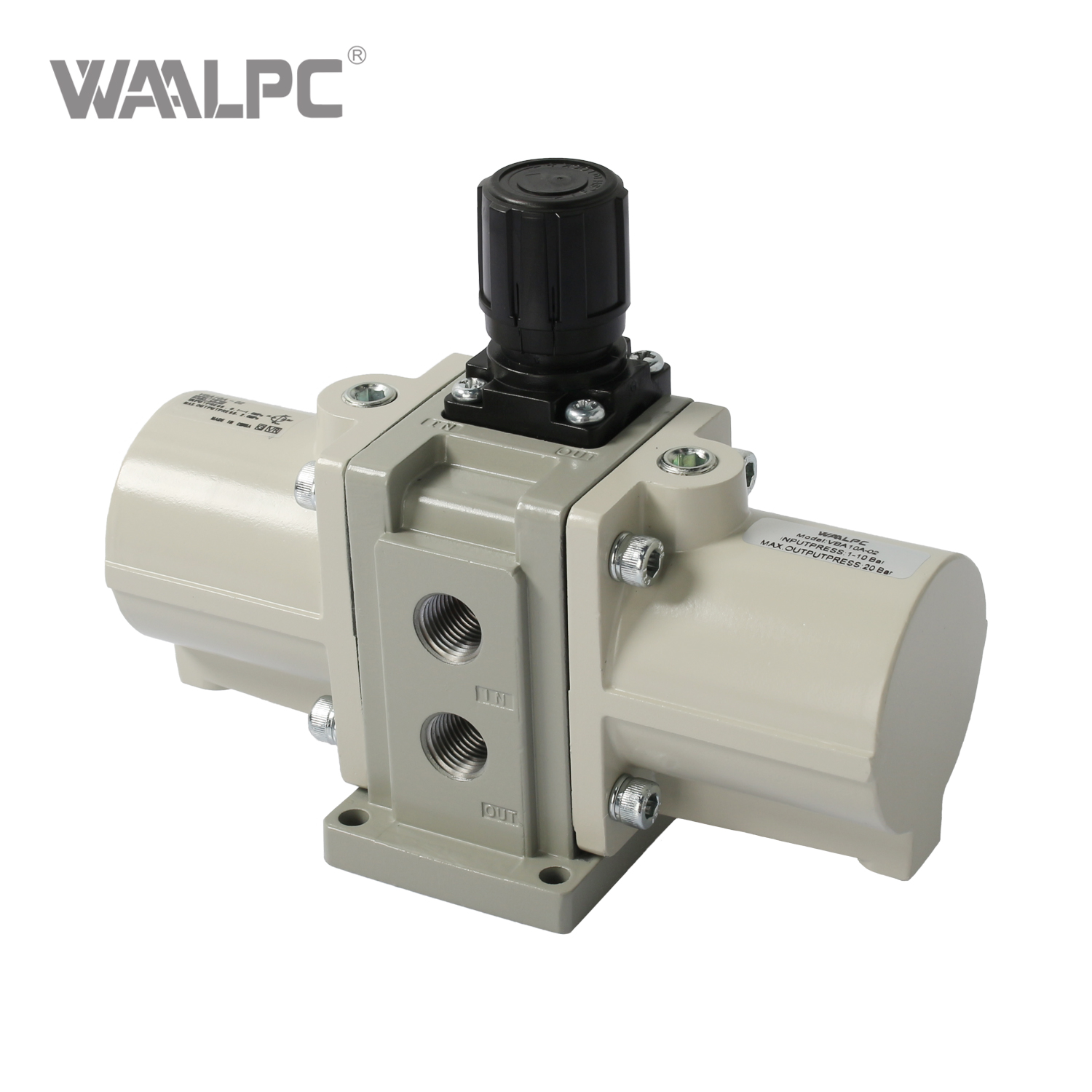

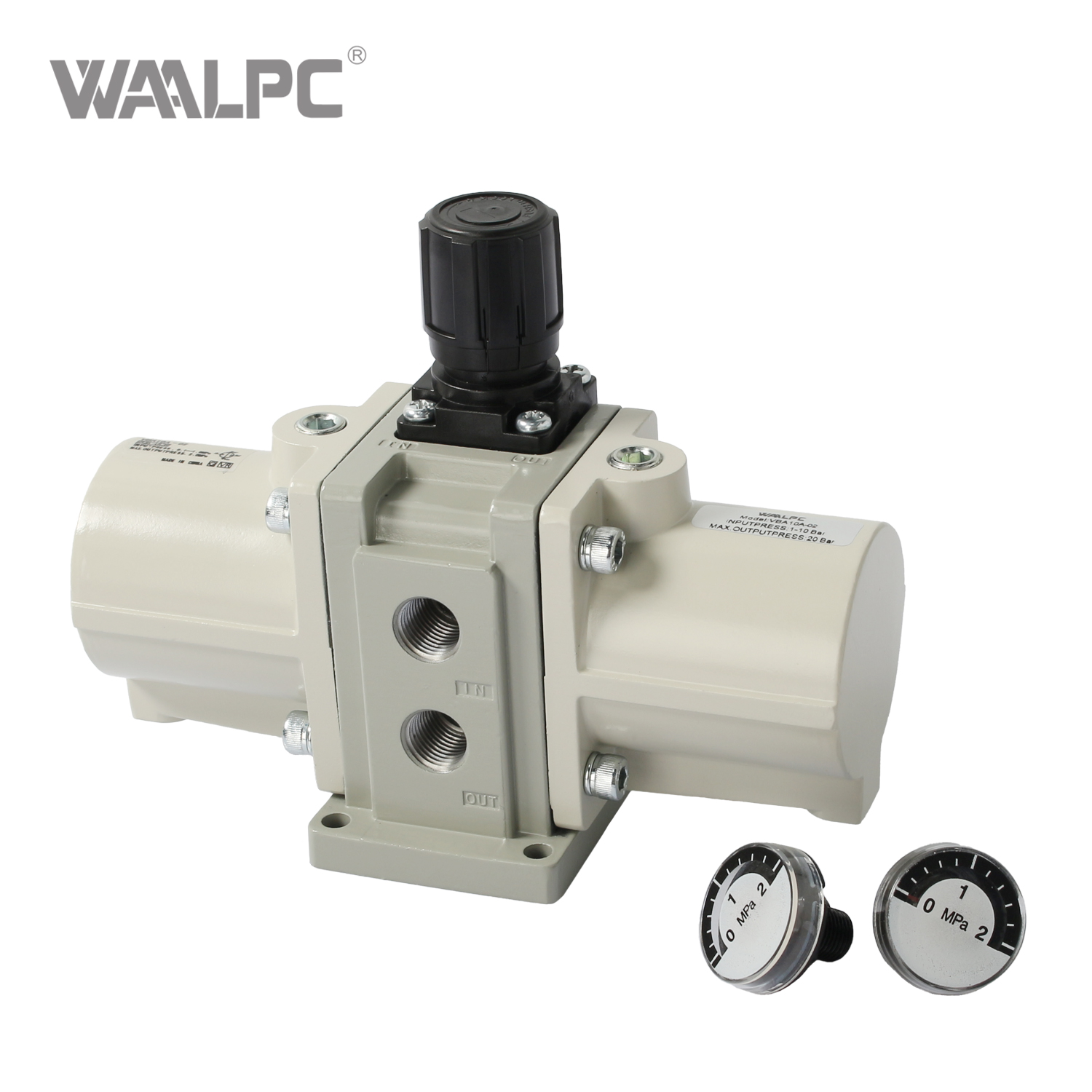

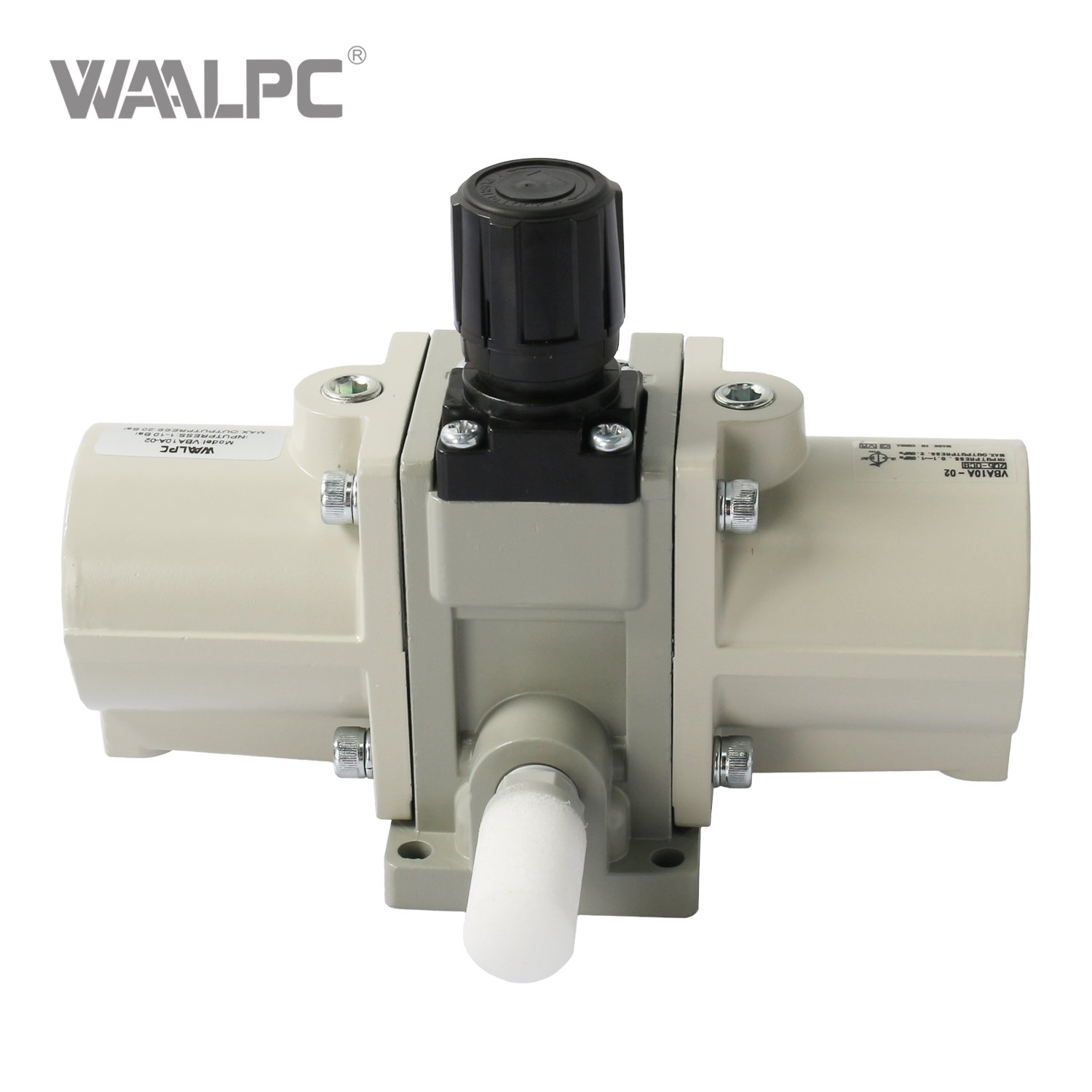

VBA High-Pressure Air Booster Regulator Valve with Integrated Relief Valve & Gauge Port Compact for Pneumatic Systems

VBA High-Pressure Air Booster Regulator Valve with Integrated Relief Valve & Gauge Port Compact for Pneumatic Systems


Availability:

Quantity:



Inquiry Add to Basket

The VBA Booster Regulator is an essential component for industrial pneumatic systems requiring higher local pressure than your main air supply can provide. It efficiently amplifies incoming air pressure by a fixed ratio (e.g., 1:2, 1:3, 1:4), enabling you to power demanding tools and actuators without the need for a separate, high-pressure compressor.

Model:
VBA
Brand:
WAALPC
Code:
8481804090

Product Description

1. Pressure Amplification: Boosts standard plant air pressure (e.g., 4-8 bar) to significantly higher output levels (e.g., 16-32 bar), perfect for high-force applications.

2. Fixed Ratio Design: Provides reliable and consistent pressure multiplication with common ratios like 1:2, 1:3, and 1:4 to suit various needs.

3. Compact & Lightweight: Its space-saving design allows for easy integration directly into machine panels or near the point of use.

4. Maintenance-Free Operation: Engineered for durability and long service life with minimal upkeep, reducing total cost of ownership.

5. Wide Material Compatibility: Features a lightweight aluminum body, ensuring excellent corrosion resistance and suitability for standard industrial environments.

6. Easy Installation: Standard ISO threads (e.g., G1/4") simplify connection to existing pneumatic circuits.

Technical Parameters

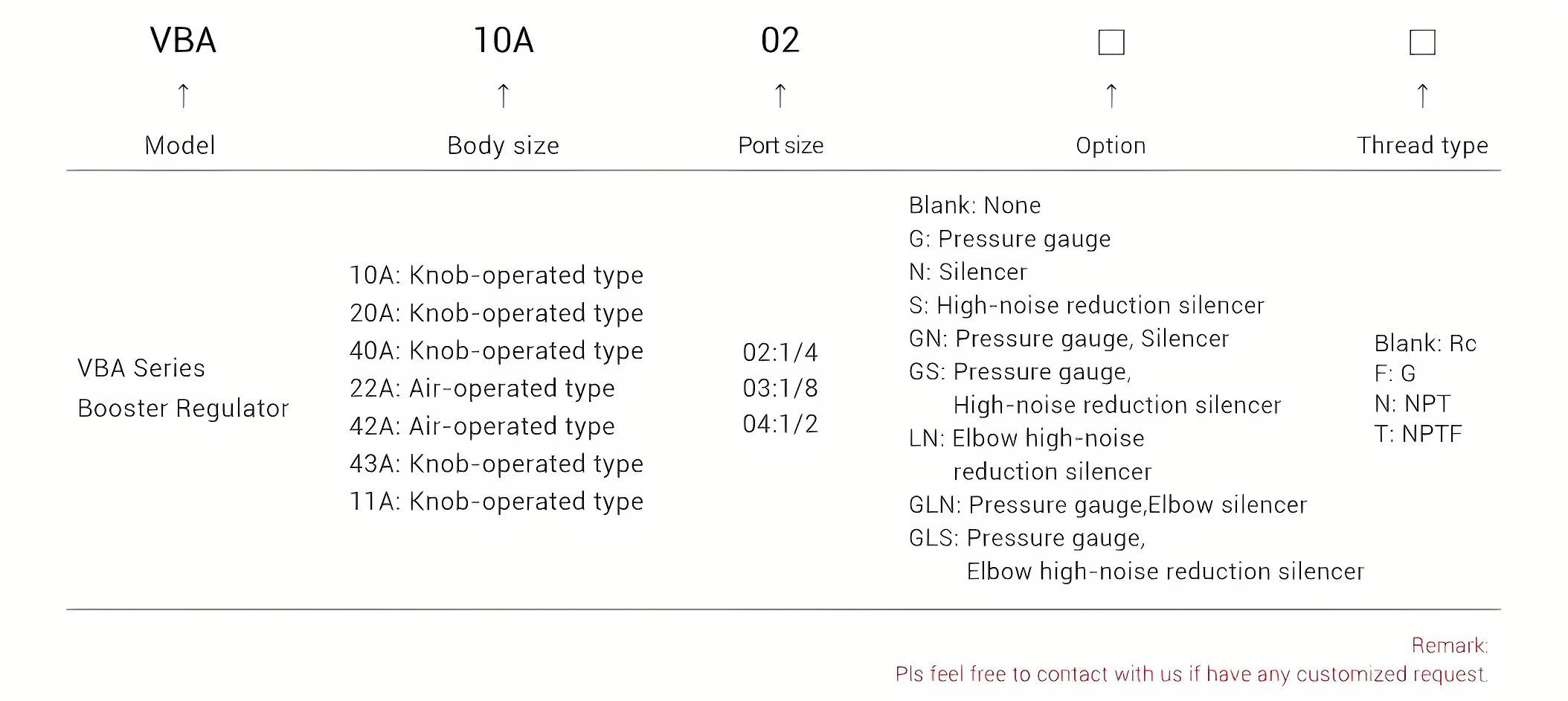

ORDERING CODE

DATA SHEET

Model	VBA10A-02	VBA20A-03	VBA40A-04	VBA22A-03	VBA42A-04	VBA43A-04	VBA11A-02
Fluid	Compressed air
Pressure ratio	Twice						2 to 4 Times
Pressure adjustment mechanism	Equipped with overflow function Knob-operated type			Air-operated type		Knob-operated type
Set pressure range	0.2~2.0MPa	0.2~1.0MPa		0.2~1.0MPa		0.2~1.6MPa	0.2~2.0MPa
Supply pressure range	0.1~1.0MPa
Proof pressure	3MPa	1.5MPa				2.4MPa	3MPa
Connection caliber (IN, OUT, EXH)	1/4	3/8	1/2	3/8	1/2		1/4
Diameter of pressure gauge connection(IN, OUT)	1/8
Temperature	2~50℃
Installation direction	Horizontal
Lubrication	Grease(No oil)
Quality	0.84kg	3.9kg	8.6kg	3.9kg	8.6kg	8.6kg	0.89kg

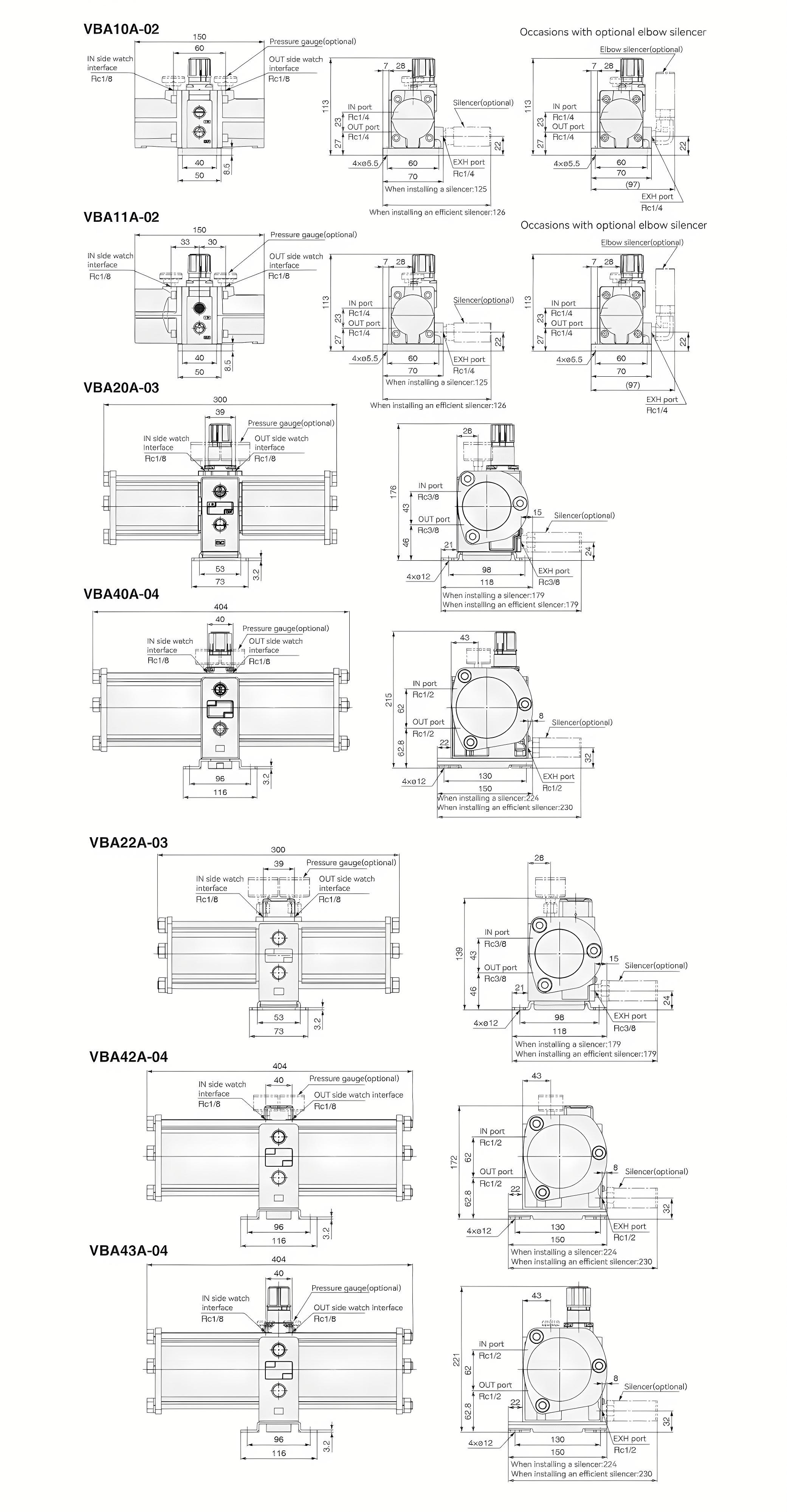

STRUCTURE

VBA Booster Regulator

Specification Download

VBA Booster Regulator.png
