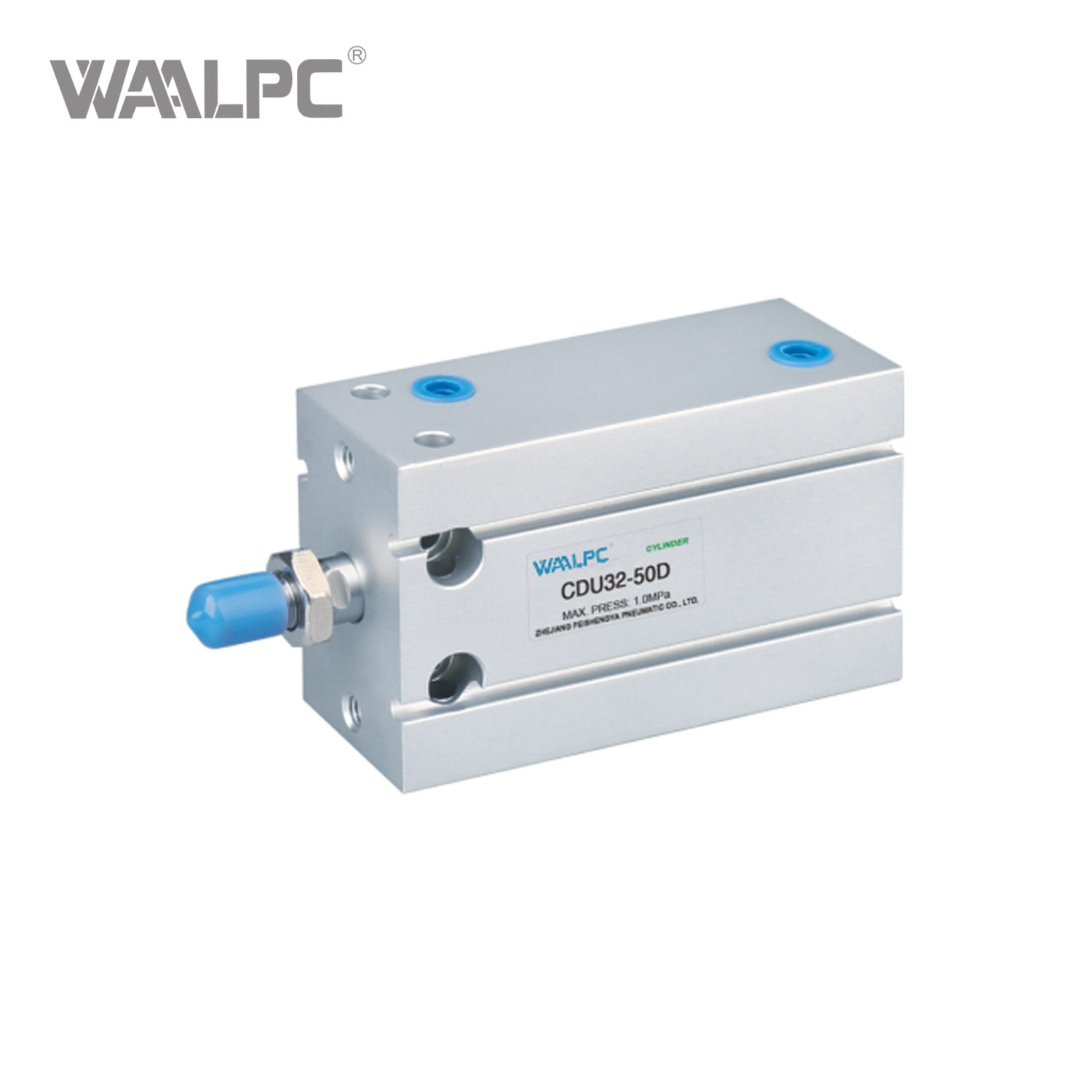

ISO 15552 Standard Round Body Air Cylinder CDU32 Series Double Acting Single Rod with Adjustable Cushion And Multiple Mounting Options

ISO 15552 Standard Round Body Air Cylinder CDU32 Series Double Acting Single Rod with Adjustable Cushion And Multiple Mounting Options


Availability:

Quantity:



Inquiry Add to Basket

The C(D)U Series is a line of heavy-duty, ISO 15552 compliant round body pneumatic cylinders designed for robust performance in demanding industrial automation applications. As part of a standardized global series, the CDU32 ensures interchangeability and reliable operation, providing powerful linear motion for a wide range of tasks.

Model:
C(D)U
Brand:
WAALPC
Code:
8409919990

Product Description

1. Robust & Durable Construction

Built for Demanding Environments: With a stainless steel piston rod and corrosion-resistant body materials, the CDU series is engineered to withstand harsh industrial environments, including exposure to moisture and contaminants, ensuring a long service life.
Heavy-Duty Performance: The robust design and large bore sizes (e.g., 32mm, 40mm, 50mm, and up) are capable of generating significant force, making these cylinders ideal for heavy-load applications.

2. Superior Control & Smooth Operation

Adjustable Cushioning: A key feature is the adjustable air cushion on both ends of the cylinder. This allows for precise control of the piston's deceleration, effectively minimizing impact, reducing noise, and preventing damage to the cylinder and the machine at the end of the stroke.
Precise Position Sensing: Many models are available with a built-in magnet in the piston, enabling seamless integration with magnetic sensors for accurate position detection and feedback in automated control systems.

3. Design Flexibility & Easy Integration

Multiple Mounting Options: The series offers a wide range of standard international mounting styles (e.g., front/rear flange, foot, trunnion), providing exceptional flexibility for straightforward integration into virtually any machine layout.
Proven Reliability & Low Maintenance: The use of high-quality seals and precision manufacturing ensures consistent, leak-free operation over long periods. This results in reduced downtime and lower total cost of ownership.

Technical Parameters

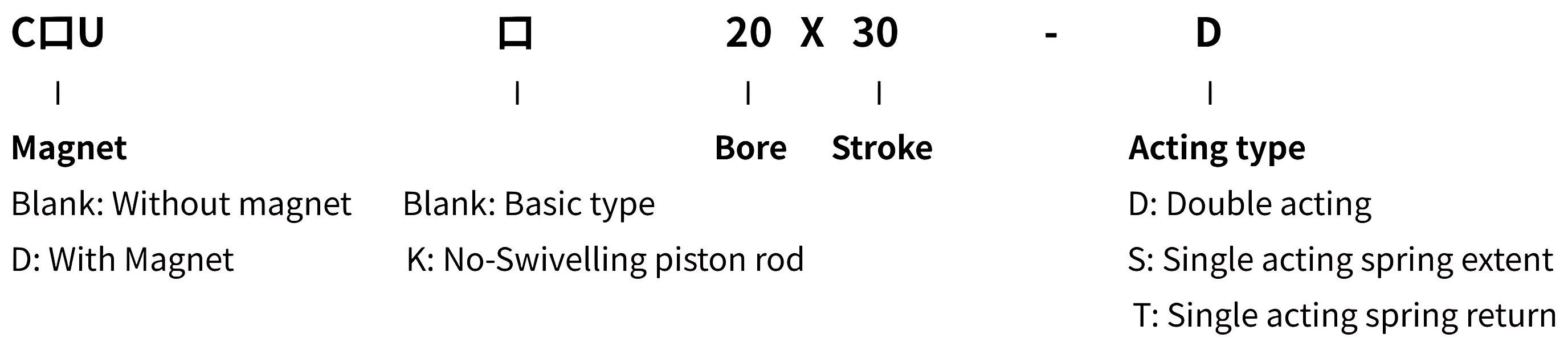

ORDERING CODE

Round Body Air Cylinder

SPECIFICATION

Bore(mm)			6	10	16	20	25	32
Working Medium			Clean Air(40um Filtration)
Acting type			Double Acting/Single Acting
Min. Pressure(MPa)	Double acting	Single piston rod	0.12	0.06		0.05
		Double piston rod	0.15	0.1		0.08
		Double piston rod	0.18	0.13		0.11
	Single acting	Standard	0.2	0.15		0.13
		Non-rotating	0.23	0.18		0.16
Max. Pressure			0.7MPa
Working Temperature			5~60°C
Cushion Type			Rubber Cushion
Stroke Tolerance(mm)			±0.1
Lubrication			Not required
Installation			Free
Non-rotating accuracy			±0.8°			±0.5°
Port Size			M5x0.8					G1/8

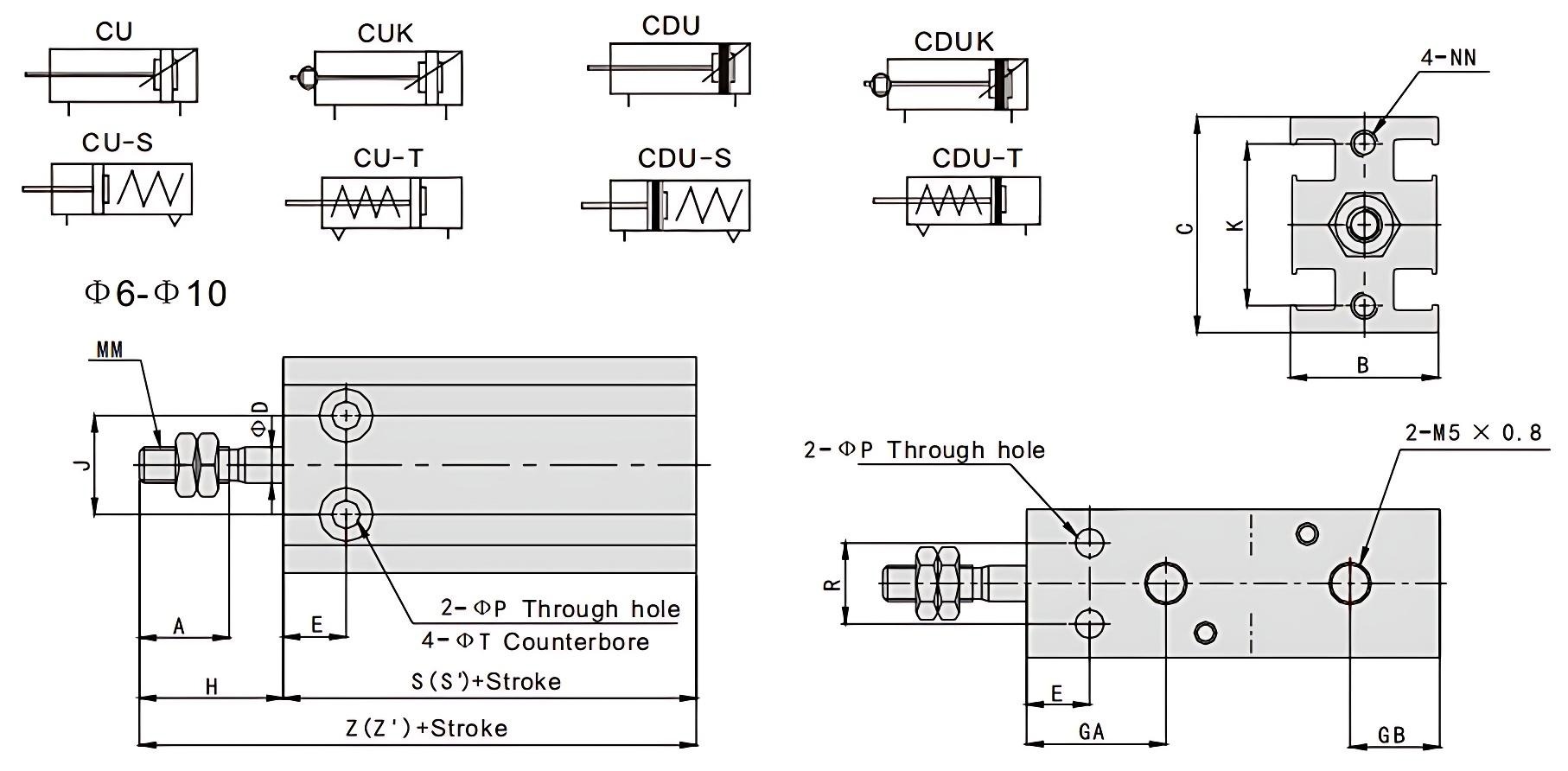

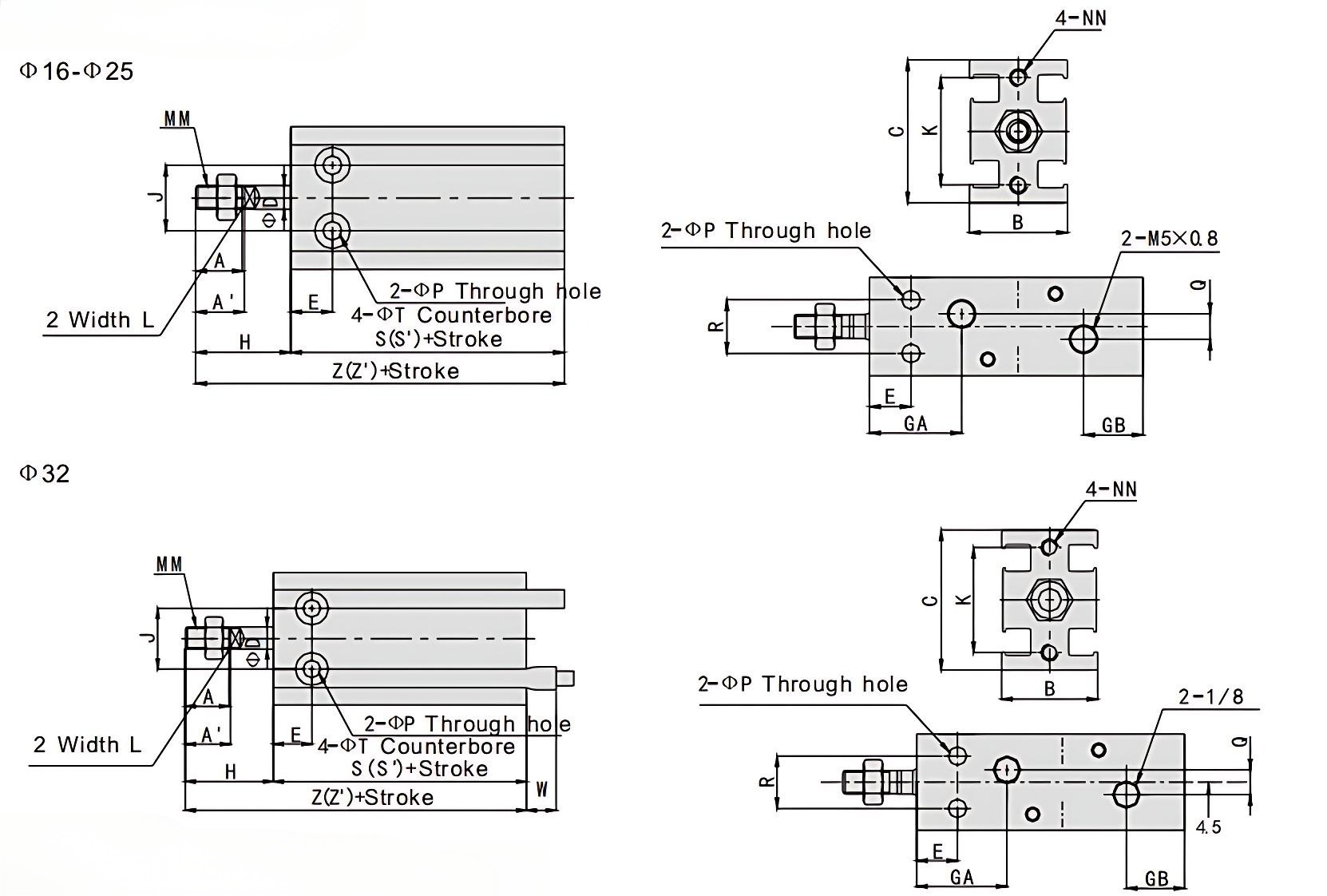

OVERALLDIMENSION&STRUCTURE

Round Body Air Cylinder

SMC Round Body Air Cylinder

Model	A	A1	B	C	ΦD	E	GA	GB	J	K	L	MM	NN	ΦP	Q	R	ΦT
C口U6	7	-	13	22	3	7	14.5	10	10	17	-	M3x0.5	M3x0.5Depth5	3.2	-	7	6Depth4.8
C口U10	10	-	15	24	4	7	15.5	10	11	18	-	M4x0.7	M3x0.5Depth5	3.2	-	9	6Depth5
C口U16	11	12.5	20	32	6	7	16.5	11.5	14	25	5	M5x0.8	M4x0.7Depth6	4.5	4	12	7.6Depth6.5
C口U20	12	14	26	40	8	9	19	12.5	16	30	6	M6x1.0	M5x0.8Depth8	5.5	9	16	9.3Depth8
C口U25	15.5	18	32	50	10	10	21.5	13	20	38	8	M8x1.25	M5x0.8Depth8	5.5	9	20	9.3Depth9
C口U32	19.5	22	40	62	12	11	23	13	24	48	10	M10x1.25	M6x1.0Depth9	6.6	13.5	24	11Depth11.5

Double Acting

Model	H	Standard		With magnet
Model	H	S	Z	W	S'	Z'
C口U6-口D	13	33	46	2.5	33	46
C口U10-口D	16	36	52	1	36	52
C口U16-口D	16	30	46	0	40	56
C口U20-口D	19	36	55	1	46	65
C口U25-口D	23	40	63	-1	50	73
C口U32-口D	27	42	69	-4	52	79

Single Acting(With spring return)

Model	H	Standard						W	With Magnet
		S			Z				S'			Z'
		5st	10st	15st	5st	10st	15st		5st	10st	15st	5st	10st	15st
C口U6-口S	13	38	43	48	51	56	61	2.5	38	43	48	51	56	61
C口U10-口S	16	41	46	56	57	62	72	1	41	46	56	57	62	72
C口U16-口S	16	35	40	50	51	56	66	0	45	50	60	61	66	76
C口U20-口S	19	41	46	56	60	65	71	1	51	56	66	70	75	85
C口U25-口S	23	45	50	60	68	73	83	-1	55	60	70	78	83	93
C口U32-口S	27	47	52	62	74	79	89	-4	57	62	72	84	89	99

Specification Download
