CA2
WAALPC
8409919990
1. Lightweight and Robust Design: The square end cover and tie-rod structure make these cylinders both durable and lighter, simplifying handling and installation.
2. Easy-to-Control Air Cushion: The air cushion on both ends is adjustable, allowing for precise control over piston deceleration, which reduces impact and noise at the end of the stroke.
3. Versatile Magnetic Switch Compatibility: These cylinders can accommodate a range of magnetic switches, from compact reed switches to those resistant to strong magnetic fields, facilitating easy integration for position sensing.
4. Pre-equipped for Easy Installation: Many models come with standard rod-end fittings and swing mount brackets, saving time by eliminating the need to order and assemble these parts separately.
5. Comprehensive Model Range: The series includes several variants to meet diverse application needs:
Standard Type: Single-rod double-acting (CA2) and double-rod double-acting (CA2W).
Non-Rotating Rod Type: (CA2K, CA2KW) to prevent rod rotation.
Low Friction Type: (CA2□Q) for applications requiring minimal starting friction.
Rod Lock Type: (CBA2) to hold the piston rod in position.
Air-Hydraulic Type: (CA2□H, CA2W□H) for combined air and hydraulic operation.

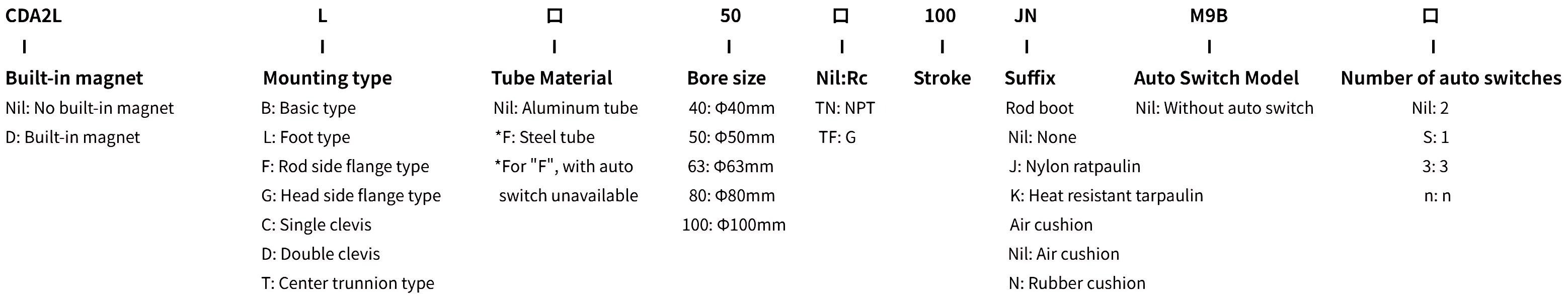

ORDERING CODE
SPECIFICATION
Bore size(mm) | 40 | 50 | 63 | 80 | 100 |
Operating pressure | 0.05~1.0MPa | ||||
Ambient and fluid temperature | Without auto switch: -10℃~+70℃, With auto switch: -10℃~+60℃ | ||||
Operating piston speed | 50~500mm/s | ||||
Cushion | Air cushion | ||||
Allowable stroke tolerance(mm) | ~250: +1.0, 251~1000: +1.4, 1001~1500: +1.8 | ||||
Lubrication | Not required | ||||
Port size | 1/4 | 3/8 | 1/2 |

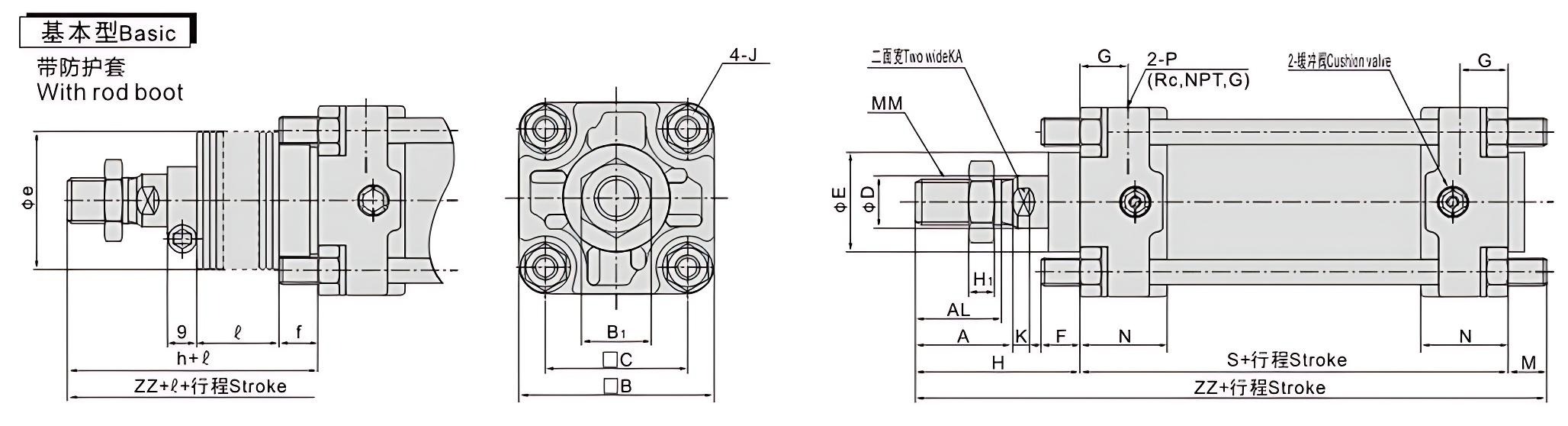

OVERALLDIMENSION&STRUCTURE
Bore size(mm) | Travel range(mm) | A | AL | 口B | B1 | 口C | D | E | F | G | H1 | J | K | KA | M | MM | N | P | S | Without rod boot | With rod boot | ||||||
Without rod boot | With rod boot | H | ZZ | e | f | h | ![]() | ZZ | |||||||||||||||||||
40 | ~500 | 20~500 | 30 | 27 | 60 | 22 | 44 | 16 | 32 | 10 | 15 | 8 | M8x1.25 | 6 | 14 | 11 | M14x1.5 | 27 | 1/4 | 84 | 51 | 146 | 43 | 11.2 | 59 | 1/4 stroke | 154 |
50 | ~600 | 20~600 | 35 | 32 | 70 | 27 | 52 | 20 | 40 | 10 | 17 | 11 | M8x1.25 | 7 | 18 | 11 | M18x1.5 | 30 | 3/8 | 90 | 58 | 159 | 52 | 11.2 | 66 | 1/4 stroke | 167 |
63 | ~600 | 20~600 | 35 | 32 | 85 | 27 | 64 | 20 | 40 | 10 | 17 | 11 | M10x1.5 | 7 | 18 | 14 | M18x1.5 | 31 | 3/8 | 98 | 58 | 170 | 52 | 11.2 | 66 | 1/4 stroke | 178 |
80 | ~750 | 20~750 | 40 | 37 | 102 | 32 | 78 | 25 | 52 | 14 | 21 | 13 | M12x1.75 | 10 | 22 | 17 | M22x1.5 | 37 | 1/2 | 116 | 71 | 204 | 65 | 12.5 | 80 | 1/4 stroke | 213 |
100 | ~750 | 20~750 | 40 | 37 | 116 | 41 | 92 | 30 | 52 | 14 | 21 | 16 | M12x1.75 | 10 | 26 | 17 | M26x1.5 | 40 | 1/2 | 126 | 72 | 215 | 65 | 14 | 81 | 1/4 stroke | 224 |

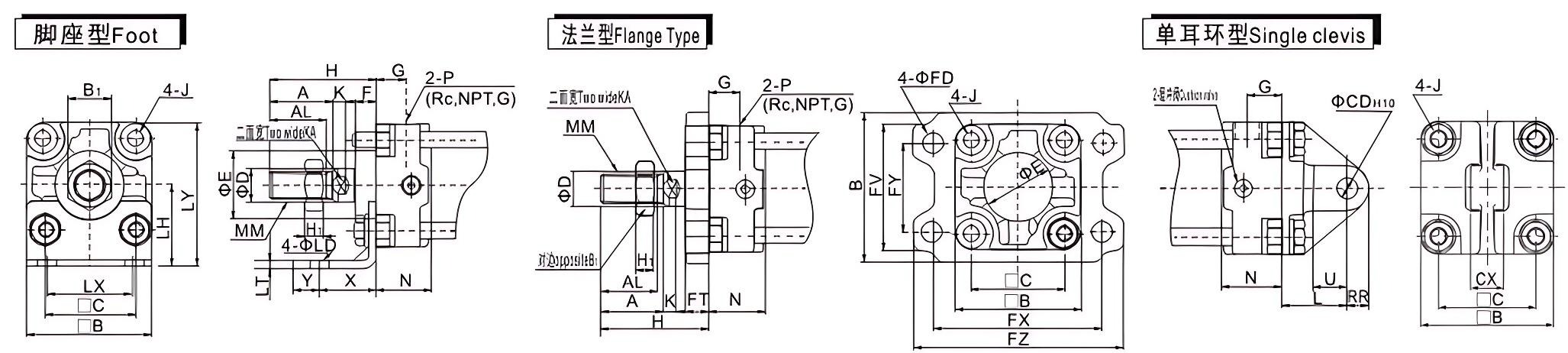

Bore size (mm) | Foot | Flange | Single clevis | ||||||||||||||||
LH | LX | LY | X | Y | LT | LD | FT | FD | B | FV | FX | FY | FZ | CD | U | L | RR | CX | |
40 | 40 | 42 | 70 | 27 | 13 | 3.2 | 9 | 12 | 9 | 71 | 60 | 80 | 42 | 100 | 10 | 16 | 30 | 10 | 15 |
50 | 45 | 50 | 80 | 27 | 13 | 3.2 | 9 | 12 | 9 | 81 | 70 | 90 | 50 | 110 | 12 | 19 | 35 | 12 | 18 |
63 | 50 | 59 | 93 | 34 | 16 | 3.2 | 11.5 | 15 | 11.5 | 101 | 86 | 105 | 59 | 130 | 16 | 23 | 40 | 16 | 25 |
80 | 65 | 76 | 116 | 44 | 16 | 4.5 | 13.5 | 18 | 13.5 | 119 | 102 | 130 | 76 | 160 | 20 | 28 | 48 | 20 | 31.5 |
100 | 75 | 92 | 133 | 43 | 17 | 6.0 | 13.5 | 18 | 13.5 | 133 | 116 | 150 | 92 | 180 | 25 | 36 | 58 | 25 | 35.5 |
*The unmarked dimension is the same as the basic type.

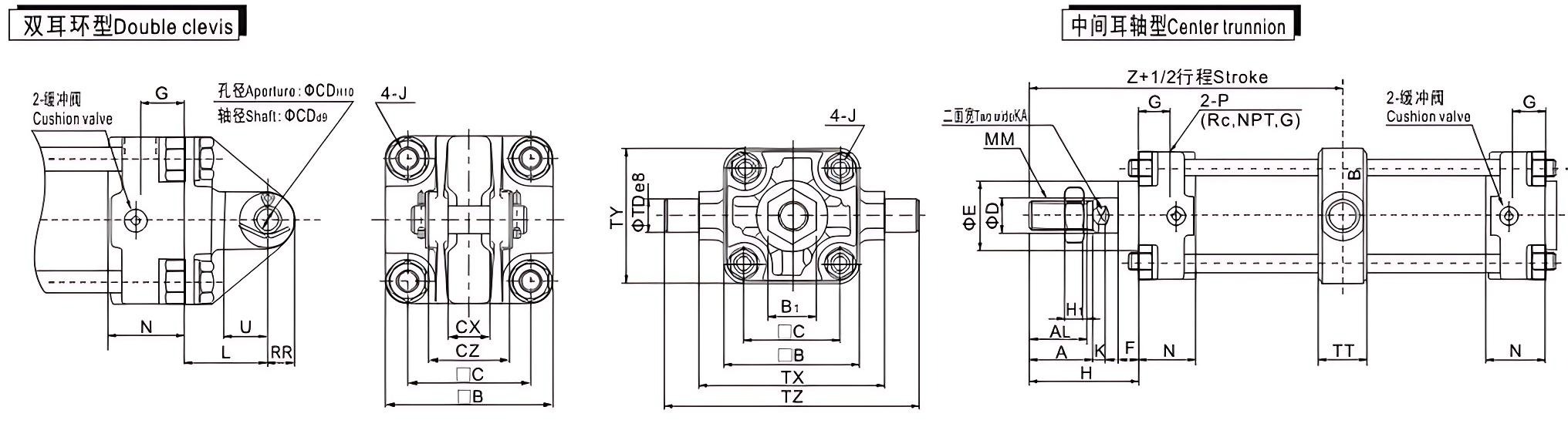

Bore size (mm) | Double clevis | Center trunnion | |||||||||
CD | U | L | RR | CX | CZ | TY | TD | TX | TZ | TT | |
40 | 10 | 16 | 30 | 10 | 15 | 29.5 | 62 | 15 | 85 | 117 | 22 |
50 | 12 | 19 | 35 | 12 | 18 | 38 | 74 | 15 | 95 | 127 | 22 |
63 | 16 | 23 | 40 | 16 | 25 | 49 | 90 | 28 | 110 | 148 | 28 |
80 | 20 | 28 | 48 | 20 | 31.5 | 61 | 110 | 25 | 140 | 192 | 34 |
100 | 25 | 36 | 58 | 25 | 35.5 | 64 | 130 | 25 | 162 | 214 | 40 |
