CJ2B Series Compact Stainless Steel Body Mini Pneumatic Cylinder with Built-in Magnet, Rubber Cushion, And Multiple Mounting Options

CJ2B Series Compact Stainless Steel Body Mini Pneumatic Cylinder with Built-in Magnet, Rubber Cushion, And Multiple Mounting Options


Availability:

Quantity:



Inquiry Add to Basket

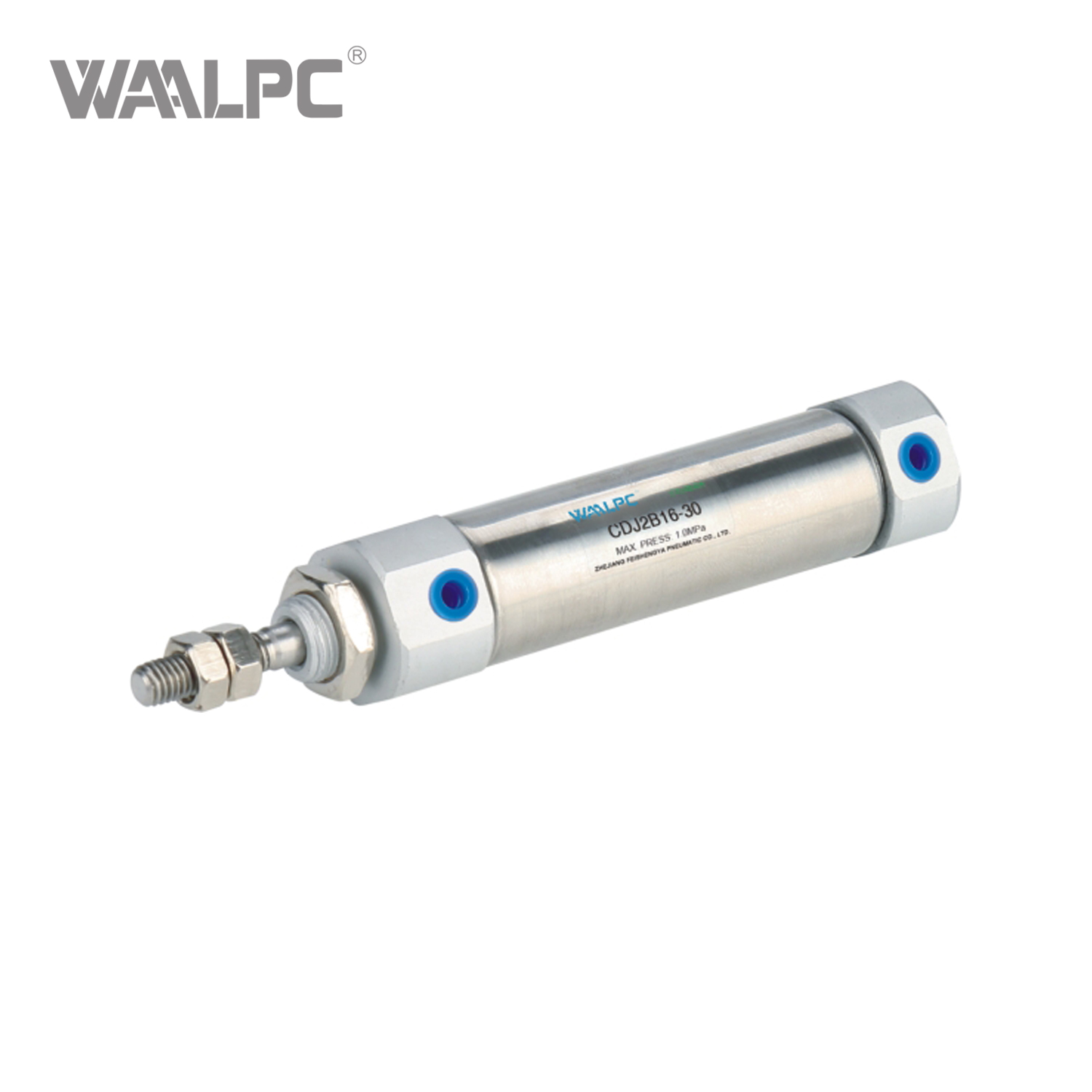

The CJ2B Series is a line of compact, round body mini pneumatic cylinders designed for applications requiring a small footprint and reliable performance. A key feature of this series is its stainless steel body and piston rod, which offers good corrosion resistance and durability.

Model:
CJ2B
Brand:
WAALPC
Code:
8409919990

Product Description

1. Compact and Durable Construction: The CJ2B series features a stainless steel tube and a stainless steel piston rod, contributing to a robust design that resists corrosion . Its miniature size helps save space in tight machine layouts.

2. High-Speed Operation: Designed for efficiency, these cylinders can operate at piston speeds ranging from 50 to 750 mm/s.

3. Built-in Magnet for Sensing: Many models come with a built-in magnet in the piston, allowing for the direct attachment of magnetic reed switches for precise position detection .

4. User-Friendly Design:

Transparent Switch Bracket: The magnetic switch bracket is transparent, enabling easy visual confirmation of the switch's status .
Easy Switch Adjustment: The design of the cylinder allows for easy micro-adjustment of magnetic switches along the cylinder body .

5. Multiple Model Variations: The series includes several types to suit different needs. The model codes often indicate specific features:

Basic Type: Standard model without built-in magnet (e.g., CJ2B) .
With Built-in Magnet Type: Models designed for use with magnetic switches (e.g., CDJ2B) .
Various Actions: The series offers double-acting models for power in both directions, and single-acting (spring return or spring extend) models for applications requiring automatic return.

Technical Parameters

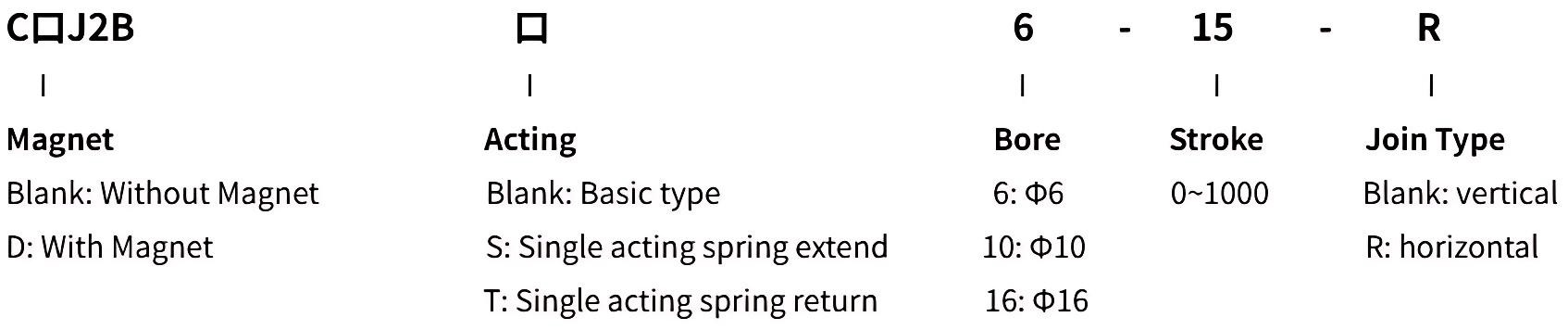

ORDERING CODE

CJ2B ordering_

SPECIFICATION

Bore(mm）	6	10	16
Working Medium	Clean Air(40µm Filteration)
Guarantee Pressure	1.05Mpa
Max Working Pressure	0.7Mpa
Min Working Pressure	0.12Mpa	0.06Mpa
Working Temperature	-10 to 70℃
Speed Range	50 to750mm/s
Cushion Type	Rubber Cushion
Tolerance of Stroke	±1.0mm

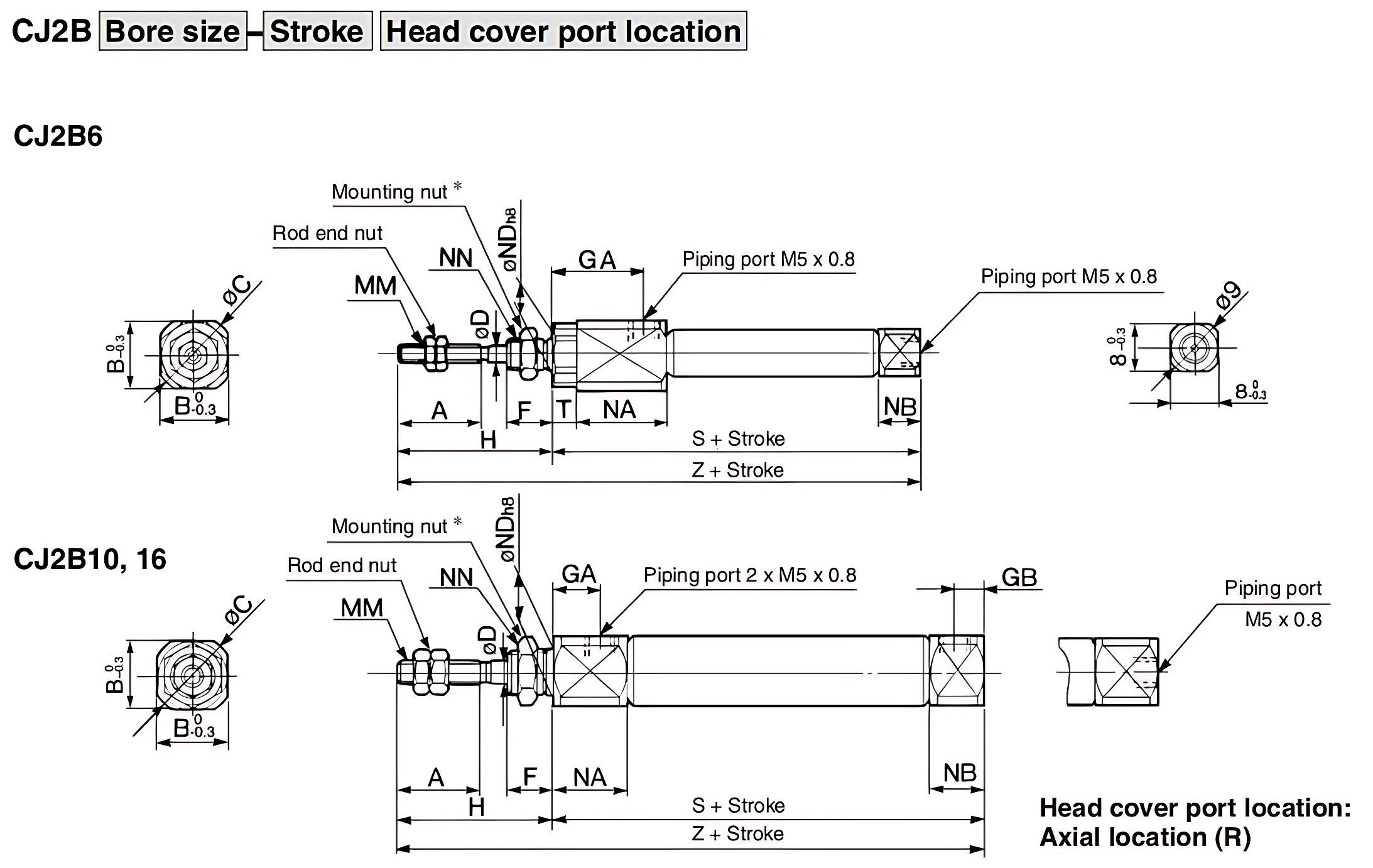

OVERALLDIMENSION&STRUCTURE

Stainless Steel Mini Pneumatic Cylinder

Stainless Steel Cylinder

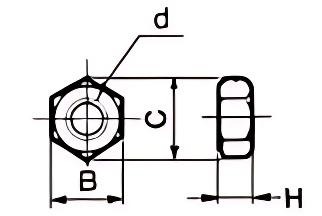

Rod End Nut

CJ2B structure3_

Material: Iron

Part no.	Applicable bore(mm)	B	C	d	H
NTJ-006A	6	5.5	6.4	M3x0.5	2.4
NTJ-010A	10	7	8.1	M4x0.7	3.2
NTJ-015A	16	8	9.2	M5x0.8	4

Bore size(mm)	A	B	C	D	F	GA	GB	H	MM	NA	NV	NDh8	NN	S	T	Z
6	15	12	14	3	8	14.5	-	28	M3x0.5	16	7	6	M6x1.0	49	3	77
10	15	12	14	4	8	8	5	28	M4x0.7	12.5	9.5	8	M8x1.0	46	-	74
16	15	18.3	20	5	8	8	5	28	M5x0.8	122.5	9.5	10	M10x1.0	47	-	75

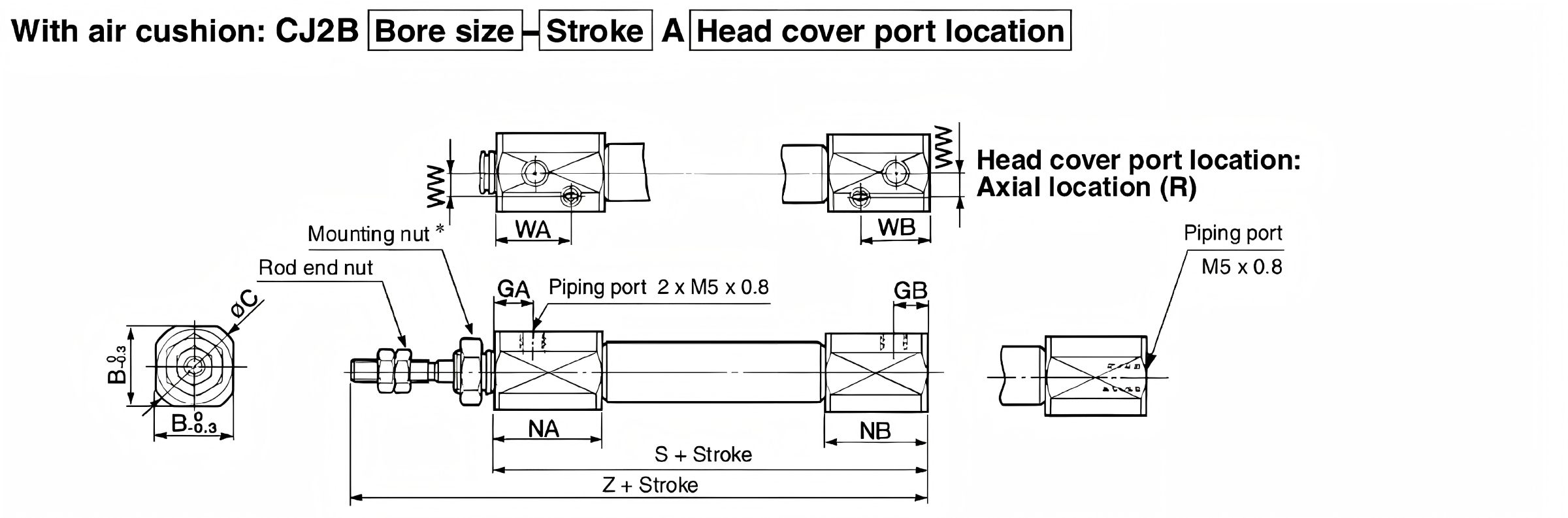

With Air Cushion/Dimensions other than the table below are the same as the table above.

Bore size(mm)	B	C	GA	GB	NA	NB	WA	WB	WW	S	Z
10	15	17	7.5	6.5	21	20	14.5	13.5	4.5	65	93
16	18.3	20	7.5	6.5	21	20	14.5	13.5	5.5	66	94

Specification Download
