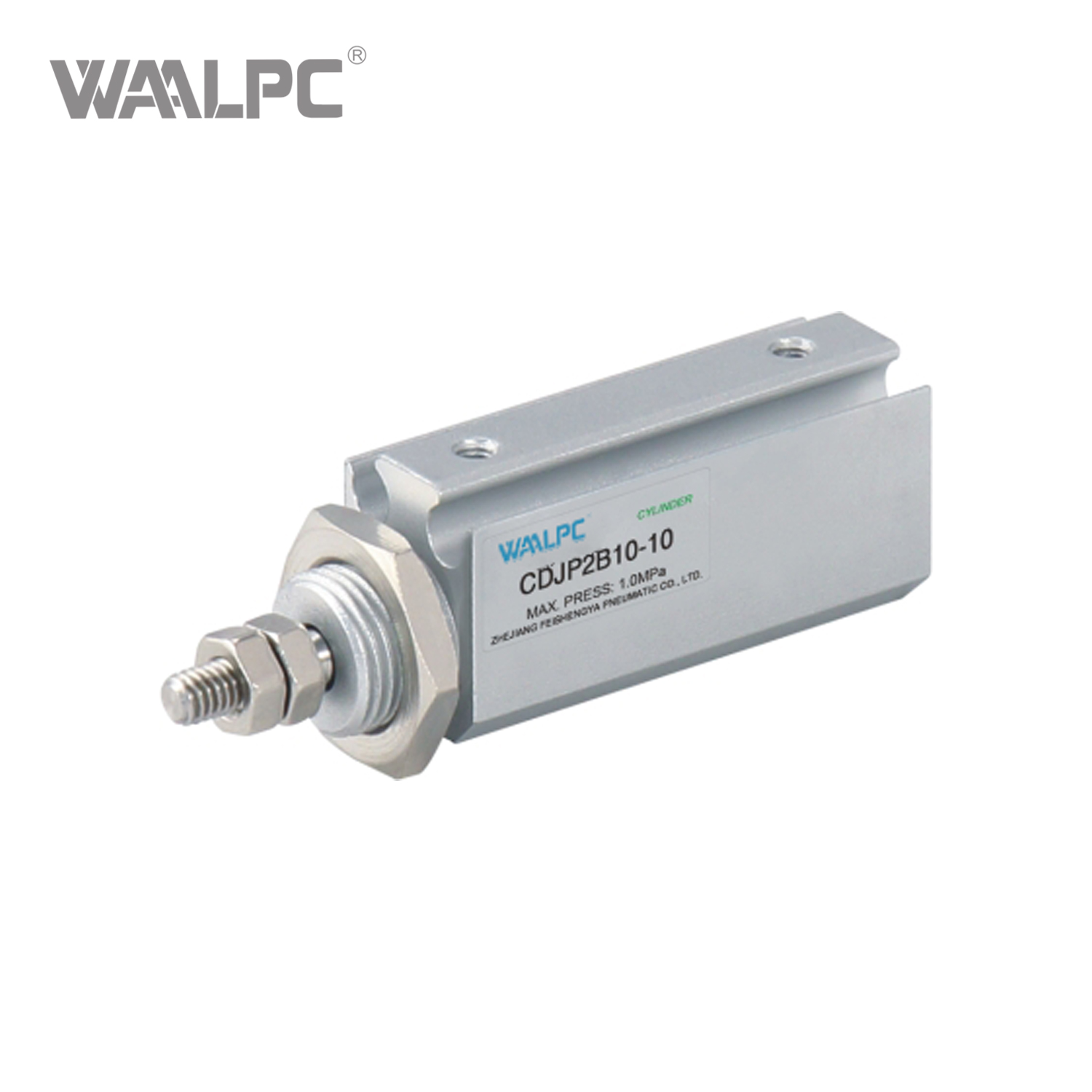

The CDJP2B Series is a line of compact, round body "Pin Cylinder". Designed for applications where space is at a premium, these cylinders are a key part of the CJP2 series of standard round-type air cylinders. A standout feature is their ability to accommodate two magnetic reed switches even on very short strokes, such as a 5mm stroke, enabling precise position detection in tight spaces.

Model:
CDJP2B
Brand:
WAALPC
Code:
8409919990

Product Description

Space Efficiency: Its miniature "Pin Cylinder" design is ideal for small-scale automation.

Precision Detection: Ability to mount two magnetic switches on very short strokes allows for high-precision control.

Easy Integration: Compatible with ø2 quick couplings and speed controllers.

Durability: Stainless steel construction ensures longevity.

Technical Parameters

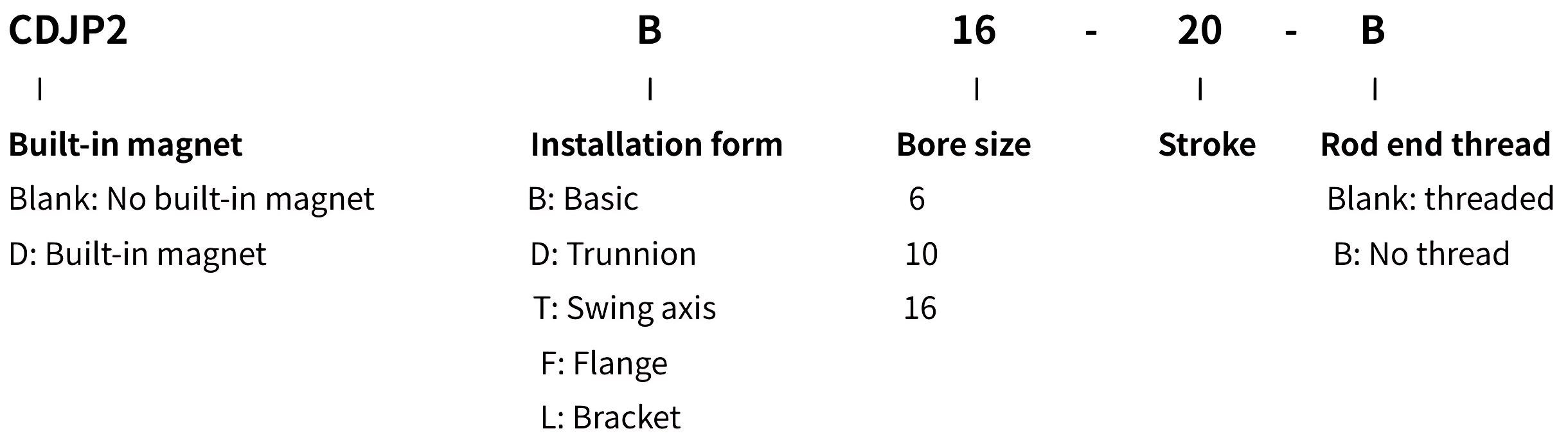

ORDERING CODE

Mini Air Cylinder

SPECIFICATION

Bore size(mm)	4	6	10	16
Working medium	Air (to be filtered by 40um filter element)
Action type	Double-acting
Max. operating pressure(MPa)	0.7
Min. operating pressure	0.15	0.12	0.06
Environment and fliud temperature	Non-magnetic switch: -10℃~70℃(Not frozen) Magnetic switch: -10℃~60℃(Not frozen)
Cushion type	Rubber buffer
Piston speed	10~500mm/s
Stroke Tolerance(mm)	0~+1.0
Lubrication	Not required(Non-tube)
Port size	M3x0.5			M5x0.8

OVERALLDIMENSION&STRUCTURE

Mini Air Cylinder

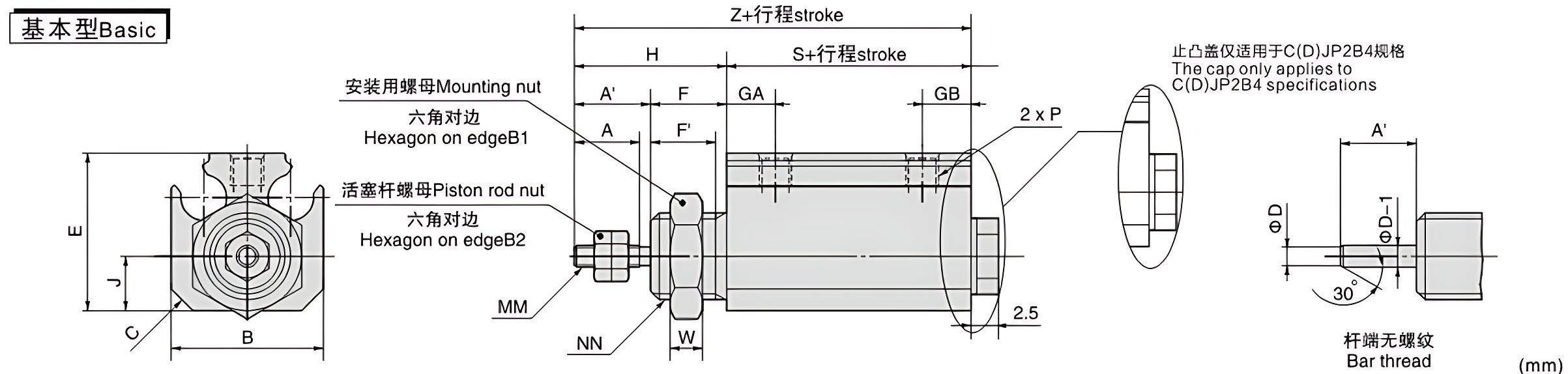

Bore size(mm)	A	A'	B	B1	B2	C	D	E	F	F'	GA	GB	H	J	MM	NN	P	Nobuilt-in magnet			Built-in magnet
Bore size(mm)	A	A'	B	B1	B2	C	D	E	F	F'	GA	GB	H	J	MM	NN	P	S	W	Z	S	W	Z
4	6	7	14	10	4	2	1.7	14.5	7	6	4.5	4.5	14	5	M2x0.4	M8x1.0	M3x0.5	12.5	3	29	17.5	3	34
6	7	9	14	14	5.5	2	3	16.5	8	6.5	6.5	6.5	17	6	M3x0.5	M10x1.0	M3x0.5	16	3	33	21	3	38
10	10	12	15	17	7	2.5	4	19	8	6.5	6	7	20	7	M4x0.7	M12x1.0	M3x0.5	19.5	3	39.5	24.5	3	44.5
16	12	14	20	19	8	3	6	24.5	10	8.5	6.5	7.5	24	10	M5x0.8	M14x1.0	M5x0.8	19.5	4	43.5	24.5	4	48.5

Mini Air Cylinder

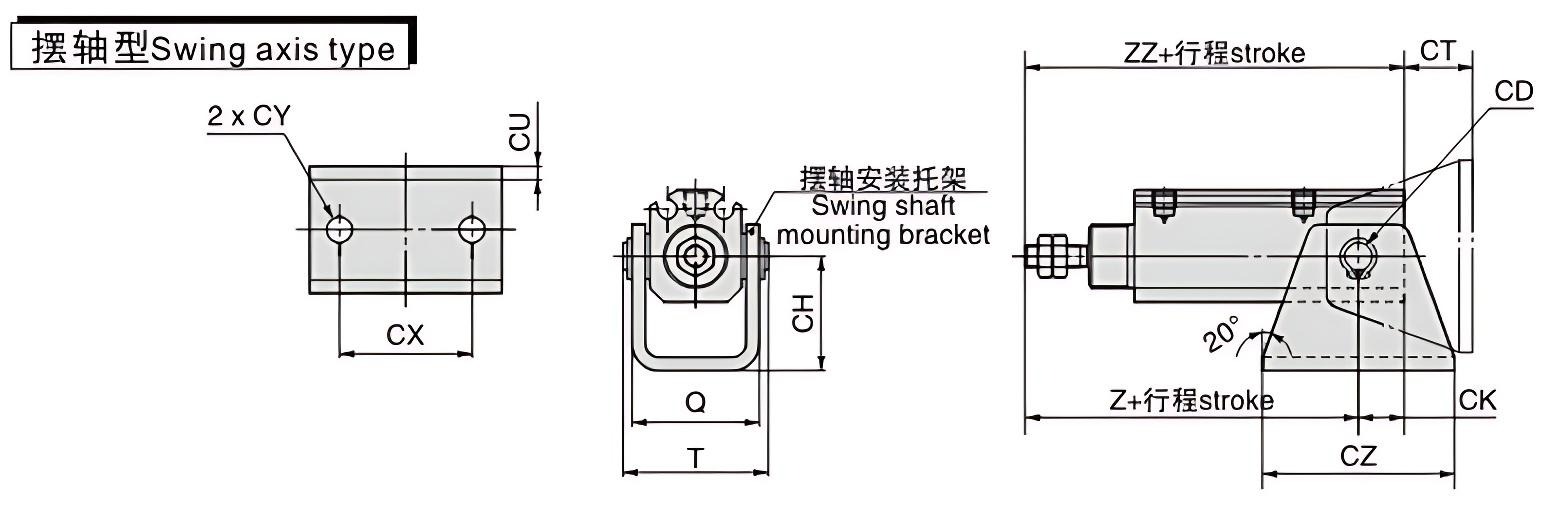

Bore/Mark	CD	CH	CK	CT	CU	CX	CY	CZ	Q	T	No built-in magnet		Built-in magnet
Bore/Mark	CD	CH	CK	CT	CU	CX	CY	CZ	Q	T	Z	ZZ	Z	ZZ
6	3	16	4	12	1.6	18	3.4	26	18.5	20.4	34	38	34	38
10	5	20	6.5	13.5	1.6	24	4.5	33	20.5	23.9	44	50.5	44	50.5
16	6	25	10	15	2.9	29	5.5	42	28	31.7	48	58	48	58

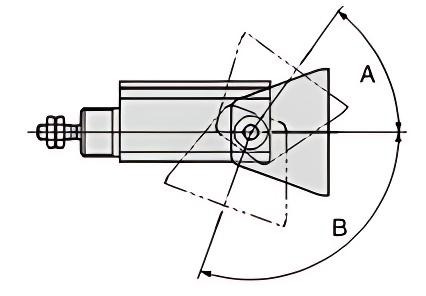

Apply to bore(mm)	Φ6	Φ10	Φ16
A	54°	62°	55°
B	110°	110°	102°
