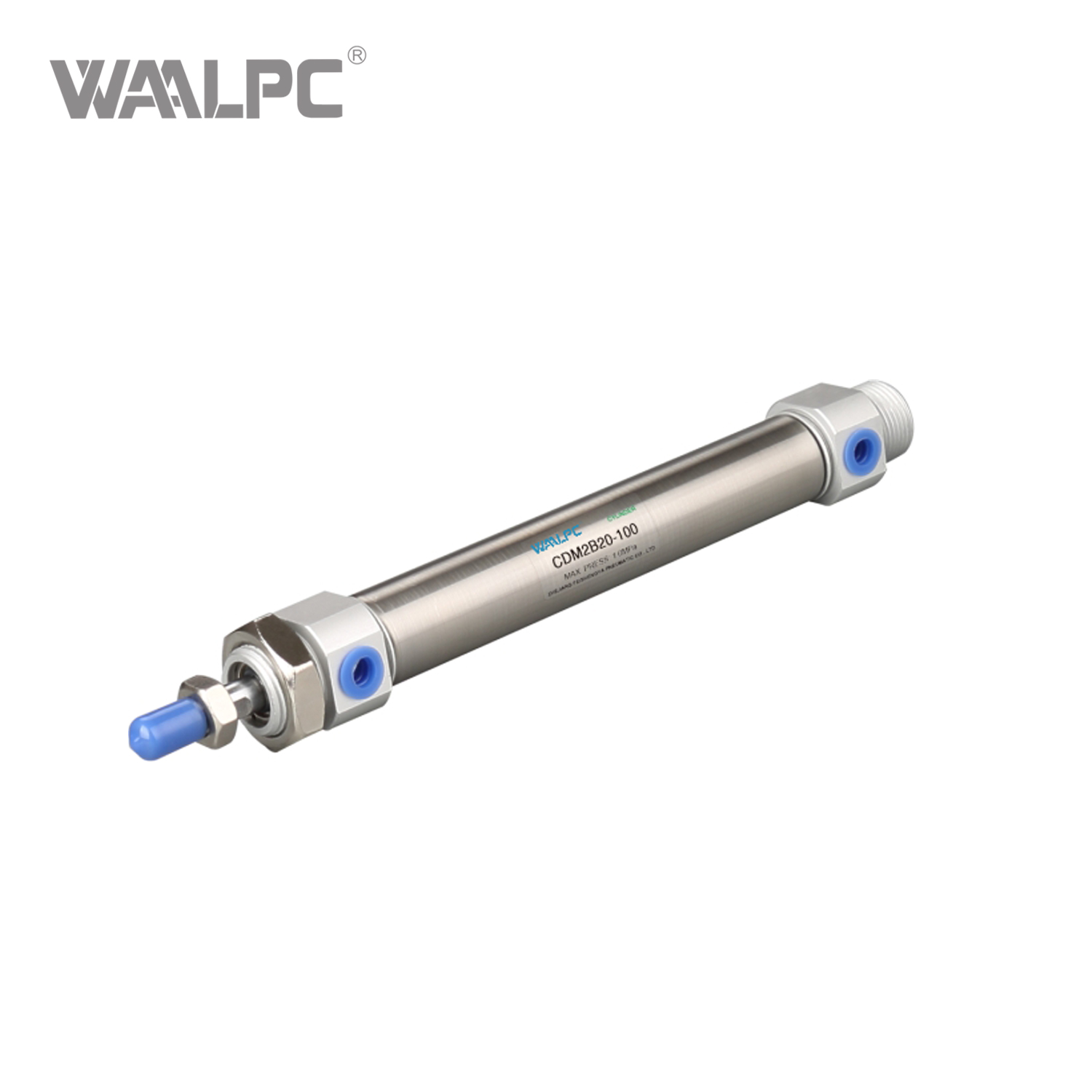

C(D)M2B Series High-Performance Mini Pneumatic Cylinder Double Acting Single Rod with Built-in Magnet for Automation Systems

C(D)M2B Series High-Performance Mini Pneumatic Cylinder Double Acting Single Rod with Built-in Magnet for Automation Systems


Availability:

Quantity:



Inquiry Add to Basket

The C(D)M2B Series is a line of standard round body, compact pneumatic cylinders designed by SMC for general-purpose automation applications where space-saving and reliability are key.

Model:
C(D)M2B
Brand:
WAALPC
Code:
8409919990

Product Description

Compact and Space-Saving Design: The round body profile and compact construction make it ideal for machinery with limited installation space.
Durable and Corrosion-Resistant: The cylinder tube is made from stainless steel, and the piston rod is also stainless steel, offering excellent resistance to corrosion and ensuring a long service life.
Built-in Magnet for Sensing (CDM2B Models): The integrated magnet allows for easy installation of magnetic reed switches, facilitating automated position detection and sequence control without external mechanical actuators.
Double-Acting Operation: Provides controlled linear force in both the extending and retracting directions.
Low Friction & Non-Lube Operation: Designed for smooth performance and can operate without lubrication, reducing maintenance requirements. (Note: Lubrication can be used to extend service life).
Rubber Cushion: Both end covers are fitted with rubber cushions to absorb impact energy at the end of the stroke, ensuring smooth operation, reducing noise, and minimizing vibration.

Technical Parameters

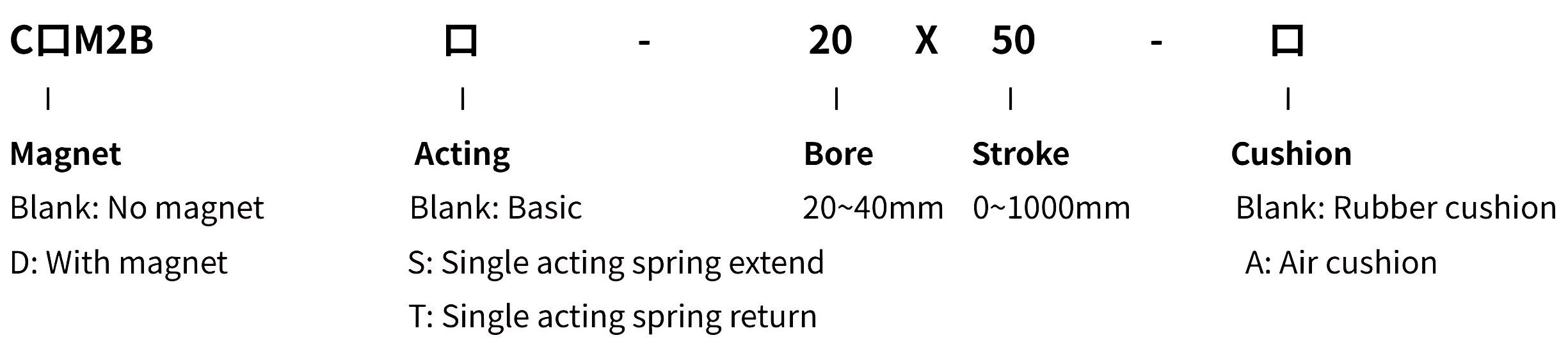

ORDERING CODE

C(D)M2B Series High-Performance Mini Pneumatic Cylinder

SPECIFICATION

Bore size(mm)	20	25	32	40
Working medium	Clean air
Action type	Double-acting
Guaranteed pressure	0.05 to 1.0MPa
Working temperature	-10 to 70℃
Cushion type	Rubber cushion(standard),Air cushion (optional)
Speed range	Min:10mm/s		Max:1000mm/s

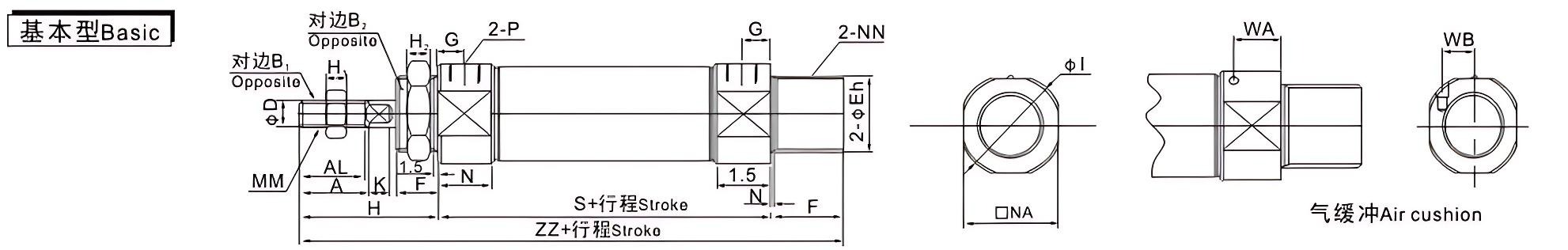

OVERALLDIMENSION&STRUCTURE

C(D)M2B Series High-Performance Mini Pneumatic Cylinder

Bore size(mm)	Travel range	A	AL	B1	B2	D	E	F	G	H	H1	H2	I	K	MM	N	NA	NN	P	S	ZZ	WA	WB
20	~300	18	15.5	13	26	8	20	13	8	41	5	8	28	5	M8x1.25	15	24	M20x1.5	1/8	62	116	13	8.5
25	~300	22	19.5	17	32	10	26	13	8	45	6	8	33.5	5.5	M10x1.25	15	30	M26x1.5	1/8	62	120	13	10.5
32	~300	22	19.5	17	32	12	26	13	8	45	6	8	37.5	5.5	M10x1.25	15	34.5	M26x1.5	1/8	64	122	13	11.5
40	~300	24	21	22	41	14	32	16	11	50	6	10	46.5	7	M14x1.5	21.5	42.5	M32x2	1/4	88	154	16	15

C(D)M2B Series High-Performance Mini Pneumatic Cylinder

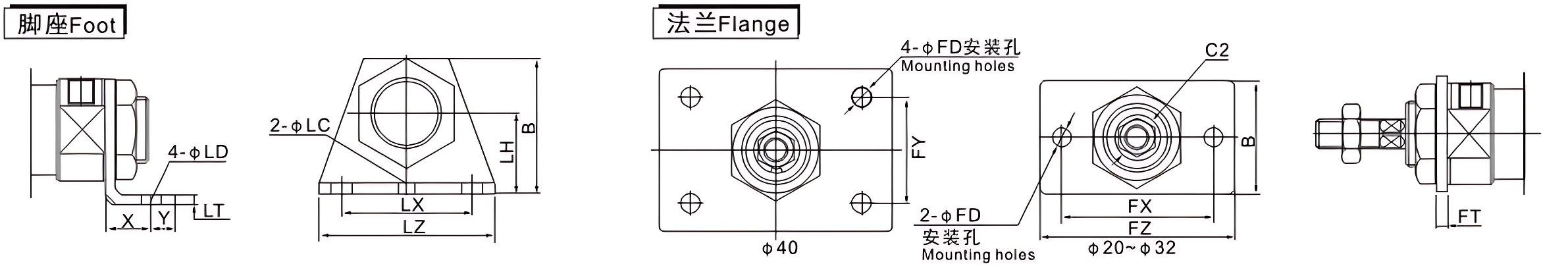

Bore size(mm)	Foot									Flange
Bore size(mm)	X	Y	ΦLD	ΦLC	LX	LZ	LH	LT	B	FD	FY	FX	FZ	C2	B	FT
20	20	8	6.8	4	40	55	25	3.2	40	7	-	60	75	30	34	4
25	20	8	6.8	4	40	55	28	3.2	47	7	-	60	75	37	40	4
32	20	8	6.8	4	40	55	28	3.2	47	7	-	60	75	37	40	4
40	23	10	7	4	55	75	30	3.2	54	7	36	66	82	47.3	52	5

High-Performance Mini Pneumatic Cylinder

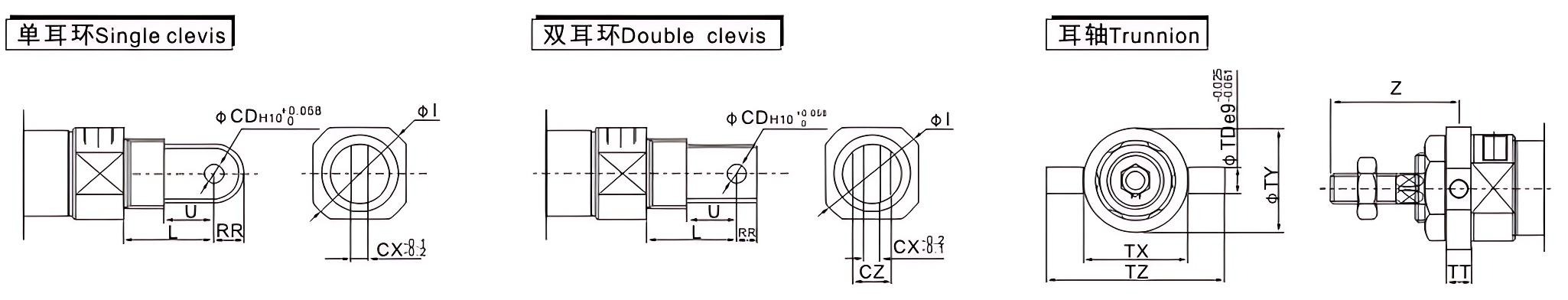

Bore size(mm)	Single clevis						Double clevis							Trunnion
Bore size(mm)	L	U	RR	ΦI	ΦCD	CX	L	U	RR	ΦCD	CX	CZ	ΦI	TX	TZ	TD	TY	Z	TT
20	30	14	9	28	9	10	30	14	9	9	10	19	28	32	52	8	32	36	10
25	30	14	9	33.5	9	10	30	14	9	9	10	19	33.5	40	60	9	40	40	10
32	30	14	9	37.5	9	10	30	14	9	9	10	19	37.5	40	60	9	40	40	10
40	39	18	11	46.5	10	15	39	18	11	10	15	30	46.5	53	7	10	53	44.5	11
