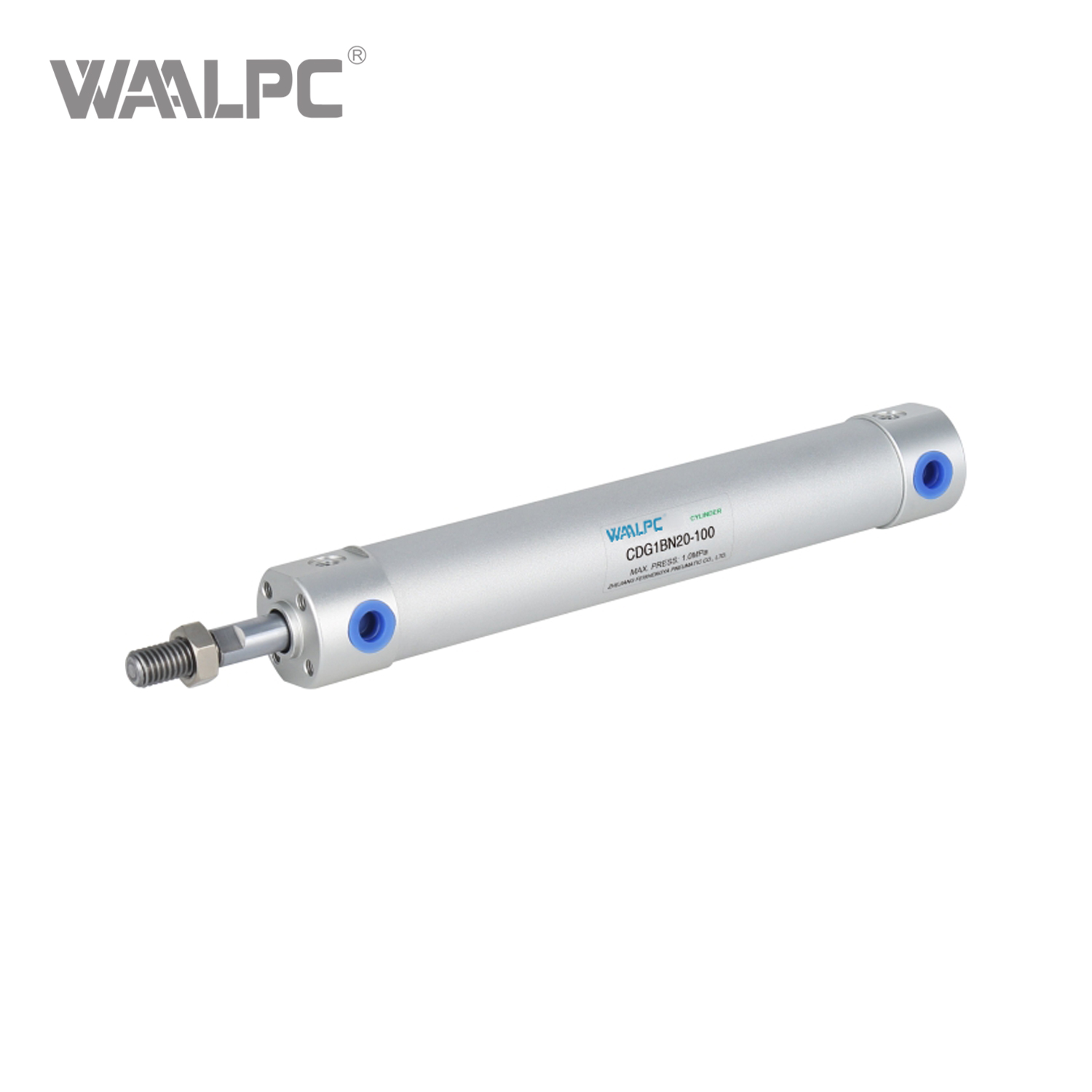

CDG1 Series Easy-to-Use Round Body Air Cylinder with Transparent Switch Bracket And Pre-assembled Accessories

CDG1 Series Easy-to-Use Round Body Air Cylinder with Transparent Switch Bracket And Pre-assembled Accessories


Availability:

Quantity:



Inquiry Add to Basket

The CDG1 Series is part of the broader CG1 line of standard-type, round body pneumatic cylinders designed for reliable performance in various industrial automation applications. These cylinders are engineered for precision, offering smooth operation and versatility.

Model:
CDG1
Brand:
WAALPC
Code:
8409919990

Product Description

1. Double acting, single rod design for reliable automation performance.

2. Impact extruded aluminum tube ensures smooth surface and stable stroke.

3. Bore sizes: 20, 25, 32, 40, 50, 63, 80, 100 mm.

4. Female rod end provided as standard.

5. Compatible with auto switches, easy fine adjustment of switch position.

6. Multiple mounting bracket options for flexible installation.

Technical Parameters

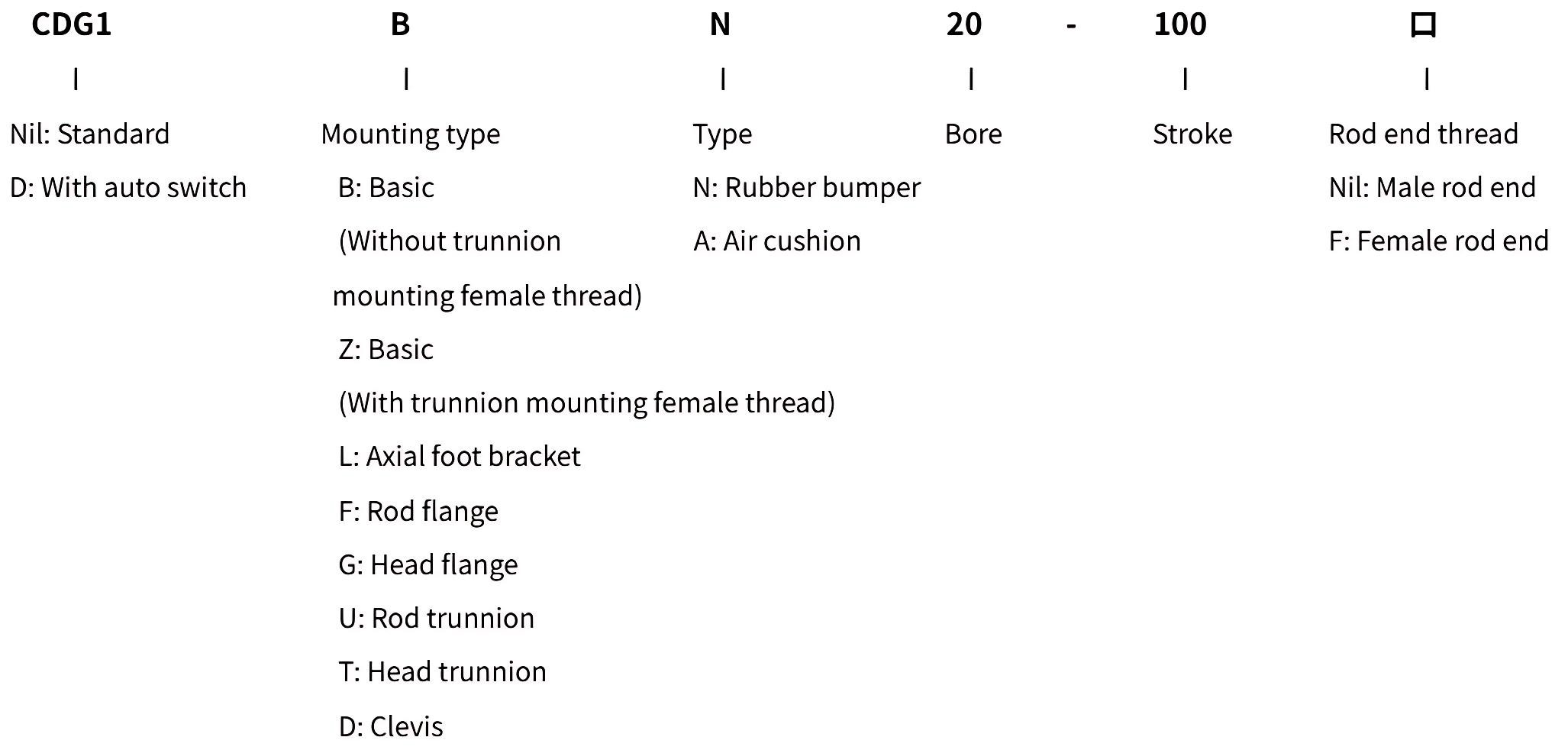

ORDERING CODE

CDG1 ordering_

SPECIFICATION

Bore size(mm)			20	25	32	40	50	63	80	100
Acting type			Double acting, Single rod
Lubricant			Not required (Non-lube)
Working medium			Air
Proof pressure			1.5Mpa
Max. working pressure			1.0Mpa
Min. working pressure			0.05Mpa
Working temperature			without auto swtich: -10℃ to 70℃ with auto switch: -10℃ to 60℃（No freezing）
Piston Speed			50 to 1000mm/s						50 to 700mm/s
Stroke length tolerance^*1)			Up to 1000st+1.4mm, Up to 1500st+1.8mm
Cushion			Rubber bumper, Air cushion
Mounting^*2)			Basic, Basic(without trunnion mounting female thread), Axial foot, Rod flange, Head flange, Rod trunnion, Head trunnion, Clevis
Allowable kinetic energy(J)	Rubber bumper	Male rod end	0.28	0.41	0.66	1.2	2.00	3.40	5.90	9.90
		Female rod end	0.11	0.18	0.299	0.52	0.91	1.54	2.71	4.54
	Air cushion	Male rod end^*3)	R: 0.35 H: 0.42	R: 0.56 H: 0.65	0.91	1.80	3.40	4.90	11.80	16.70
		Female rod end	0.28	0.28	0.29	0.52	0.91	1.54	2.71	4.54

*1) Does not include the amount of bumper change.

*2) Cylinder sizes Φ80 and Φ100 do not have basic (with trunnion mounting female thread), rod trunnion, and head trunnion types. Foot, flange and clevis types of cylinder sizes from Φ20 to Φ63 do not have trunnion mounting female thread. Operate the cylinder within the allowable kinetic energy.

*3) R: Rod side, H: Head side.

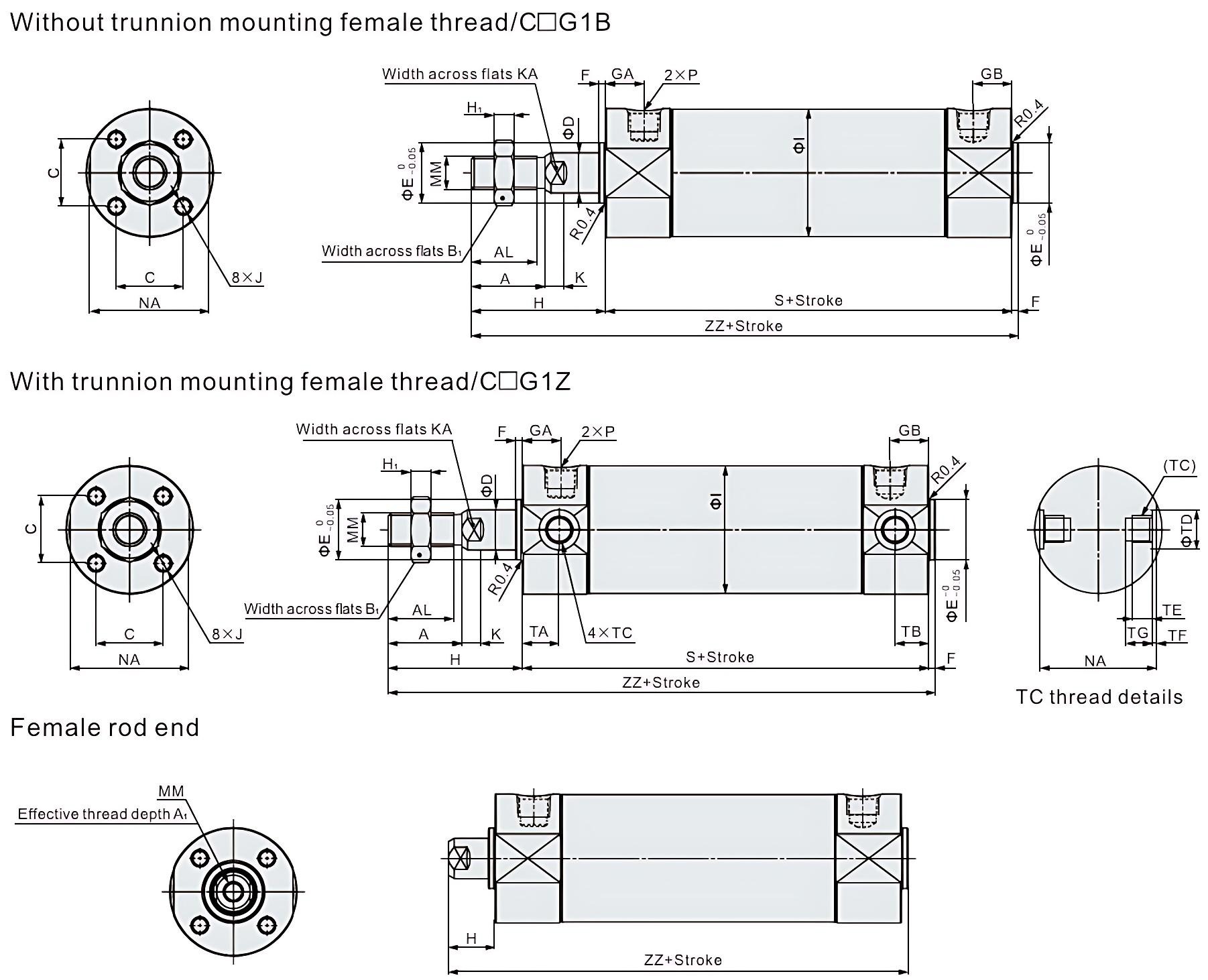

OVERALLDIMENSION&STRUCTURE

Basic Type

CDG1 structure1_

Bore	A	AL	B1	C	D	E	F	H	H1	I	J	K	KQ	MM	NA	S	TA	TB	ZZ
20	18	15.5	13	14	8	12	2	35	5	26	M4x0.7 depth 7	5	6	M8x1.25	24	69	11	11	106
25	22	19.5	17	16.5	10	14	2	40	6	31	M5x0.8 depth 7.5	5.5	8	M10x1.25	29	69	11	11	111
32	22	19.5	17	20	12	18	2	40	6	38	M5x0.8 depth 8	5.5	10	M10x1.25	35.5	71	11	10	113
40	30	27	19	26	16	25	2	50	8	47	M6x1 depth 12	6	14	M14x1.5	44	78	12	10	130
50	35	32	27	32	20	30	2	58	11	58	M8x1.25 depth 16	7	18	M18x1.5	55	90	13	12	150
63	35	32	27	38	20	32	2	58	11	72	M10x1.5 depth 16	7	18	M18x1.5	69	90	13	12	150
80	40	37	32	50	25	40	3	71	13	89	M10x1.5 depth 22	10	22	M22x1.5	86	108	-	-	182
100	40	37	41	60	30	50	3	71	16	110	M12x1.75 depth 22	10	26	M26x1.5	106	108	-	-	182

Bore	Rc. NPT port			G port
Bore	GA	GB	P	GA	GB	P
20	11.5	11.5	1/8	11.5	11.5	M5x0.8
25	11.5	11.5	1/8	12	12	Mx0.8
32	11.5	11.5	1/8	20.5	10.5	1/8
40	13	13	1/8	13	13	1/8
50	14	14	1/4	14	14	1/4
63	14	14	1/4	14	14	1/4
80	20	20	3/8	20	16	3/8
100	16	16	1/2	16	16	1/2

Bore	A1	H	MM	ZZ
20	8	13	M4x0.7	84
25	8	14	M5x0.8	85
32	12	14	M6x1	87
40	13	15	M8x1.25	95
50	18	16	M10x1.5	108
63	18	16	M10x1.5	108
80	21	19	M14x1.5	130
100	25	22	M16x1.5	133

Bore	TC	TD	TE	TF	TG
20	M5x0.8	8	4	0.5	5.5
25	M6x0.75	10	5	1	6.5
32	M8x1.0	12	5.5	1	7.5
40	M10x1.25	14	6	1.25	8.5
50	M12x1.25	16	7.5	2	10
63	M14x1.5	18	11.5	3	14.5
80	-	-	-	-	-
100	-	-	-	-	-
