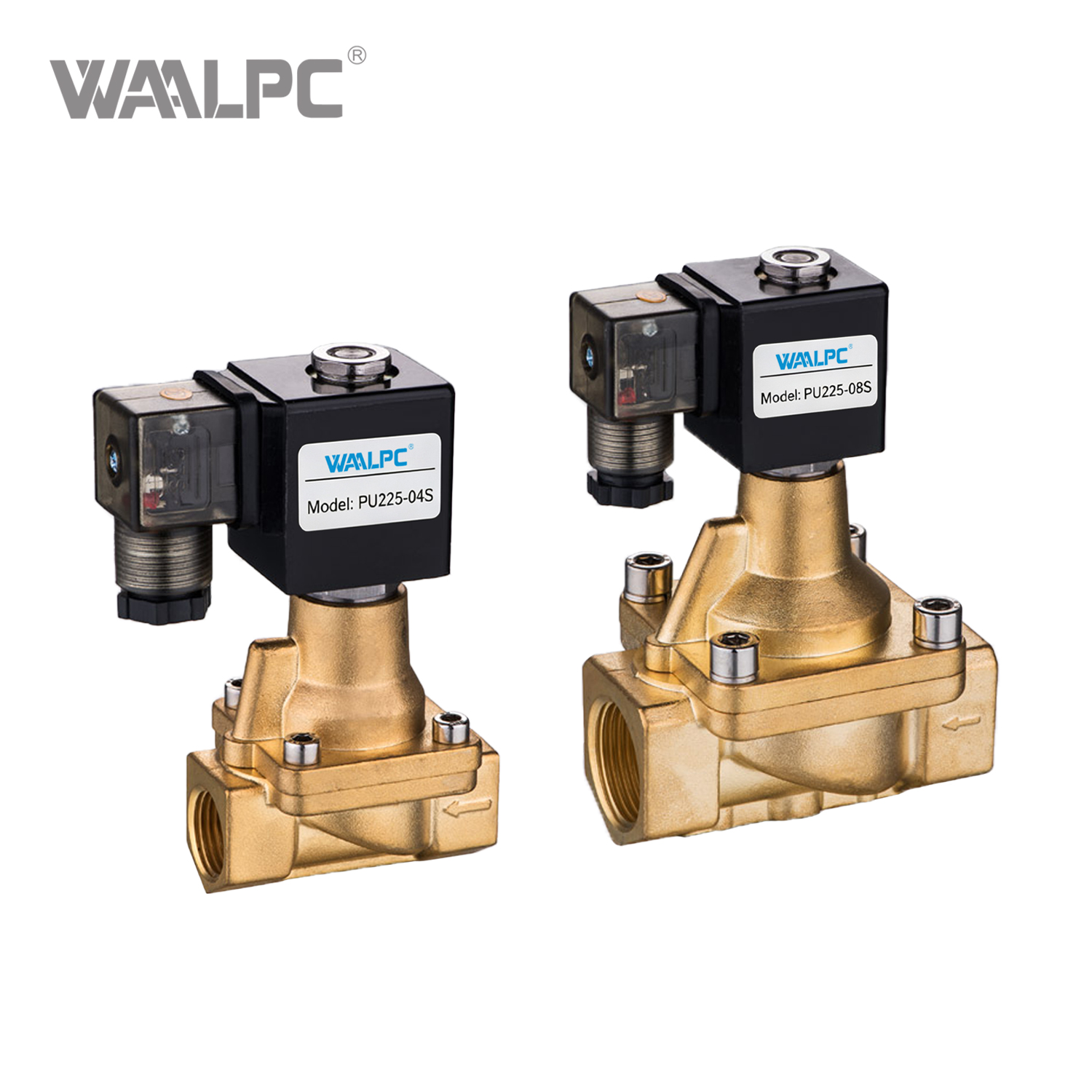

PU Series Steam Valve for Heating and Process Control


Availability:

Quantity:



Inquiry Add to Basket

The PU Series Steam Solenoid Valve is a high-performance automatic control valve designed for reliable, fast, and precise control of steam flow in industrial applications.

Model:
PU series
Brand:
WAALPC
Code:
8481804090

Product Description

Designed specifically for steam applications
High-temperature resistance and excellent sealing performance
Fast response and reliable operation
Compact structure and easy installation
Long service life and low maintenance requirements
Suitable for industrial automation and process control systems

Technical Parameters

ORDERING CODE

steam solenoid valve

SPECIFICATION

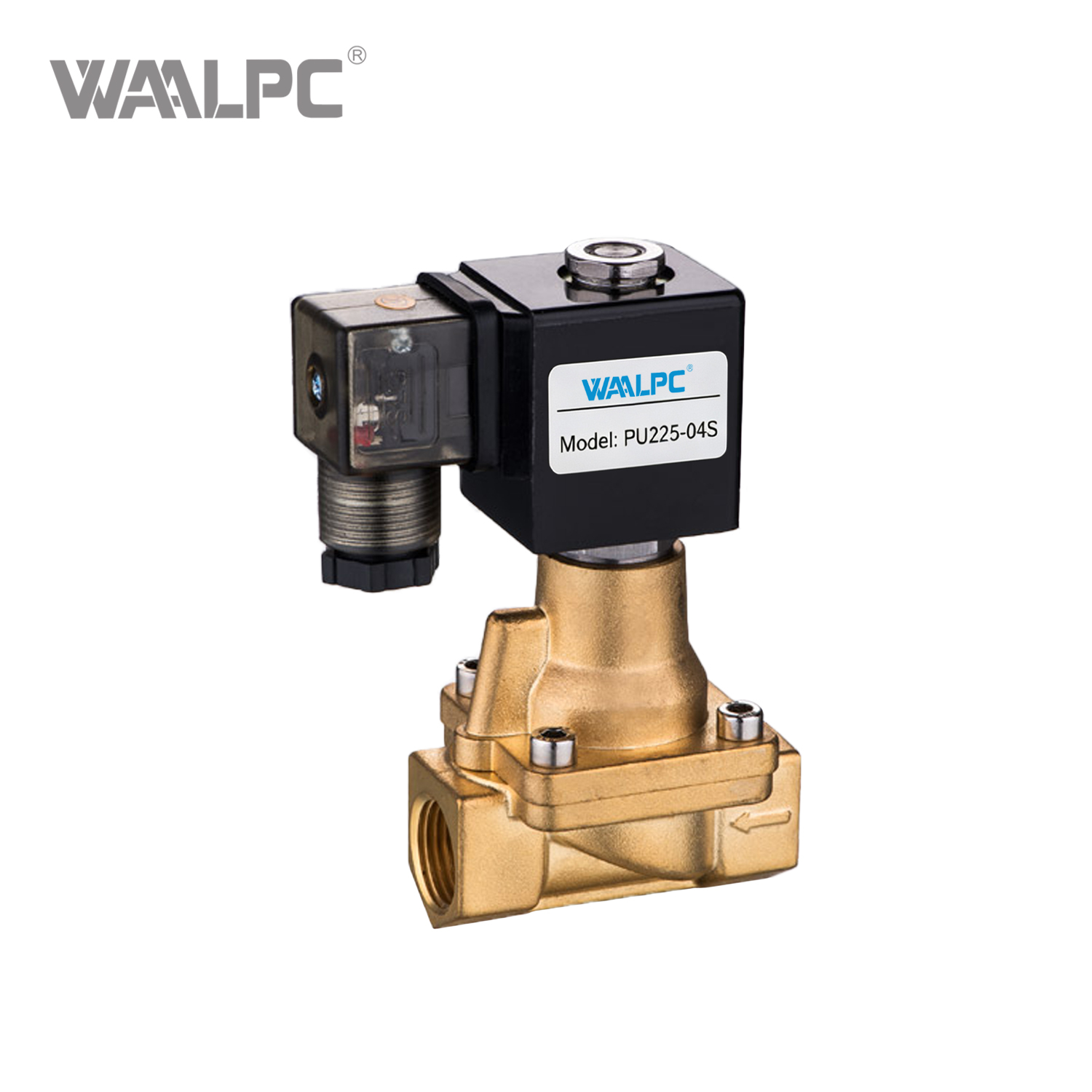

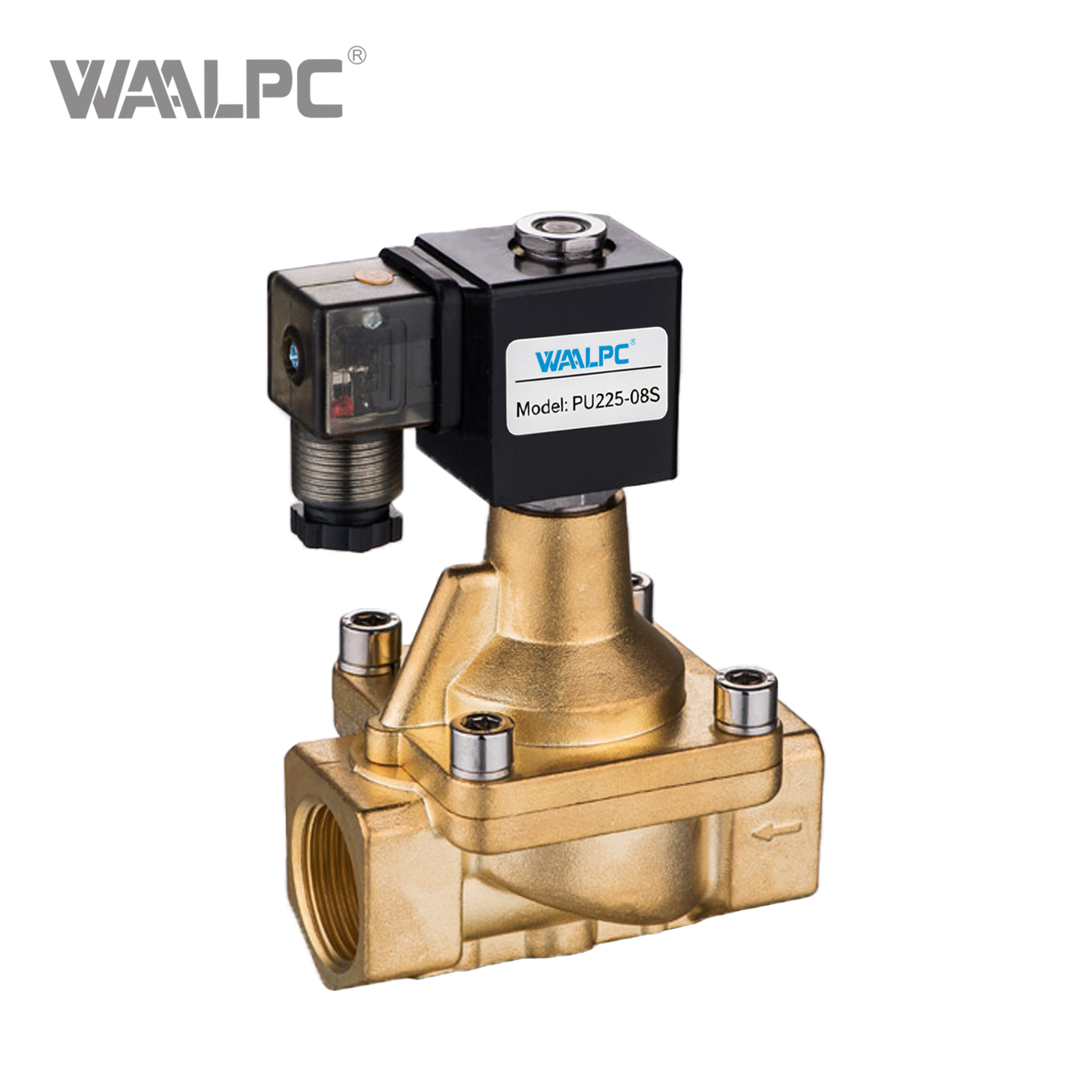

Model	PU225-03S	PU225-04S	PU225-06S	PU225-08S
Working Medium	Air/Water/Oil
Type	Normal Close Type
Aperture of Flow Rate(mm)	13	13	25	25
Cv Value	4.5	4.5	12	12
Joint Pipe Bore	3/8″	1/2"	3/4″	1”
Operation Fluid Viscosity	50CST
Working Pressure	0.5~10(kgf/cm2)
Max.Pressure Resistance	15(kgf/cm2)
Operating Temperature Range	-10~185℃
Weight(kg)	0.916	0.878	1.823	1.705

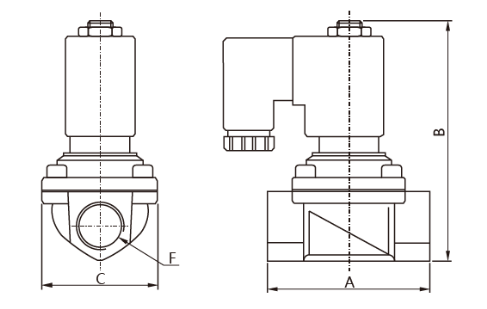

OVERALLDIMENSION&STRUCTURE

Solenoid Valve

Model	F(G)	A	B	C
PU225-03S	3/8″	66	122	48
PU225-04S	1/2"	66	122	48
PU225-06	3/4	97	149	70
PU225-08S	1''	97	149	70

Specification Download

PU Series Solenoid Valve (Steam Type).pdf
