Pneumatic Hose Quick Fittings Mini 45° Elbow Connector SMC Type


Availability:

Quantity:



Inquiry Add to Basket

The main function of pneumatic fittings is to connect pneumatic components to achieve quick connection and disconnection, thereby improving work efficiency.

Model:
KQ
Brand:
WAALPC
Code:
7307190000

Product Description

1.Quick pneumatic tube fiting forpneumatic tube systems.

2.Wide range of tube fiting models to meet all your needs in pneumatic tube systems

3.Even after installation,the direction of the tube can be changed freely.

4.Nickel-Plated metal body ensures anti-corrosion and anti contar mination.

5.All R and NPT threads are precoats sealant.

6.All cylindrical threads are standard with O-ring seals.

Technical Parameters

Ordering Code

SPECIFICATIONS

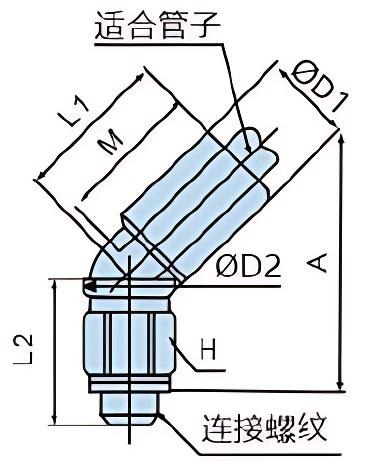

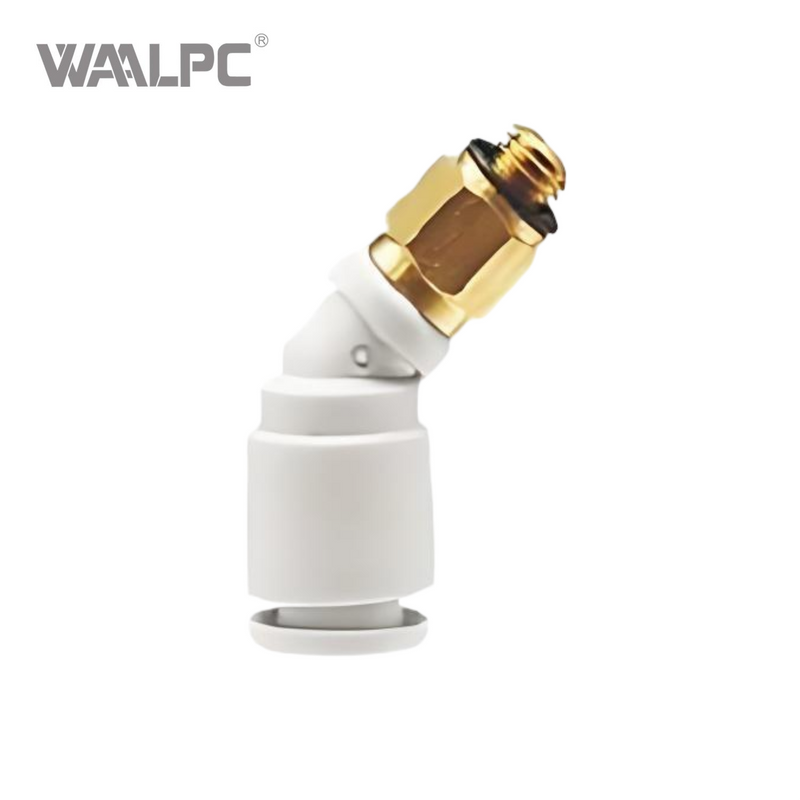

45° elbow: KQ2K(sealed with gasket)

45° elbow connector 45°弯头 KQ2K(密封垫密封)_

Suitable for the outer diameter of the pipe (mm)	Model	Connection thread (M)	H (Hexagonal opposite sides)	ΦD1^note	ΦD2	L1	L2	A	M	Weight (g)
Φ4	KQ2K04-M5口	M5x0.8	7	8.8	7	14.4	13.1	22.8	13.3	3
Φ4	KQ2K04-M6口	M6x1.0	8	8.8	7	14.4	14.1	22.8	13.3	4.1
Φ6	KQ2K06-M5口	M5x0.8	7	10.7	7	14.4	17	27.4	13.3	3.5
Φ6	KQ2K06-M6口	M6x1.0	8	10.7	7	14.4	18	27.4	13.3	4.5

口Mark/A: Brass, N: Brass+Electroless nickel plating

note: ΦD1 is the maximum diameter

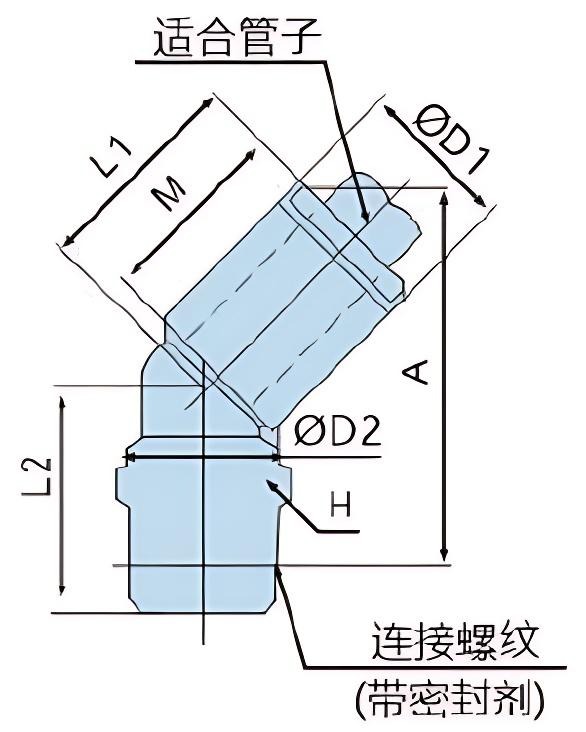

45° elbow: KQ2K(sealant)

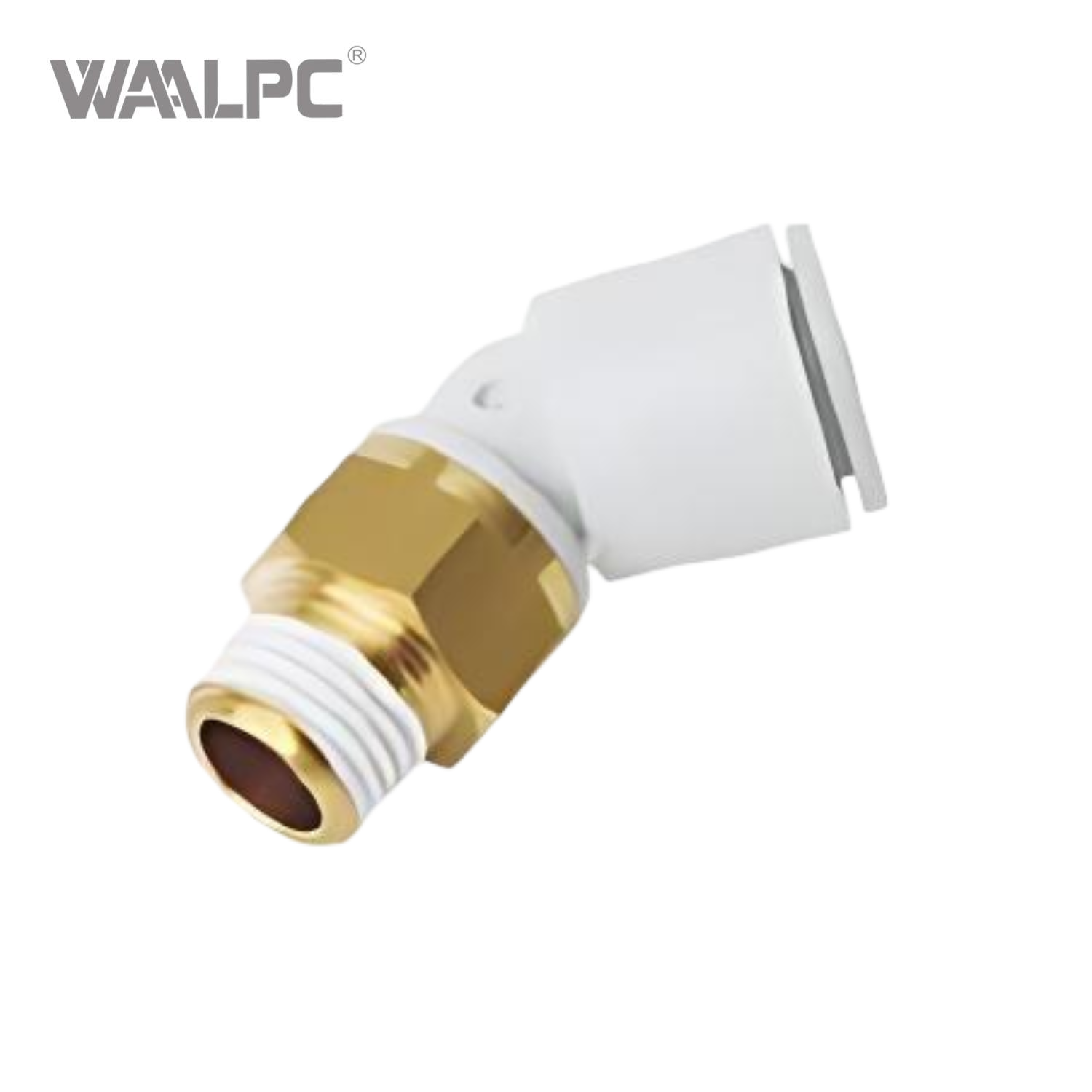

Elbow type connector 45°弯头 KQ2K(密封剂）_

Suitable for the outer diameter of the pipe (mm)	Connection thread (R)	Model	H (Hexagonal opposite sides)	ΦD1	ΦD2	L1	L2	A	M	Weight (g)
Φ4	1/8	KQ2K04-01口S	10	8.8	10	14.4	12.7	22.3	13.3	4.6
Φ4	1/4	KQ2K04-02口S	14	8.8	10	14.4	17.2	25.2	13.3	14.1
Φ6	1/8	KQ2K06-01口S	10	10.7	10	14.7	14.8	25.3	13.3	5
	1/4	KQ2K06-02口S	14	10.7	10	14.7	19.3	28.2	13.3	14.5
	3/8	KQ2K06-03口S	17	10.7	10	14.7	20.6	29.1	13.3	26.2
Φ8	1/8	KQ2K08-01口S	10	13.6	10	16	15.7	28	14.2	6
	1/4	KQ2K08-02口S	14	13.6	12	16	22.4	33.1	14.2	17.5
	3/8	KQ2K08-03口S	17	13.6	12	16	22.5	32.8	14.2	24.5
Φ10	1/8	KQ2K10-01口S	12	16.2	12	18.2	21.5	36.2	15.6	11.1
	1/4	KQ2K10-02口S	17	16.2	17	17.6	29.1	41.8	15.6	21.8
	3/8	KQ2K10-03口S	17	16.2	17	17.6	24.3	36.6	15.6	21.7
	1/2	KQ2K10-04口S	22	16.2	17	17.6	28.3	39.3	15.6	44.1
Φ12	1/4	KQ2K12-02口S	17	19	17	19.4	29	43.8	17	23.3
	3/8	KQ2K12-03口S	17	19	17	19.4	24.2	38.6	17	23.2
	1/2	KQ2K12-04口S	22	19	17	19.4	28.2	41.3	17	45.7
Φ16	1/4	KQ2K16-02口S	17	23.8	17	24.3	29.6	49.2	20.6	27.7
	3/8	KQ2K16-03口S	22	23.8	21	23.8	31.4	50.2	20.6	39.2
	1/2	KQ2K16-04口S	22	23.8	21	23.8	30.1	47.6	20.6	42.9

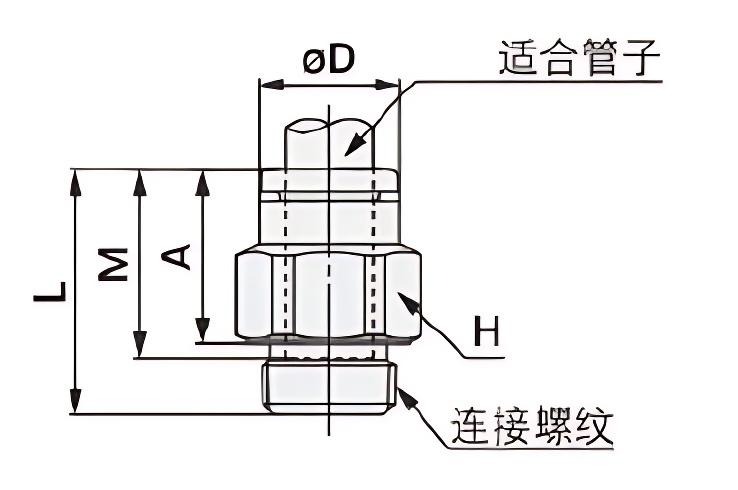

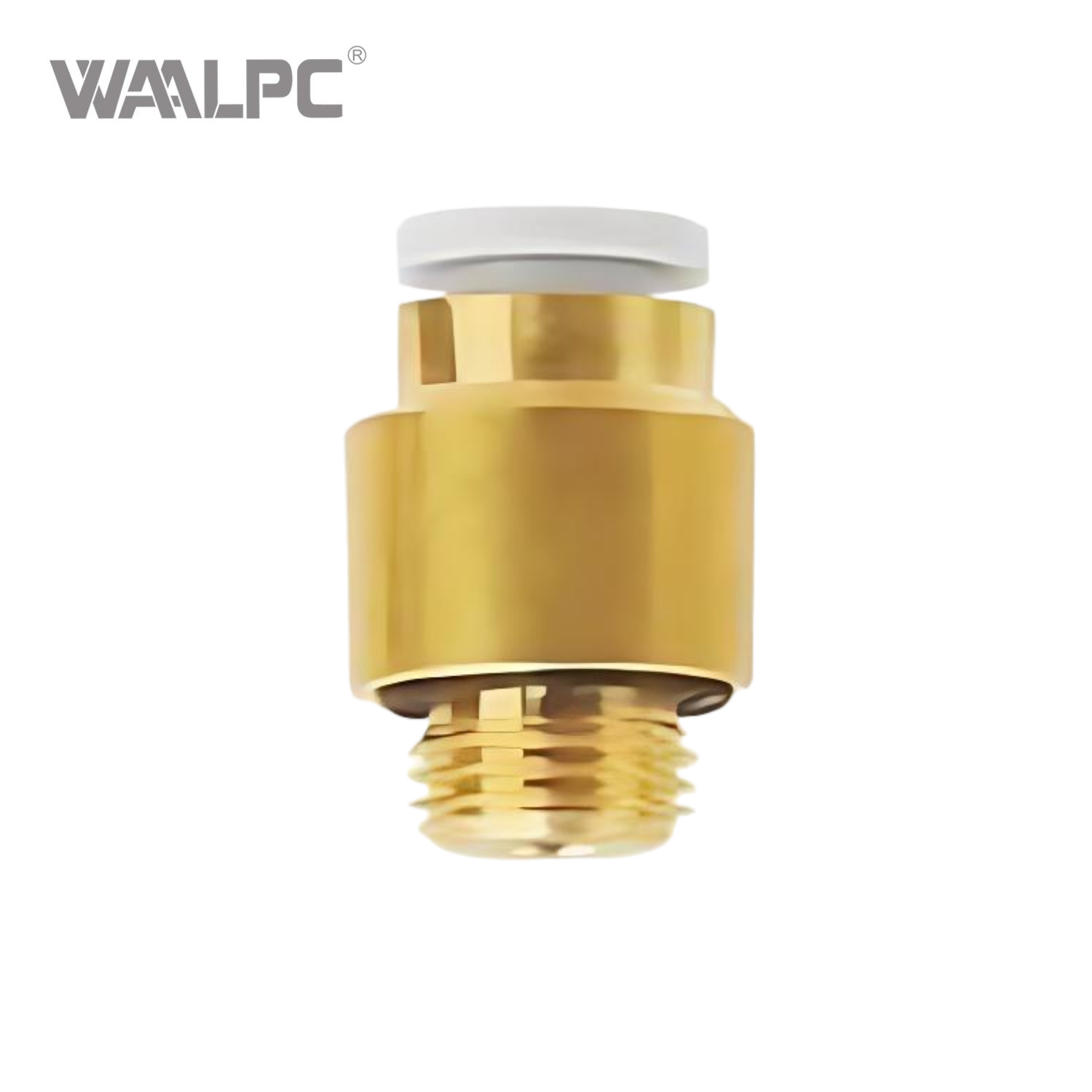

Straight connector: Y-KQ2H(Sealing ring seal)

Straight connector Y-KQ2H（密封圈密封）_

Suitable for the outer diameter of the pipe (mm)	Connection thread (R)	Model	H (Hexagonal opposite sides)	ΦD	L	A	M	Weight (g)
Φ3.2	1/8	Y-KQ2H23-01口P	12	6.7	14.1	8.9	13.3	6.3
Φ3.2	1/4	Y-KQ2H23-02口P	17	6.7	15	7.4	13.3	15.1
Φ4	1/8	Y-KQ2H04-01口P	12	7.9	16.4	11.2	13.3	6.9
Φ4	1/4	Y-KQ2H04-02口P	17	9.1	14.9	7.4	13.3	14.5
Φ6	1/8	Y-KQ2H06-01口P	12	9.8	17.4	12.2	13.3	6.5
	1/4	Y-KQ2H06-02口P	17	11.4	14.6	7.1	13.3	10.6
	3/8	Y-KQ2H06-03口P	21	11.4	14.9	7.3	13.3	22.8
Φ8	1/8	Y-KQ2H08-01口P	14	13.2	21.2	16	14.2	11.8
	1/4	Y-KQ2H08-02口P	17	13.2	20	12.5	14.2	13.9
	3/8	Y-KQ2H08-03口P	21	13.2	15.2	7.6	14.2	19.6
Φ10	1/8	Y-KQ2H10-01口P	17	15.6	23.1	17.9	15.6	16.3
	1/4	Y-KQ2H10-02口P	17	15.6	24.4	16.9	15.6	17.9
	3/8	Y-KQ2H10-03口P	21	15.6	21	13.4	15.6	23.7
	1/2	Y-KQ2H10-04口P	27	15.6	18.8	8.4	15.6	40.9
Φ12	1/4	Y-KQ2H12-02口P	19	17	26.6	19.1	17	22
	3/8	Y-KQ2H12-03口P	21	17	24.9	17.3	17	28.6
	1/2	Y-KQ2H12-04口P	27	17	24.9	14.5	17	45
Φ16	1/4	Y-KQ2H16-02口P	24	20.6	30.6	23	20.6	42.5
	3/8	Y-KQ2H16-03口P	24	20.6	30.6	23	20.6	39.2
	1/2	Y-KQ2H16-04口P	27	20.6	32.1	21.7	20.6	55

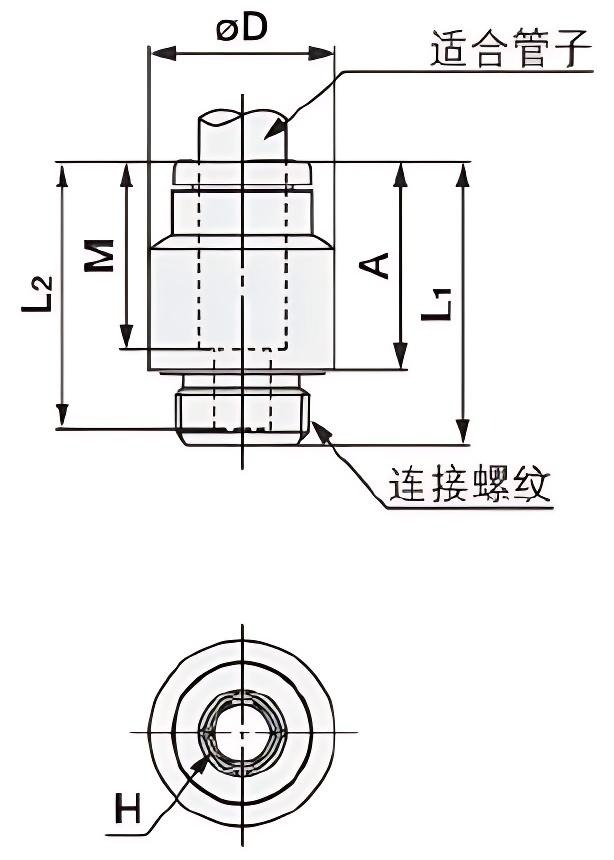

Straight-through connector with internal hexagonal socket: Y-KQ2S(Sealing ring seal)

Straight connector Y-KQ2S（密封圈密封）_

Suitable for the outer diameter of the pipe (mm)	Connection thread （R）	Model	H (Hexagonal opposite sides)	ΦD	L1	L2	A	M	Weight (g)
Φ4	1/8	Y-KQ2S04-01口P	3	13	19.1	18.1	13.9	13.3	11.6
Φ6	1/8	Y-KQ2S06-01口P	4	13	19.6	18.6	14.4	13.3	9.6
Φ6	1/4	Y-KQ2S06-02口P	4	18	19.8	18.4	12.3	13.3	16.3
Φ8	1/8	Y-KQ2S08-01口P	5	13.2	21.2	19.7	16	14.2	9
	1/4	Y-KQ2S08-02口P	6	18	20.4	19.4	12.9	14.2	15.5
	3/8	Y-KQ2S08-03口P	6	22	20.4	19.4	12.8	14.2	26.3
Φ10	1/8	Y-KQ2S10-01口P	5	15.6	22.9	21.1	17.7	15.6	17.8
	1/4	Y-KQ2S10-02口P	8	18	24.4	21	16.9	15.6	19.2
	3/8	Y-KQ2S10-03口P	8	22	21.1	20.1	13.5	15.6	23.4
	1/2	Y-KQ2S10-04口P	8	26	21.1	20.1	10.7	15.6	40.6
Φ12	1/4	Y-KQ2S12-01口P	8	18.2	27	22.5	19.5	17	24.3
	3/8	Y-KQ2S12-02口P	10	22	25.4	23	17.8	17	28.2
	1/2	Y-KQ2S12-03口P	10	26	25.4	23.6	15	17	40.7
Φ16	1/4	Y-KQ2S16-01口P	8	23.6	30.6	25.1	23	20.6	35.1
	3/8	Y-KQ2S16-02口P	10	23.6	30.6	25.4	23	20.6	27.9
	1/2	Y-KQ2S16-03口P	12	26	26	26.1	21.7	20.6	48.2

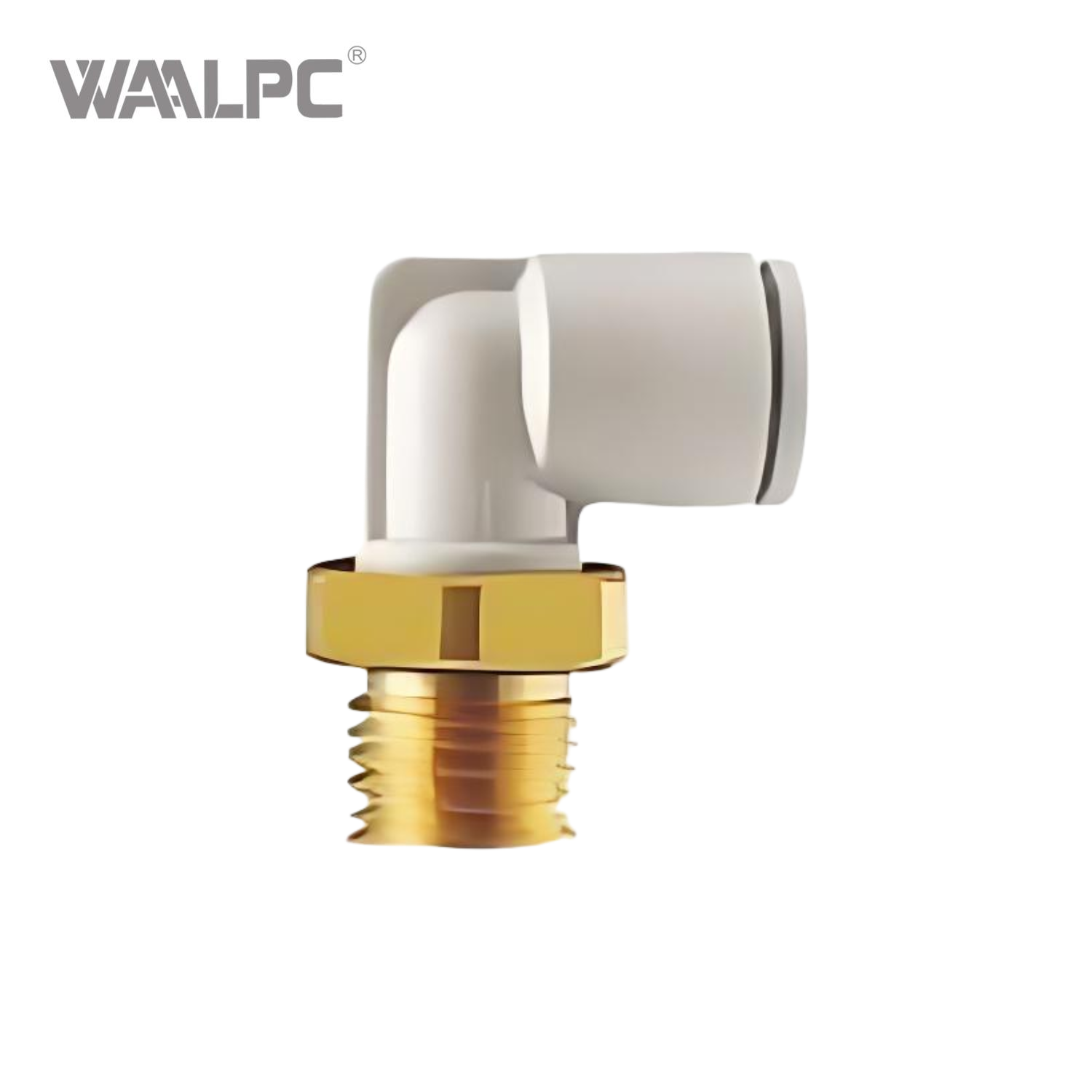

Elbow: Y-KQ2L(Sealing ring seal)

Elbow type connector Y-KQ2S（密封圈密封）_

Suitable for the outer diameter of the pipe (mm)	Connection thread (R)	Model	H (Hexagonal opposite sides)	ΦD1	ΦD2	L1	L2	A	M	Weight (g)
Φ3.2	1/8	Y-KQ2L23-01口P	12	7.4	10	14.5	16	14.3	13.3	5.1
Φ3.2	1/4	Y-KQ2L23-02口P	17	7.4	10	14.5	19.4	15.3	13.3	14.3
Φ4	1/8	Y-KQ2L04-01口P	12	8.8	10	14.8	15.6	14.8	13.3	5.2
Φ4	1/4	Y-KQ2L04-02口P	17	8.8	10	14.8	19	15.9	13.3	14.5
Φ6	1/8	Y-KQ2L06-01口P	12	10.7	10	15.3	17.9	18	13.3	5.7
	1/4	Y-KQ2L06-02口P	17	10.7	10	15.3	21.3	19.1	13.3	15
	3/8	Y-KQ2L06-03口P	21	10.7	10	15.3	22.8	20.5	13.3	30.2
Φ8	1/8	Y-KQ2L08-01口P	12	13.6	10	16.4	18.1	19.6	14.2	6.5
	1/4	Y-KQ2L08-02口P	17	13.6	12	17.4	22.5	21.7	14.2	13.7
	3/8	Y-KQ2L08-03口P	21	13.6	12	17.4	24	23.1	14.2	28.7
Φ10	1/8	Y-KQ2L10-01口P	12	16.3	12	18.4	22.7	24.9	15.6	10.1
	1/4	Y-KQ2L10-02口P	17	16.3	17	19.4	26.1	26.8	15.6	17.9
	3/8	Y-KQ2L10-03口P	21	16.3	17	19.4	26	26.6	15.6	17.8
	1/2	Y-KQ2L10-04口P	27	16.3	17	19.4	30.6	28.4	15.6	45.1
Φ12	1/4	Y-KQ2L12-01口P	17	19	17	21.8	27.5	29.6	17	19.6
	3/8	Y-KQ2L12-02口P	21	19	17	21.8	27.1	29	17	19.7
	1/2	Y-KQ2L12-03口P	27	19	17	21.8	31.7	30.8	17	47
Φ16	1/4	Y-KQ2L16-01口P	17	23.8	17	25.1	29.6	33.9	20.6	24
	3/8	Y-KQ2L16-02口P	21	23.8	21	27.1	32.7	37.0	20.6	33.8
	1/2	Y-KQ2L16-03口P	27	23.8	21	27.1	34.7	36.2	20.6	59.9

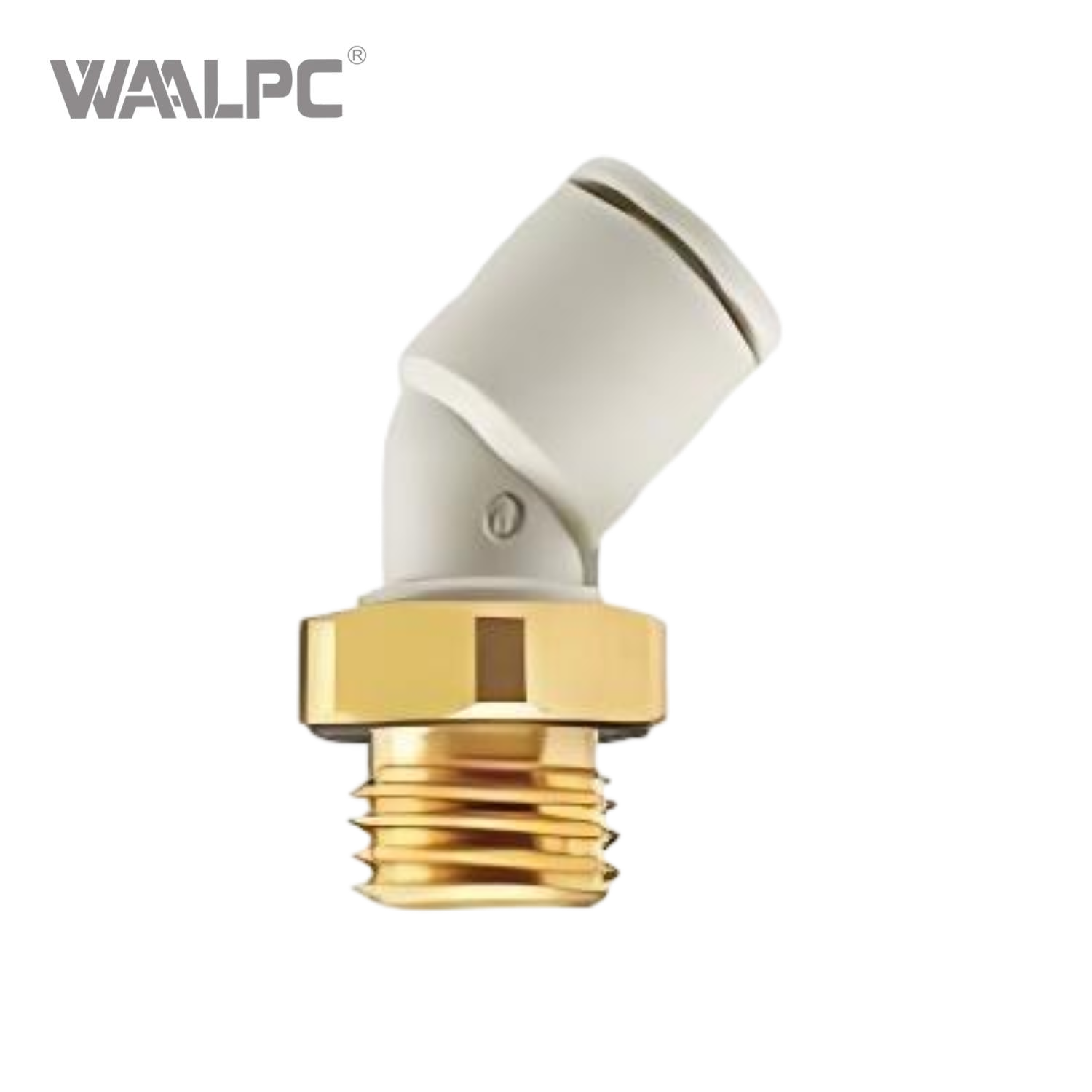

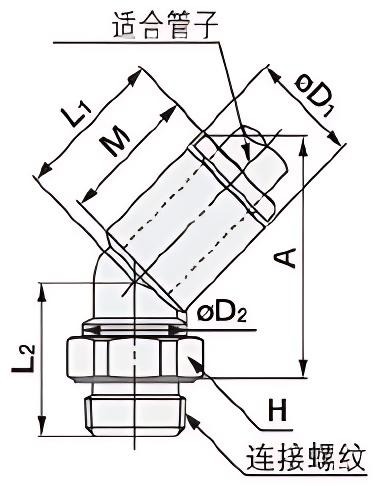

45° Elbow: Y-KQ2K(Sealing ring seal)

Elbow type connector Y-KQ2K（密封圈密封）_

Suitable for the outer diameter of the pipe (mm)	Connection thread (R)	Model	H (Hexagonal opposite sides)	ΦD1	ΦD2	L1	L2	A	M	Weight (g)
Φ4	1/8	Y-KQ2K04-01口P	12	8.8	10	14.4	12	19.5	13.3	5.1
Φ4	1/4	Y-KQ2K04-02口P	17	8.8	10	14.4	15.4	20.5	13.3	14.3
Φ6	1/8	Y-KQ2K06-01口P	12	10.7	10	14.7	14.1	22.5	13.3	5.5
	1/4	Y-KQ2K06-02口P	17	10.7	10	14.7	17.5	23.5	13.3	14.7
	3/8	Y-KQ2K06-03口P	21	10.7	10	14.7	19.5	25.5	13.3	29.9
Φ8	1/8	Y-KQ2K08-01口P	12	13.6	10	16	15	25.2	14.2	6.4
	1/4	Y-KQ2K08-02口P	17	13.6	12	16	19.4	27.2	14.2	13.5
	3/8	Y-KQ2K08-03口P	21	13.6	12	16	21.4	29.2	14.2	28.5
Φ10	1/8	Y-KQ2K10-01口P	12	16.3	12	18.2	20.1	32.7	15.6	10.1
	1/4	Y-KQ2K10-02口P	17	16.3	17	17.6	26.1	35.9	15.6	18
	3/8	Y-KQ2K10-03口P	21	16.3	17	17.6	20.5	30.3	15.6	17.3
	1/2	Y-KQ2K10-04口P	27	16.3	17	17.6	25.3	32.3	15.6	44.6
Φ12	1/4	Y-KQ2K12-01口P	17	19	17	19.4	26	37.9	17	19.5
	3/8	Y-KQ2K12-02口P	21	19	17	19.4	20.4	32.3	17	18.8
	1/2	Y-KQ2K12-03口P	27	19	17	19.4	25.2	34.3	17	46.1
Φ16	1/4	Y-KQ2K16-01口P	17	23.8	17	24.3	26.6	43.3	20.6	23.9
	3/8	Y-KQ2K16-02口P	21	23.8	21	23.8	28.7	45	20.6	32.2
	1/2	Y-KQ2K16-03口P	27	23.8	21	23.8	30.7	44.2	20.6	58.3

Specification Download

Connectors detailed parameters KQ Series.pdf
