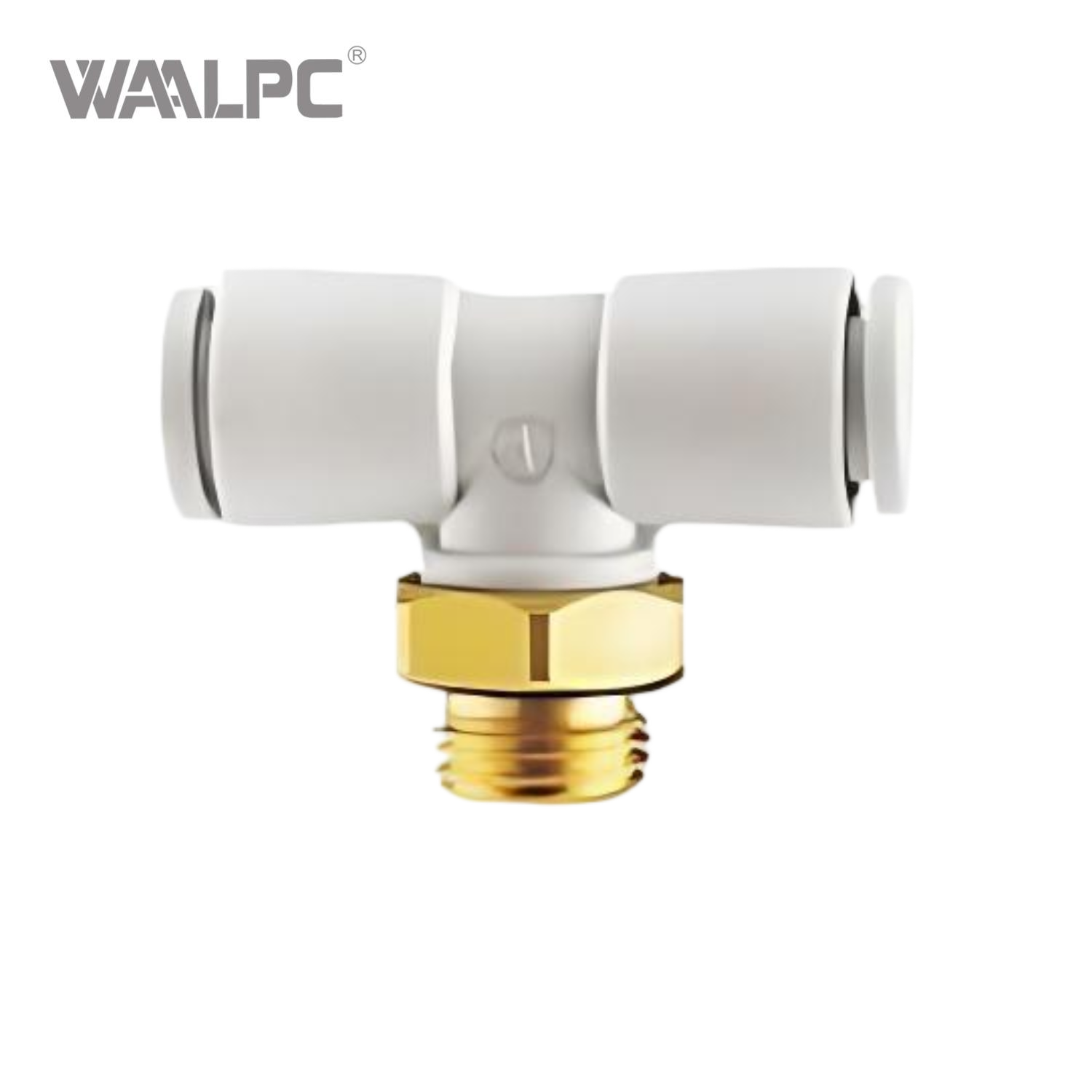

Pneumatic White Brass Fittings T-shaped Bend Pipe Tube Quick Fittings

1.Quick pneumatic tube fiting forpneumatic tube systems.

2.Wide range of tube fiting models to meet all your needs in pneumatic tube systems

3.Even after installation,the direction of the tube can be changed freely.

4.Nickel-Plated metal body ensures anti-corrosion and anti contar mination.

5.All R and NPT threads are precoats sealant.

6.All cylindrical threads are standard with O-ring seals.

Ordering Code

SPECIFICATIONS

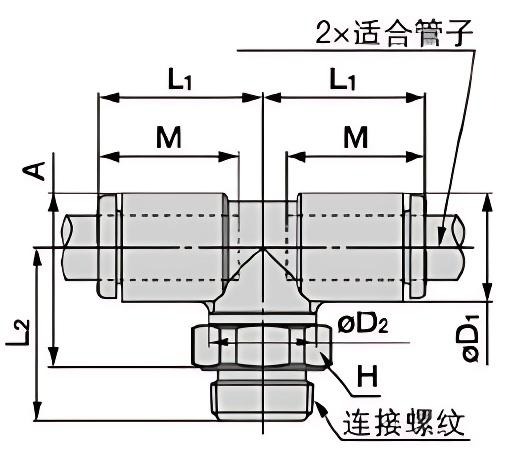

Double-tube T-connector: Y-KQ2T(Sealing ring)

Suitable for the outer diameter of the pipe (mm)	Connection thread (R)	Model	H (Hexagonal opposite sides)	ΦD1note	ΦD2	L1	L2	A	M	Weight (g)
Φ3.2	1/8	Y-KQ2T23-01口P	12	7.4	10	14.7	15.4	14.4	13.3	5.7
	1/4	Y-KQ2T23-02口P	17	7.4	10	14.7	19.3	15.3	13.3	14.9
Φ4	1/8	Y-KQ2T04-01口P	12	8.8	10	14.7	15.4	14.4	13.3	5.9
	1/4	Y-KQ2T04-02口P	17	8.8	10	14.7	18.8	15.5	13.3	15.2
Φ6	1/8	Y-KQ2T06-01口P	12	10.7	10	15.4	16.8	16.9	13.3	6.6
	1/4	Y-KQ2T06-02口P	17	10.7	10	15.4	20.2	18	13.3	15.9
	3/8	Y-KQ2T06-03口P	21	10.7	10	15.4	21.7	19.4	13.3	31.1
Φ8	1/8	Y-KQ2T08-01口P	12	13.6	10	16.4	18.1	19.6	14.2	8.3
	1/4	Y-KQ2T08-02口P	17	13.6	12	17.4	22.3	21.5	14.2	15.5
	3/8	Y-KQ2T08-03口P	21	13.6	12	17.4	23.8	22.9	14.2	30.4
Φ10	1/8	Y-KQ2T10-01口P	12	16.3	12	18.6	22.6	25.5	15.6	12.9
	1/4	Y-KQ2T10-02口P	17	16.3	17	19.3	26.1	26.6	15.6	20.5
	3/8	Y-KQ2T10-03口P	21	16.3	17	19.3	20.3	21.6	15.6	20.4
	1/2	Y-KQ2T10-04口P	27	16.3	17	19.3	24.9	23.4	15.6	47.7
Φ12	1/4	Y-KQ2T12-01口P	17	19	17	21.5	27.4	29.2	17	23.5
	3/8	Y-KQ2T12-02口P	21	19	17	21.5	27.4	29.2	17	23.6
	1/2	Y-KQ2T12-03口P	27	19	17	21.5	32	31	17	50.8
Φ16	1/4	Y-KQ2T16-01口P	17	23.8	17	25.1	29.6	33.9	20.6	31.7
	3/8	Y-KQ2T16-02口P	21	23.8	21	27.1	32.7	37	20.6	40.8
	1/2	Y-KQ2T16-03口P	27	23.8	21	27.1	32.7	36.2	20.6	66.8

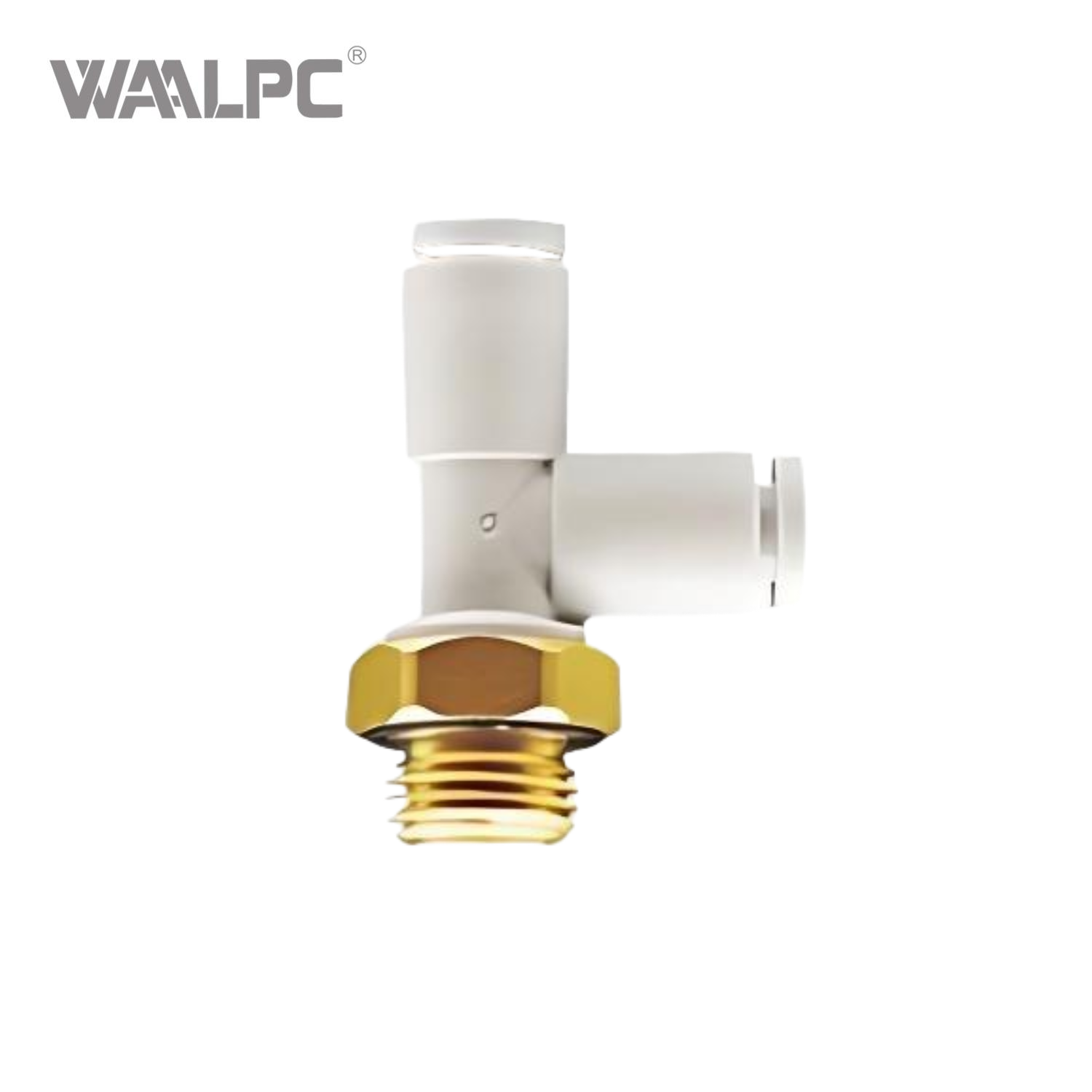

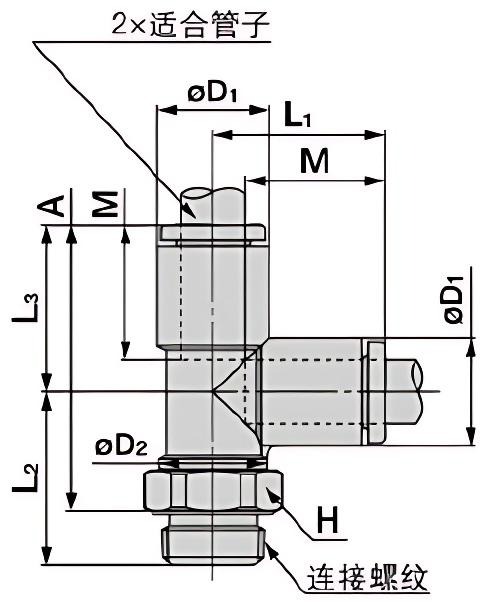

Auxiliary T-connector: Y-KQ2Y(Sealing ring)

Suitable for the outer diameter of the pipe (mm)	Connection thread (R)	Model	H (Hexagonal opposite sides)	ΦD1	ΦD2	L1	L2	A	M	Weight (g)
Φ3.2	1/8	Y-KQ2T23-01口P	12	7.4	10	14.9	15.9	25.7	13.3	5.7
	1/4	Y-KQ2T23-02口P	17	7.4	10	14.9	19.3	26.7	13.3	14.9
Φ4	1/8	Y-KQ2T04-01口P	12	8.8	10	15.4	15.4	25.6	13.3	6
	1/4	Y-KQ2T04-02口P	17	8.8	10	15.4	18.8	26.7	13.3	15.2
Φ6	1/8	Y-KQ2T06-01口P	12	10.7	10	16.4	17.1	28.3	13.3	6.7
	1/4	Y-KQ2T06-02口P	17	10.7	10	16.4	20.5	29.4	13.3	16
	3/8	Y-KQ2T06-03口P	21	10.7	10	16.4	22	30.8	13.3	31.2
Φ8	1/8	Y-KQ2T08-01口P	12	13.6	10	18.4	17.6	30.8	14.2	8.4
	1/4	Y-KQ2T08-02口P	17	13.6	12	18.4	22.5	33.4	14.2	15.6
	3/8	Y-KQ2T08-03口P	21	13.6	12	18.4	24	34.8	14.2	30.5
Φ10	1/8	Y-KQ2T10-01口P	12	16.3	12	20.9	22.5	38.2	15.6	13
	1/4	Y-KQ2T10-02口P	17	16.3	17	20.9	26	39.4	15.6	20.7
	3/8	Y-KQ2T10-03口P	21	16.3	17	20.9	25.7	39	15.6	20.6
	1/2	Y-KQ2T10-04口P	27	16.3	17	20.9	30.3	40.8	15.6	47.9
Φ12	1/4	Y-KQ2T12-01口P	17	19	17	23	27.5	43	17	23.8
	3/8	Y-KQ2T12-02口P	21	19	17	23	27.2	42.6	17	23.8
	1/2	Y-KQ2T12-03口P	27	19	17	23	31.8	44.5	17	51.1
Φ16	1/4	Y-KQ2T16-01口P	17	23.8	17	28.6	29.6	50.6	20.6	32.2
	3/8	Y-KQ2T16-02口P	21	23.8	21	28.6	32.7	53.7	20.6	41.3
	1/2	Y-KQ2T16-03口P	27	23.8	21	28.6	34.7	52.9	20.6	67.3
