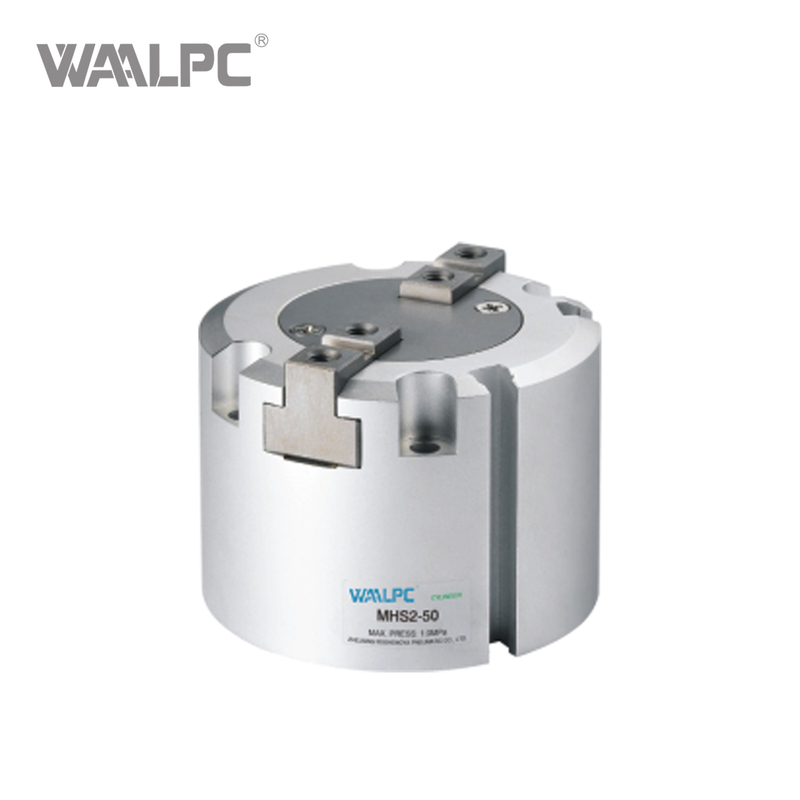

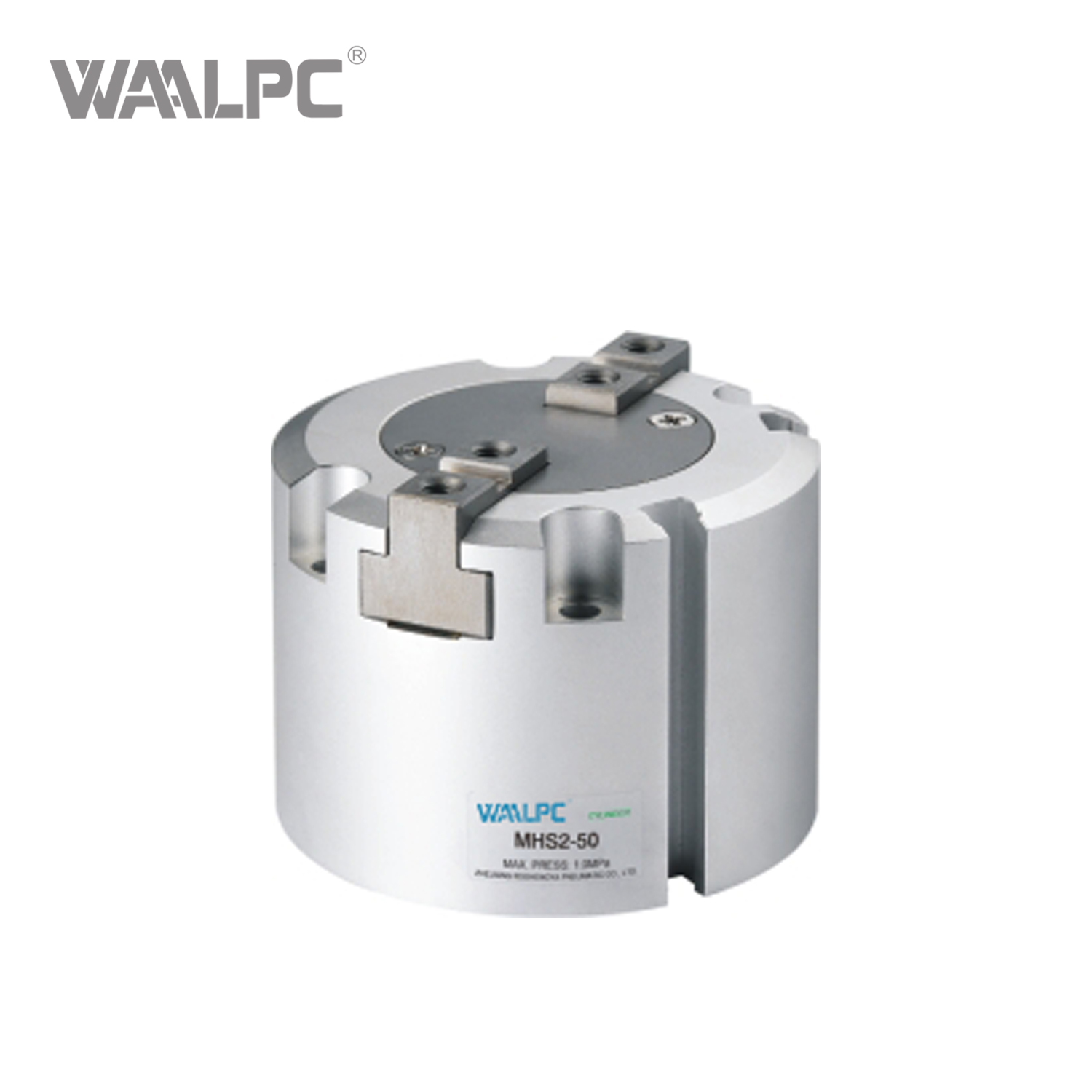

SMC Type Mhs3 Mhs2 Pneumatic Gripper Cylinder Compact Air Guided Actuator with Slide Bushing Guide Double Acting Single Rod Design

• Compact and Lightweight Design: The use of a wedge cam mechanism allows for a reduced height dimension and lighter weight, making these grippers ideal for space-constrained applications.

• High Precision and Repeatability: The series is engineered for high precision, achieving a repeatability accuracy of ±0.01mm, which is crucial for delicate and precise assembly tasks.

• Versatile Model Range: The MHS3 series includes several variants to suit different needs, such as double-acting, single-acting, and models with through-holes or center pushers for reliable workpiece release.

• Suitable for Forceful Operations: Its robust construction makes it well-suited for applications involving external force, such as pressing or inserting components.

• Long Stroke Options: Certain models offer significantly longer strokes, more than double that of standard grippers, providing greater flexibility in handling various workpiece sizes.

• Durable Construction: The cylinder body typically features a full hard anodized oxidation treatment, resulting in high strength, long service life, and resistance to corrosion. High-precision seals ensure leak-free operation and smooth sliding.

ORDERING CODE

MHS  2            -         20                   D

             I                                I                           I

      2 Fingers                     Bore         Double-acting

SPECIFICATION

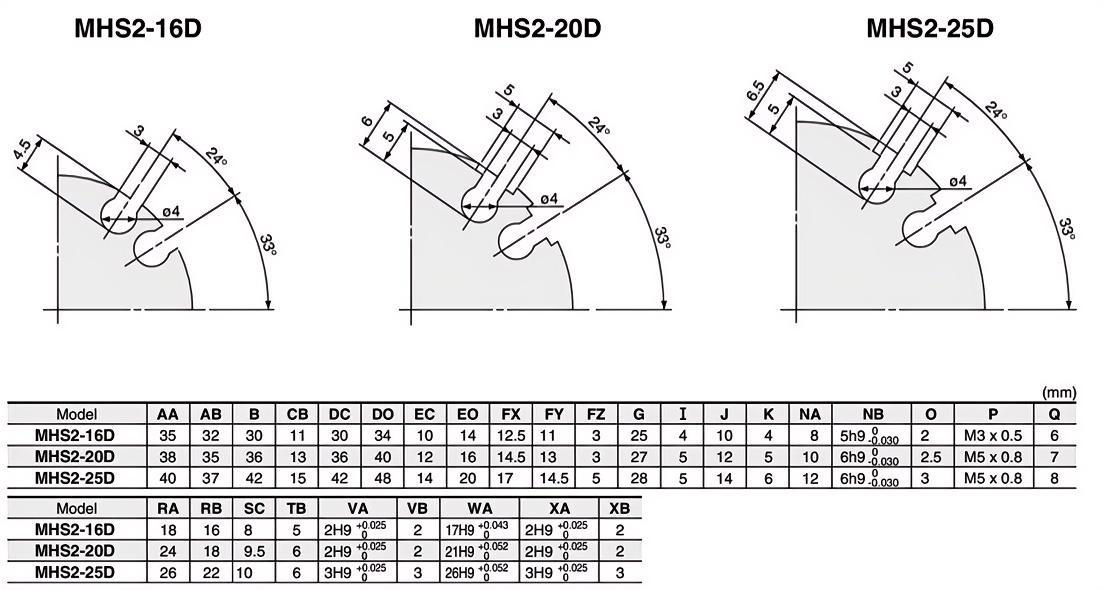

OVERALLDIMENSION&STRUCTURE

MHS2-16D to 25D

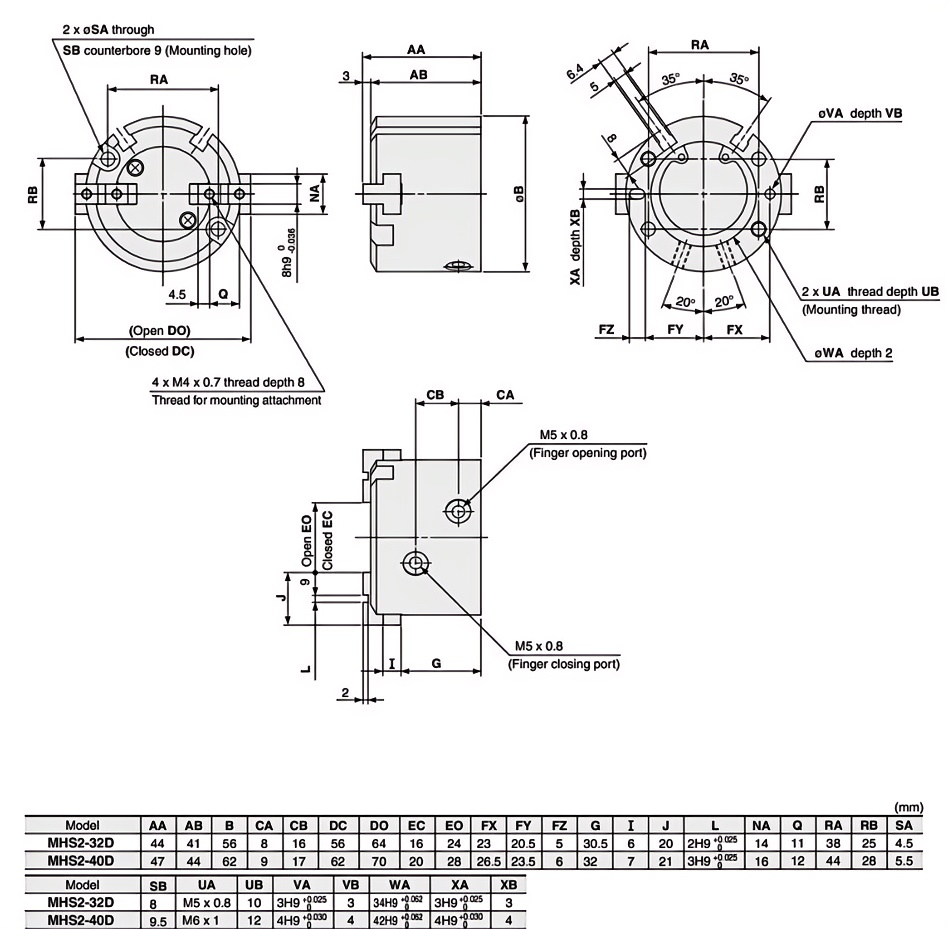

MHS2-32D/40D

MHS2-50D/63D
