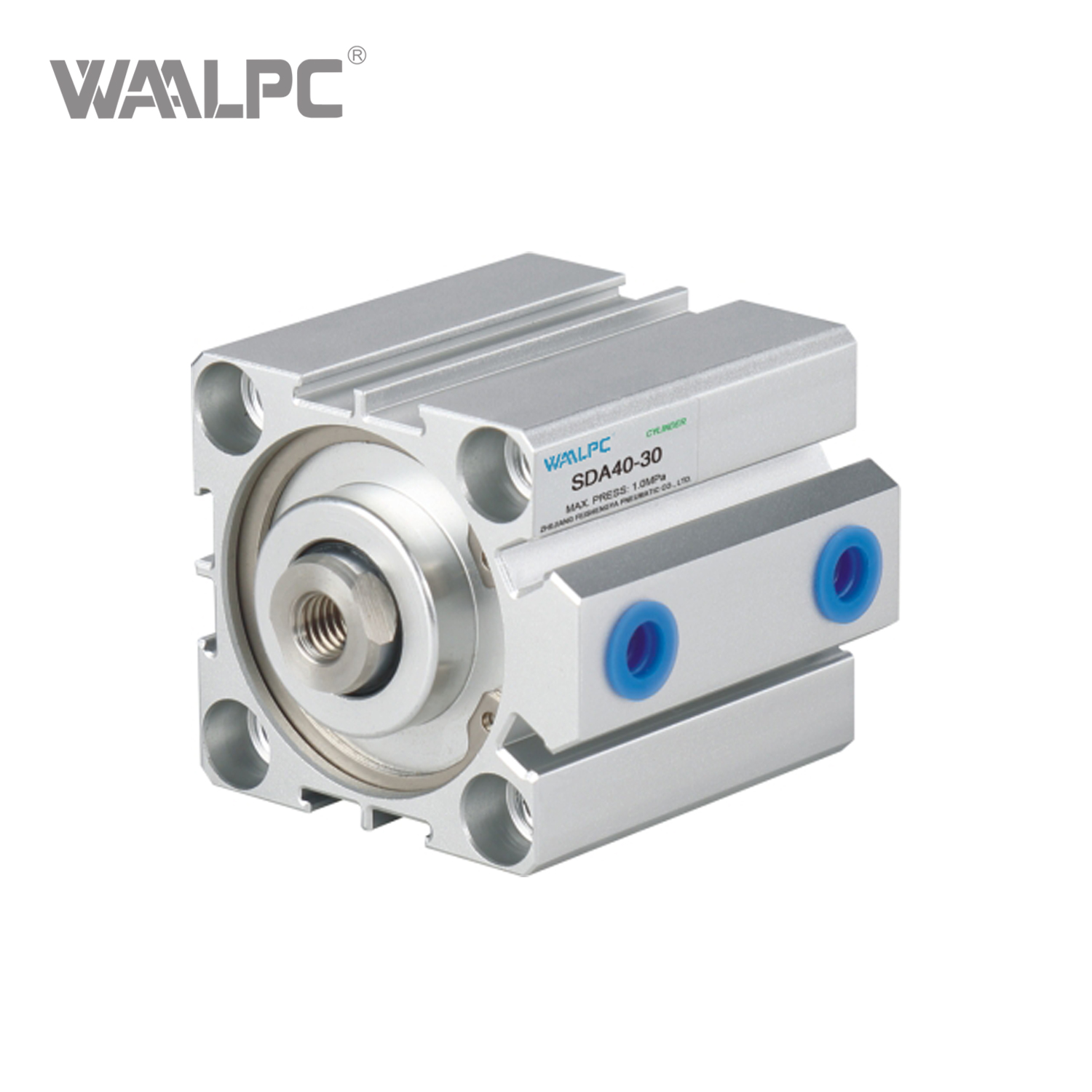

The SDA Series represents a line of high-performance pneumatic cylinders designed for industrial automation applications. These compact, double-acting cylinders combine reliable operation with space-saving design features.

  • SDA

  • WAALPC

  • 8409919990

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Description

1.   Space-Saving Design: Up to 50% more compact than standard cylinders

2.   Durable Construction: High-strength aluminum alloy with corrosion-resistant treatment

3.   Smooth Operation: Adjustable pneumatic cushioning for reduced impact and noise

4.   Easy Integration: Magnetic piston for position sensing & multiple mounting options

5.   Reliable Performance: Long service life with minimal maintenance requirements

6.   Wide Compatibility: Suitable for various industrial automation applications


Technical Parameters

ORDERING CODE

         SDA                                                      S                             20   X   30              -             20                    -                   B

            I                                                          I                                I            I                                I                                           I

Series Code                                       Magnet                    Bore   Stroke       Adjustable Stroke                 Thread

SDA: Double Acting                                       Blank: Without Magnet                                                 10: 10mm                                         Blank: Female thread

SSA: Single Acting Spring Extend            S: With Magnet                                                                 20: 20mm                                         B: Male thread

STA: Single Acting Spring Return                                                                                                            30: 30mm                                         N: No thread

SDAD: Double Shaft Acting                                                                                                                        40: 40mm

SDAJ: Adjuxtable cushion type                                                                                                                50: 50mm

                                                                                                                                                                               75: 75mm

                                                                                                                                                                             100: 100mm

SPECIFICATION

Bore(mm) 12 16 20 25 32 40 50 63 80 100
Acting type Double acting
Single Acting Spring Extend, Single Acting Spring Return
 -
Working medium
 Clean air(40um Filtration)
Pressure range Double Acting 0.1~0.9Mpa
Spring Acting                 0.2~0.9Mpa
 -
Guaranteed pressure 1.5Mpa(213Psi)
Working Temperature
 -5~70℃
Speed range Double acting
 30~600mm/s
 30~350mm/s
 30~250mm/s
Single acting 100~500mm/s
 -
Cushion type
 Fixed Cushion
Port size
 M5x0.8
 G1/8
 G1/4
 G3/8


OVERALLDIMENSION&STRUCTURE

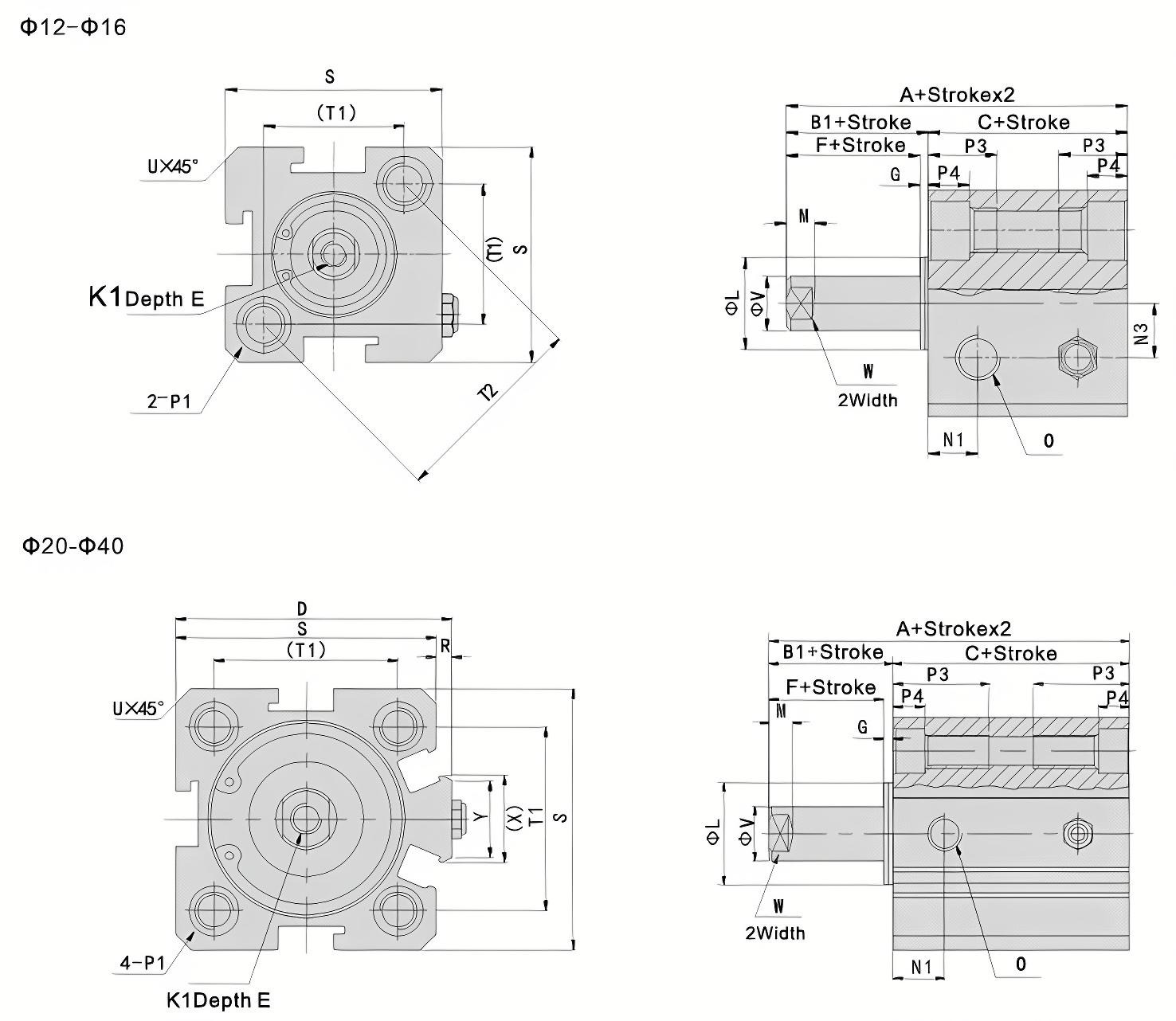

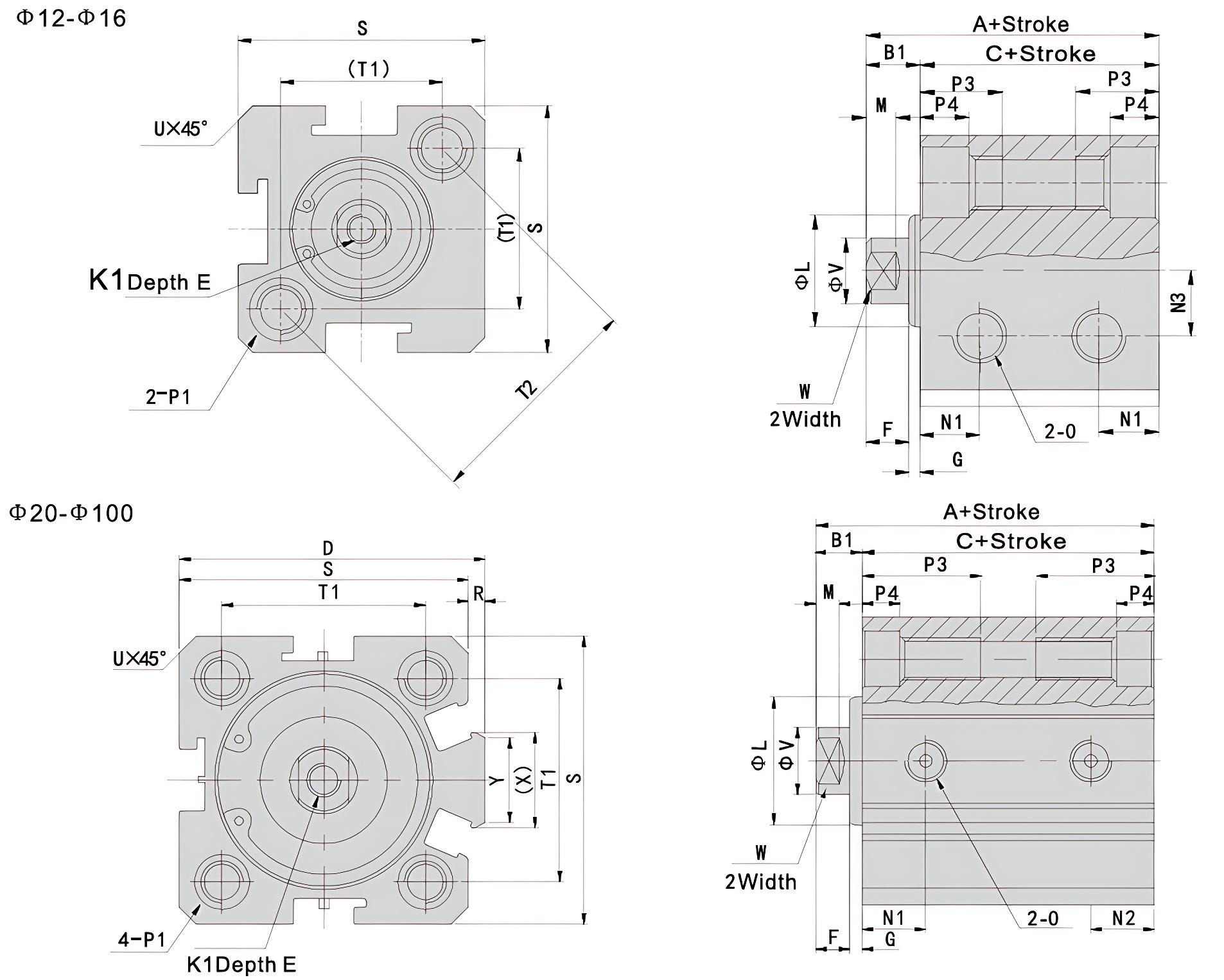

SDA/SDAS(Double Acting Type)

SDA Series Compact Pneumatic Cylinders


Model Standard
 With Magnet
 D E F
 G K1 L M N1
 N2 N3
Bore/Sign A B1 C A B1 C S=5 S>5 S=5 S>5
12 22 5 17 32 5 27 - 6 4 1 M3X0.5 10.2 2.8 6.3 6.3
 6
16 24 5.5 18.5 34 5.5 28.5 - 6 4 1.5 M3X0.5 11 2.8 7.3 7.3 6.5
20 25 5.5 19.5 35 5.5 29.5 36 8 4 1.5 M4X0.7 15 2.8 7.5 7.5 -
25 27 6 21 37 6 31 42 10 4 2 M5X0.8 17 2.8 8 8 -
32 31.5 7 24.5 41.5 7 34.5 50 12 4 3 M6X1 22 2.8 9 9 -
40 33 7 26 43 7 36 58.5 12 4 3 M8X1.25 28 2.8 10 10 -
50 37 9 28 47 9 38 71.5 15 5 4 M10X1.5 38 2.8 10.5 10.5 -
63 41 9 32 51 9 42 84.5 15 5 4 M10X1.5 40 2.8 9.5 12 9.5 11 -
80
 52 11 41 62 11 51 104 20 6 5 M14X1.5 45 4 11.5 14.5 11.5 14.5 -
100 63 12 51 73 12 61 124 20 7 5 M18X1.5 55 4 16 20.5 16 20.5 -


Bore/Sign O P1 P3 P4 R S T1 T2 U V W X Y
12
 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 12 4.5 - 25 16.2 23 1.6 6 5 - -
16 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 12
 4.5 - 25 16.2 23 1.6 6 5 - -
20 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 12 4.5 - 29 19.8 28 1.6 6 5 - -
25 M5X0.8 Double Side: Φ8.2 Thread: M6x1.0 Through Hole: Φ4.6 14 4.5 2 34 24 - 2.1 8 6 11.3 10
32 G1/8 Double Side: Φ8.2 Thread: M6x1.0 Through Hole: Φ4.6 15 5.5 2 40 28 - 3.1 10 8 12 10
40 G1/8 Double Side: Φ10 Thread: M8x1.25 Through Hole: Φ6.5 16 5.5 6 44 34 - 2.15 12 10 18.3 15
50 G1/4 Double Side: Φ11 Thread: M8x1.25 Through Hole: Φ6.5 20 7.5 6.5 52 40 - 2.25 16 14 21.3 16
63 G1/4 Double Side: Φ11 Thread: M8x1.25 Through Hole: Φ6.5 25 8.5 9.5 62 48 - 4.15 20 17 30 20
80 G3/8 Double Side: Φ14 Thread: M12x1.75 Through Hole: Φ9.2 25 8.5 9.5 75 60 - 3.15 20 17 28.7 20
100 G3/8 Double Side: Φ17.5 Thread: M14x2 Through Hole: Φ11.3 30 13 10 114 90 - 3.65 32 27 35 26

SSA/SSAS(Single Acting Spring Extend)


SDA Series Compact Pneumatic Cylinders



Model Standard With Magnet
 D E F G K1 L M N1 N3

Bore/Sign Stroke

 A B1
 C
 A B1
 C
≤10 >10 ≤10 >10 ≤10 >10 ≤10 >10
12 32 42 5 27 37 42 52 5 37 47 - 6 4 1 M3X0.5 10.2 2.8 6.3 6
16 34 44 5.5 28.5

38.5

 44 54 5.5 38.5 48.5 - 6 4 1.5 M3X0.5 11 2.8
 7.3 6.5
20 35 45 5.5 29.5 39.5 45 55 5.5 39.5 49.5 36 8 4 1.5 M4X0.7 16 2.8 7.5 -
25 37 47 6 31 41 47 57 6 41 51 42 10 4 2 M5X0.8 17 2.8 8 -
32 41.5 51.5 7 34.5 44.5 51.5 61.5 7 44.5 54.5 50 12 4 3 M6X1 22 2.8 9 -
40 43 53 7 36 46 53 63 7 46 56 58.5 12 4 3 M8X1.25 28 2.8 10 -


Bore/Sign O P1 P3 P4 R S T1 T2 U V W X Y
12
 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 12 4.5 - 25 16.2 23 1.6 6 5 - -
16 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 12
 4.5 - 29 19.8 28 1.6 6 5 - -
20 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 12 4.5 2 34 24 - 2.1 8 6 11.3 10
25 M5X0.8 Double Side: Φ8.2 Thread: M6x1.0 Through Hole: Φ4.6 14 5.5 2 40 28 - 3.1 10 8 12 10
32 G1/8 Double Side: Φ8.5 Thread: M6x1.0 Through Hole: Φ4.6 15 5.5 6 44 34 - 2.15 12 10 18.3 15
40 G1/8 Double Side: Φ10 Thread: M8x1.25 Through Hole: Φ6.5 20 7.5 6.5 52 40 - 2.25 16 14 21.3 16

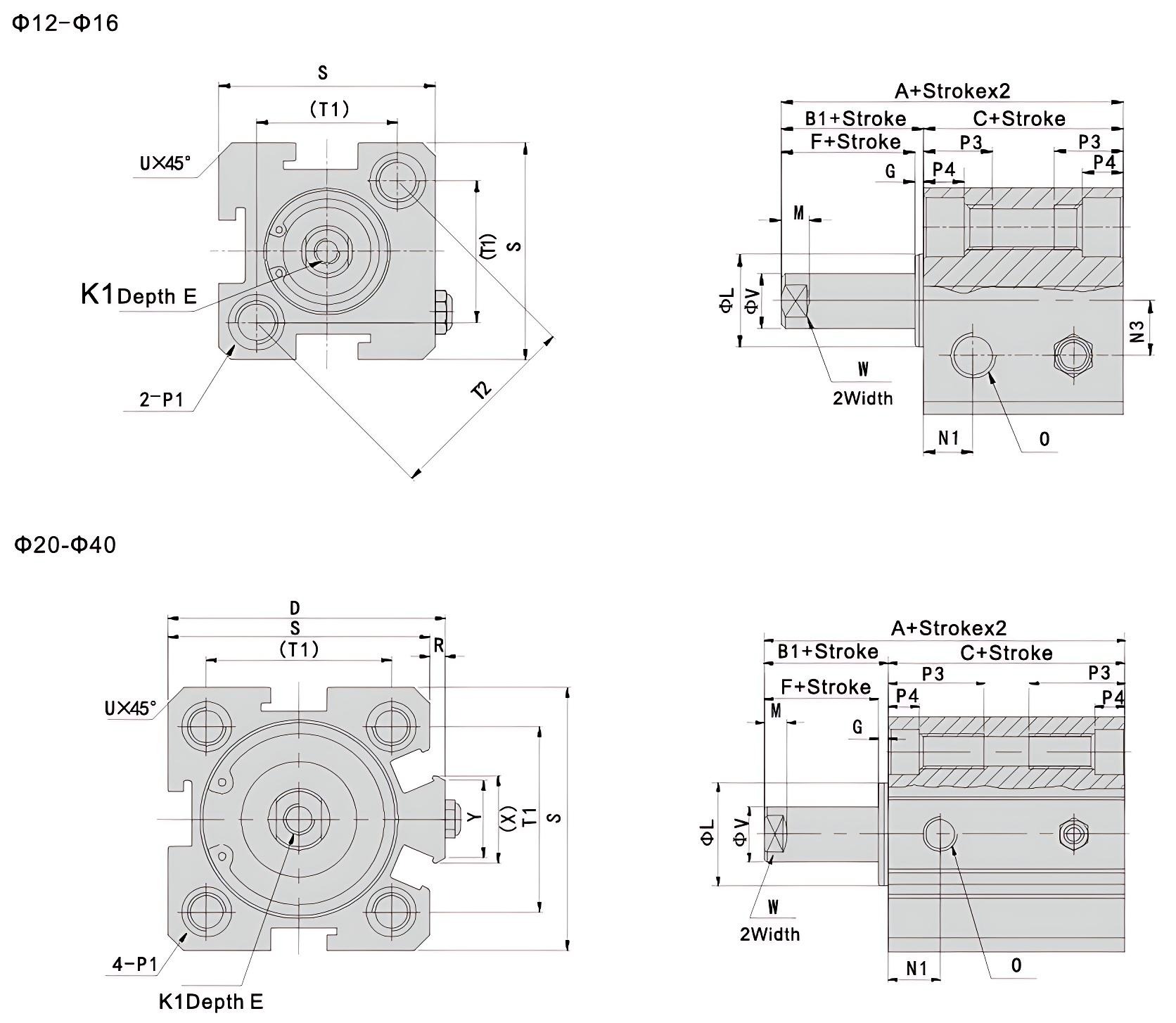

STA/STAS(Single Acting Spring Return)

SDA Series Compact Pneumatic Cylinders


Model Standard With Magnet
 D E F G K1 L M N1 N3

Bore/Sign Stroke

 A B1
 C
 A B1
 C
≤10 >10 ≤10 >10 ≤10 >10 ≤10 >10
12 32 42 5 27 37 42 52 5 37 47 - 6 4 1 M3X0.5 10.2 2.8 6.3 6
16 34 44 5.5 28.5

38.5

 44 54 5.5 38.5 48.5 - 6 4 1.5 M3X0.5 11 2.8
 7.3 6.5
20 35 45 5.5 29.5 39.5 45 55 5.5 39.5 49.5 36 8 4 1.5 M4X0.7 16 2.8 7.5 -
25 37 47 6 31 41 47 57 6 41 51 42 10 4 2 M5X0.8 17 2.8 8 -
32 41.5 51.5 7 34.5 44.5 51.5 61.5 7 44.5 54.5 50 12 4 3 M6X1 22 2.8 9 -
40 43 53 7 36 46 53 63 7 46 56 58.5 12 4 3 M8X1.25 28 2.8 10 -


Bore/Sign O P1 P3 P4 R S T1 T2 U V W X Y
12
 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 12 4.5 - 25 16.2 23 1.6 6 5 - -
16 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 12
 4.5 - 29 19.8 28 1.6 6 5 - -
20 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 14 4.5 2 34 24 - 2.1 8 6 11.3 10
25 M5X0.8 Double Side: Φ8.2 Thread: M6x1.0 Through Hole: Φ4.6 15 5.5 2 40 28 - 3.1 10 8 12 10
32 G1/8 Double Side: Φ8.2 Thread: M6x1.0 Through Hole: Φ4.6 16 5.5 6 44 34 - 2.15 12 10 18.3 15
40 G1/8 Double Side: Φ10 Thread: M8x1.25 Through Hole: Φ6.5 20 7.5 6.5 52 40 - 2.25 16 14 21.3 16

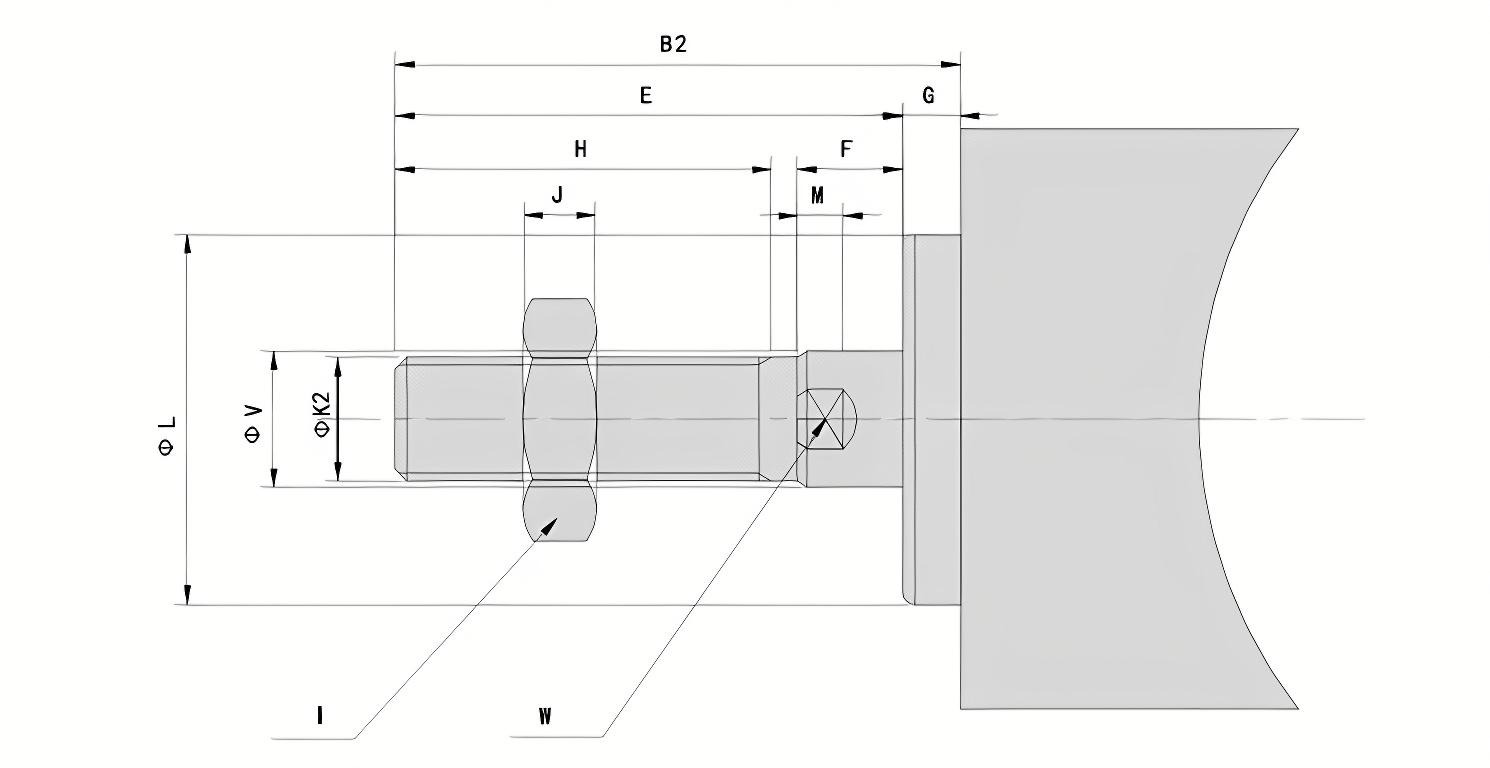

SDA SSA STA

SDA Series Compact Pneumatic Cylinders


Bore/Sign
 B2 E F G H I J K2 L M V W
12 17 16 4 1 10 8 4 M5X0.8 10.2 2.8 6 5
16 17.5 16 4 1.5 10 8 4 M5X0.8 11 2.8 6 5
20 20.5 19 4 1.5 13 10 5 M6X10 15 2.8 8 6
25 23 21 4 2 15 12 6 M8X1.25 17 2.8 10 8
32 25 22 4 3 15 17 6 M10X1.25 22 2.8 12 10
40 35 32 4 3 25 19 8 M14X1.5 28 2.8 16 14
50 37 33 5 4 25 27 11 M18X1.5 38 2.8 20 17
63 37 33 5 4 25 27 11 M18X1.5 40 2.8 20 17
80 44 39 6 5 30 32 13 M22X1.5 45 4 25 22
100 50 45 7 5 35 36 13 M26X1.5 55 4 32 27

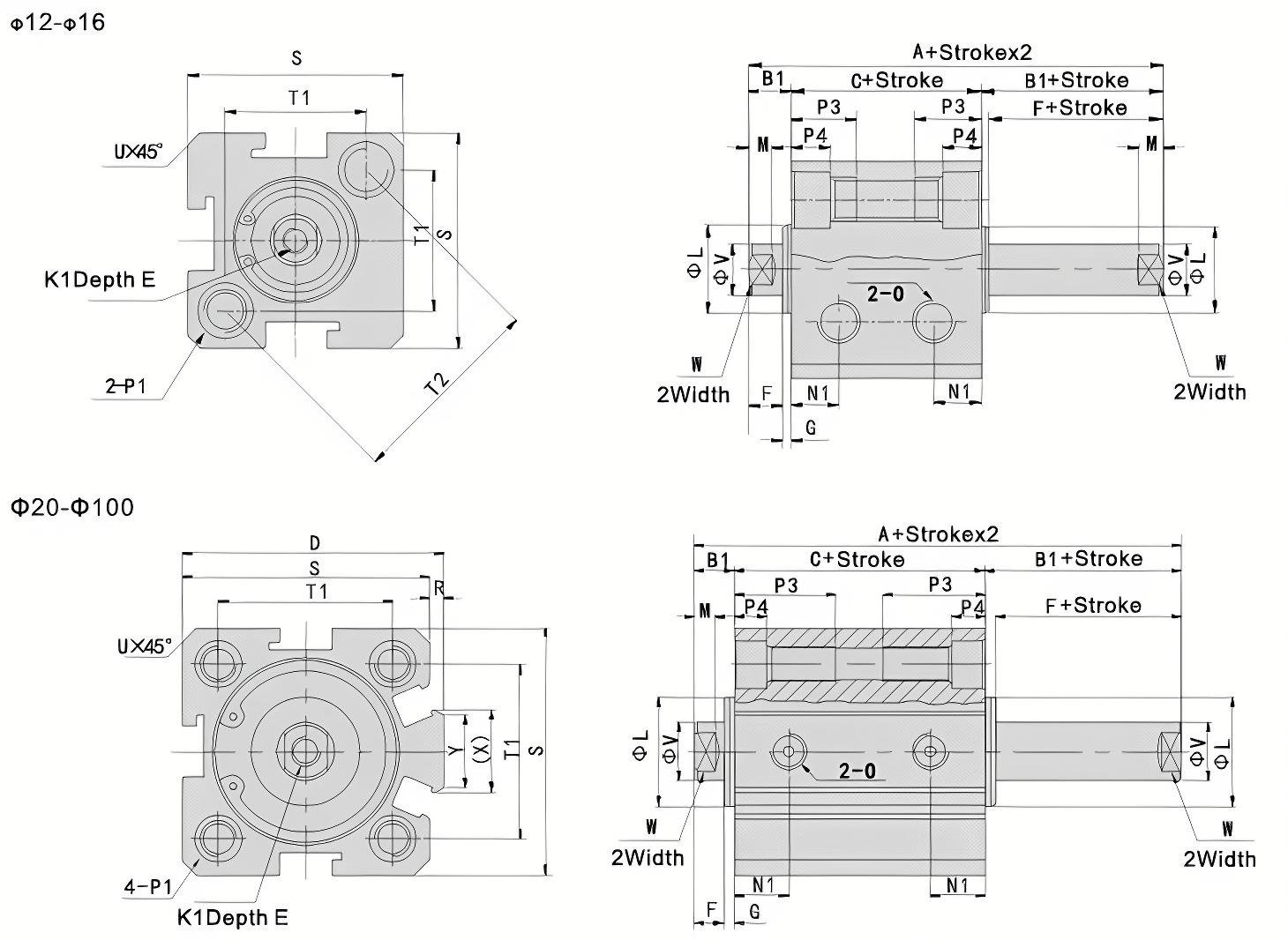

SDAD/SDADS(Double Shaft Acting Adjustable Type)


SDA Series Compact Pneumatic Cylinders


Model Standard
 With Magnet
 D E F
 G K1 L M N1
 N3
Bore/Sign A B1 C A B1 C S≤10 S>10
 S=5 S>5
12 27 5 17 37 5 27 - 6 4 1 M3X0.5 10.2 2.8 6.3 6
16 29.5 5.5 18.5 39.5 5.5 28.5 - 6 4 1.5 M3X0.5 11 2.8 7.3 6.5
20 30.5 5.5 19.5 40.5 5.5 29.5 36 8(S=5  6.5) 4 1.5 M4X0.7 15 2.8 7.5 -
25 33 6 21 43 6 31 42 10(S=5  7) 4 2 M5X0.8 17 2.8 8 -
32 38.5 7 24.5 48.5 7 34.5 50 12 4 3 M6X1 22 2.8 9 -
40 40 7 26 50 7 36 58.5 12 4 3 M8X1.25 28 2.8 10 -
50 46 9 28 56 9 38 71.5 15 5 4 M10X1.5 38 2.8 10.5 -
63 50 9 32 60 9 42 84.5 15 5 4 M10X1.5 40 2.8 9.5 11.8 -
80
 63 11 41 73 11 51 104 20 6 5 M14X1.5 45 4 11.5 14.5 -
100 75 12 51 85 12 61 124 20 7 5 M18X1.5 55 4 16 20.5 -


Bore/Sign O P1 P3 P4 R S T1 T2 U V W X Y
12
 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 12 4.5 - 25 16.2 23 1.6 6 5 - -
16 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 12
 4.5 - 29 19.8 28 1.6 6 5 - -
20 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 14 4.5 2 34 24 -
 2.1 8 6 11.3 10
25 M5X0.8 Double Side: Φ8.2 Thread: M6x1.0 Through Hole: Φ4.6 15 5.5 2 40 28 - 3.1 10 8 12 10
32 G1/8 Double Side: Φ8.2 Thread: M6x1.0 Through Hole: Φ4.6 16 5.5 6 44 34 - 2.15 12 10 18.3 15
40 G1/8 Double Side: Φ10 Thread: M8x1.25 Through Hole: Φ6.5 20 7.5 6.5 52 40 - 2.25 16 14 21.3 16
50 G1/4 Double Side: Φ11 Thread: M8x1.25 Through Hole: Φ6.5 25 8.5 9.5 62 48 - 4.15 20 17 30 20
63 G1/4 Double Side: Φ11 Thread: M8x1.25 Through Hole: Φ6.5 25 8.5 9.5 75 60 - 3.15 20 17 28.7 20
80 G3/8 Double Side: Φ14 Thread: M12x1.75 Through Hole: Φ9.2 25 10.5 10 94 74 - 3.65 25 22 36 26
100 G3/8 Double Side: Φ17.5 Thread: M14x2 Through Hole: Φ11.3 30 13 10 114 90 - 3.65 32 27 35 26

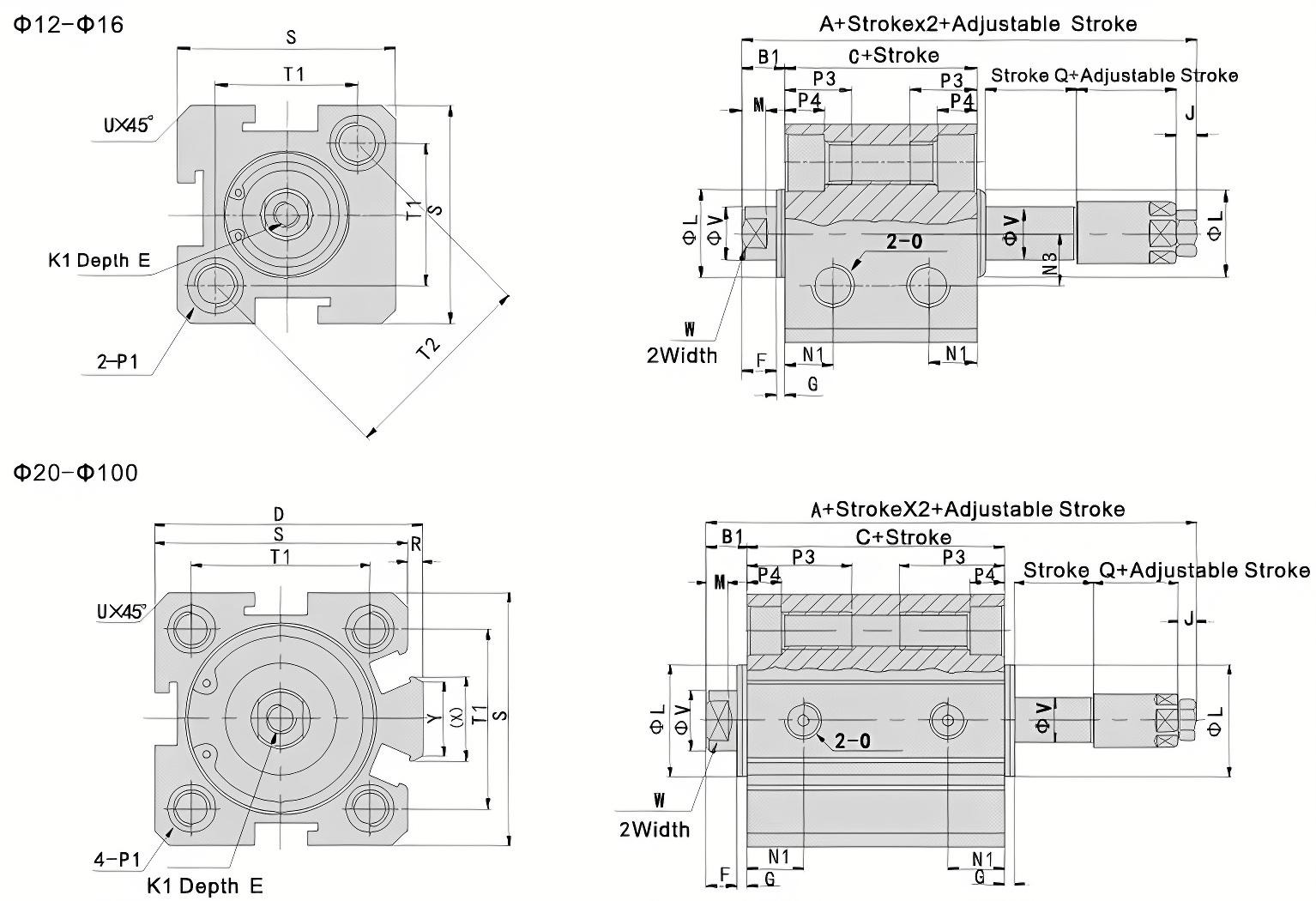

SDAJ/SDAJS(Double Shaft Adjustable Stroke Type)


SDA Series Compact Pneumatic Cylinders


Model Standard
 With Magnet
 D E F
 G J
 K1 L M N1
Bore/Sign A B1 C A B1 C S≤10 S>10 S=5 S>5
12 40 5 17 50 5 27 - 6 4 1 4 M3X0.5 10.2 2.8 6.3
16 42.5 5.5 18.5 52.5 5.5 28.5 - 6 4 1.5 4 M3X0.5 11 2.8 7.3
20 47.5 5.5 19.5 57.5 5.5 29.5 36 8(S=5  6.5) 4 1.5 5 M4X0.7 15 2.8 7.5
25 55 6 21 65 6 31 42 10(5  7) 4 2 6 M5X0.8 17 2.8 8
32 61.5 7 24.5 71.5 7 34.5 50 8 12 4 3 6
 M6X1 22 2.8 9
40 65
 7 26 75 7 36 58.5 8 12 4 3 8 M8X1.25 28 2.8 10
50 73 9 28 83 9 38 71.5 8 15 5 4 11 M10X1.5 38 2.8 10.5
63 77 9 32 87 9 42 84.5 10 15 5 4 11 M10X1.5 40 2.8 9.5 11.8
80
 94 11 41 104 11 51 104 13 20 6 5 13 M14X1.5 45 4 11.5 14.5
100 105 12 51 115 12 61 124 18
 20 7 5 13 M18X1.5 55 4 16 20.5


Bore/Sign N3 O P1 P3 P4 Q R S T1 T2 U V W X Y
12
 6 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 12 4.5 13 - 25 16.2 23 1.6 6 5 - -
16 6.5 M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 12
 4.5 13 - 29 19.8 28 1.6 6 5 - -
20 - M5X0.8 Double Side: Φ6.5 Thread: M5x0.8 Through Hole: Φ4.2 14 4.5 16 2 34 24 -
 2.1 8 6 11.3 10
25 - M5X0.8 Double Side: Φ8.2 Thread: M6x1.0 Through Hole: Φ4.6 15 5.5 19 2 40 28 - 3.1 10 8 12 10
32 - G1/8 Double Side: Φ8.2 Thread: M6x1.0 Through Hole: Φ4.6 16 5.5 21 6 44 34 - 2.15 12 10 18.3 15
40 - G1/8 Double Side: Φ10 Thread: M8x1.25 Through Hole: Φ6.5 20 7.5 21 6.5 52 40 - 2.25 16 14 21.3 16
50 - G1/4 Double Side: Φ11 Thread: M8x1.25 Through Hole: Φ6.5 25 8.5 21 9.5 62 48 - 4.15 20 17 30 20
63 - G1/4 Double Side: Φ11 Thread: M8x1.25 Through Hole: Φ6.5 25 8.5 32 9.5 75 60 - 3.15 20 17 28.7 20
80 - G3/8 Double Side: Φ14 Thread: M12x1.75 Through Hole: Φ9.2 25 10.5 24 10 94 74 - 3.65 25 22 36 26
100 - G3/8 Double Side: Φ17.5 Thread: M14x2 Through Hole: Φ11.3 30 13 24 10 114 90 - 3.65 32 27 35 26
Specification Download
Superiority
Why choose us? What can we do for you?
♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.

Related Products

Pneumatic Actuator DNC Series Standard Cylinders with Cushioning & Position Sensing Festo Type
Pneumatic Actuator DNC Series Standard Cylinders with Cushioning & Position Sensing Festo Type
SI Series Standard Pneumatic Cylinder Double Acting Compact Design with Magnetic Piston And Multiple Mounting Options
SI Series Standard Pneumatic Cylinder Double Acting Compact Design with Magnetic Piston And Multiple Mounting Options
FESTO DSBC Standard Pneumatic Cylinders with Adjustable Cushioning & Position Sensing for Industrial Automation
DSBC Standard Pneumatic Cylinders with Adjustable Cushioning & Position Sensing for Industrial Automation FESTO Type
SC Series ISO 15552 Standard Pneumatic Cylinder, Compact & Space-Saving Design, Double-Acting with Adjustable Cushioning
SC Series ISO 15552 Standard Pneumatic Cylinder, Compact & Space-Saving Design, Double-Acting with Adjustable Cushioning
ADVU Series Compact Cylinder Double-Acting with Magnetic Piston And Adjustable Cushioning for Industrial Automation Festo Type
ADVU Series Compact Cylinder Double-Acting with Magnetic Piston And Adjustable Cushioning for Industrial Automation Festo Type
MAL Series Compact Pneumatic Cylinders - Space-Saving Design with Magnetic Piston & Multiple Mounting Options
MAL Series Compact Pneumatic Cylinders - Space-Saving Design with Magnetic Piston & Multiple Mounting Options
Inquire

GET IN TOUCH

Add: Hengkun Smart Industrial Park, No. 176, Golf Road, Yinhu Street, Fuyang District, Hangzhou City, Zhejiang Province, China 311400
Tel: +86-571-58835560
Mob: +86-13486112619
E-Mail:  tina@waalpc.com
Whatsapp: +86-13486112619
Our Subsidiary: Hangzhou Evershine Pneumatic Import & Export Co., Ltd.

QUICK LINKS

PRODUCT CATEGORY

SUBSCRIBE
Promotions, new products and sales. Directly to your inbox.
Subscribe
Copyright © 2024 Hangzhou Fuyang Waal Precision Machinery Co., Ltd.
