You are here: Home » Products » Air Source Treatment Units » Stainless Steel Series » Stainless Steel Filter Regulator with Manual Drain for Valve Industry ASCO 5um 40um 20Bar G1/2'' OEM 316 SS Pressure Reducing Valve

This product is no longer available

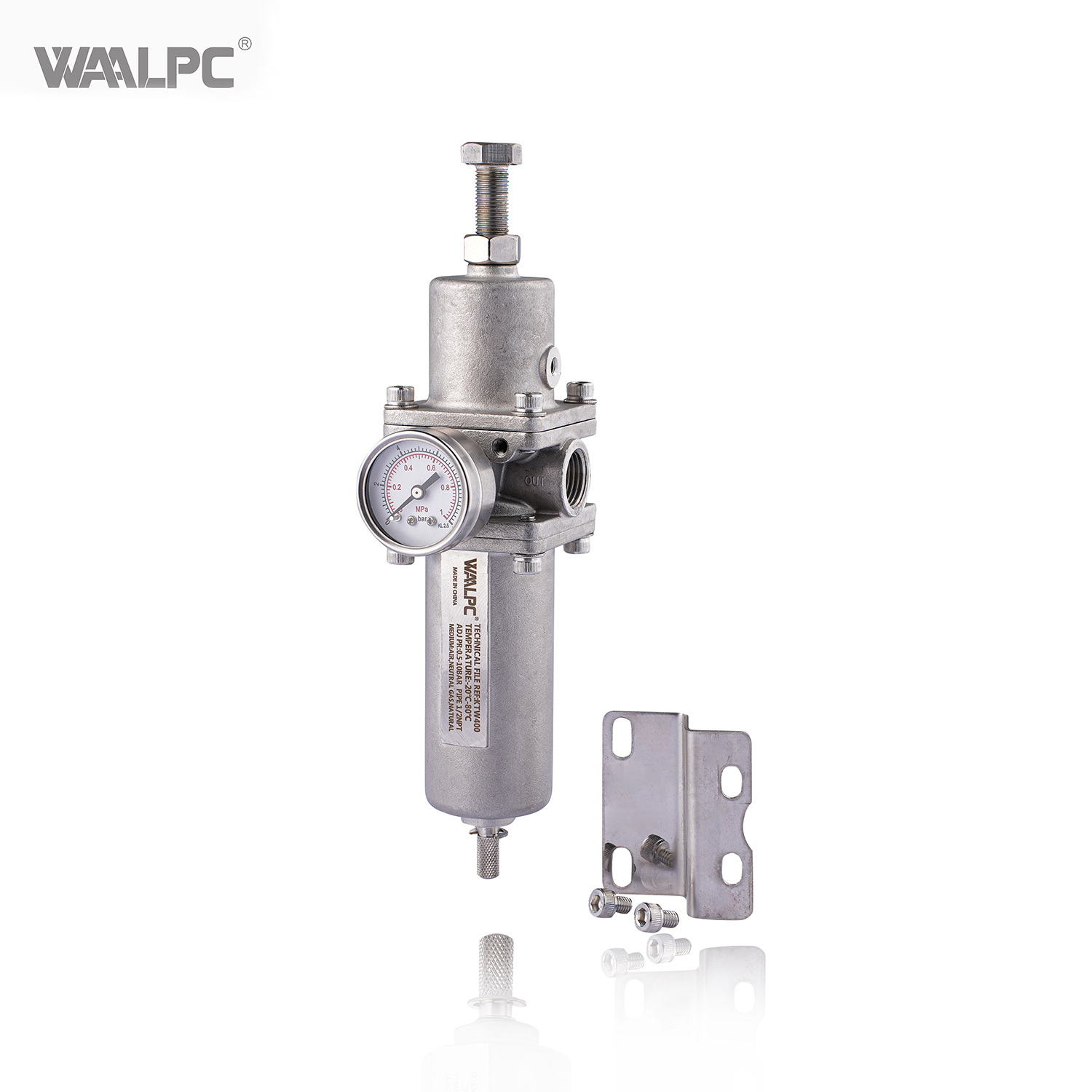

Stainless Steel Filter Regulator with Manual Drain for Valve Industry ASCO 5um 40um 20Bar G1/2'' OEM 316 SS Pressure Reducing Valve

Stainless Steel Filter Regulator with Manual Drain for Valve Industry ASCO 5um 40um 20Bar G1/2'' OEM 316 SS Pressure Reducing Valve


Size:	1 2
Availability:

Our Stainless Steel Filter Lubricators redefine air source management by seamlessly integrating high-efficiency filtration and precise lubrication into a single, rugged unit. Crafted from premium 316L stainless steel, these components are engineered to deliver reliable performance in the most demanding industrial environments, ensuring clean, well-lubricated air for the smooth operation of pneumatic systems.

Model:
KTW400
Brand:
WAALPC
Code:
8414909090

Product Description

Stainless Steel Filter Lubricators Advantages

1.SUS316 stainless steel

2.High pressure, corrosion, high&low temperature ,acid and alkali resistant. 3.Effective and fast removal of water and particles.

4. High flow rate.

5.Oil spray in mist ensure good lubrication for machines, extend long lifetime.

Stainless Steel Filter Lubricators Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Type-Name	Air Filter Lubricator
Model	KTW200	KTW400
Port Size (G)	G1/4	G31/2
Max Flow Rate (L/Min)	1850	2500
Filter Cup Capacity	105cc	110cc
Grade of Filtration	5 um, 40um
Working Medium	Air
Pressure Regulating Range	0.15~2MPa
Pressure Resistance	6MPa (870Psi)
Operating Temperature Range	-40~100℃
Drain type	Differential pressure drain (Drain below 0.05MPa)
Material	SUS316 stainless steel
Accessories	Pressure gauge, mounting bracket, screw x2
Weight	1000g	2000g

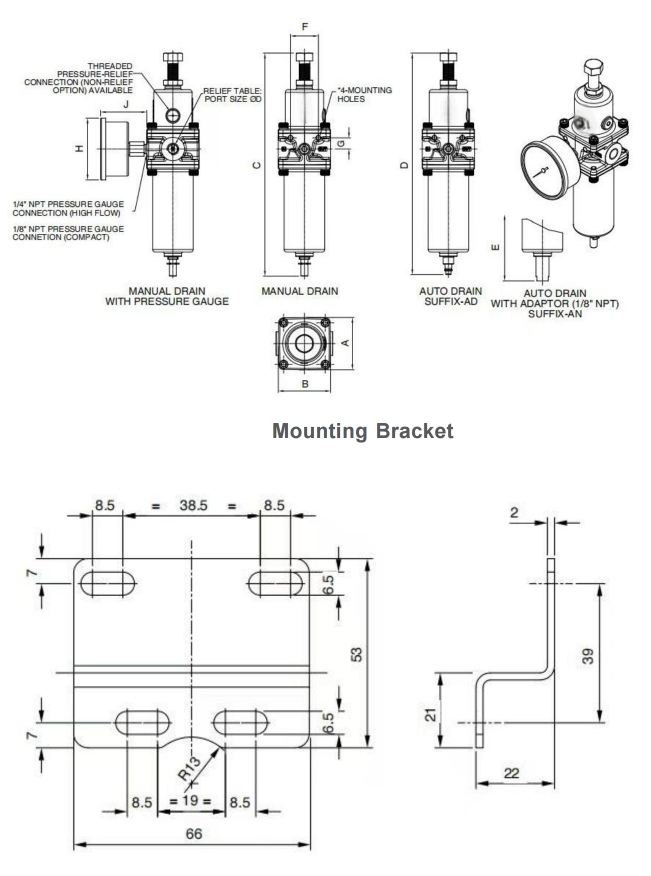

OVERALL DIMENSION & STRUCTURE

Stainless Steel Filter Lubricators

Model	Port size	Dimension(mm)
Model	Port size	A	B	C	D	E	F	G	H	J
KTW200-02	1/4''	45	45	185	223	233	20	10	58	53
KTW400-04	1/2''	60	65	256	254	261	32	12.75	71	51

Specification Download

stainless steel Filter&Lubricator K Series.png

Production Process

Air source treatment supplier

Packing∇ivery

FAQs

How do you ensure your product and service quality?

Provide customers with "high precision, high efficiency, high-quality" products is our mission. Every product is carefully tested before packing and shipping. Our team is always here for you to contact and discuss, any questions, just feel free to let us know.
What is your sample policy?

We can offer some models sample for free, it depends on the different product type, and freight cost charge by your side. Let's get chat if have any sample comments.
How can l make payment?

We accept T/T bank transfer, Western Union, L/C, Paypal etc.
What is your minimum order quantity?

All MOQ depends on the product. Please feel free to check with us for specific items.
What about delivery time?

It depends on the product and quantities, Normal model 3-5days, as we have ability to do in stock. It need about 10-15days for big order qty.
Do you accept OEM business?

Sure. we have done rich OEM/ODM service for many domestic and international market.
What about shipping?

We accept shipment by air or express, railway and sea shipping. It depends on your order qty or any requirement. We will help give support to provide applicable shipping way for you.
What's your main products?

We produce pneumatic components, air source processing devices, pneumatic control components, pneumatic actuators, solenoid valves, pneumatic accessories and other products.
How does your factory do quality control?

We always observe high quality control system strictly, base on ISO9001 quality control procedures, we observe international AQL standard inspection, from raw material inspection-semi finished product inspection-finished products inspection-testing inspection-packing inspection.
What to do if there is a problem with the product?

We will give quick response and analyse reason of any customer complaint,we usually make replacement to customers. And we can discuss more detail depend on different requirement.

Why choose us? What can we do for you?

♦ Founded in 2011 and professional experienced in the field of producing pneumatic products for over 13+ years.
♦ We have strong production capacity, over 100000 pcs/month.
♦We have rich experience for offering OEM/ODM service
♦ We have strict quality control process with quick response of after sales service.
♦ Management system certification : ISO9001,CE, ROHS
♦ We have 10+ technical experts for researching and developing.
♦ Sales network expands from domestic sales to all over the world.
