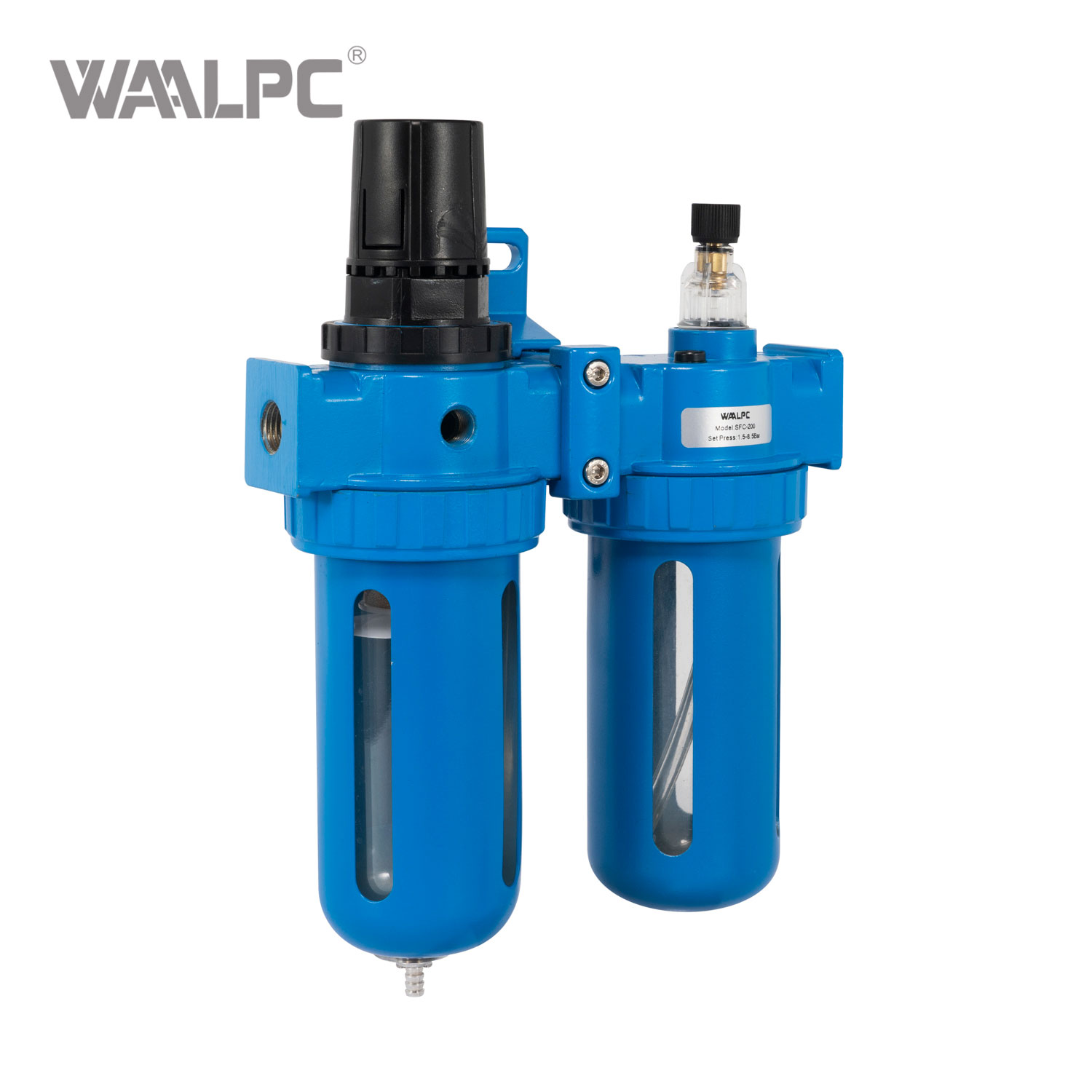

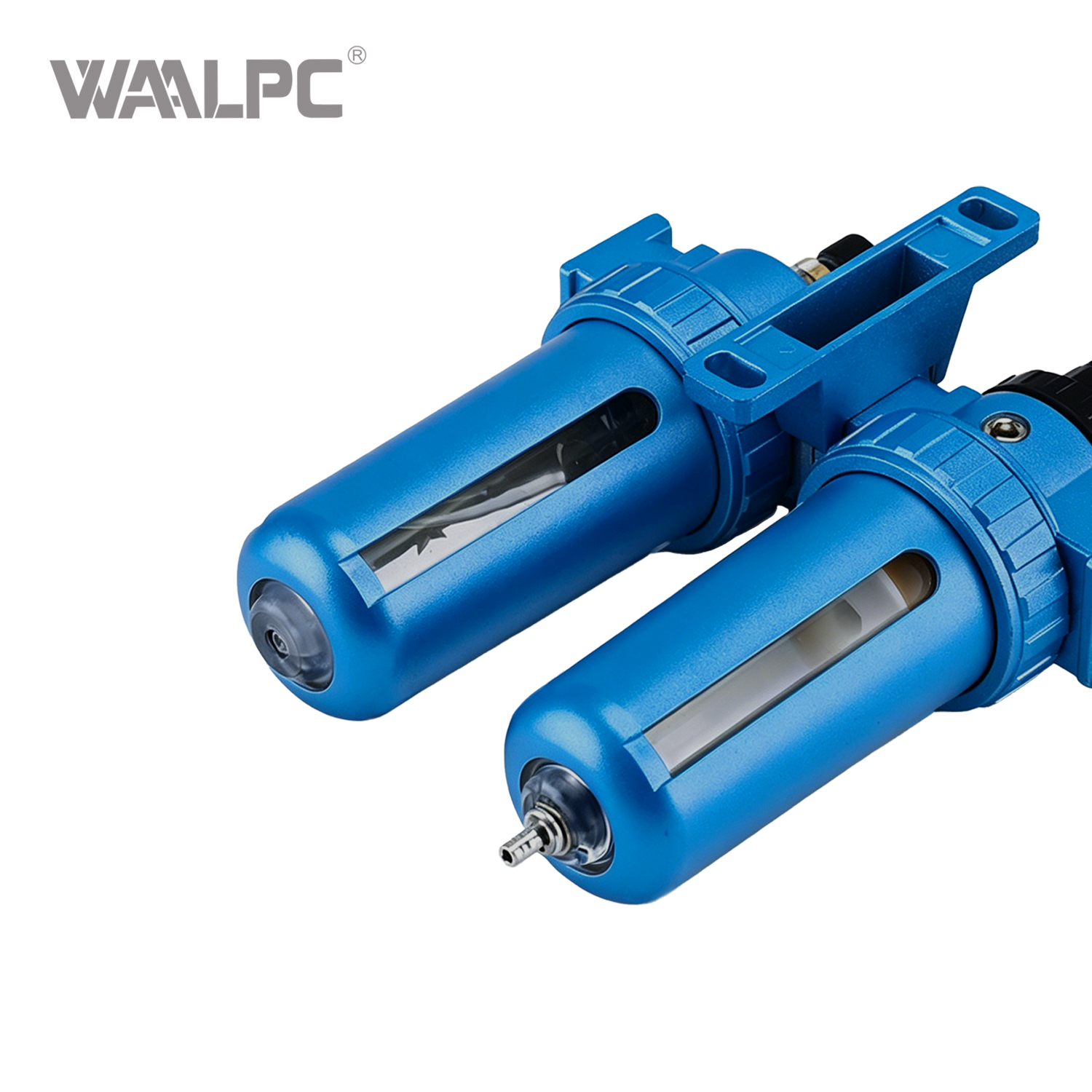

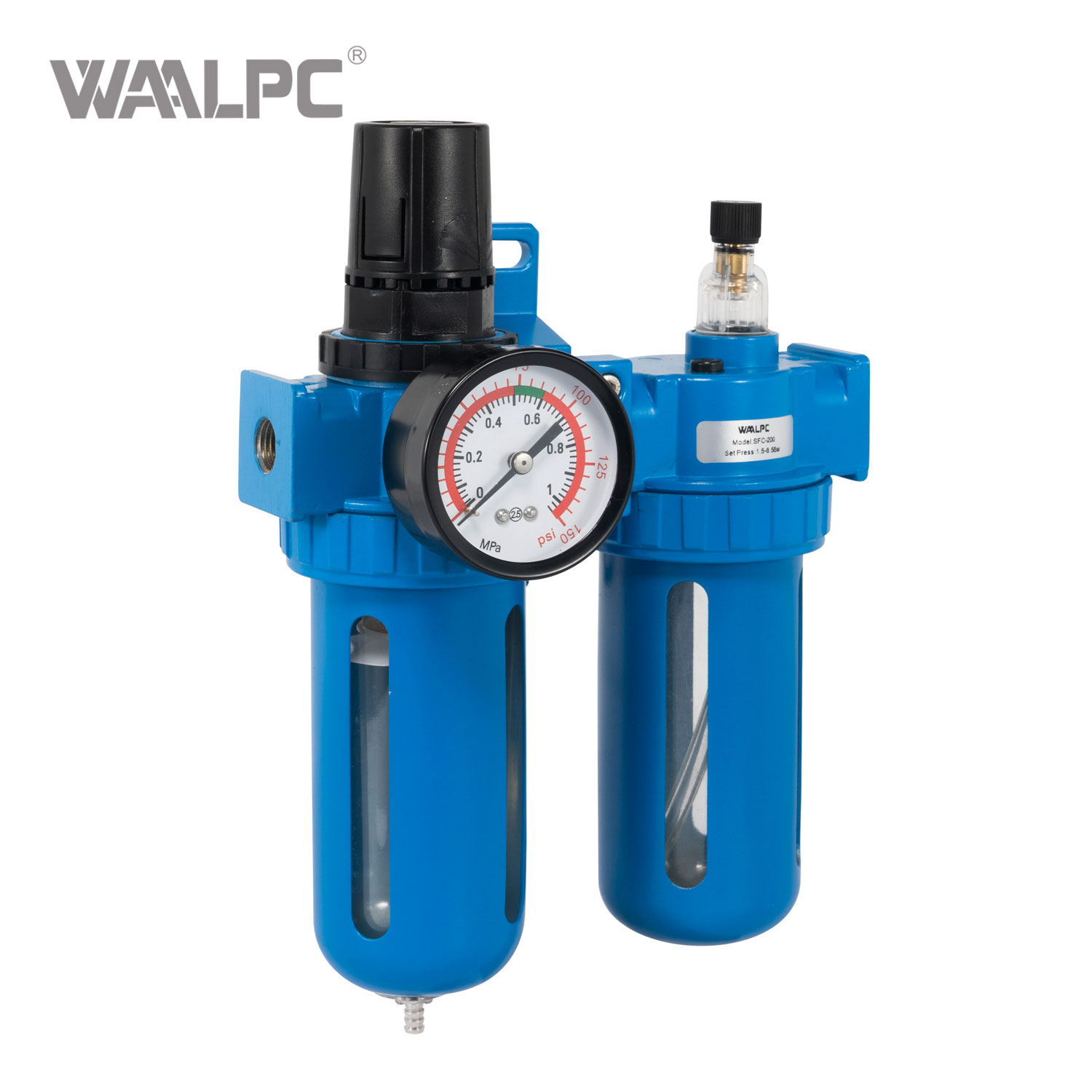

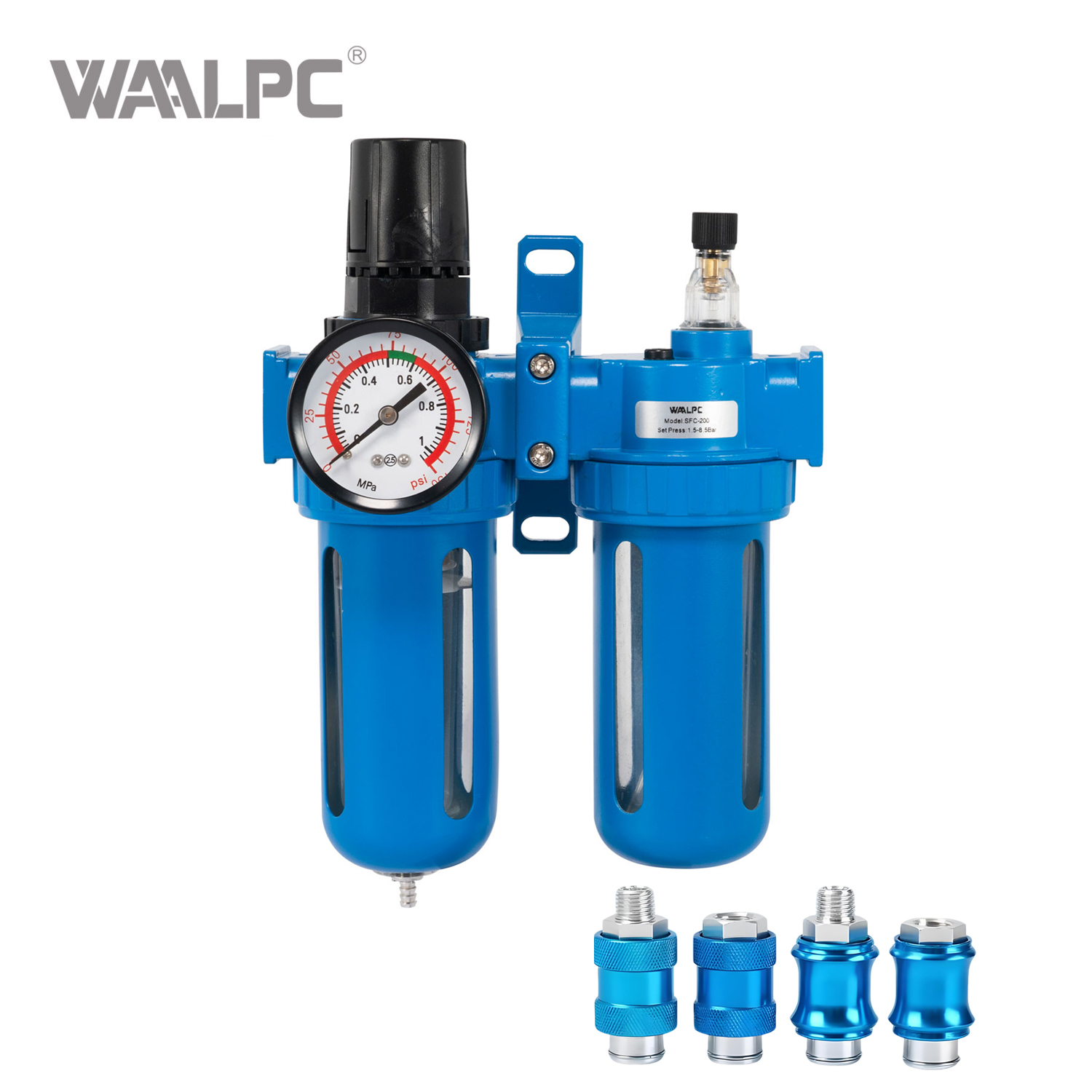

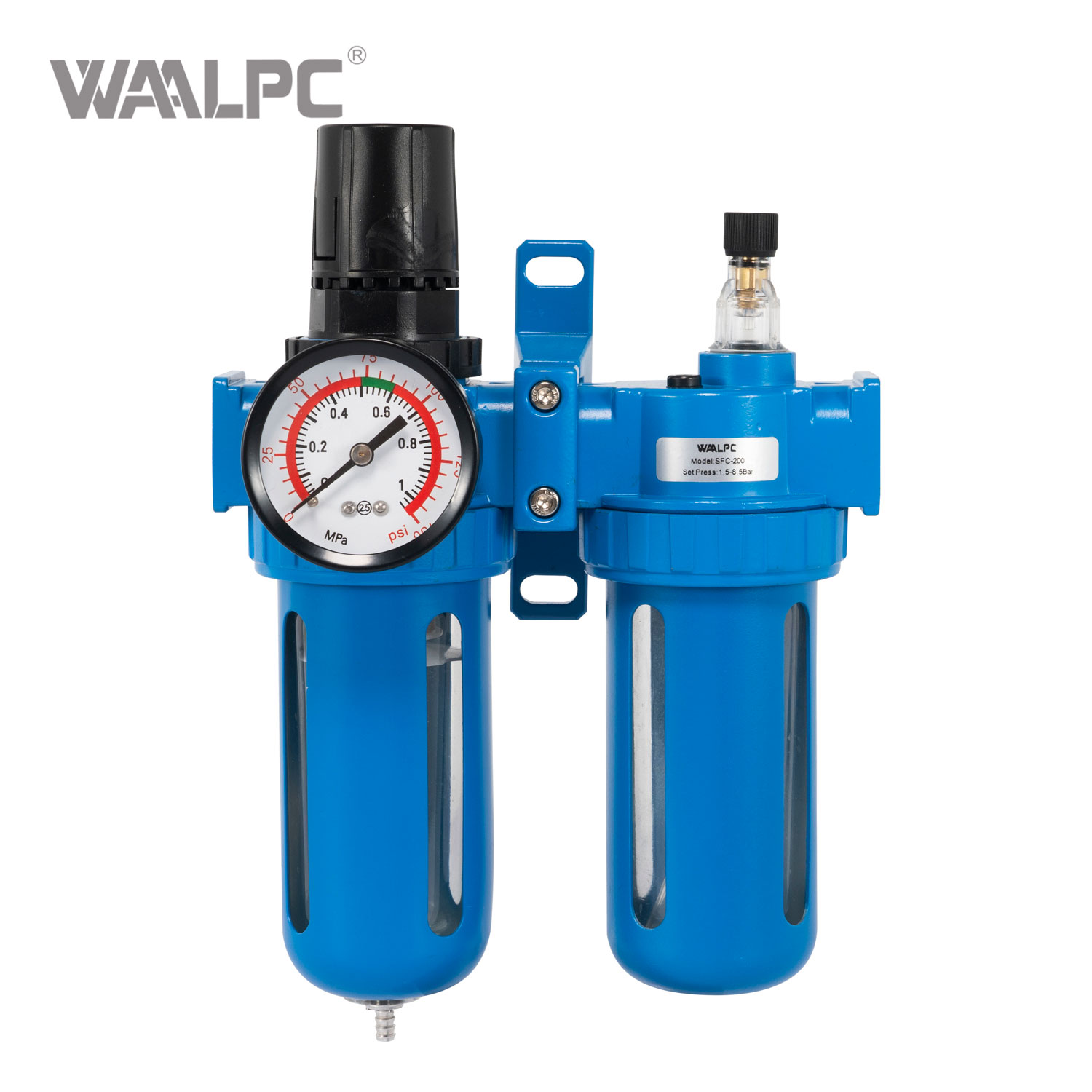

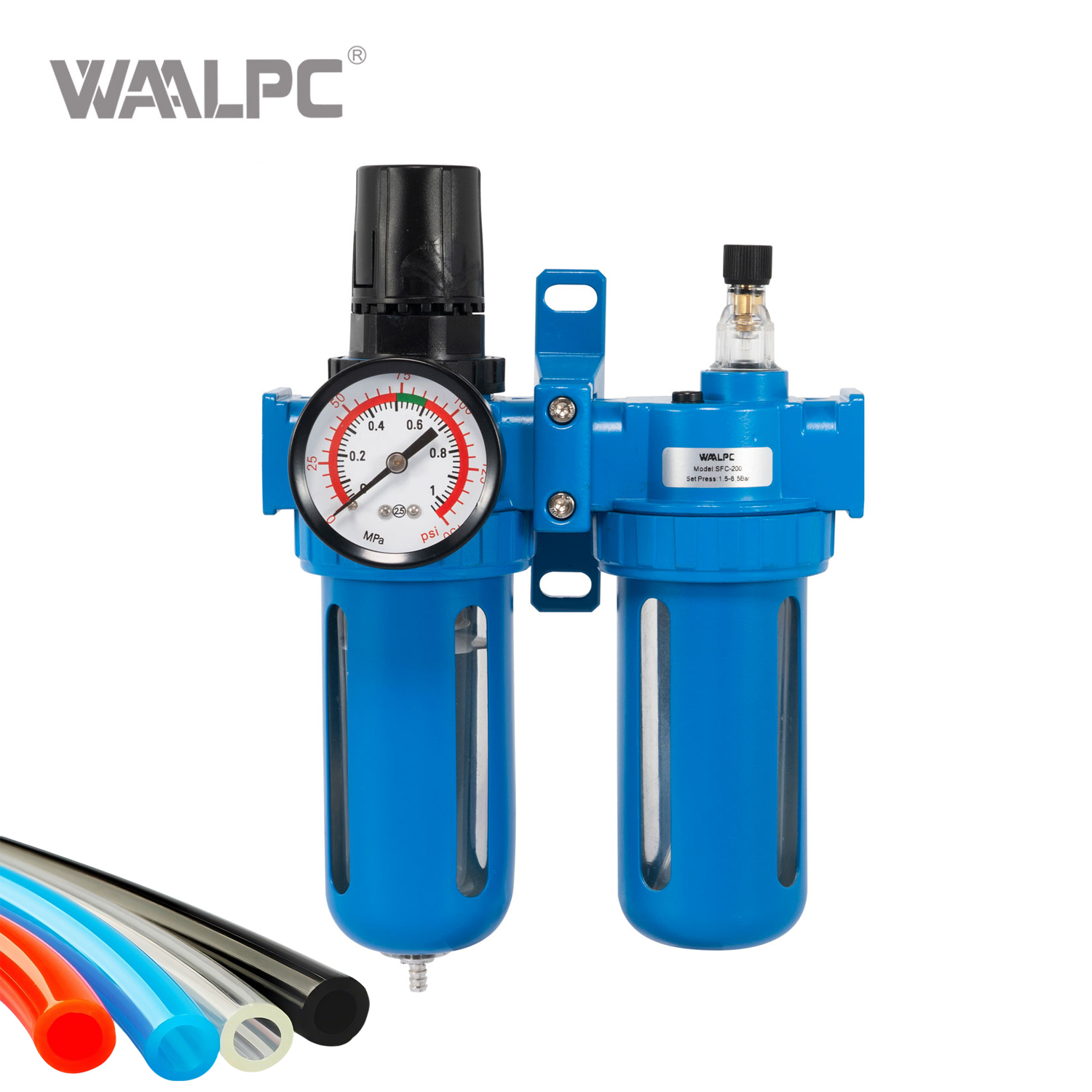

TWSNS SFC200-02 1/4" Duplex Pneumatic Component FR.L Unit for OEM


Size:	SFC-200 SFC-300 SFC-400
Availability:

Quantity:



Inquiry Add to Basket

The TWSNS series Duplex FRL unit (FRC type) integrates a filter regulator and an oil mist lubricator into a single modular assembly. These two components can be ordered individually, and for special applications, a 5μm fine filtration element is available as a replacement for the standard 40μm filter.Each unit features a polycarbonate bowl with a protective metal bowl guard for durability and safety.

Model:
SFC-200
Brand:
WAALPC
Code:
8421399090

Product Description

Compact & lightweight construction – space-saving modular design for easy installation on automation equipment.
Self-locking pressure adjustment – a press-fit self-locking mechanism prevents set pressure from drifting due to vibration or accidental external interference.
Low pressure loss & high water separation efficiency – optimized internal flow path ensures minimal pressure drop while efficiently removing condensate from compressed air.
Transparent inspection dome – allows direct observation of oil drip rate, enabling quick adjustments and precise lubrication monitoring.
Low pressure version available – optional low pressure version (max adjustable pressure 0.4MPa) for sensitive pneumatic applications.
High working temperature – supports wide temperature operation from -10℃ to 60℃.

Technical Parameters

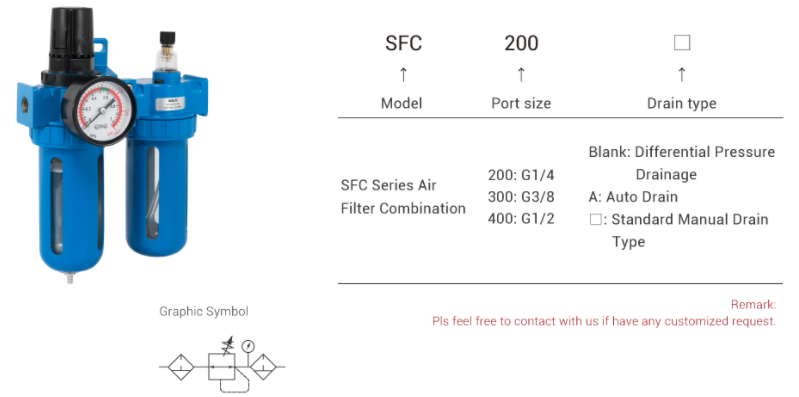

ORDERING CODE

TWSNS FR.L Unit

DATA SHEET

Model	SFC-200	SFC-300	SFC-400
Port Size(G)	1/4	3/8	1/2
Press Meter Diameter(G)	1/8	1/8	1/8
Proof Pressure	1.5MPa(15kgf/cm2)
Maximum Operating Pressure	1.0MPa(10kgf/cm2)
Ambient and Fluid Temperature	5~+60℃
All with Protection Cover	Available

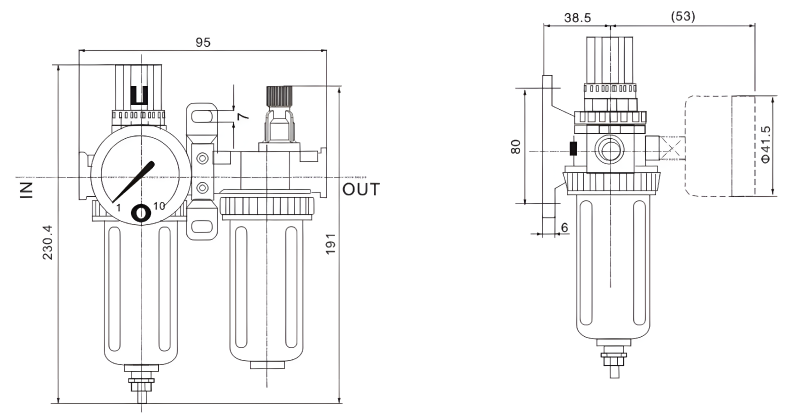

STRUCTURE

TWSNS SFC200

Specification Download

SFC.pdf
