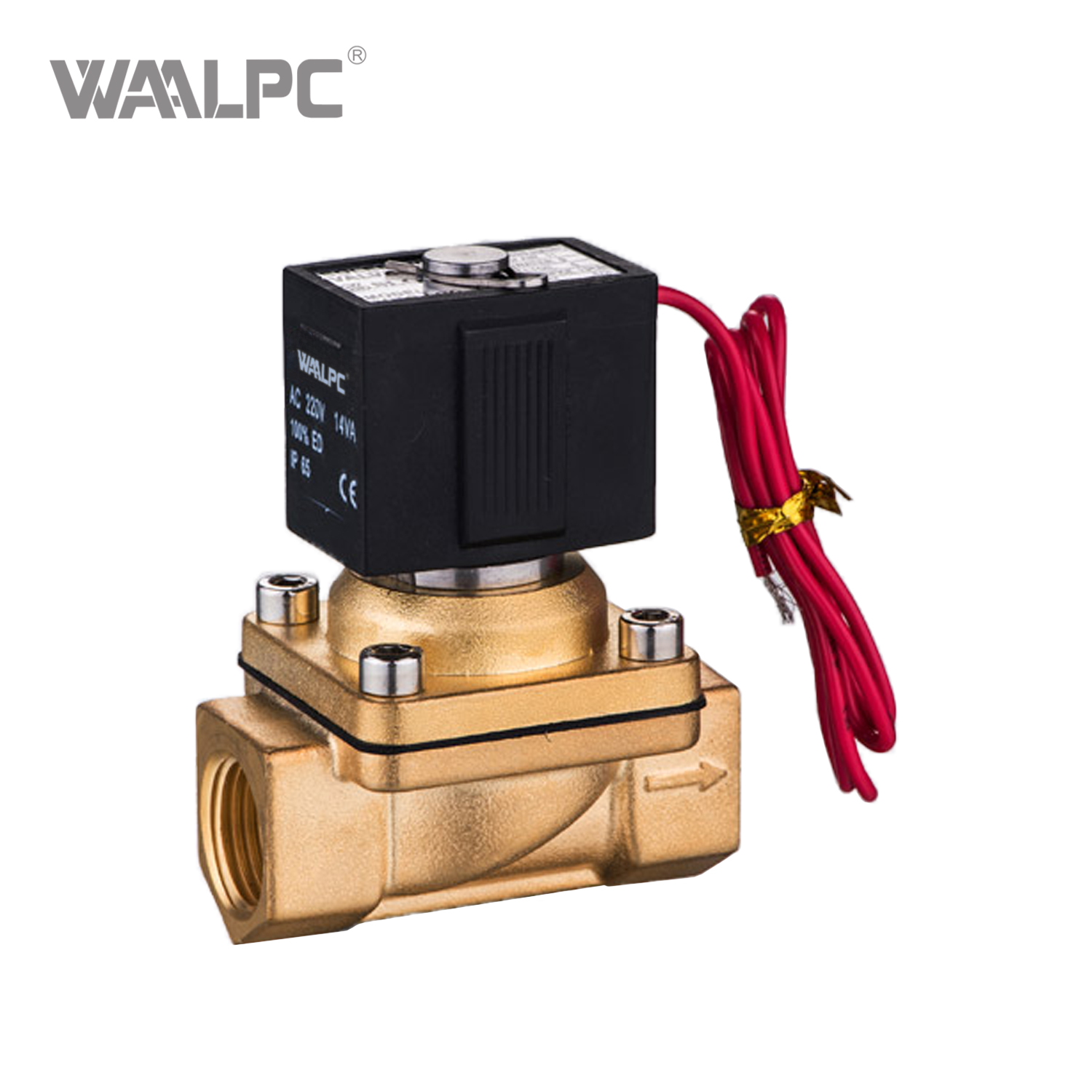

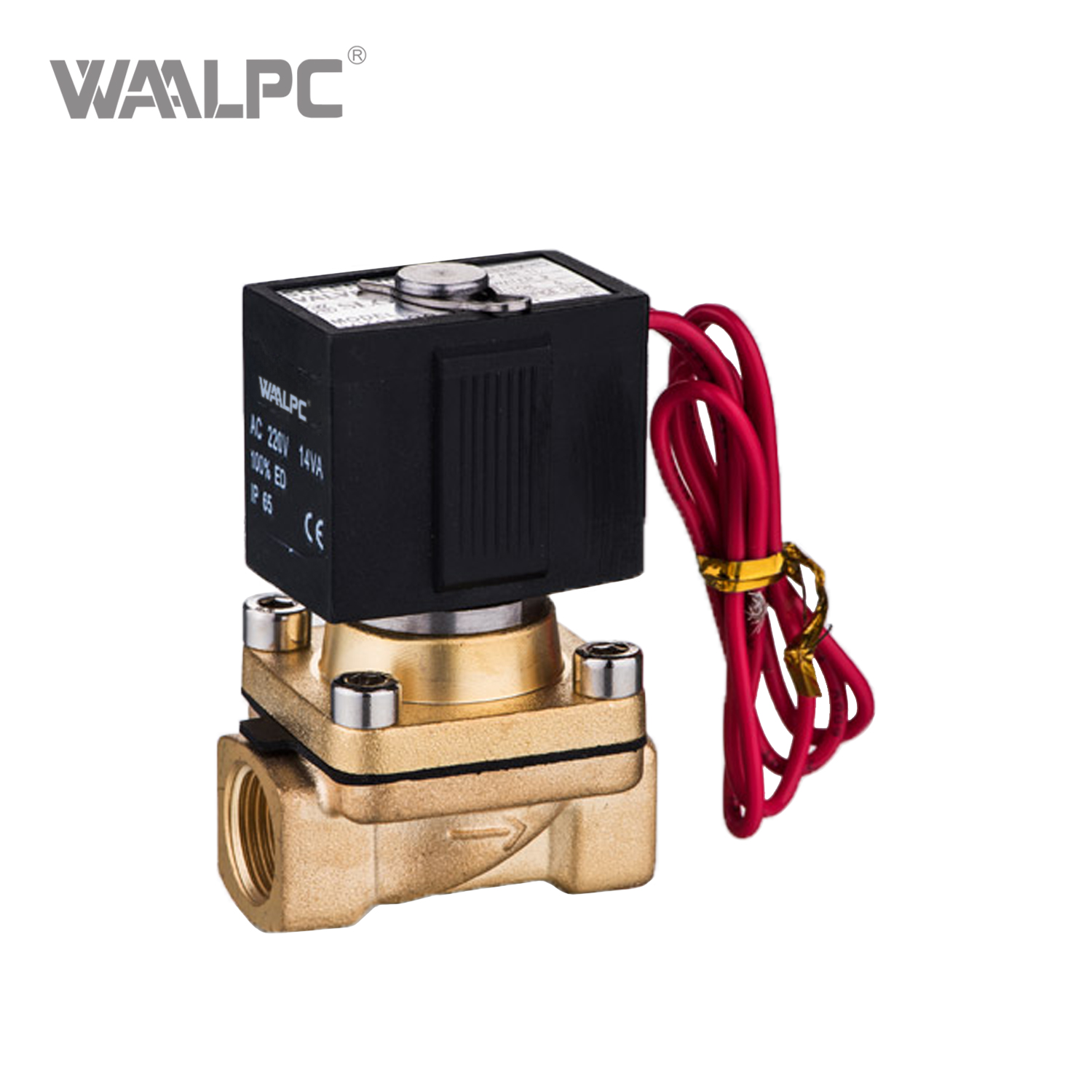

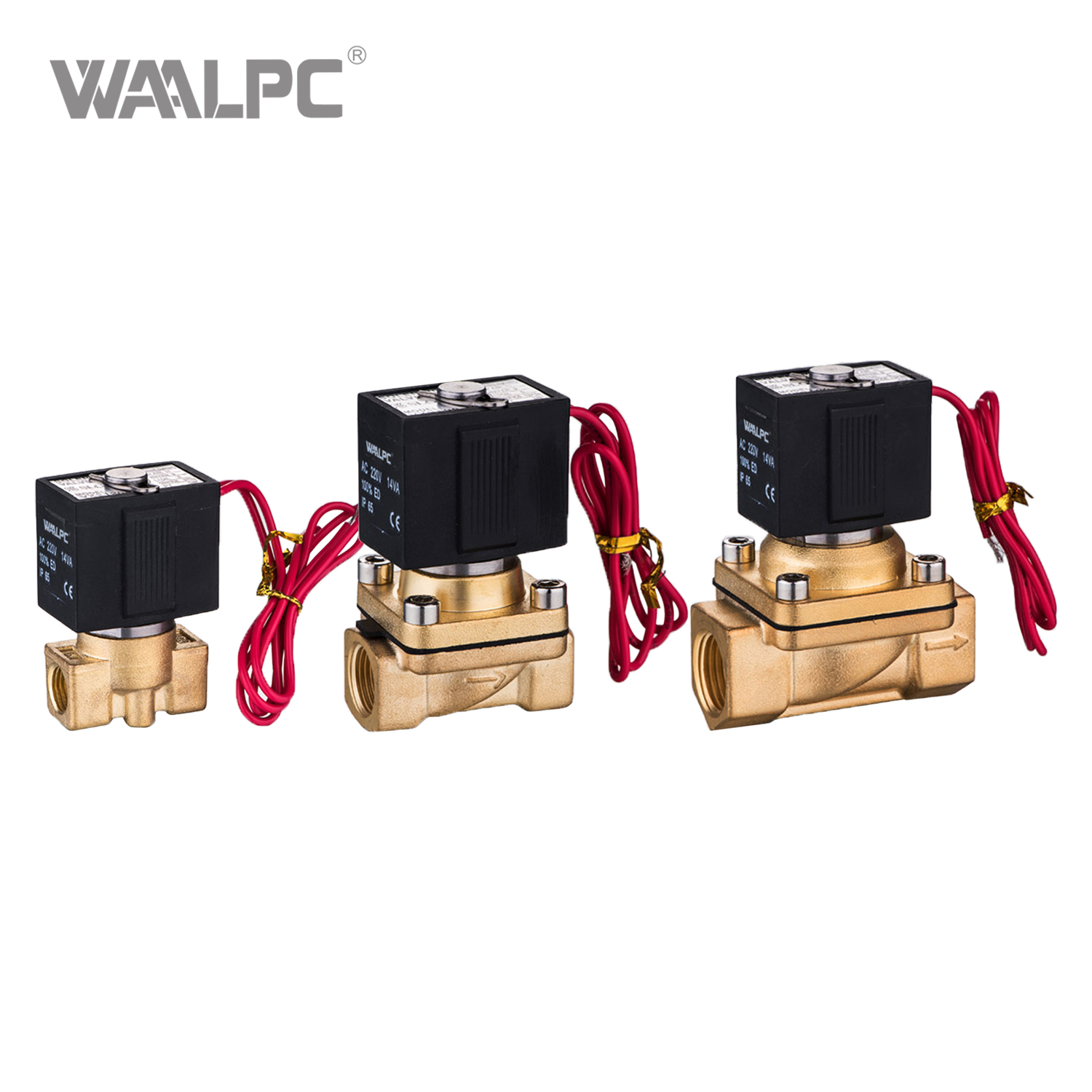

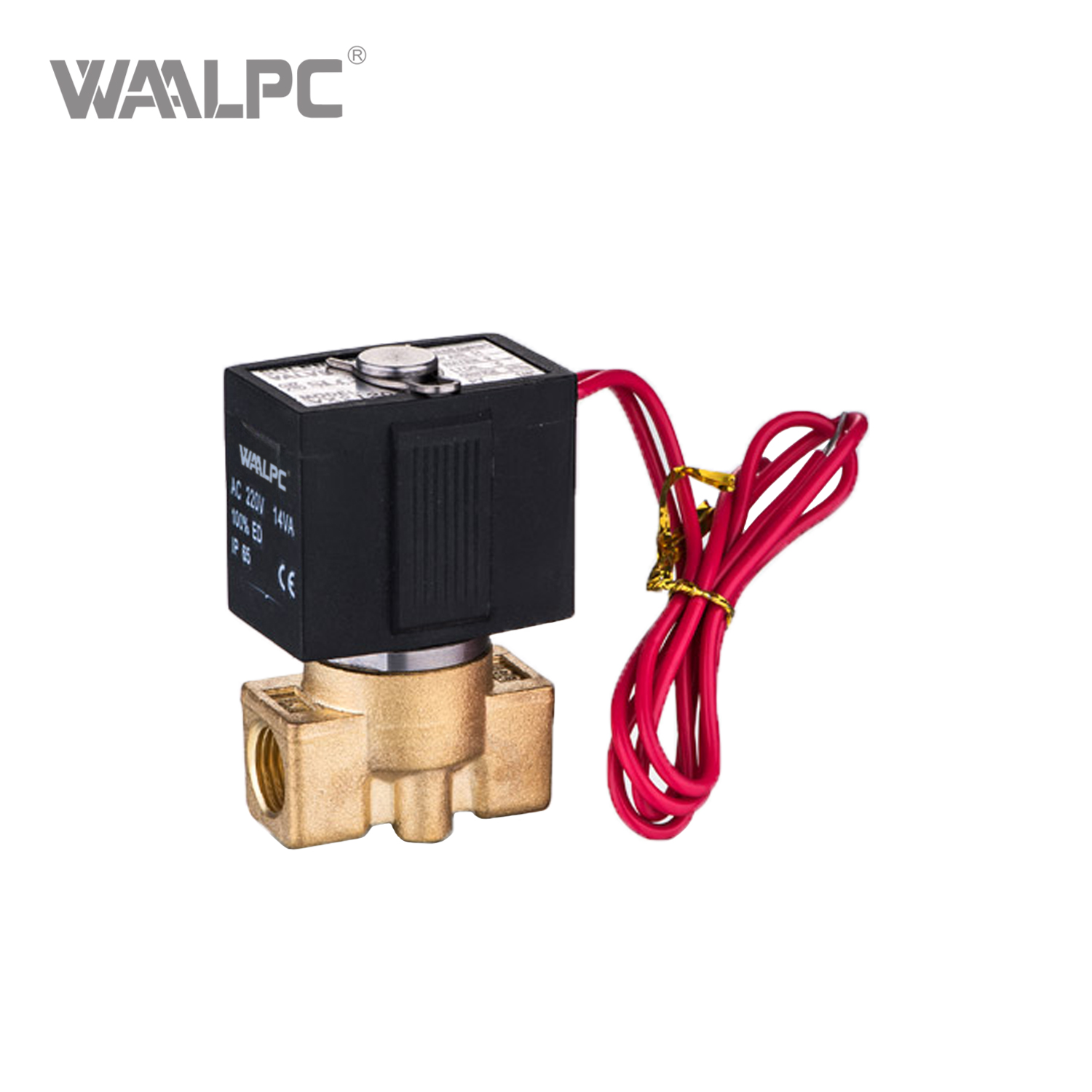

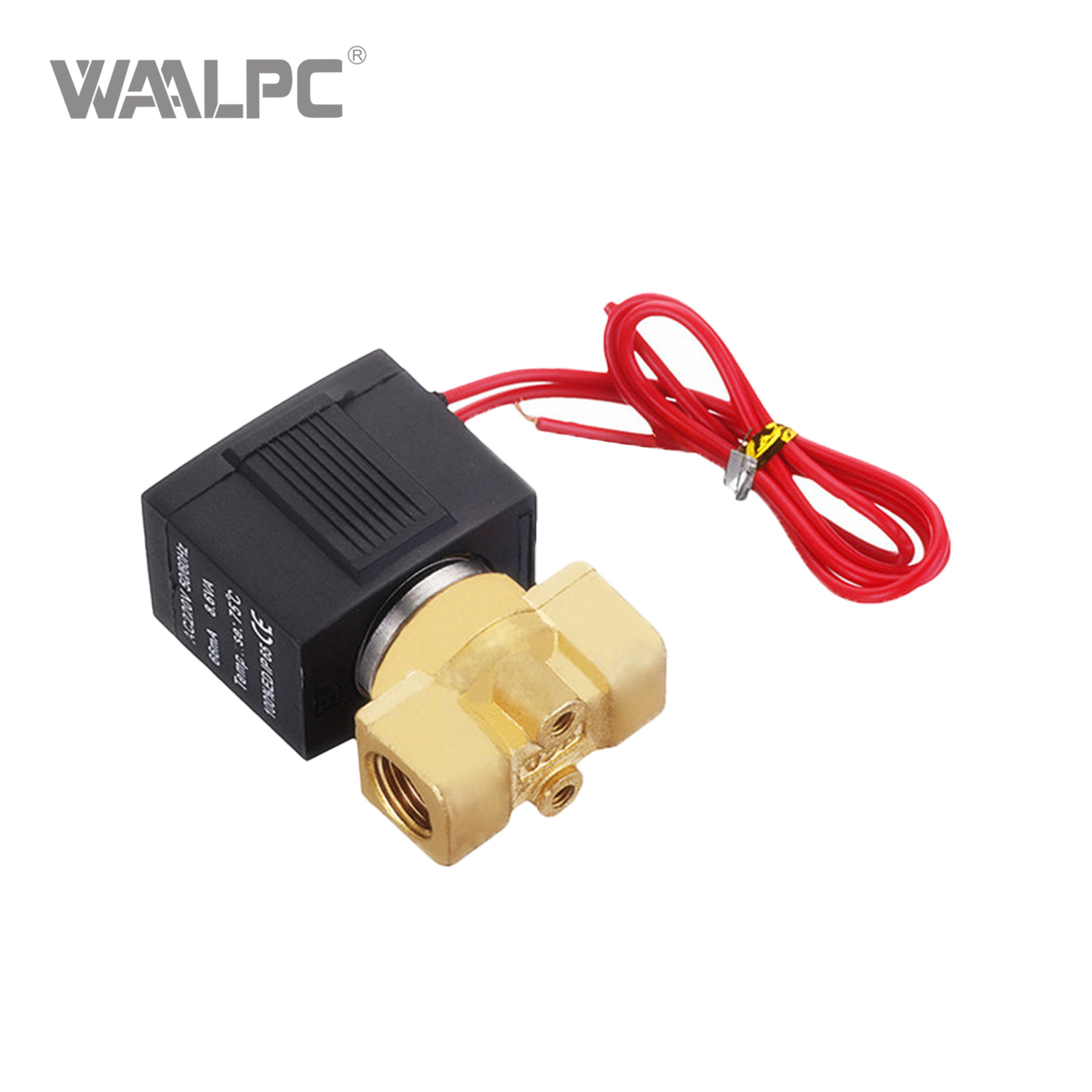

VX Series Direct Operated 2/2 Way Solenoid Valve for Air Water Oil Fluid Control


Availability:

Quantity:



Inquiry Add to Basket

VX series is direct operated 2/2 way solenoid valve, suitable for air, water and oil, reliable for small flow fluid control.

Model:
VX
Brand:
WAALPC
Code:
8481804090

Product Description

Direct operated structure, no minimum pressure difference required for reliable operation
Compact size, light weight and easy installation
Brass valve body, optional FKM / NBR seals for different media
Suitable for air, water, oil and other common industrial fluids
Multiple voltage options: AC220V, DC24V etc.
IP65 protection grade, stable performance in industrial environments
Fast response, low power consumption and long service life

Technical Parameters

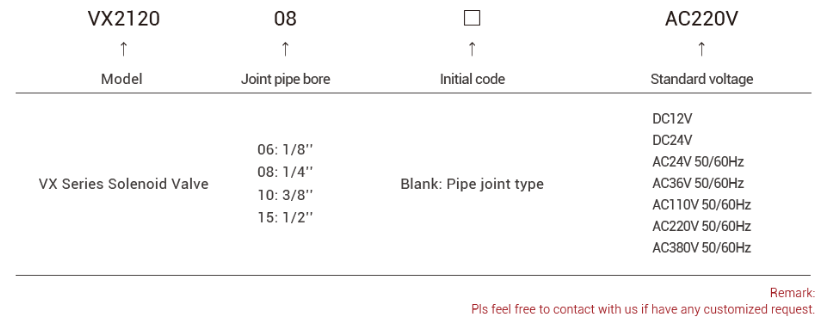

ORDERING CODE

SPECIFICATION

Model	VX2120-06	VX2120-08	VX2120-10	VX2120-15
Working Medium	Air, Water, Steam
Motion Pattern	Direct Drive Type
Type	Normal Close Type
Working Pressure(kgf/cm2)	0~7
Aperture of Flow Rate(mm)	3		10	13
Joint Pipe Bore	1/8″	1/4″	3/8	1/2″
Operating Temperature Range	-5~80℃
Material of Oil Seal	NBR, EPDM, VITON
Weight(kg)	0.289	0.282	0.385	0.556

OVERALLDIMENSION&STRUCTURE

Solenoid Valve

Model	F(G)	A	B	C

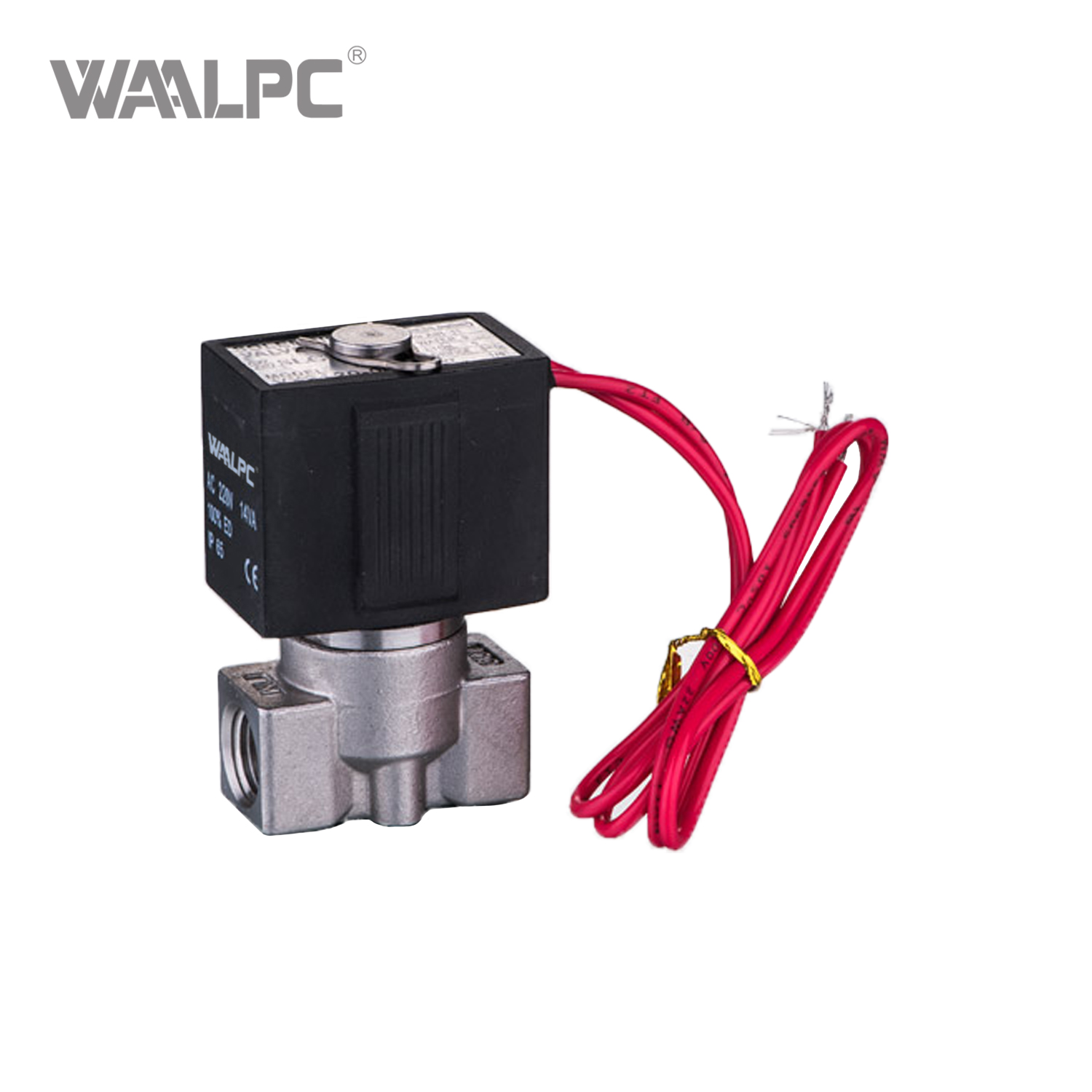

VX2120-06/VXS2120-06	1/8″	26	42	66
VX2120-08/VXS2120-08	1/4″	26	42	66
VX2120-10	3/8″	40	48	77
VX2120-15	1/2	47	66	87

Specification Download

VX series solenoid valve.pdf
