Our Oil Mist Separator is a critical filtration device designed to purify compressed air by removing harmful oil aerosols, mist, and fine particulates. It protects downstream pneumatic equipment, ensures clean operation of tools and actuators, and maintains a higher standard of air quality in your entire system.

Model:
AFD
Brand:
WAALPC
Code:
8421199090

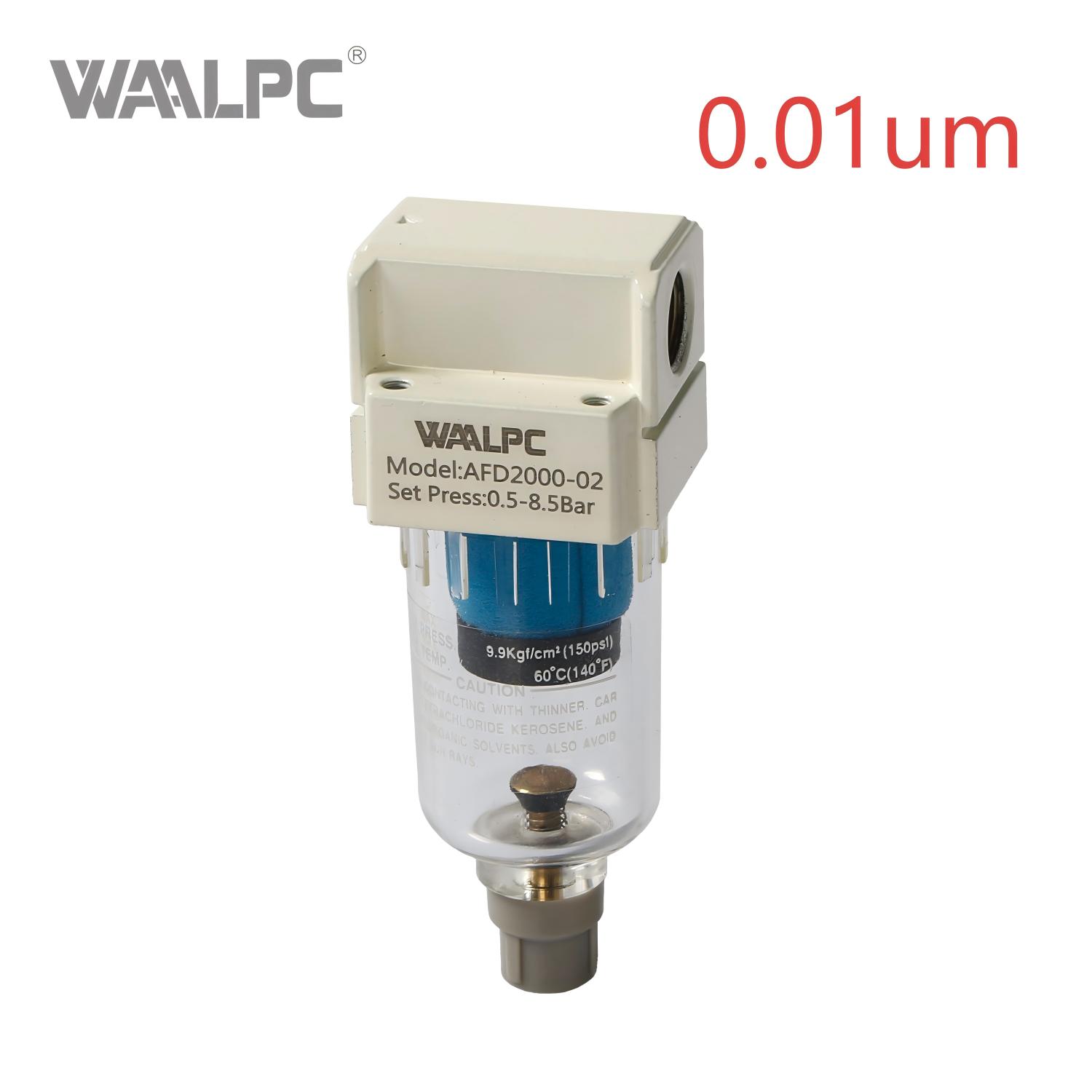

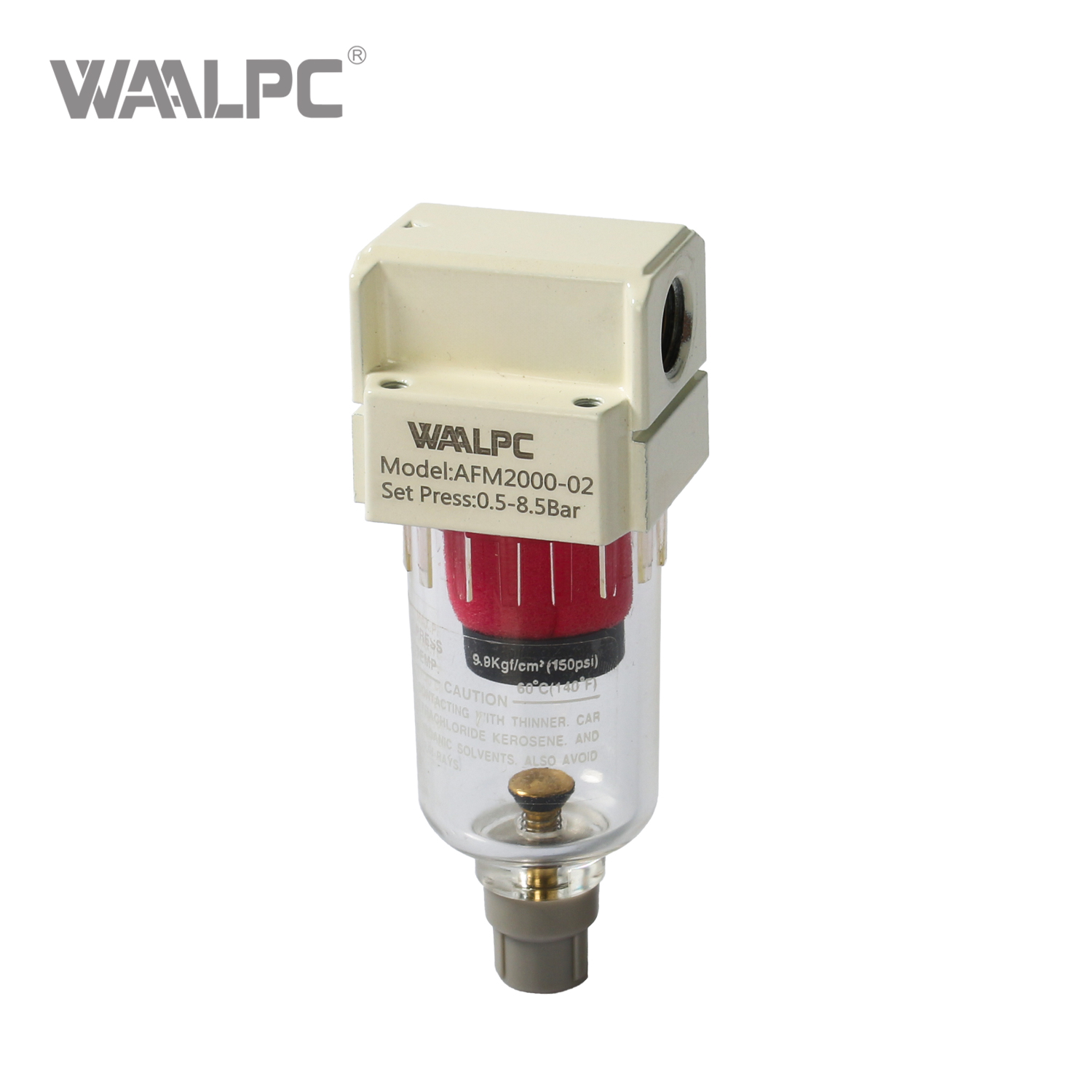

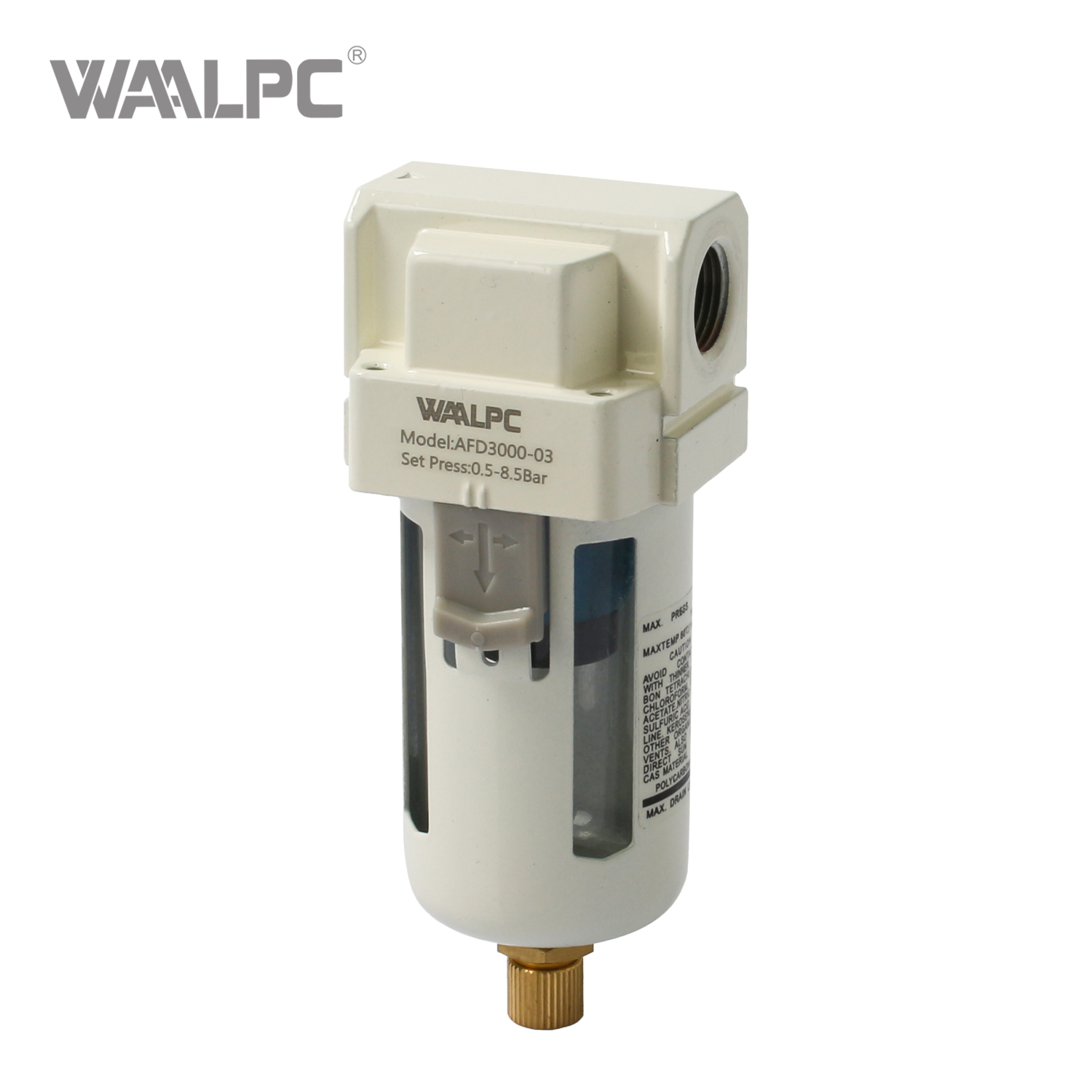

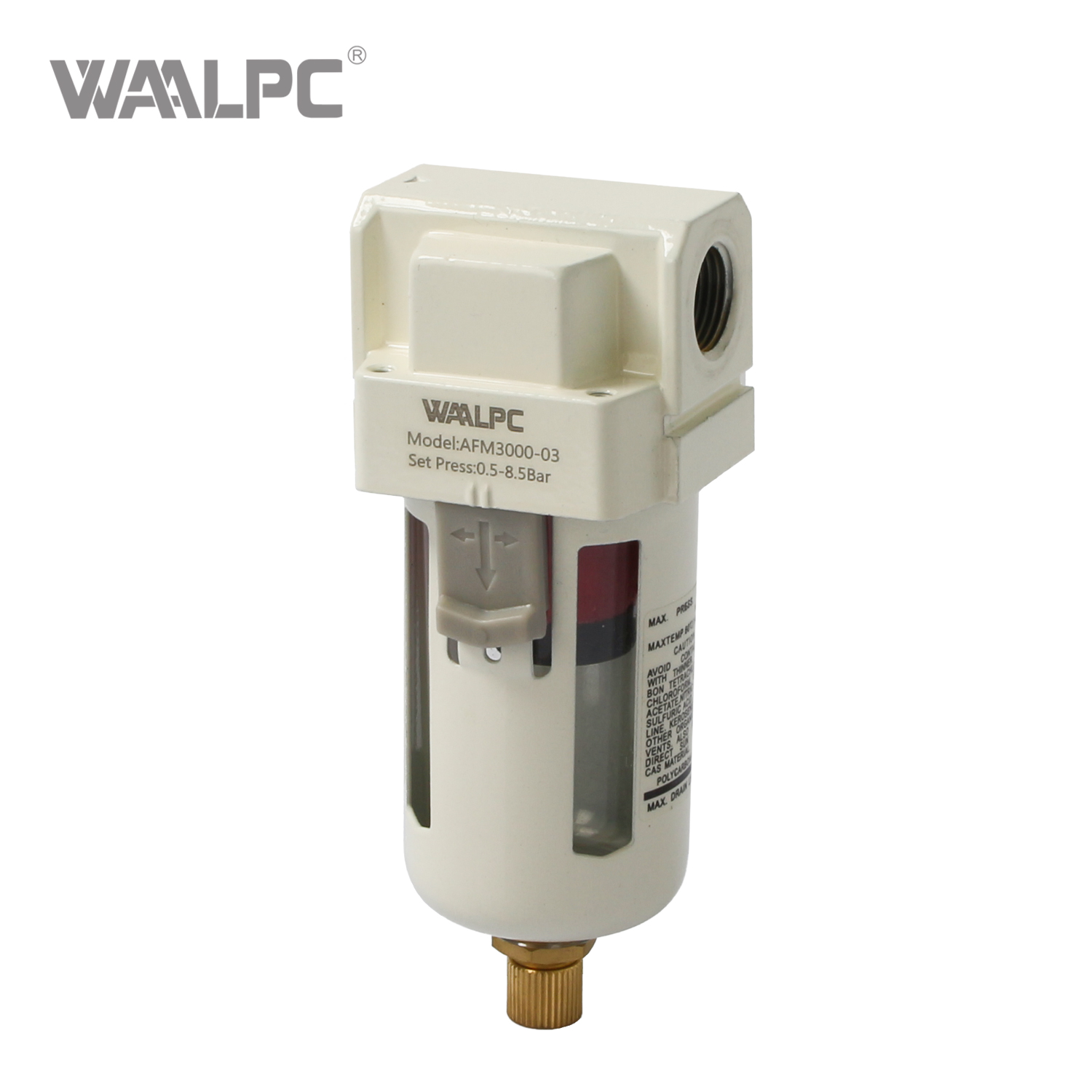

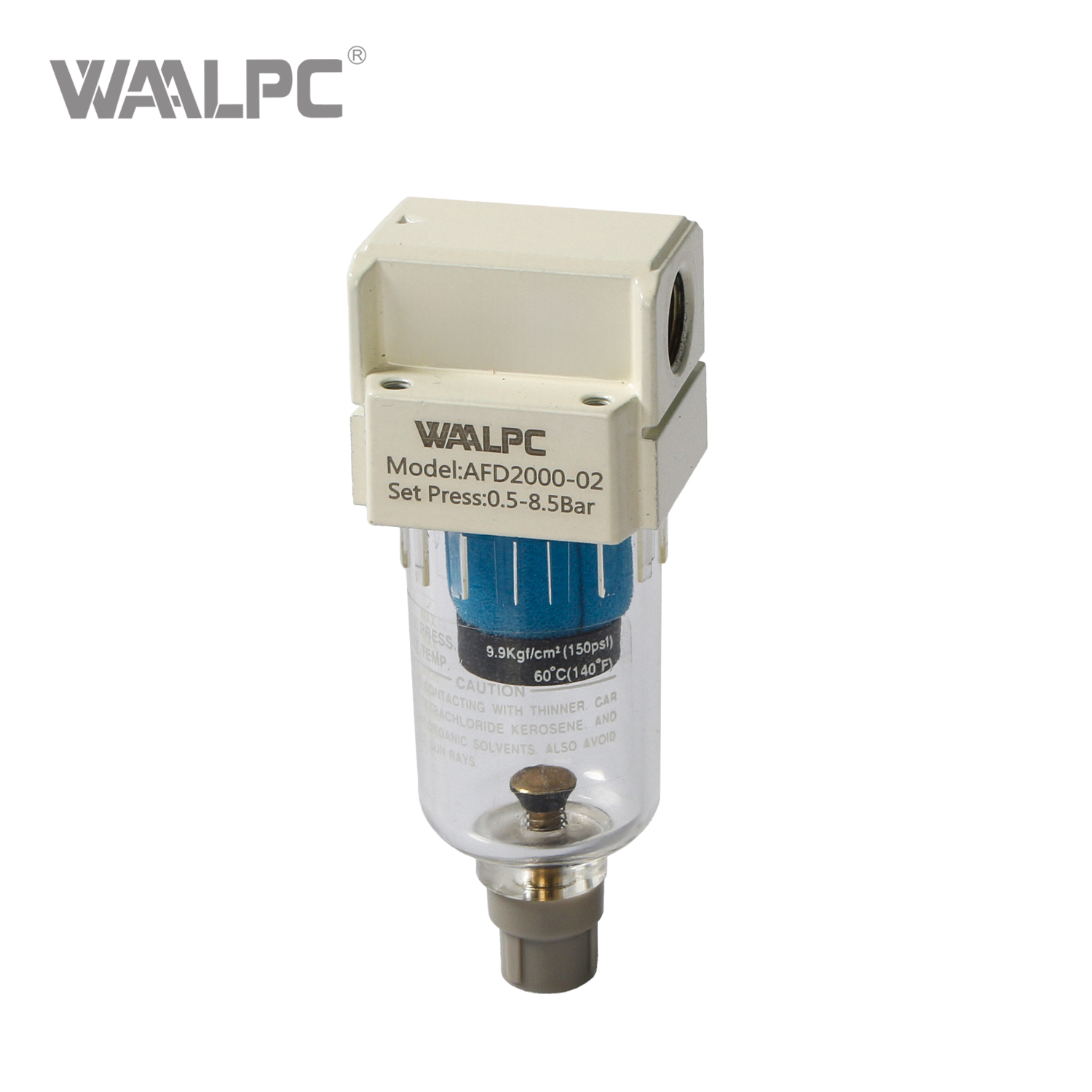

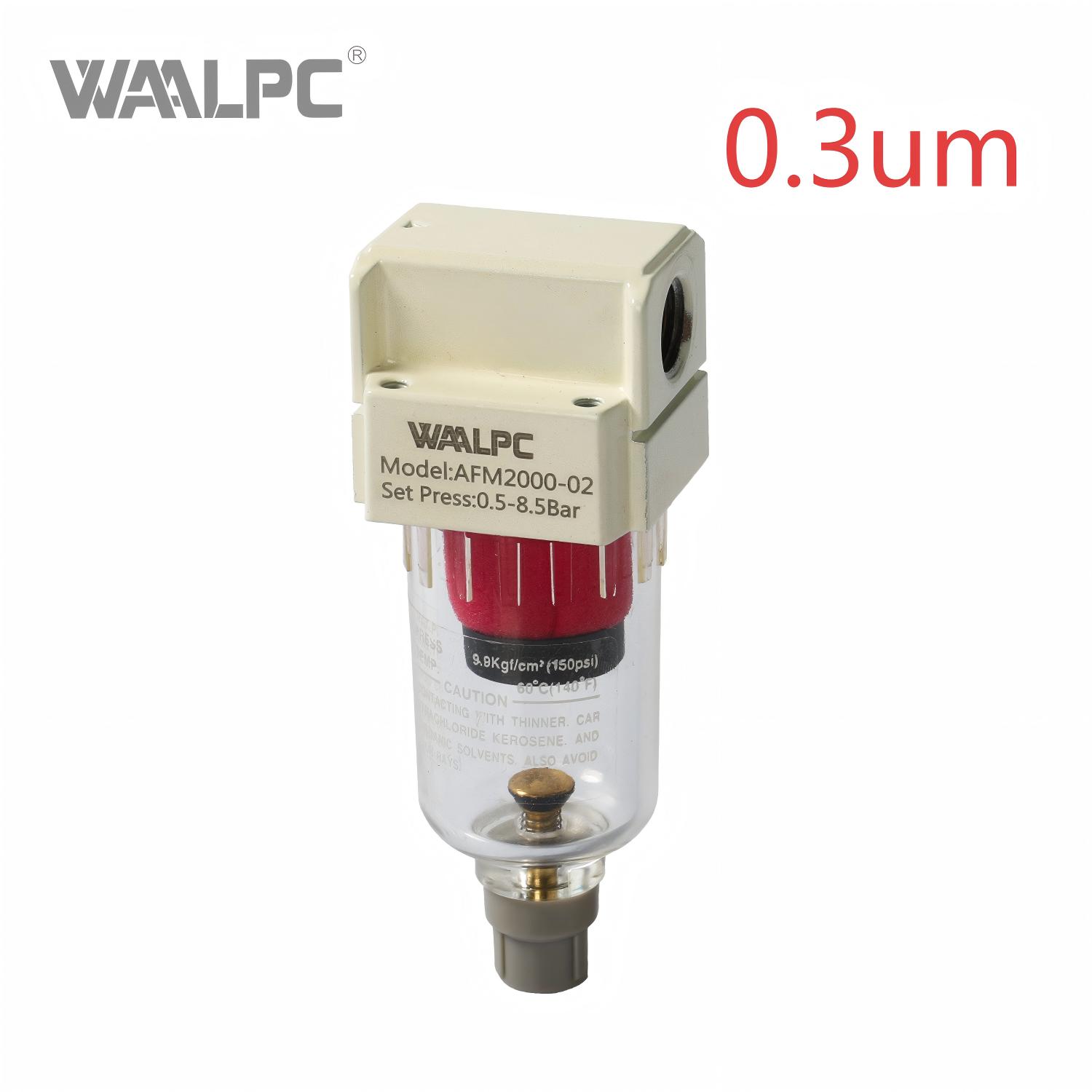

Product Description

High-Efficiency Coalescing Filtration: Advanced filter media coalesces fine oil mist (<0.01 µm) into larger droplets for effective drainage, delivering air with extremely low residual oil content.
Multi-Stage Filtration Process: Combines mechanical separation and precision coalescing for maximum efficiency and consistent performance under varying conditions.
Automatic or Manual Drain Options: Equipped with reliable drain mechanisms to efficiently expel collected liquids without interrupting system pressure.
Low Pressure Drop: Optimized design minimizes energy loss across the filter, ensuring system efficiency is maintained.
Wide Compatibility: Effectively processes mineral oils, synthetic lubricants, and water aerosols commonly found in compressed air systems.

Technical Parameters

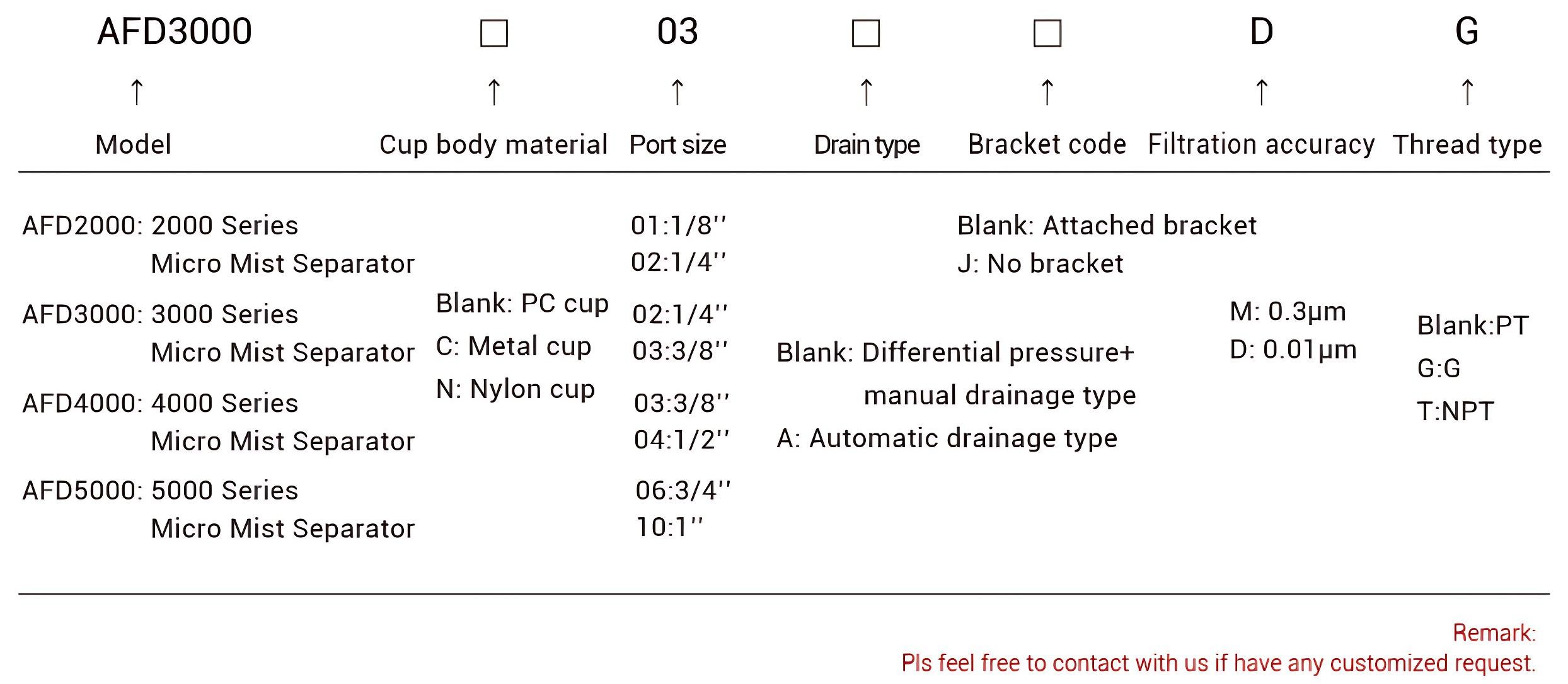

ORDERING CODE

AFD Oil Mist Separator

DATA SHEET

Model		AFD2000-01	AFD2000-02	AFD3000-02	AFD3000-03	AFD4000-03	AFD4000-04	AFD5000-06	AFD5000-10
Medium		Air
Port Size(Note1)		1/8	1/4	1/4	3/8	3/8	1/2	3/4	1
Filter Element Accuracy	M	0.3µm(Capture efficiency 99.9%)
	D	0.01µm(Capture efficiency 99.9%)
Pressure Range		0.15~1.0MPa(20~145psi)
Proof Pressure		1.5MPa(215psi)
Temperature		-5~70℃(Unfrozen)
Cup Body Material		Polycarbonate, Nylon, Metal
Rated Flow [Note2]	M	200L/min		450L/min		1100L/min		-
	D	120L/min		240L/min		600L/min		-
Filter Cup Capacity		19CC		54.5CC		89CC		-

[Note1]PT thread, G thread and NPT thread are available

[Note2]Condition: Inlet pressure of 0.7MPa, outlet pressure of 0.5MPa.

The rated flow rate varies with the inlet pressure.If the flow rate exceeds the rated flow rate, oil will flow to the secondary side. Please note.

STRUCTURE

Oil Mist Separator

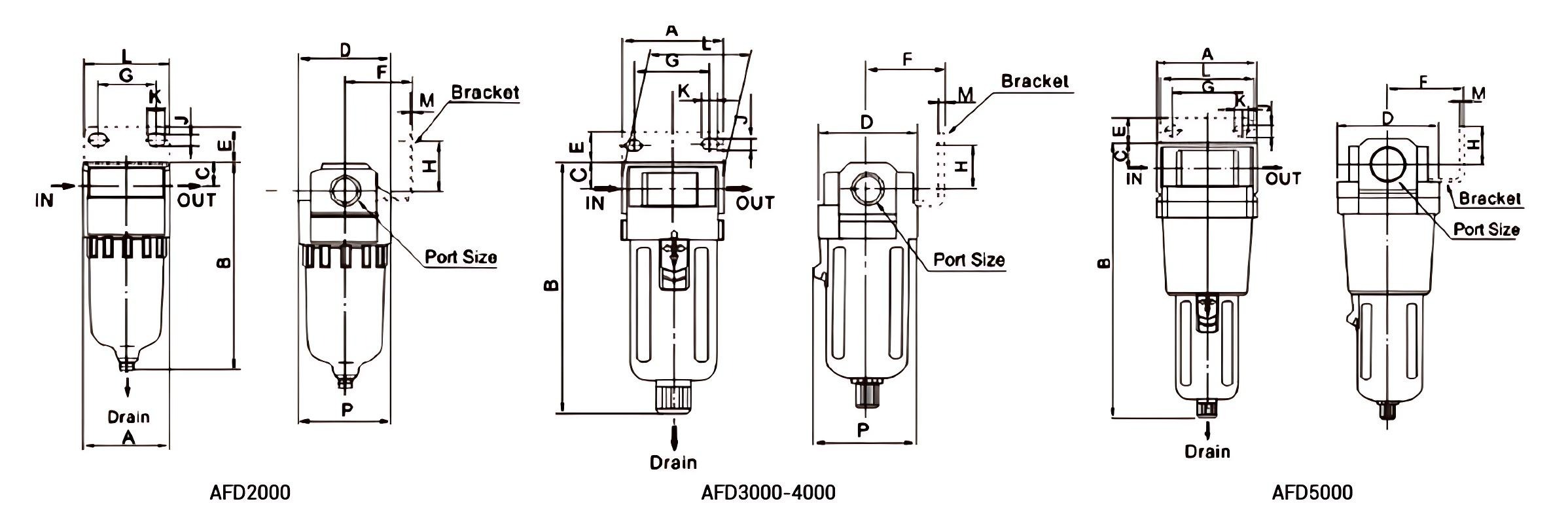

Model	Port size	A	B	C	D	E	F	G	H	J	L	M	P
AFD2000	1/8-1/4	40	97.5	11	40	17	30	27	22	5.4	40	2.3	40
AFD3000	1/4-3/8	53	132.5	14	53	16	41	40	23	6.5	53	2.3	56
AFD4000	3/8-1/2	70	168.5	18	70	17	50	54	26	8.5	70	2.3	73
AFD5000	3/4-1	90	247.5	24	90	23	66.5	66	35	11	90	3.2	90
