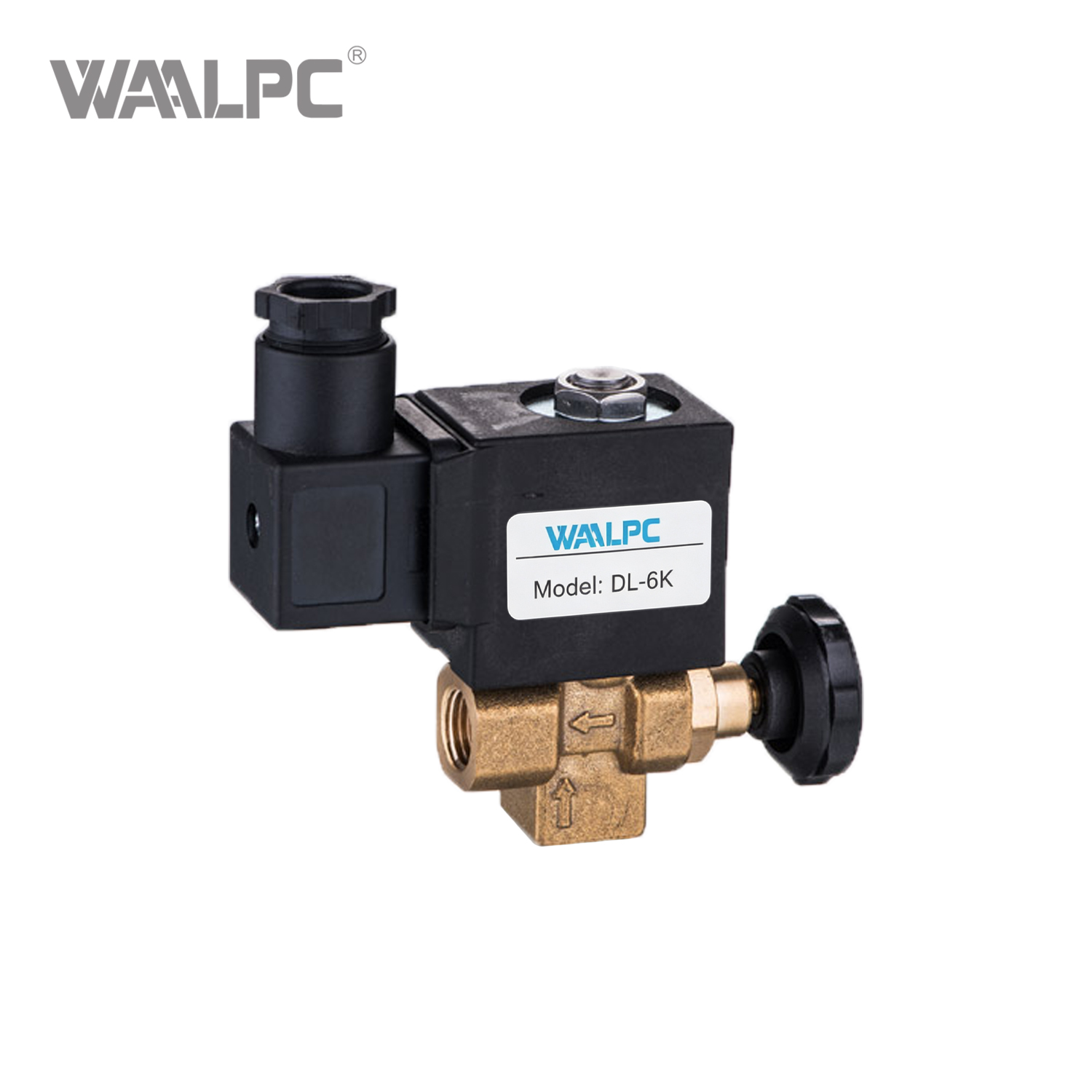

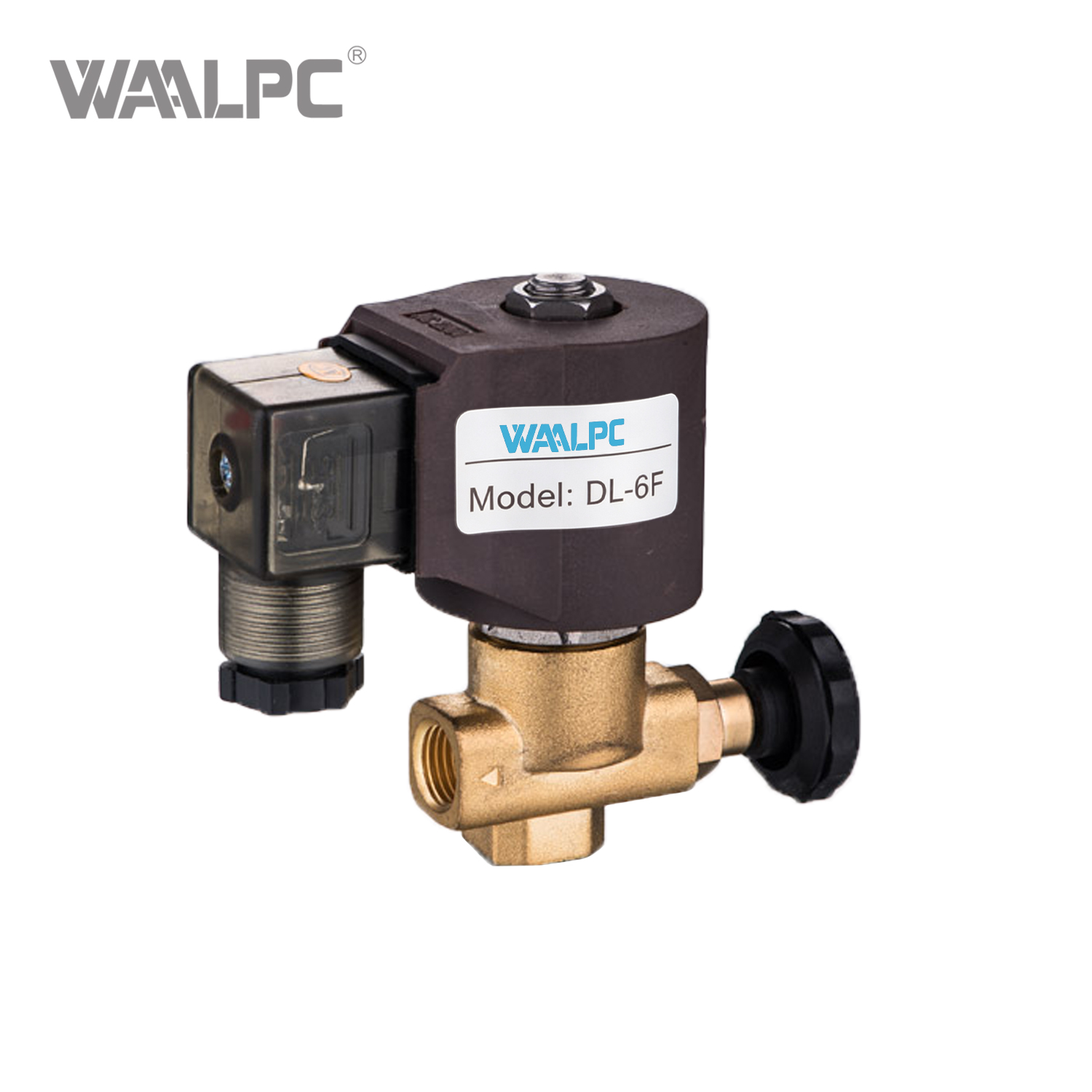

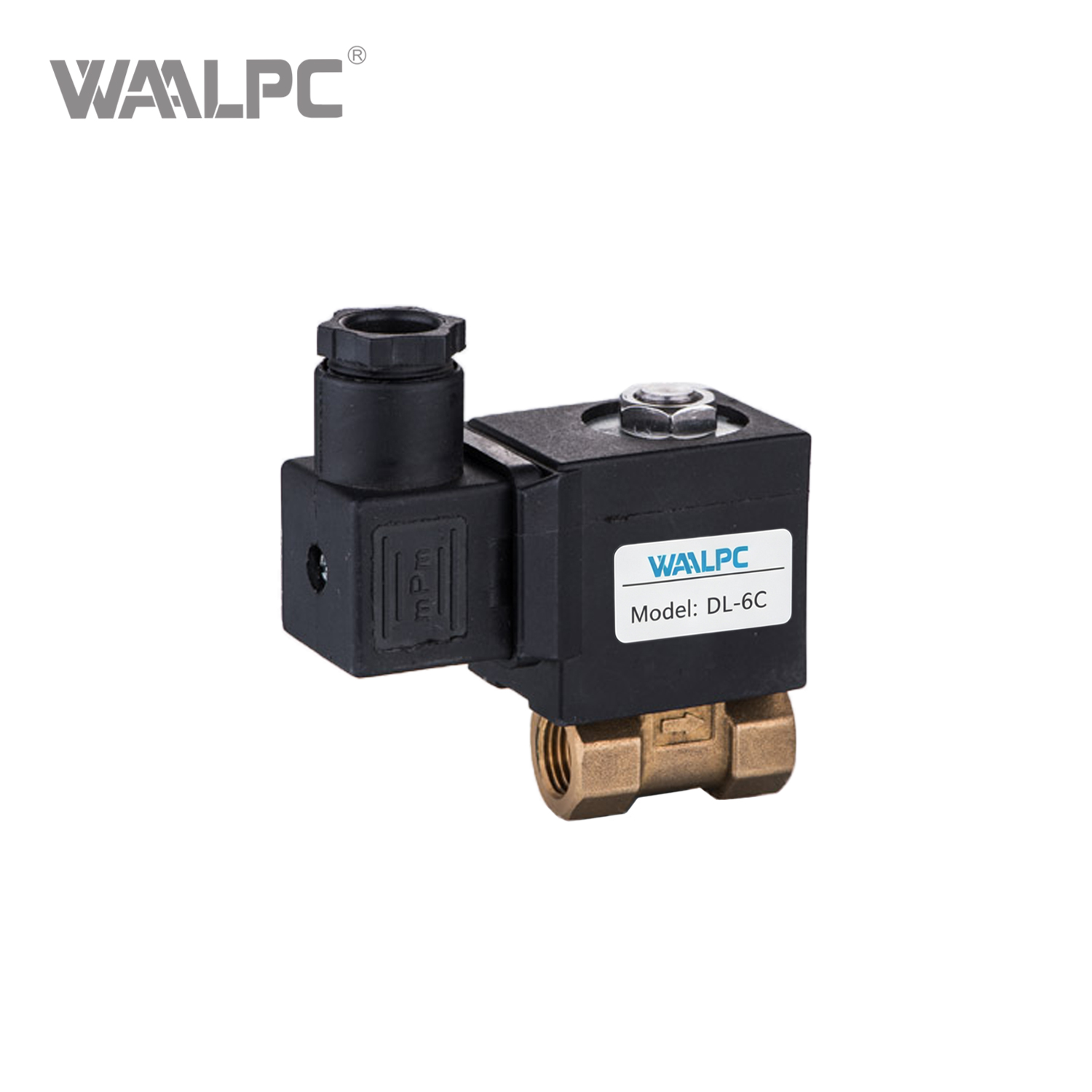

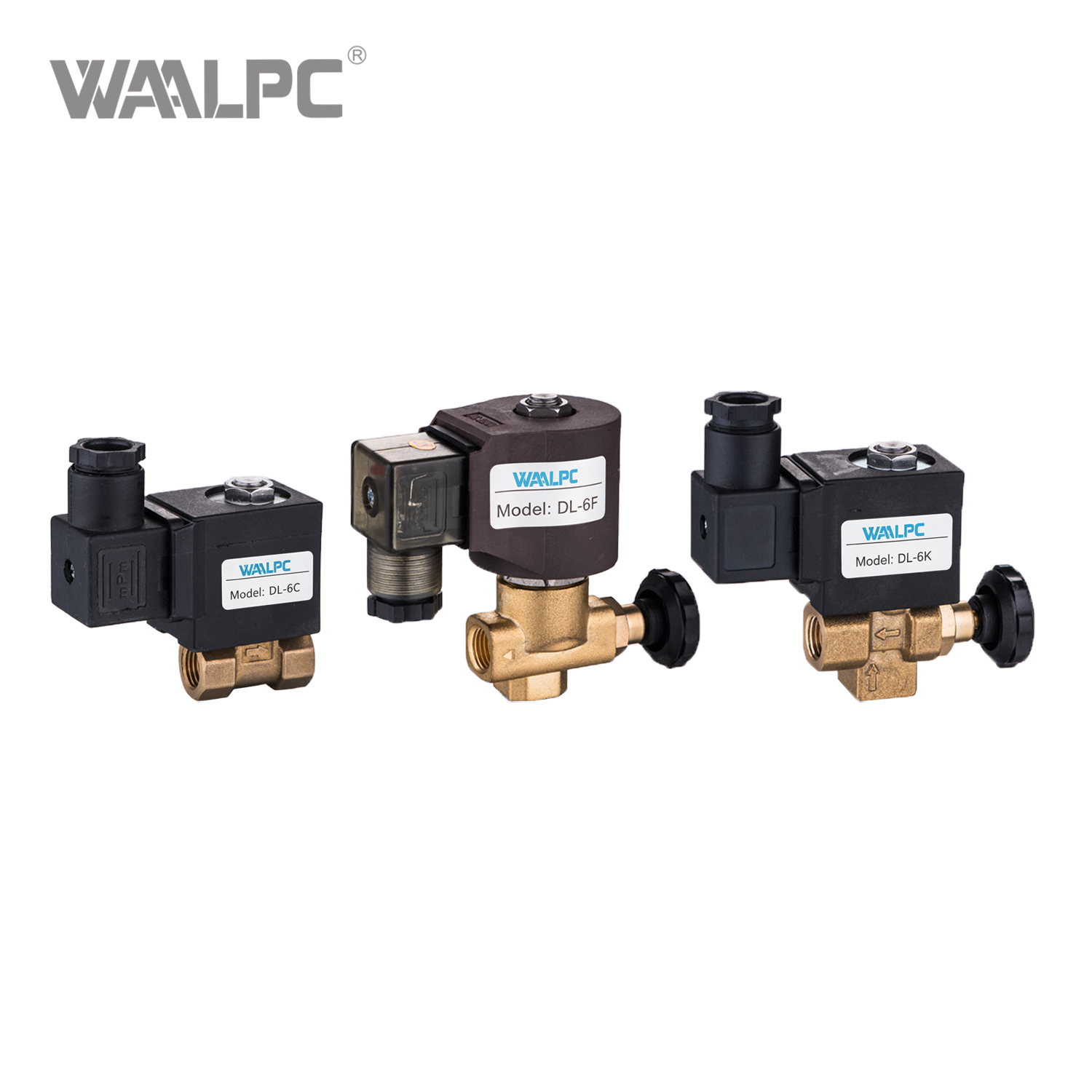

DL Series Adjustable Steam Solenoid Valve for High Temperature Steam Control


Availability:

Quantity:



Inquiry Add to Basket

DL series adjustable steam solenoid valve is specially designed for high-temperature steam media, featuring stable sealing and adjustable flow for heating and steam equipment.

Model:
DL
Brand:
WAALPC
Code:
8481804090

Product Description

Adjustable flow design, convenient to regulate steam flow on site
Specially optimized for high-temperature steam medium, excellent heat resistance
Reinforced high-temperature resistant sealing material, reliable sealing with low leakage
2/2 way structure, stable opening and closing performance under steam working conditions
Robust valve body structure, long service life for steam pipeline systems
Multiple voltage options available to match different industrial control systems
Simple installation and easy daily maintenance

Technical Parameters

SPECIFICATION

Model	DL-6C	DL-6K	DL-6F
Working Medium	Water, Steam
Motion Pattern	Direct Drive Type
Type	Normal Close Type, Two-position Two-way
Aperture of Flow Rate(mm)	2.5
Joint Pipe Bore	G1/4,G1/8
Working Pressure	0~0.8MPa
Ambient Temperature	0~150℃
Voltage Range	±10%
Material of Body	Brass
Sea	VITON,PTFE
Weight(kg)	0.245	0.306	0.482

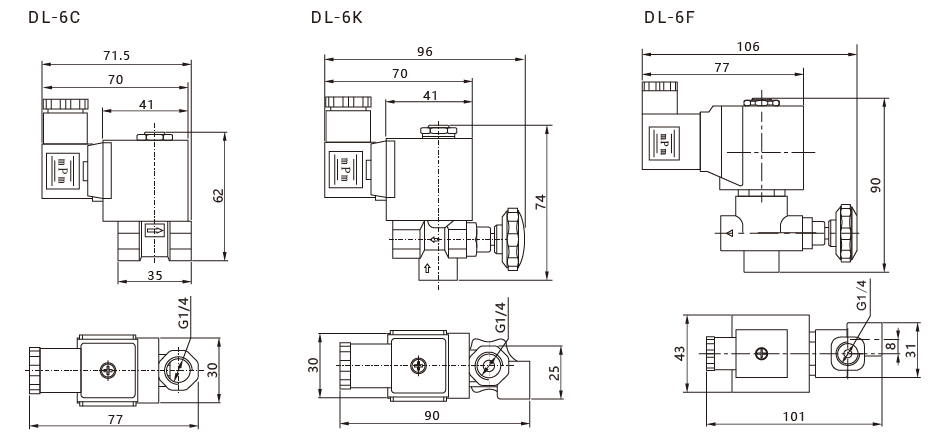

OVERALLDIMENSION&STRUCTURE

Solenoid Valve

Specification Download

DL Series Adjustable Steam Solenoid Valve.pdf
