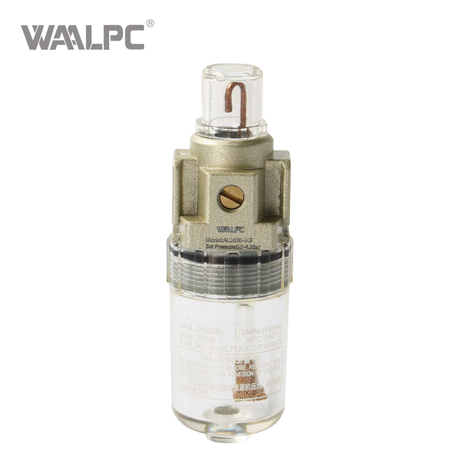

The pneumatic lubricator (often called an oil mist lubricator) is an essential component of an air treatment system (FRL – Filter, Regulator, Lubricator). Its primary function is to atomize lubricating oil into the compressed air stream, providing controlled lubrication to downstream pneumatic components such as cylinders, valves, and air tools. Proper lubrication reduces wear, extends equipment life, and ensures smooth operation. This article explains the working principle, installation guidelines, maintenance schedules, common faults, and safety precautions for pneumatic lubricators.
The lubricator operates using the venturi (aspiration) principle:
Compressed air enters the inlet port.
As air passes through a nozzle, it accelerates, creating a low-pressure (vacuum) zone.
A small portion of the compressed air is diverted through a passage into the upper chamber of the oil bowl, pressurizing the oil surface.
The pressure forces oil up through a pickup tube, past a check valve, and through a metering needle valve into the sight dome.
Oil drops fall into the high-velocity air stream at the nozzle and are atomized into fine mist.
The oil mist is carried by the compressed air to downstream pneumatic equipment.
Application | Drops per Minute |
|---|---|
1–2 drops/min | |
Pneumatic tools (wrenches, grinders) | 3–5 drops/min |
Large cylinders or multiple devices | 5–10 drops/min |
Guideline: A thin oil film on the cylinder piston rod is sufficient. Too much oil causes waste and contamination; too little leads to insufficient lubrication.
Install the lubricator as close as possible to the point of use (recommended delivery distance ≤ 5 m).
Leave at least 20 cm of straight pipe between the lubricator and downstream components – bends can disturb oil mist mixing.
When one lubricator supplies multiple devices, install it on the main line, with the farthest device within 5 m.
The transparent oil bowl must be equipped with a metal protective guard to prevent injury from bursting.
Apply PTFE tape to threaded connections, but ensure no tape debris enters the pipe.
Perform a leak test after installation.
Close the inlet air valve and exhaust all system pressure.
Remove the filler plug and add pneumatic turbine oil (ISO VG32) – do not use other oils.
Fill to between the MIN and MAX marks on the bowl. Do not overfill or run below MIN.
Tighten the filler plug and slowly open the inlet air valve.
Adjust the needle valve to achieve the recommended oil drop rate (typically 1–5 drops/min depending on equipment).
Check oil level – refill if below MIN.
Verify normal oil drop rate.
Inspect for air or oil leaks.
Observe downstream equipment for abnormal noise or sticking.
Clean the sight window for clear visibility.
Check the bowl for cracks or aging.
Inspect the protective guard for damage.
Check threaded connections for looseness.
Drain old oil; clean the bowl and pickup tube.
Check the check valve and shut-off valve for smooth operation.
Inspect the nozzle for clogging.
Check all seals for aging or damage.
Fully disassemble and clean all parts.
Replace all seals.
Inspect the needle valve and nozzle for wear – replace if necessary.
Perform leak and atomization performance tests.
Close the inlet valve and exhaust system pressure.
Drain all oil from the bowl.
Blow internal passages with clean compressed air.
Cover the lubricator with a dust cap.
Before restarting, clean the bowl and add fresh oil.
Fault Symptom | Possible Cause | Remedy |
|---|---|---|
No oil drops | 1. Oil level too low | 1. Refill oil |
Excessive oil drops | 1. Needle valve open too far | 1. Close needle valve slightly |
Unstable oil drop rate | 1. Large system pressure fluctuations | 1. Check pressure regulator |
Oil leakage | 1. Seal老化 (aged/damaged) | 1. Replace seals |
Poor atomization | 1. Nozzle clogged or worn | 1. Clean or replace nozzle |
Prohibition | Reason |
|---|---|
Use of incorrect oil (engine oil, diesel, grease, hydraulic oil) | Only pneumatic turbine oil (ISO VG32) is suitable; other oils cause clogging, poor atomization, or seal damage. |
Exceeding working pressure (standard: 0.05–1.0 MPa) | Overpressure can cause the oil bowl to burst. |
Disassembling under pressure | Always close inlet valve and exhaust system pressure before removing the bowl or filler plug. |
Oil level above MAX mark | Excess oil will be sucked into the pipeline, causing equipment malfunction and oil waste. |
Running with empty oil bowl | Downstream components will run without lubrication, accelerating wear. |
Using lubricator in clean air systems | Forbidden in food, pharmaceutical, electronics, painting, and other applications requiring oil-free compressed air. |
The pneumatic lubricator plays a vital role in maintaining the health and efficiency of pneumatic systems by delivering precise, atomized lubrication to moving parts. Correct installation, regular maintenance, and strict adherence to safety guidelines ensure long service life and reliable operation. By understanding the working principle and following the recommended practices outlined above, engineers and technicians can avoid common failures and keep their equipment running smoothly.
