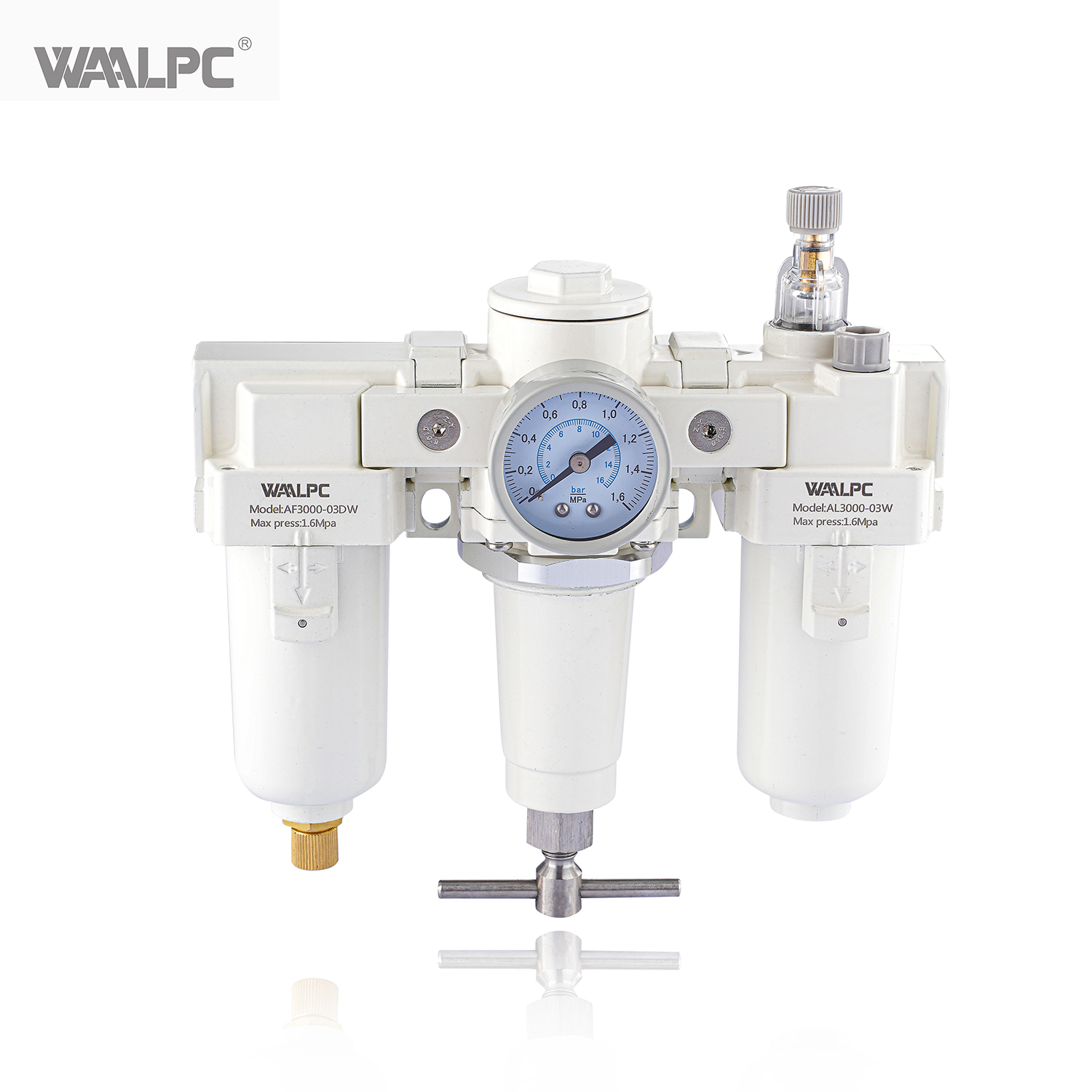

AC3010-02W Pneumatic Metal Aluminum Alloy 1/4 3/8 Pneumatic Treatment Unit FRLfor Automatic Industry

Pneumatic Metal Aluminum Alloy 1/4 3/8 Pneumatic Treatment Unit FRL2 Combination for Automatic Industry


Size:	AC2010-02W AC3010-03 AC4010-04
Availability:

Pneumatic filter regulator lubricator (FRL) is used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. Filters, regulators, and lubricators can be bought individually or as a package.

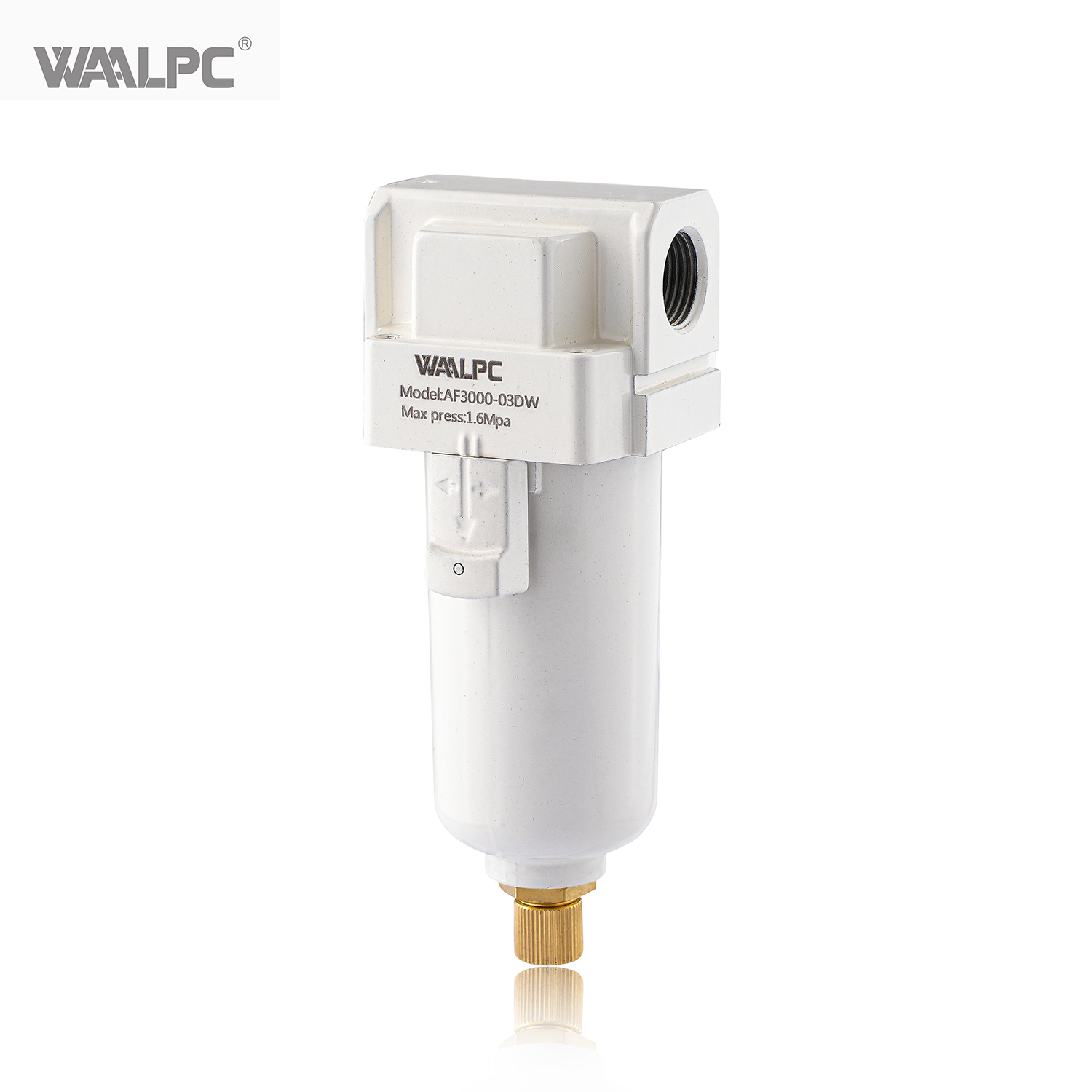

1. Filter: remove water, dirt and other harmful debris from an air system. This is often the first step in improving the air quality.

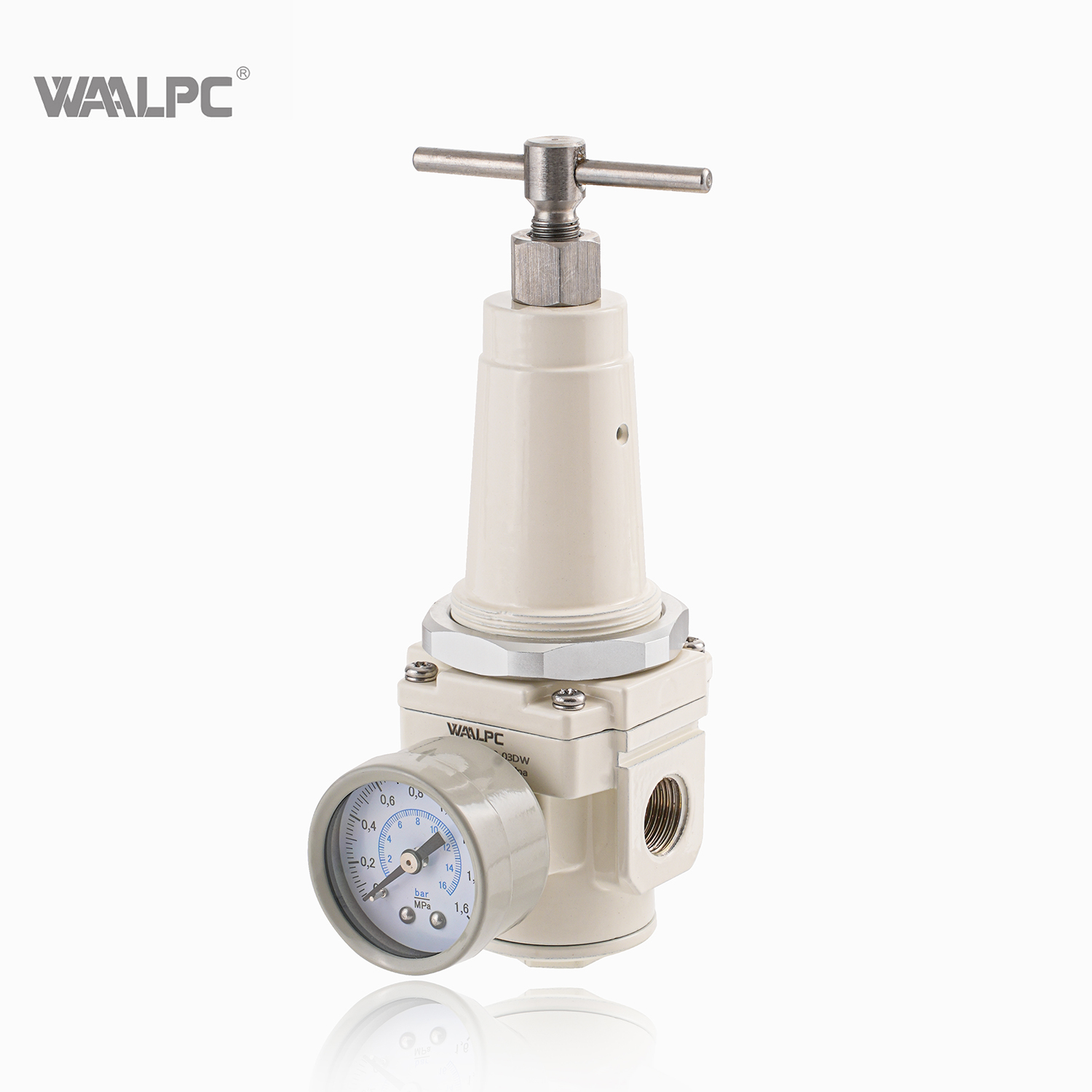

2. Regulator: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.

3. Lubricator: reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.

Model:
AC3010-02W
Brand:
WAALPC

Product Description

Product Advantages

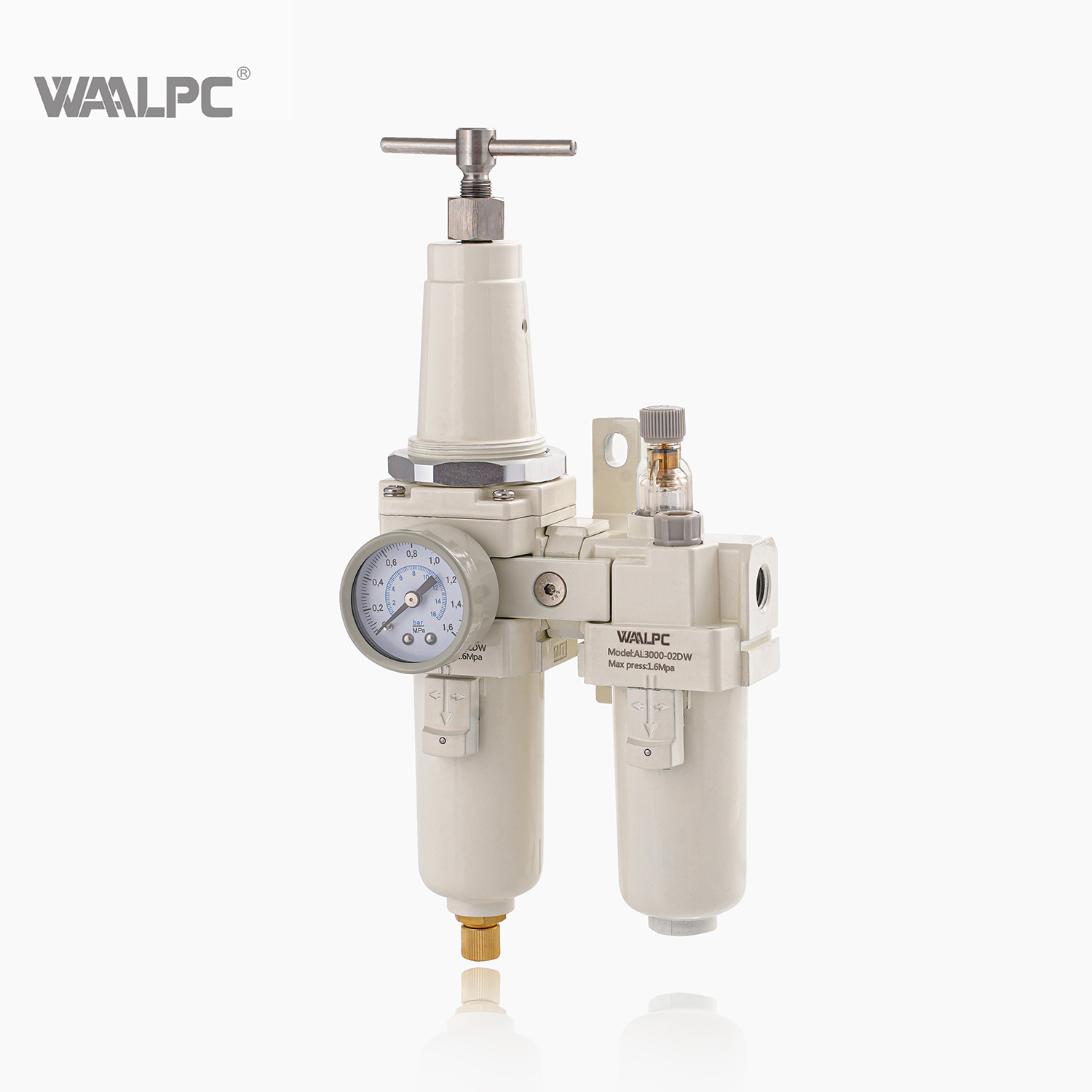

Pneumatic Treatment Unit FRL

1. Prepare air for all types of compressed air tools and equipment

2. Compressed air with filters to remove solid particles and condensate

3. Regulator valves accurately maintain air pressure over a wide flow range

4. The lubricator supplies lubricating oil to the pneumatic equipment which is in operation in appropriate proportions

5. Protect your pneumatic tools for longer lifespan

6. High pressure, corrosion, high&low temperature ,acid and alkali resistant.

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Type-name	F.R.L combination
Model	AC2000-02W	AC3000-02W	AC3000-03W	AC4000-04W	AC4000-06W
Port Size (G)	1/4	1/4	3/8	1/2	3/4
Rated Flow	500	2000	2000	4000	4500
Drain Type	Manual drain, differential pressure drain (optional)
Grade of Filtration	5μm, 25μm, 40μm
Working Medium	Air
Pressure Regulating Range	0.05-1.6MPa(72.5psi 232psi)
Max. Operating Pressure	1.6MPa(232Psi)
Pressure Resistance	2.0MPa(290Psi)
Operating Temperature Range	-5-60 ℃
Filter Cup Capacity	15	20	20	45	45
Lubricator Cup Capacity	15	20	20	45	45
Recommended Oil	Oil for turbine 1 ISOVG32
Pressure Gauge	Y40-01			Y50-02
L-Type Bracket	L20	L30	L30	L40	L40
Material	Die-cast aluminum alloy

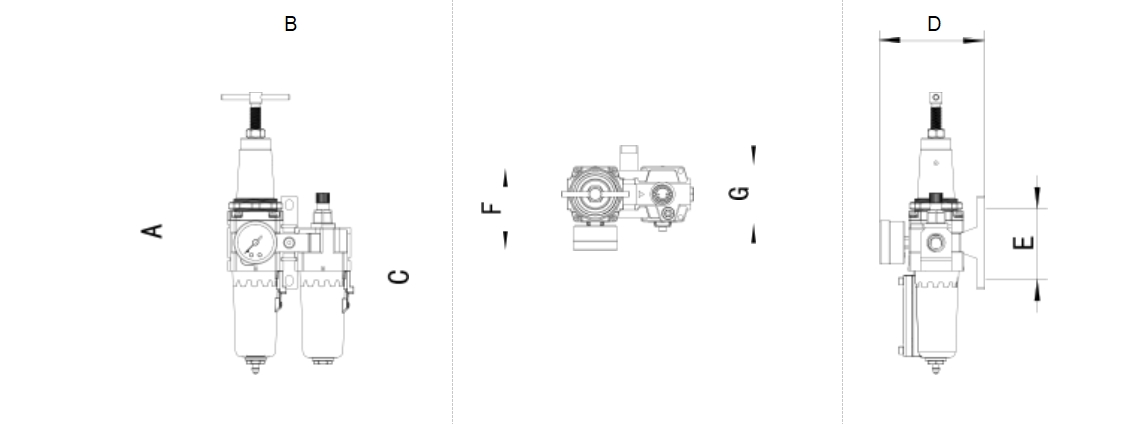

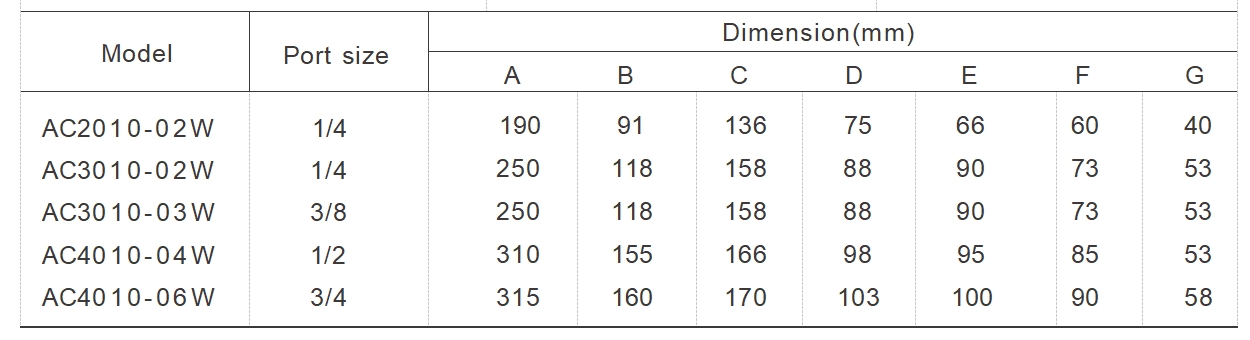

FRL2 Combination

Specification Download

WAALPC Metal Series Air Source Treatments.pdf
