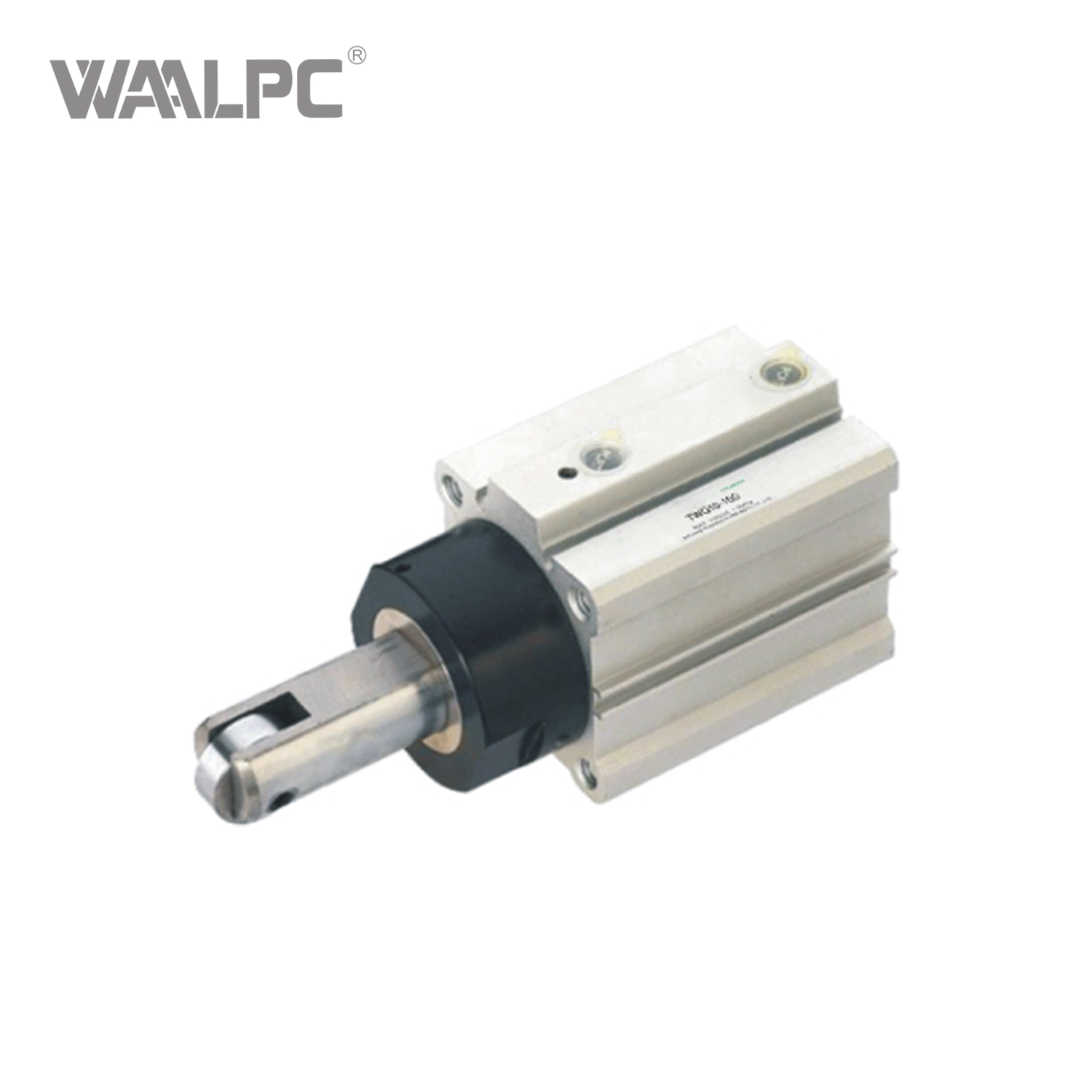

TWQ Series Pneumatic Actuator Stopper Cylinder Bore 20-50mm Stroke 10-30mm With/Optional Hydraulic Cushion Blocking Cylinders

TWQ Series Pneumatic Actuator Stopper Cylinder Bore 20-50mm Stroke 10-30mm With/Optional Hydraulic Cushion Blocking Cylinders


Availability:

Quantity:



Inquiry Add to Basket

The TWQ Series is a line of Stopper Cylinders manufactured by AirTAC. These pneumatic devices are specifically engineered for blocking and stopping applications, commonly used on conveyor lines and in automated systems for precise workpiece positioning.

Model:
TWQ
Brand:
WAALPC
Code:
8409919990

Product Description

Enhanced Impact Resistance: The cylinder is equipped with a thickened piston rod, which effectively improves its ability to withstand impact and shock loads, promoting a longer service life .
Optional Hydraulic Cushion: Models equipped with an oil hydraulic cushion offer superior buffering effects, absorbing energy at the end of the stroke for smoother and quieter operation, especially under higher loads .
Self-Locking Mechanism: Lever roller-type models come with a self-locking device. This feature prevents the rocker arm from rebounding and pushing back against the blocked object, ensuring secure stopping .
Variety of Configurations: The series offers multiple cylinder bore sizes, stroke lengths, and rod end forms, providing flexibility to meet diverse application requirements .
Optional Magnetic Sensing: Many variants are available with or without a built-in magnet, allowing for the installation of magnetic reed switches for position detection and feedback in automated control systems .

Technical Parameters

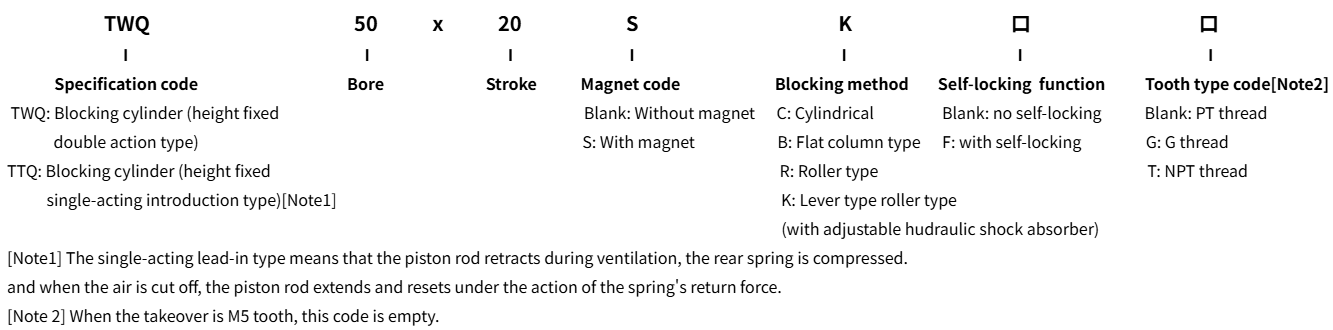

ORDERING CODE

TWQ Series Pneumatic Actuator

SPECIFICATION

Bore size(mm)		20	25	32	40	50
Working medium		Air (to be filtered by 40um filter element)
Action pattern		Double-action type, single-action introduction type
Operating pressure	Double-action type	0.15~1.0MPa(23~145psi)
	Single-acting introduction type	Φ20: 0.25~1.0MPa(35~145psi) Other: 0.2~1.0MPa(28~145psi)
Proof pressure		1.5MPa(215psi)
Working temperature ℃		-20~70
Stroke tolerance range		+1.0 0
Buffer type		Bumper
Lubrication		Not required
Installation method		Through hole, female thread on both ends
Blocking method		Cylndrical type, flat column type, roller type		Cylindrical type, flat column type, roller type, lever type roller type (with adjustable buffer)
Port size		M5x0.8		PT1/8

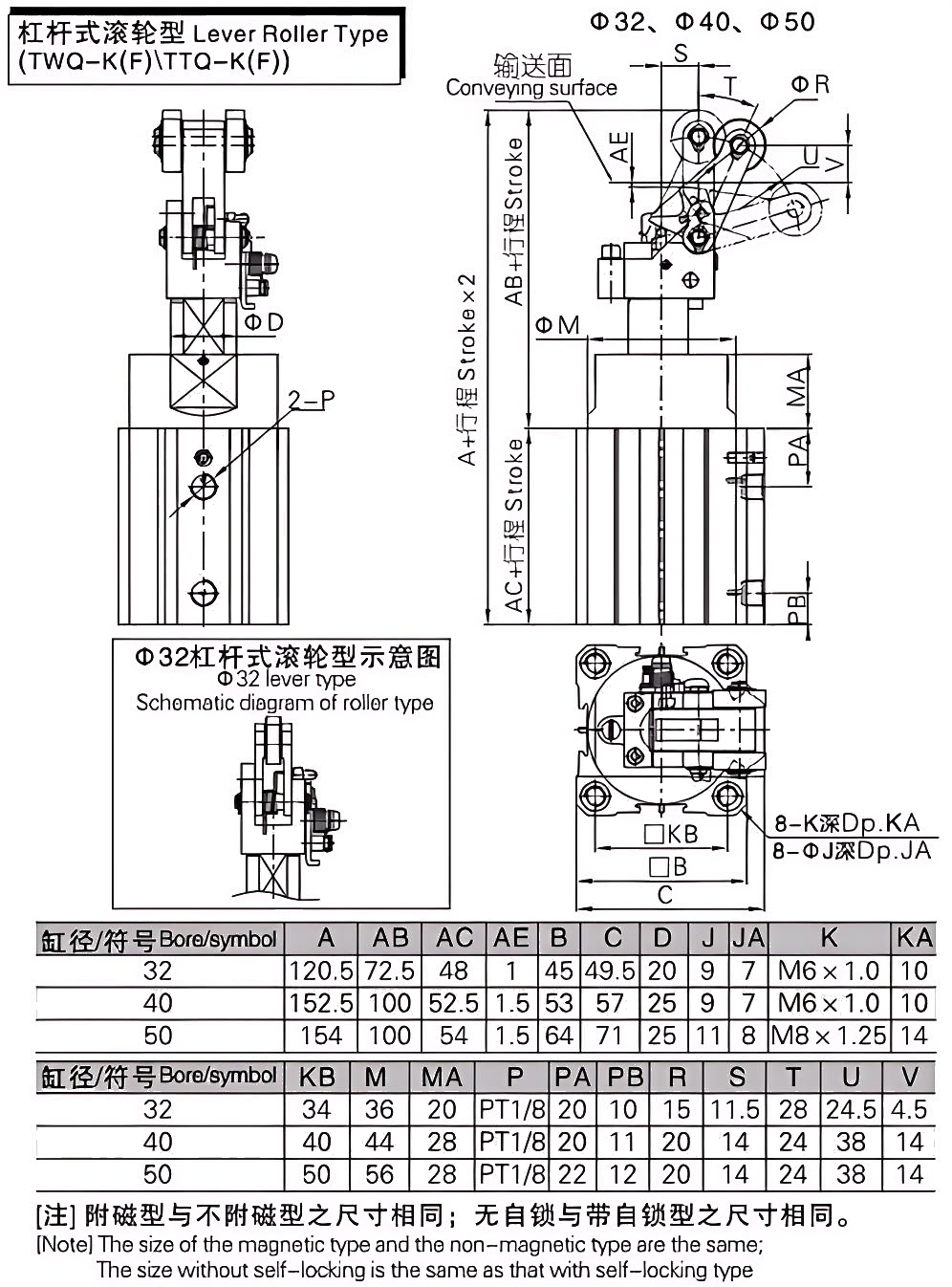

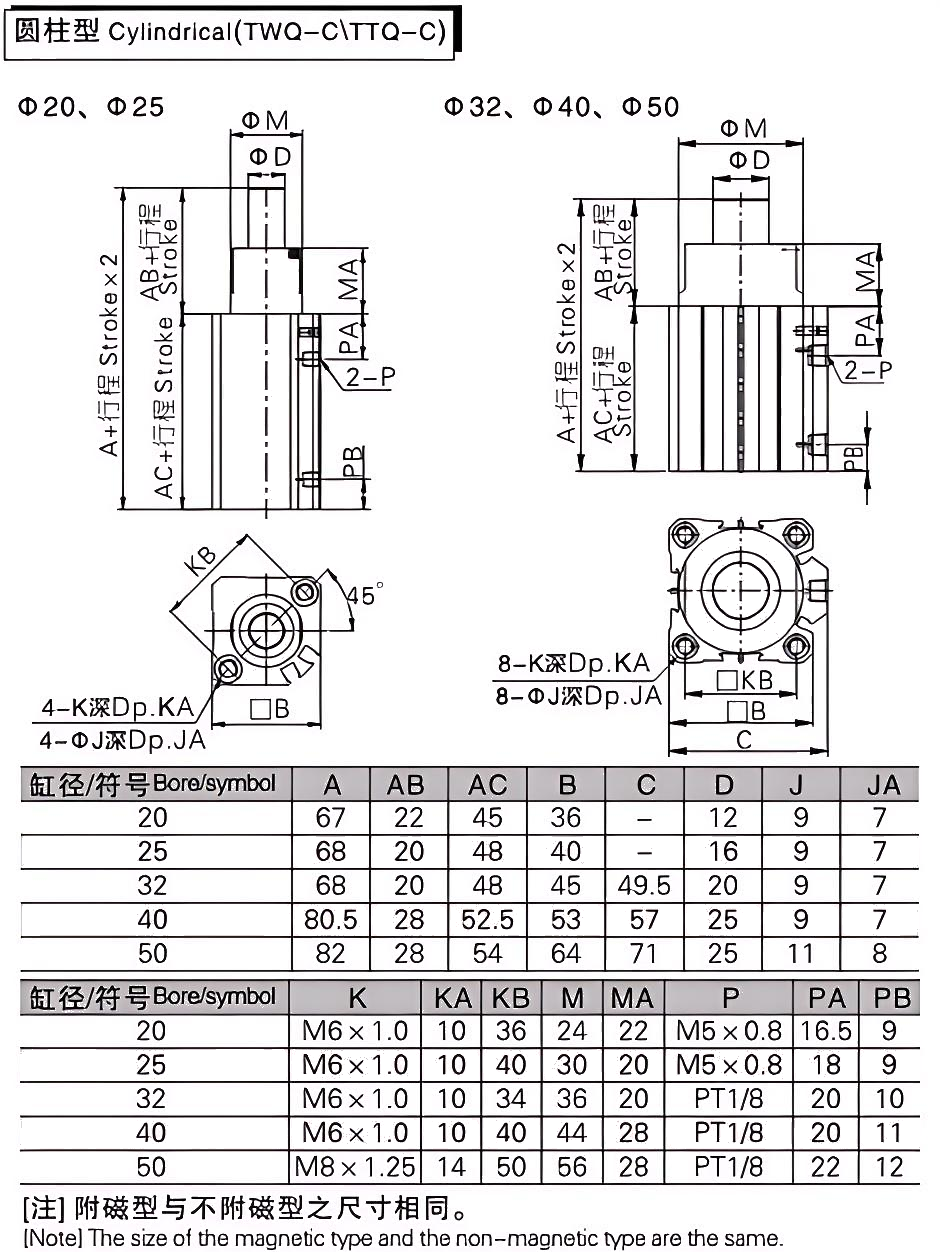

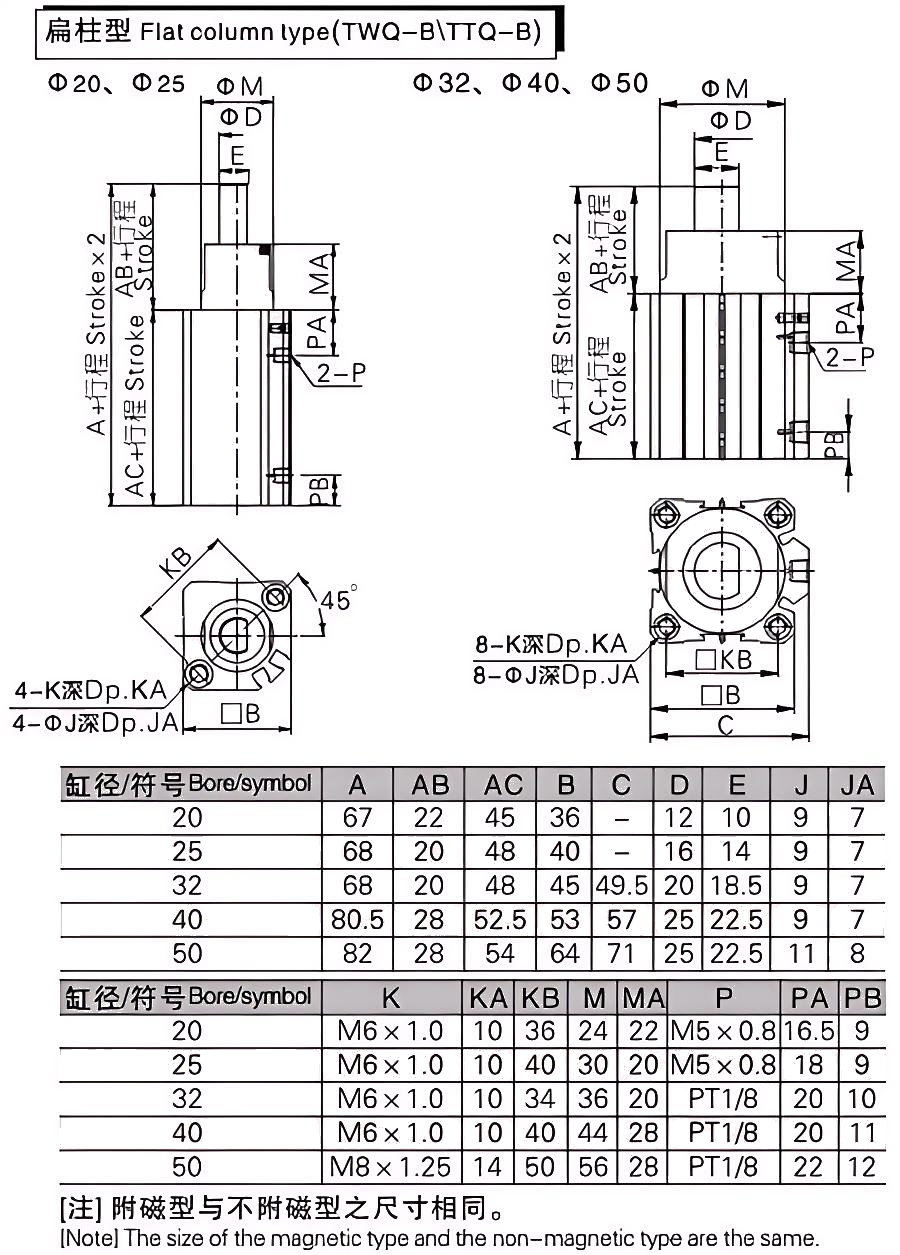

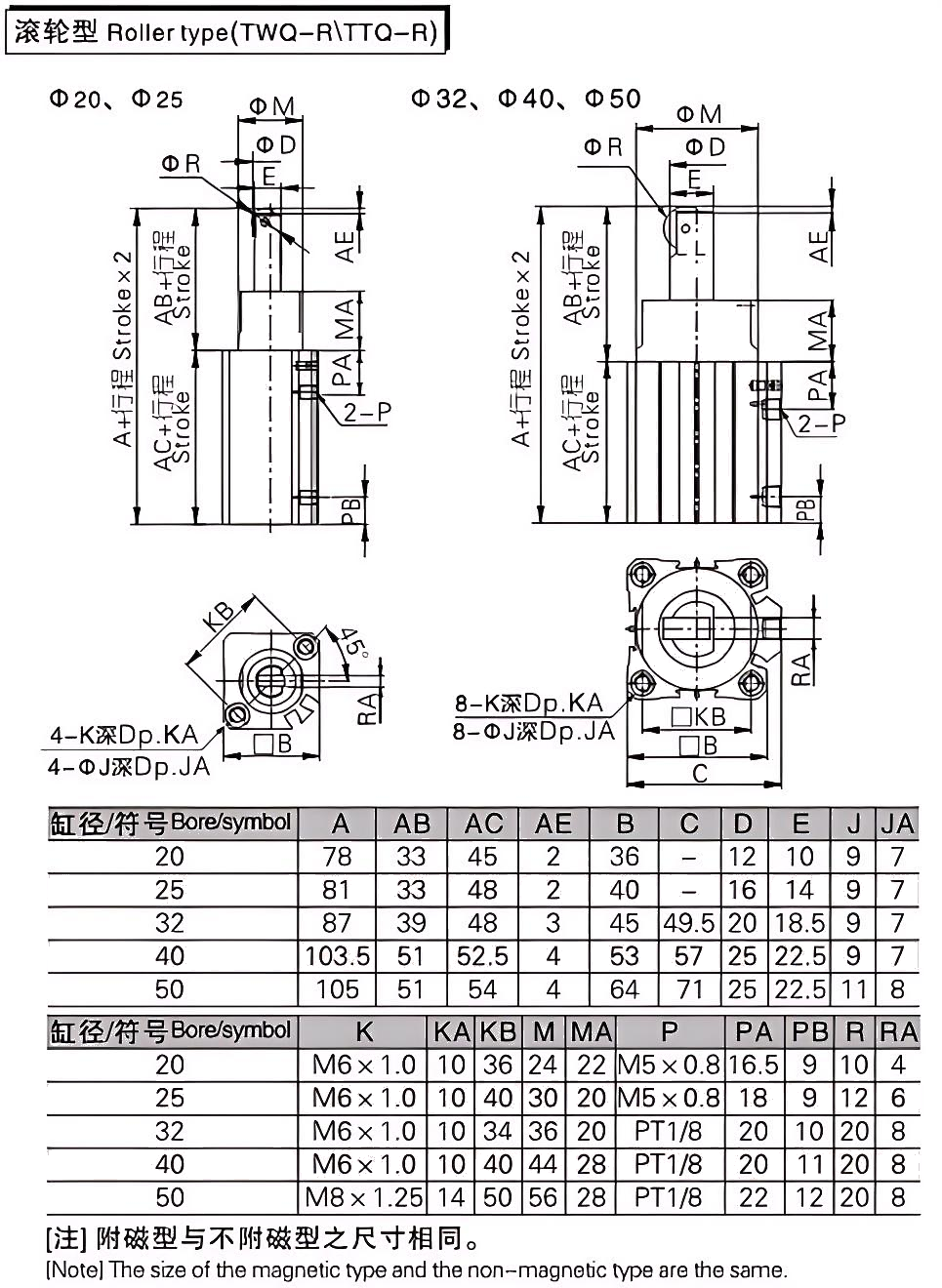

OVERALLDIMENSION&STRUCTURE
