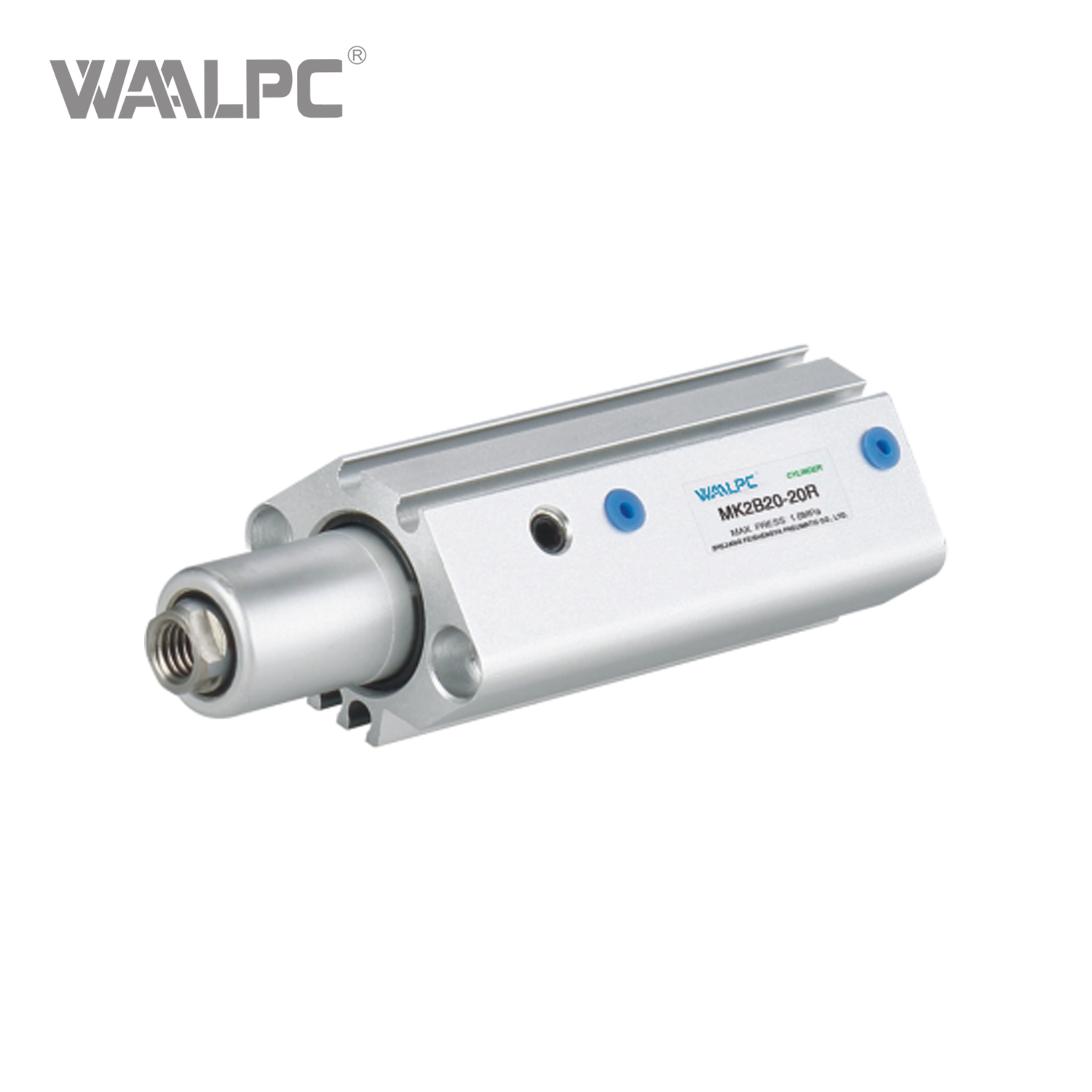

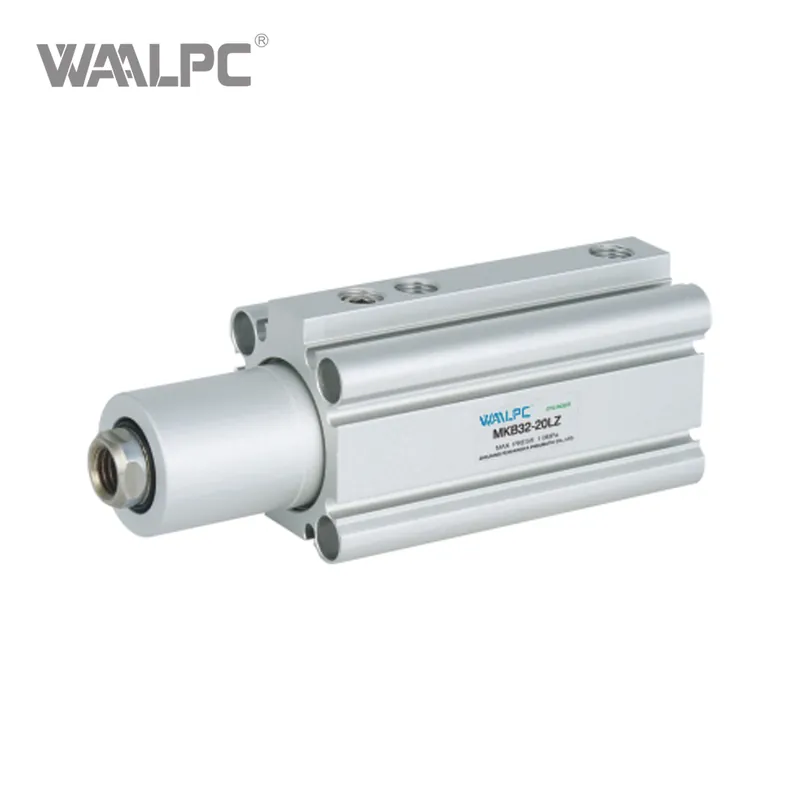

Standard Customized Pneumatic Linear Guide Way MK Series Compact Square Body Sliders Cylinder Air Cylinder Double Acting Single Rod with Built-in Magnet

Standard Customized Pneumatic Linear Guide Way MK Series Compact Square Body Sliders Cylinder Air Cylinder Double Acting Single Rod with Built-in Magnet


Availability:

Quantity:



Inquiry Add to Basket

The MK Series is a line of Rotary Clamp Cylinders manufactured by SMC . These pneumatic devices are engineered to provide a combination of linear and rotary motion in a single, compact unit . They are designed for applications that require both clamping force and a rotational movement for positioning or clearance.

Model:
MK
Brand:
WAALPC
Code:
8409919990

Product Description

Compact and Robust Design: The cylinder is designed to be compact. Furthermore, the dual-guide type model incorporates a guide roller in the rotary mechanism, which enhances non-rotation accuracy.
Versatile Sensor Mounting: Small magnetic reed switches can be installed on up to four sides of the cylinder body (on Φ20 and Φ25 models, switches can be mounted on two sides), providing great flexibility for position sensing.
Clear Visual Indication: The non-contact magnetic reed switches feature a two-color indication system for clear status monitoring.
Standard and High-Load Variants: The series includes standard types (MK) and high-load types (MK2, MK2T) to suit different application demands.

Technical Parameters

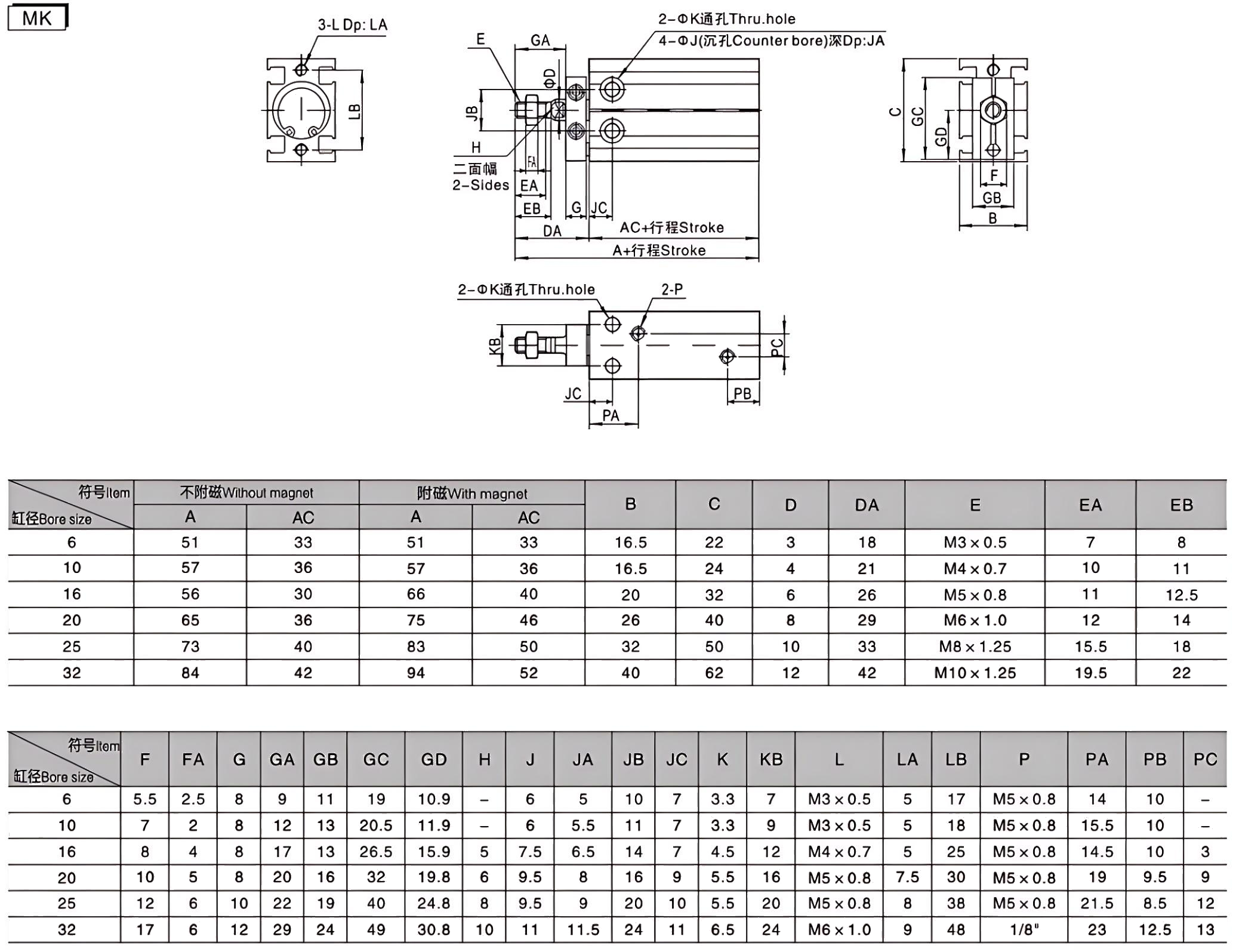

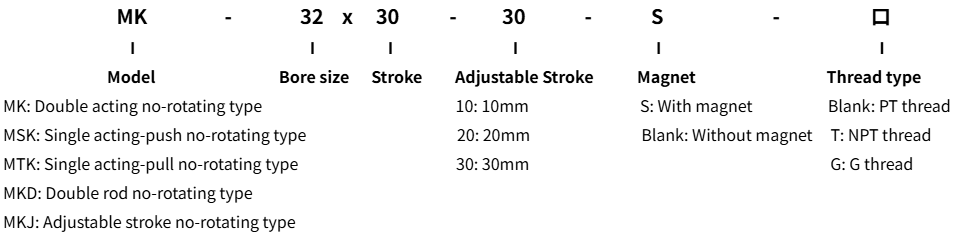

ORDERING CODE
