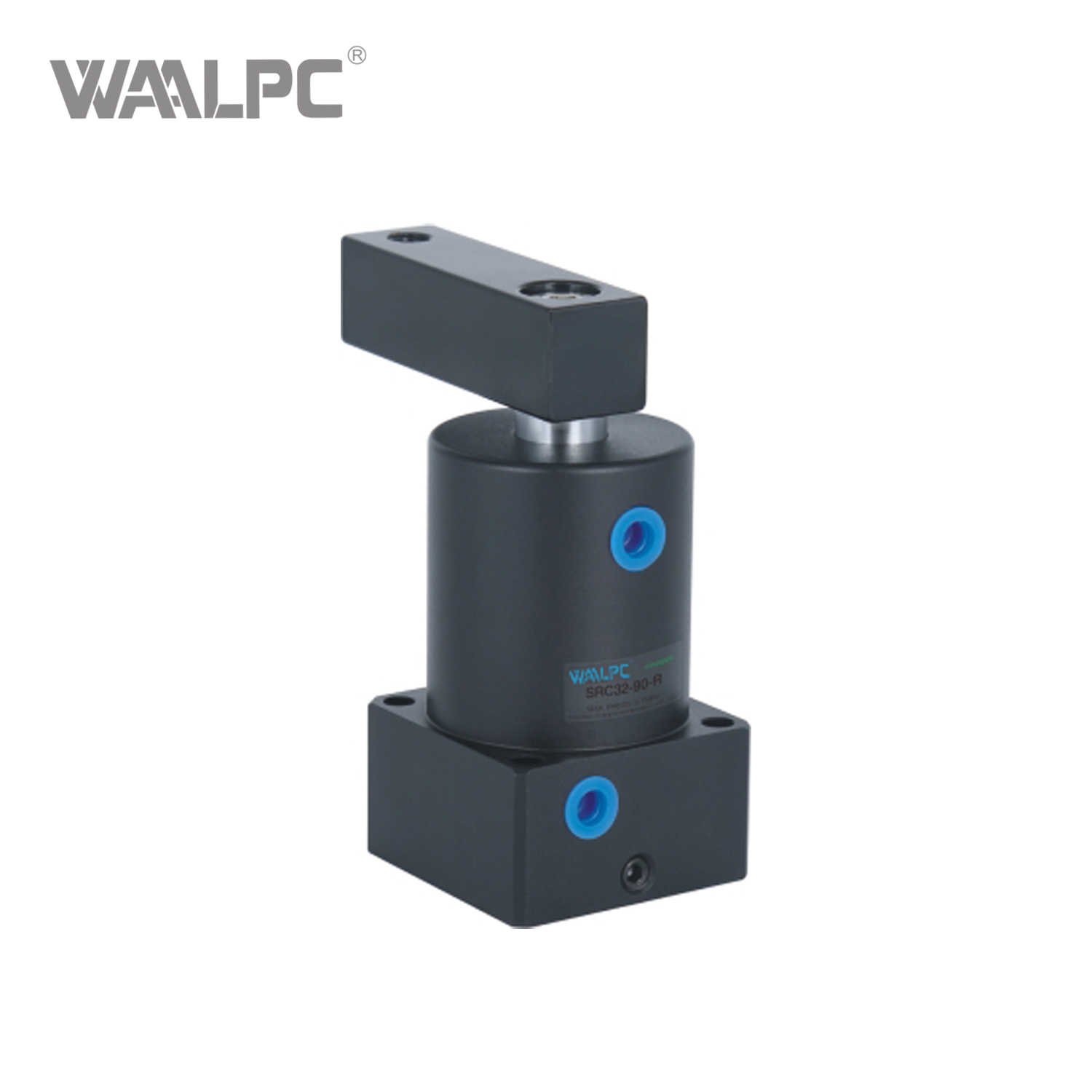

Pneumatic Air Cylinder SRC Series Rotary Actuator Swing Twist Hydraulic Air Pneumatic Cylinder

Pneumatic Air Cylinder SRC Series Rotary Actuator Swing Twist Hydraulic Air Pneumatic Cylinder


Availability:

Quantity:



Inquiry Add to Basket

The SRC Series is a line of compact, guided rod cylinders manufactured by SMC. Designed with integrated guide rods, these cylinders provide high rigidity and exceptional resistance to moment loads, making them ideal for applications requiring precise linear motion under challenging conditions.

Model:
SRC
Brand:
WAALPC
Code:
8409919990

Product Description

High Rigidity & Load Capacity
The dual guide rod structure offers excellent resistance to lateral forces and moment loads, ensuring stable operation even with eccentric loads.
Compact & Space-Saving Design
The integrated design of cylinder and guide rods creates a compact footprint, saving valuable space in automated equipment.
Precision Movement
Guided rod mechanism ensures smooth, accurate linear motion with minimal deflection, maintaining precision in repetitive operations.
Multiple Mounting Options
Available with various mounting configurations including front flange, rear flange, and foot mounting for flexible installation.
Enhanced Durability
Constructed with high-quality materials and precision manufacturing for long service life in demanding industrial environments.

Technical Parameters

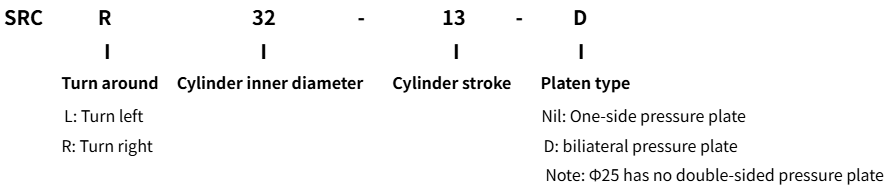

ORDERING CODE

Rotary Actuator

SPECIFICATION

Bore size(mm)	25	32	40	50	63
Acting type	Compound action
Fluid	Air
Operating pressure Kg/cm²(Kpa)	1.5~9.5(150~950)
Operating temperature℃	0~60
Use speed mm/sec	30~500
Swing stroke	11	13		15
Downstroke	11	13		15
Rotation angle	90° Customized(0°， 45°， 90°)
Turn around	Turn left(from right to left)-L, turn right(from left to right)-R
Buffer direction	Rubber gasket buffer
Lubrication	Automatic supply method
Port size	M5x0.8

OVERALLDIMENSION&STRUCTURE

Specification Download
