2P Series 2/2 Way Plastic & Brass Solenoid Valve, Direct Acting for Water Air Fluid Control


Availability:

Quantity:



Inquiry Add to Basket

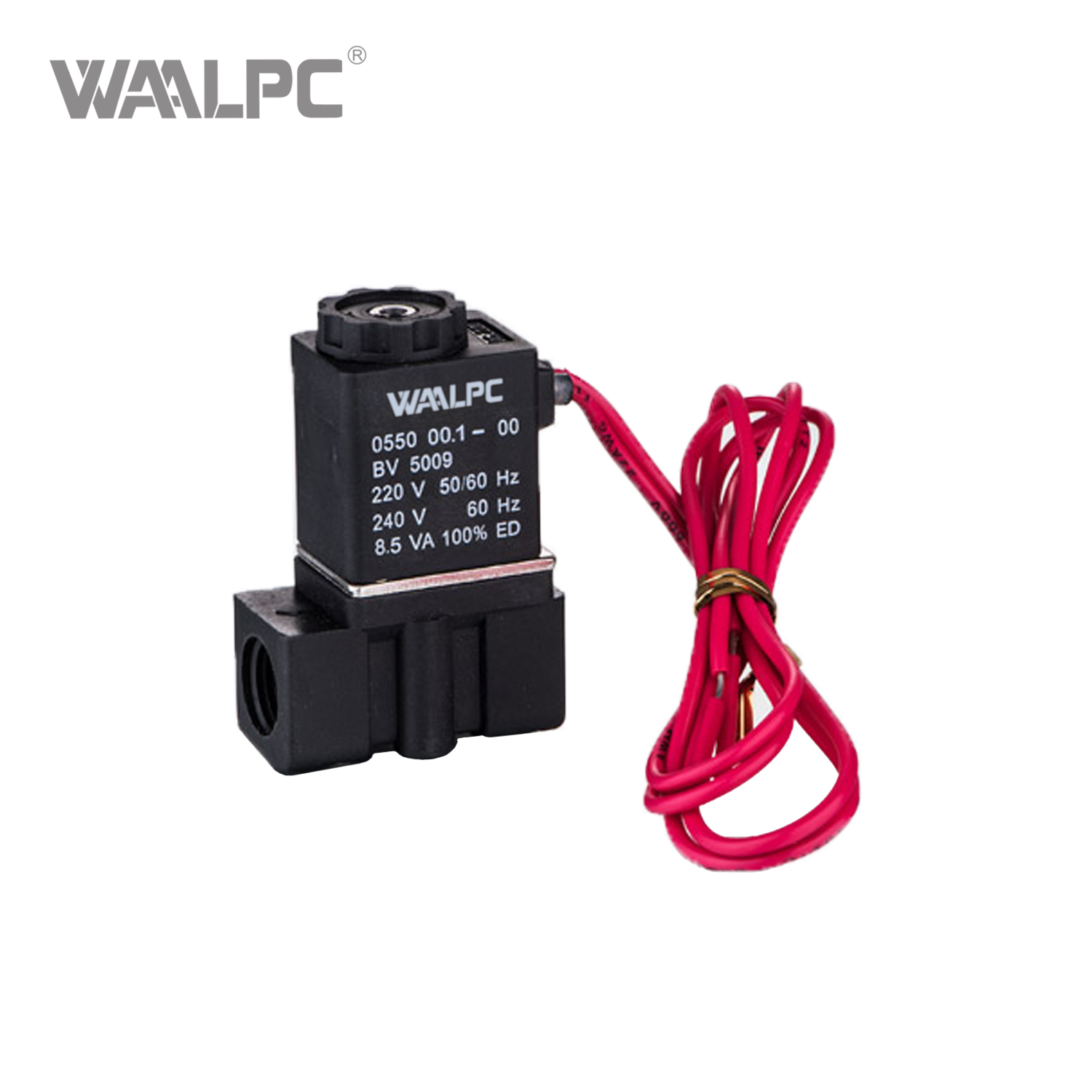

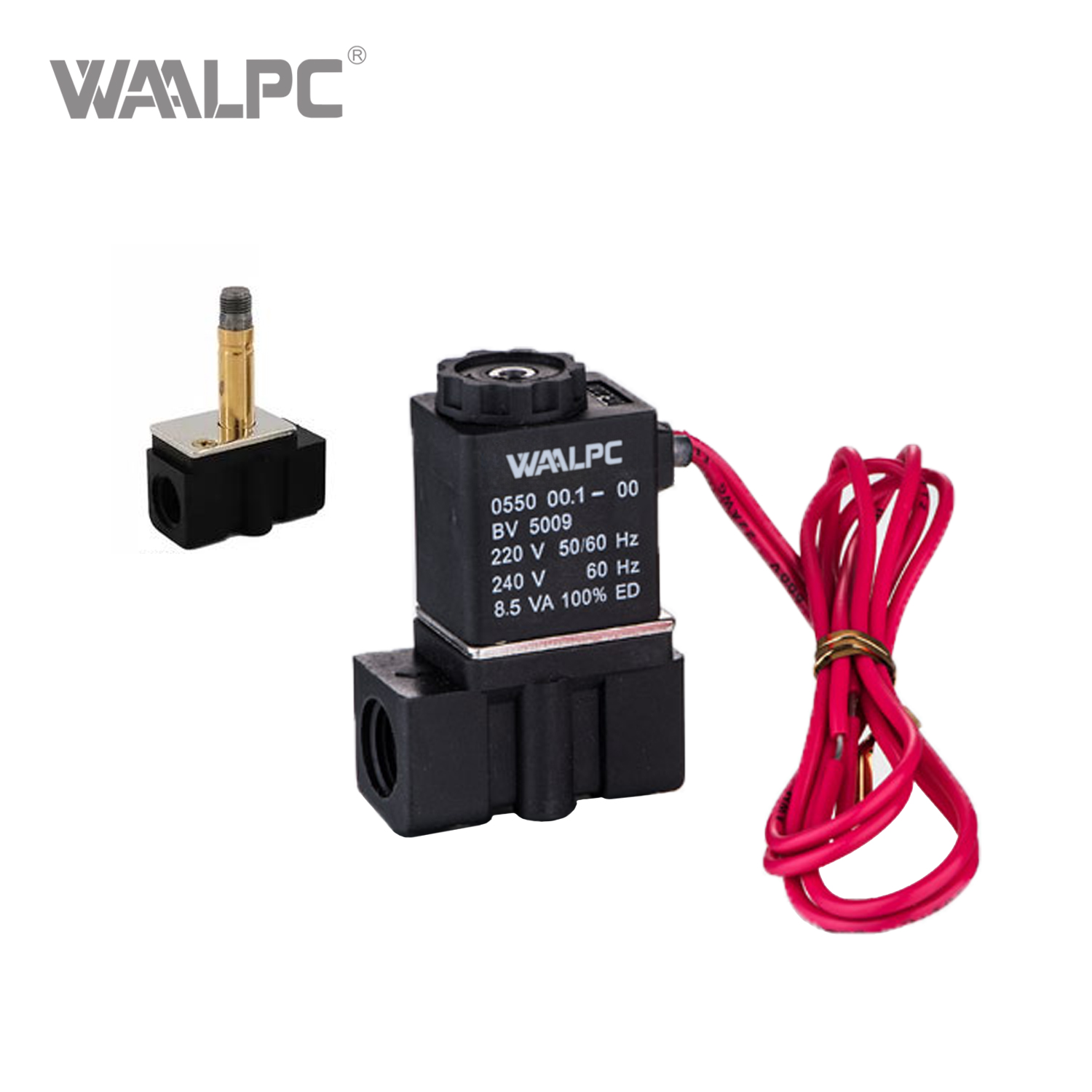

2P series 2/2 way direct acting solenoid valve available in brass and plastic body, widely used for automatic control of water, air and other non-corrosive fluids.

Model:
2P
Brand:
WAALPC
Code:
8481804090

Product Description

2/2 way direct acting structure, fast response for on-off control

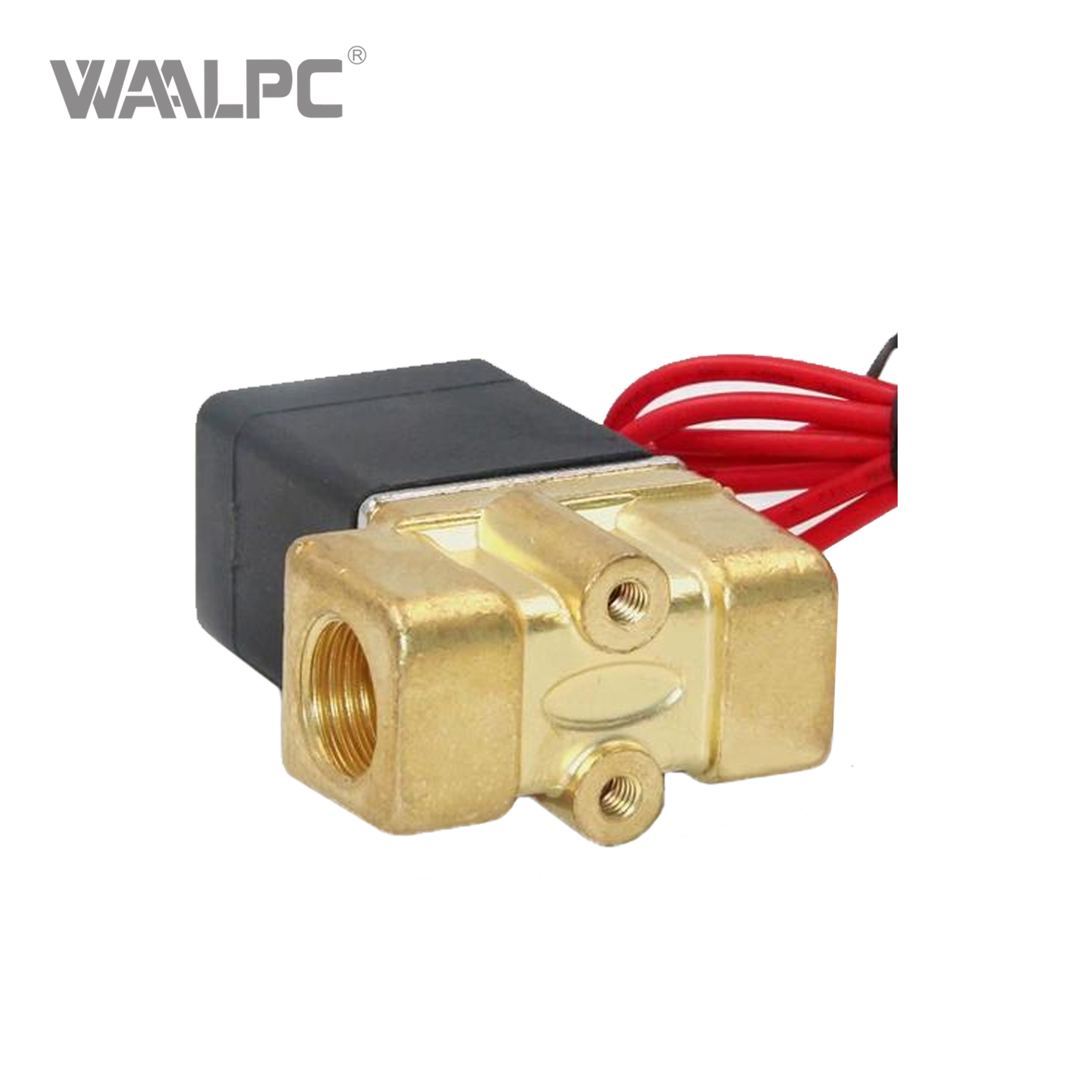

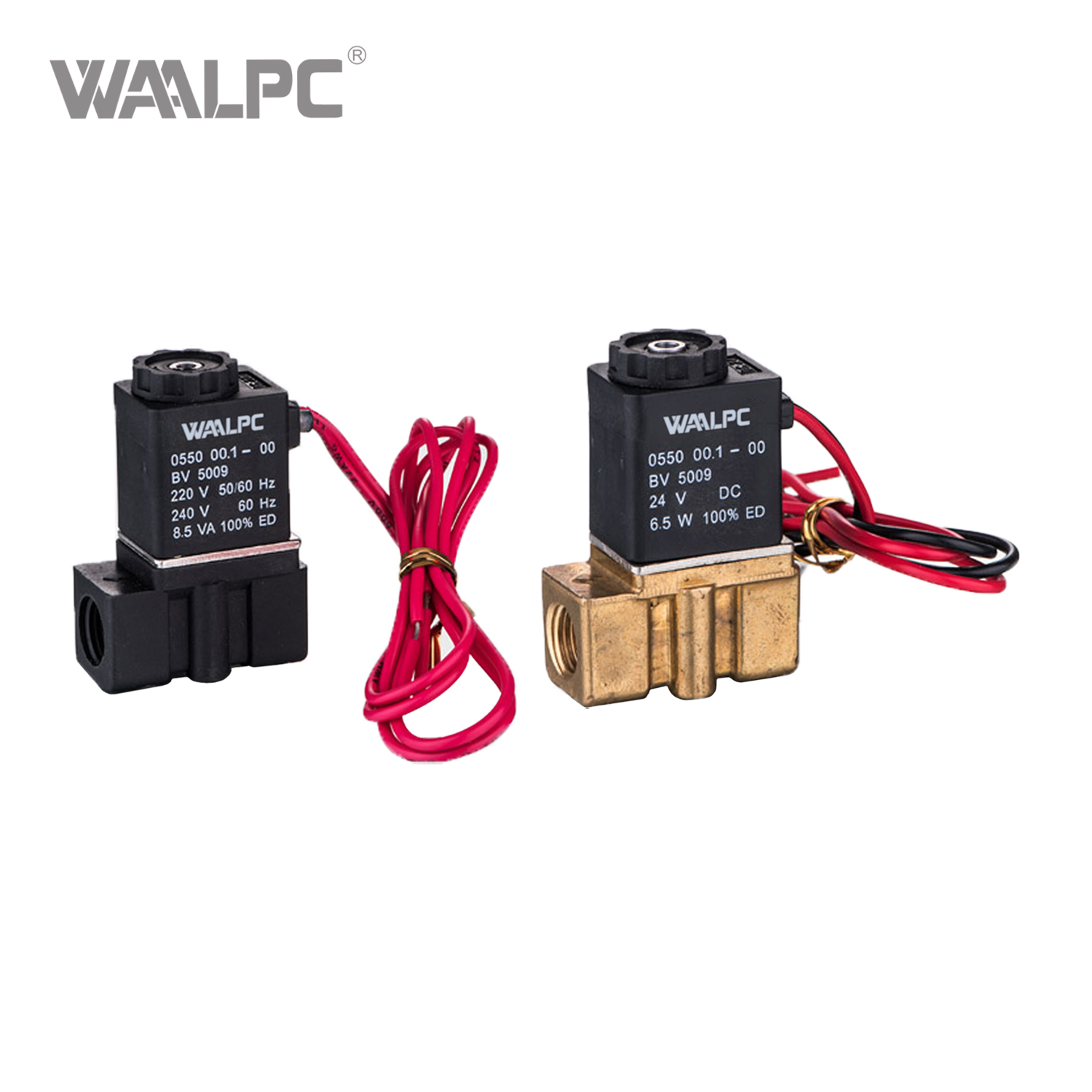

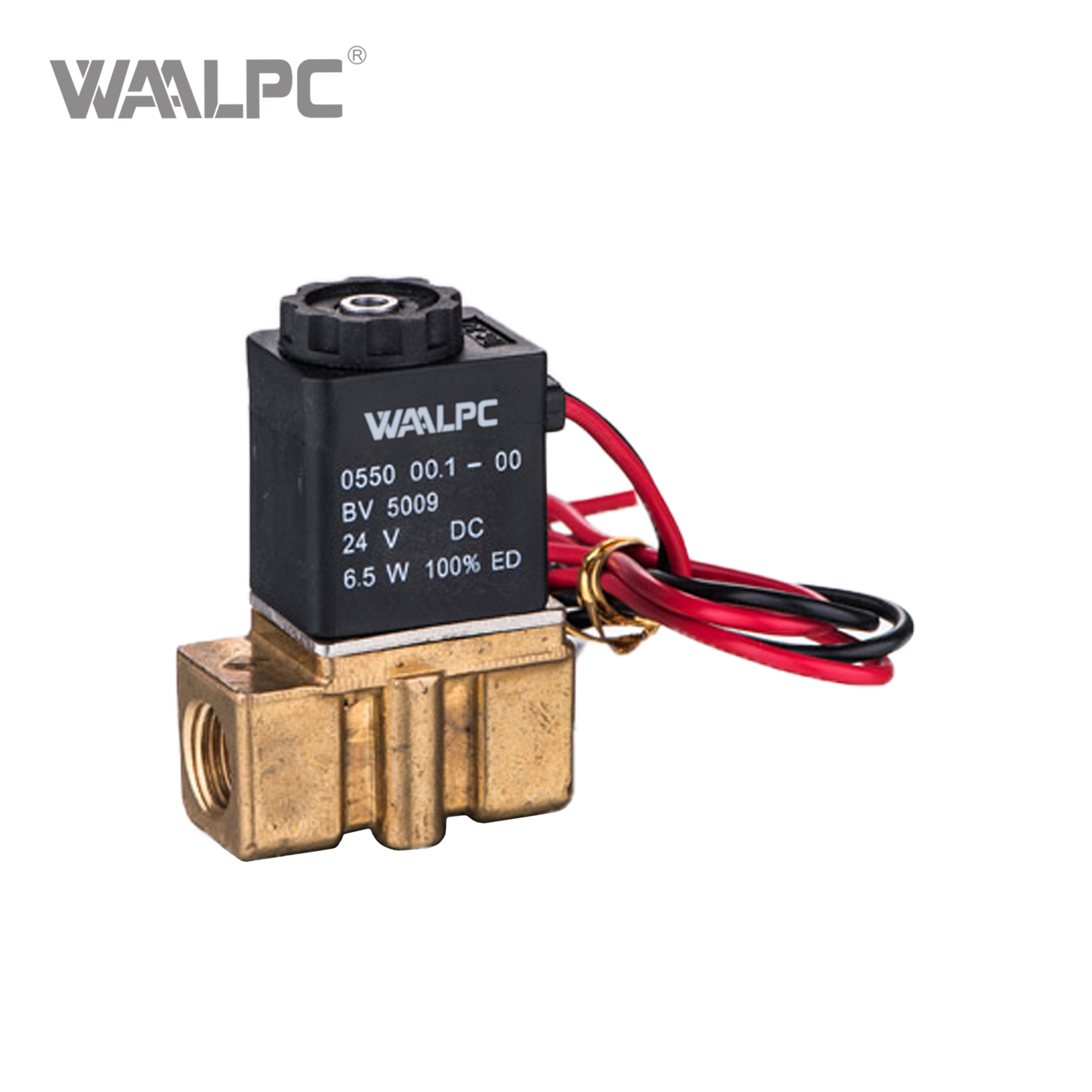

Two body options: brass body & reinforced plastic body for different working media
Normally closed type, stable performance with long service life
Multiple voltage options: DC24V, AC220V and more available
Suitable for non-corrosive media: water, compressed air, light oil
Simple installation, compact size, low power consumption
100% ED continuous duty coil, reliable for long-time operation

Technical Parameters

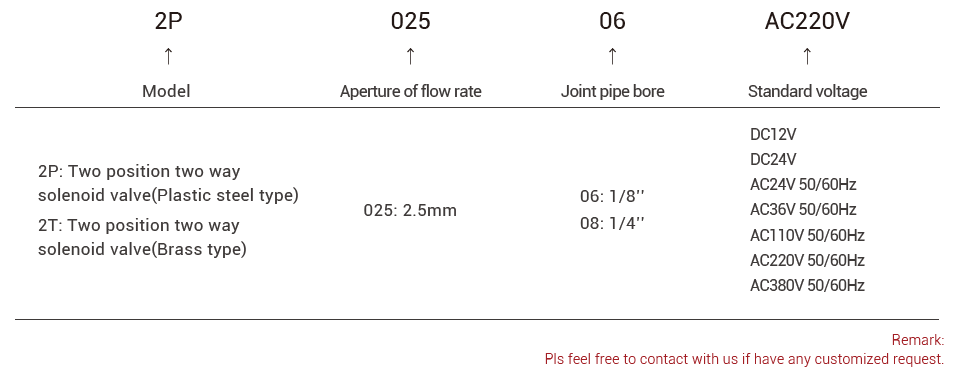

ORDERING CODE

Solenoid Valve

SPECIFICATION

Model	2P025-06	2P025-08
Working Medium	Air, Water, Oil, Gas
Motion Pattern	Direct Drive Type
Type	Normal Close Type
Aperture of Flow Rate(mm)	2.5
Cv Value	0.23
Joint Pipe Bore	1/8''	1/4''
Operation Fluid Viscosity	Below 20 CST
Working Pressure	0~7kgf/cm²
Max. Pressure Resistance	10.5kgf/cm2
Operating Temperature Range	-5~60℃
Material of Body	Engineering plastic steel
Material of Oil Seal	NBR, EPDM, VITON
Weight(kg)	0.1

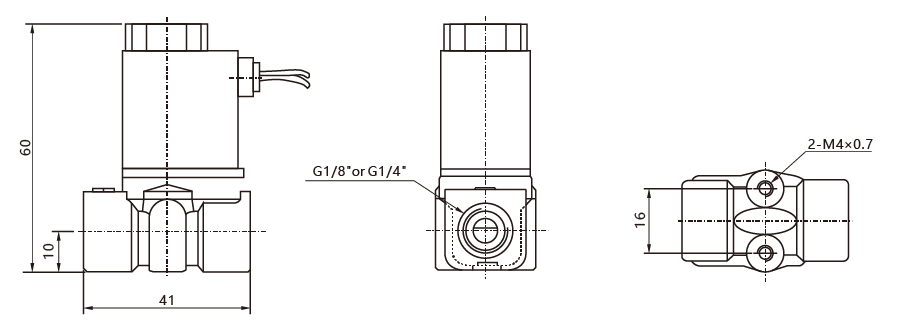

OVERALLDIMENSION&STRUCTURE

Solenoid Valve

Specification Download

2P series solenoid valve.pdf
