You are here: Home » Products » Air Source Treatment » AIRTAC Type » 5μm 25μm 40μm Airtac 1/4'' BC2000 Air Filter FRL Combination 1/2 Pneumatic Air Filter Regulator for Pneumatic System Components

Product Category

BC2000 5μm 25μm 40μm BC Series Airtac Type 1/2'' 1/4'' Air Filter Air Source Treatment Filter Regulator Lubricator F. R. L Combination

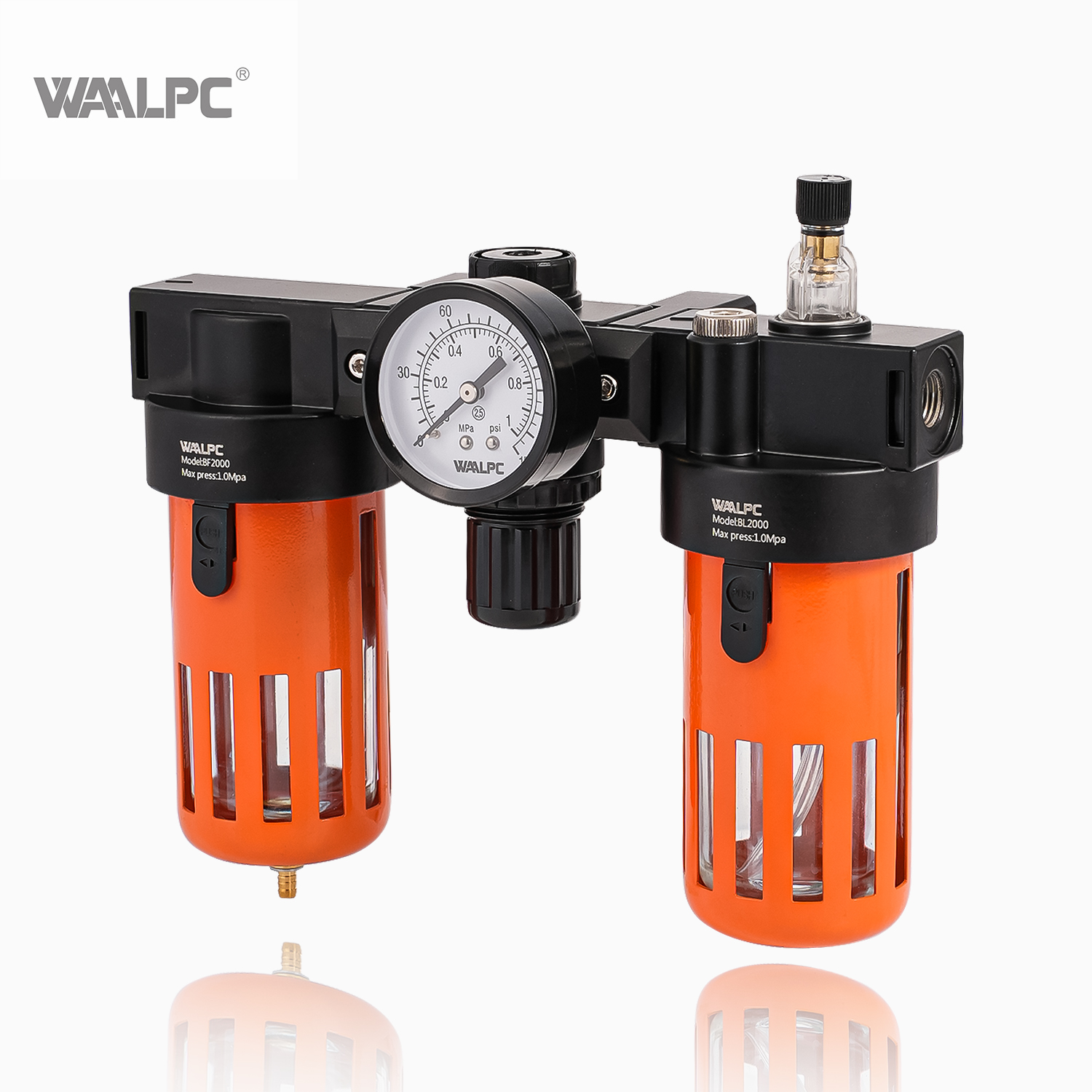

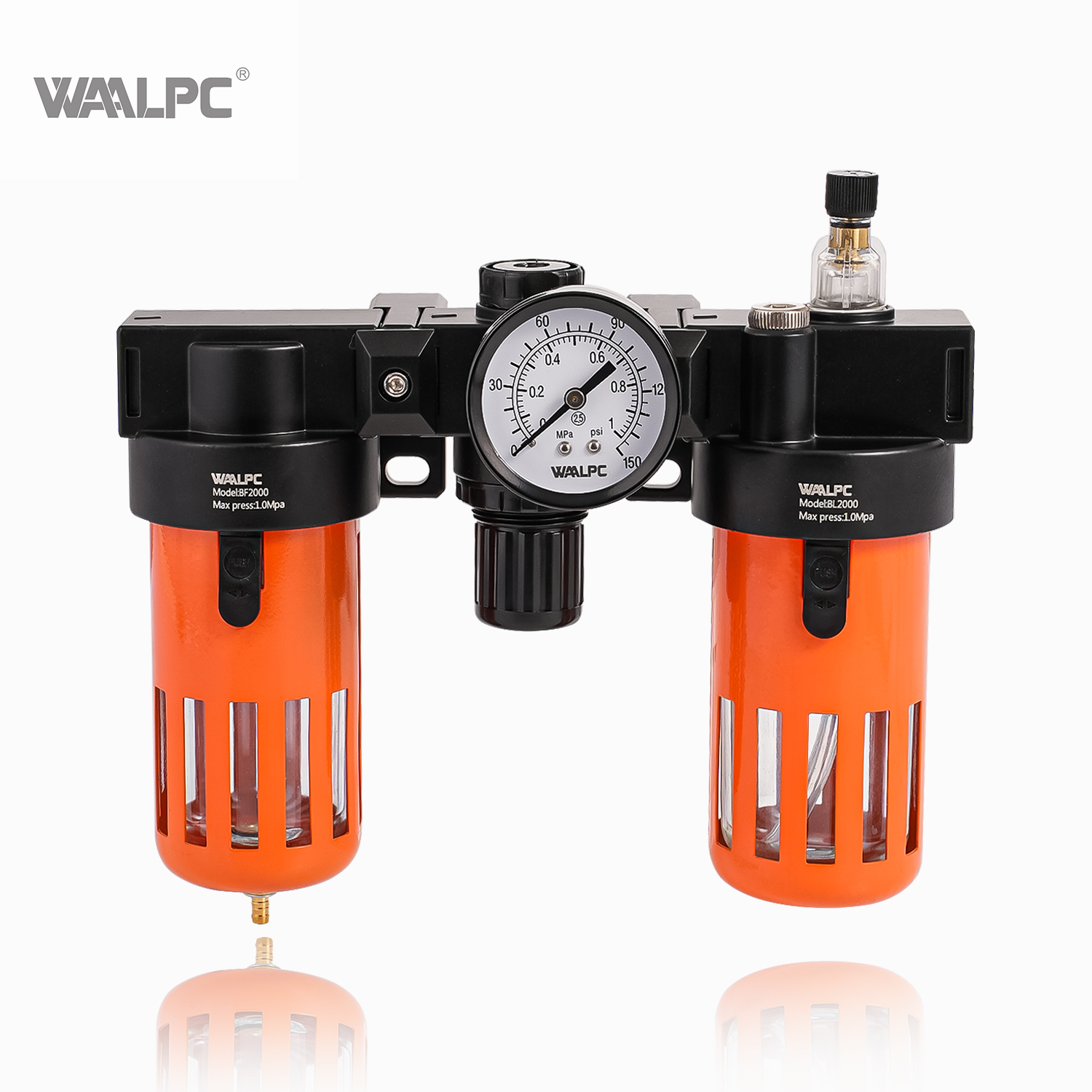

5μm 25μm 40μm Airtac 1/4'' BC2000 Air Filter FRL Combination 1/2 Pneumatic Air Filter Regulator for Pneumatic System Components


Color:	Black & Orange Black & Silver White
Availability:

Quantity:



Inquiry Add to Basket

Air source treatments are key components in pneumatic systems. They are mainly used to process compressed air to ensure that it is clean, dry and stable to improve system efficiency and equipment life. The following are its main components and functions:
1. Air filter
Function: Remove moisture, oil and solid particles from compressed air.
Importance: Prevent pollutants from damaging pneumatic components and ensure the normal operation of the system.

2. Air pressure regualtor
Function: Regulate the pressure of compressed air to keep it stable.
Importance: Avoid pressure fluctuations from damaging the equipment and ensure stable operation of the system.

3. Air lubricator
Function: Add an appropriate amount of lubricating oil to the compressed air to reduce friction and wear of pneumatic components.
Importance: Extend equipment life and improve operating efficiency.

Model:
BC2000
Brand:
WAALPC
Code:
8481804090

Product Description

Product Advantages

1/2 Pneumatic Air Filter Regulator

1.Light and compact structure,easy to install and use

2.Press-in self-locking mechanism, which can prevent the set pressure from external interference

3. Small pressure loss,high efficiency of water separation

4.Transparent housing,the amount of oil dripping can be observed directly

5.In addition to the standard type,there is also a low-pressure type available(the max regulating pressure is 0.4MPa)

Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

Type-name	F.R.L Combination
Model	AC1500	AC2000	BC2000	BC3000	BC4000
Working Medium	Air
Grade of Filtration	5μm,25μm,40μm
Port Size	G1/8,G1/4,G3/8,G1/2
Pressure Regulating Range	0.05~0.85MPa
Max. Operating Pressure	0.95MPa
Pressure Resistance	1.5MPa
Operating Temperature Range	5-60℃
Filter Cup Capacity	A Series 15CC		B Series 60CC
Lubricator Cup Capacity	A Series 25CC		B Series 90CC
Recommended Oil	ISO VG32/ equivalent oil
Material	Housing: aluminium die-cast molding;Container Cup:PE;Protective Cover:iron
Weight	700g		900g

1/2 Pneumatic Air Filter Regulator

Specification Download

AIRTAC Series Air Source Treatments.pdf
