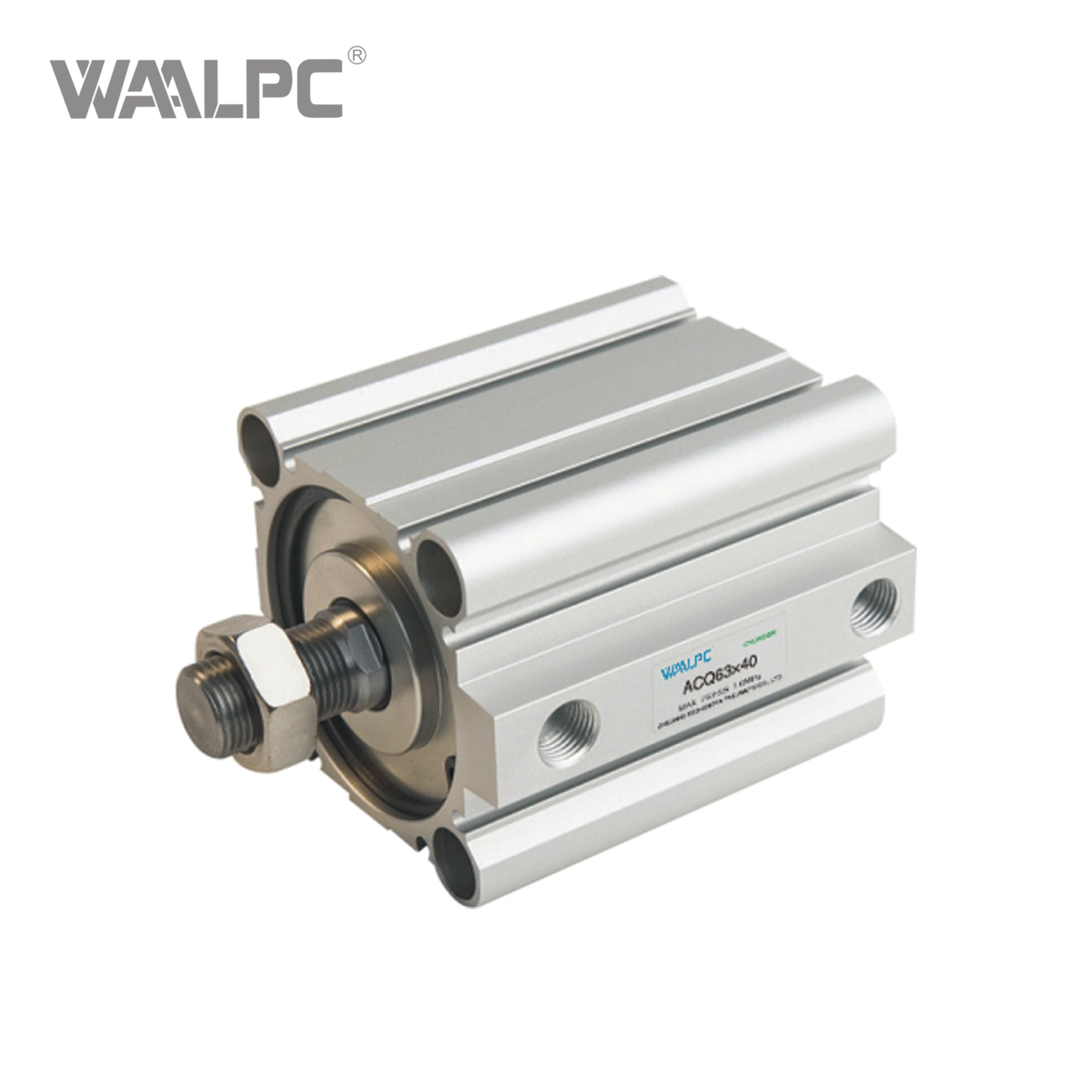

ACQ Series Ultra-Thin Compact Cylinder JIS Standard Double-Acting with C-Ring Design for Space-Saving Automation

ACQ Series Ultra-Thin Compact Cylinder JIS Standard Double-Acting with C-Ring Design for Space-Saving Automation


Availability:

Quantity:



Inquiry Add to Basket

The ACQ Series is a line of ultra-thin, compact pneumatic cylinders designed for applications where saving space is critical. A key design advantage is their compact structure, which effectively minimizes the required installation footprint.

Model:
ACQ
Brand:
WAALPC
Code:
8409919990

Product Description

1. Space-Efficient and Compact Design: The ACQ series is engineered with a focus on reducing installation space . Its compact design is ideal for machinery with spatial constraints.

2. Robust and Durable Construction: The cylinder tube is made of aluminum alloy. The inner bore is precision honed and hard-anodized, resulting in a surface that is wear-resistant and offers high durability. The piston rod is made of hard-chrome plated S45C steel for strength and corrosion resistance.

3. Stable Performance and Easy Installation: The cylinder features an elongated guide distance on the front cover, providing good guidance and stability during operation. The cylinder body is surrounded by sensor grooves, allowing for convenient installation of magnetic inductive sensors for position detection . A variety of mounting accessories are available, offering flexibility for different installation needs .

4. Reliable Sealing and Structure: The cylinder employs a C-shaped retaining ring to fix the cylinder tube to the front and rear covers, making the structure compact and reliable. The piston and piston rod are connected via a riveted structure . The piston seal uses a special bidirectional sealing structure that is compact and has an oil reservoir function.

Technical Parameters

ORDERING CODE

ACQ ordering_

SPECIFICATION

Bore(mm)		12	16	20	25	32	40	50	63	80	100
Working medium		Air(to be filtered by 40um filter element)
Acting type		Double Acting
		Single acting_push type, Single acting_pull type								-
Pressure range	Double Acting	0.15~1.0Mpa(22~145Psi)
	Spring Acting	0.2~1.0Mpa(28~145Psi)
Proof pressure		1.5Mpa
Working Temperature		-20~70℃
Speed range		Double Acting: 30~500mm/s Single Acting: 50~500mm/s
Tolerance of stroke		≤100 +1.00mm >100+1.50mm
Cushion type		Bumper
Port size		M5x0.8				G1/8		G1/4		G3/8

OVERALLDIMENSION&STRUCTURE

ACQ Series Ultra-Thin Compact Cylinder

Type	Standard						With magnet		AB	B	D	E	EA	H	J	JA	K	KA	KB	P	Standaed		With magnet		T
Bore size/item	A			AC			A	AC													PA	PB	PA	PB
Stroke	St≤50	St=55	St≥60	St≤50	St=55	St≥60	A	AC													PA	PB	PA	PB
12	20.5	-	-	17	-	-	31.5	28	3.5	25	6	M3x0.5	6	5	6	3.5	M4x0.7 Thru.hole: Φ3.4	11	15.5	M5x0.8	7.5	5	9	7	22
16	22	22	22	18.5	18.5	18.5	34	30.5	3.5	29	8	M4x0.7	8	6	6	3.5	M4x0.7 Thru.hole: Φ3.4	11	20	M5x0.8	8	5.5	9.5	5.5	28
20	24	-	34	19.5	-	29.5	36	31.5	4.5	36	10	M5x0.8	7	8	9	5.5	M6x1.0 Thru.hole: Φ5.2	17	25.5	M5x0.8	9	5.5	9.5	5.5	36
25	27.5	-	37.5	22.5	-	32.5	37.5	32.5	5	40	12	M6x1.0	12	10	9	5.5	M6x1.0 Thru.hole: Φ5.2	17	28	M5x0.8	11	5.5	11	5.5	40

ACQ Series Ultra-Thin Compact Cylinder

Bore size item	A (Standard)			A(With magnet)			AB	AC(Standard)			AC(With magnet)			B	BA	D	E	EA
Stroke	5\10	15\20	25\30	5\10	15\20	25\30	AB	5\10	15\20	25\30	5\10	15\20	25\30	B	BA	D	E	EA
12	25.5	30.5	-	36.5	41.5	-	3.5	22	27	-	33	38	-	25	-	6	M3x0.5	6
16	27	32	-	39	44	-	3.5	23.5	28.5	-	35.5	40.5	-	29	-	8	M4x0.7	8
20	29	34	39	41	46	51	4.5	24.5	29.5	34.5	36.5	41.5	46.5	36	-	10	M5x0.8	7
25	32.5	37.5	42.5	42.5	47.5	52.5	5	27.5	32.5	37.5	37.5	42.5	47.5	40	-	10	M6x1.0	12
32	35	40	45	45	50	55	7	28	33	38	38	43	48	45	49.5	16	M8x1.25	13
40	41.5	46.5	51.5	51.5	56.5	61.5	7	34.5	39.5	44.5	44.5	49.5	54.5	53	57	16	M8x1.25	13
50	48.5	53.5	58.5	58.5	63.5	68.5	8	40.5	45.5	50.5	50.5	55.5	60.5	64	71	20	M10x1.5	15
63	54	59	64	64	69	74	8	46	51	56	56	61	66	77	84	20	M10x1.5	15

Bore size item	H	J	JA	K	KA	KB	P	PA(Standard)	PA(With magnet)	PB(Standard)	PB(With magnet)	T
12	5	6	3.5	M4x0.7 Thru.hole: Φ3.4	11	15.5	M5x0.8	7.5	9	5	7	22
16	6	6	3.5	M4x0.7 Thru.hole: Φ3.4	11	20	M5x0.8	8	9.5	5.5	5.5	28
20	8	9	5.5	M6x1.0 Thru.hole: Φ5.2	17	25.5	M5x0.8	9	9.5	5.5	5.5	36
25	10	9	5.5	M6x1.0 Thru.hole: Φ5.2	17	28	M5x0.8	11	11	5.5	5.5	40
32	14	9	5.5	M6x1.0 Thru.hole: Φ5.2	17	34	PT1/8	10.5	10.5	7.5	7.5	-
40	14	9	5.5	M6x1.0 Thru.hole: Φ5.2	17	40	PT1/8	11	11	8	8	-
50	17	10.5	6.5	M8x1.25 Thru.hole: Φ6.8	22	50	PT1/8	10.5	10.5	10.5	10.5	-
63	17	14	9	M10x1.5 Thru.hole: Φ8.5	28.5	60	PT1/8	15	15	10.5	10.5	-

ACQ Series Ultra-Thin Compact Cylinder

Bore size /item	A(ACQD)		A(ACQJ)		AB	AC(ACQD)		AC(ACQJ)		AF	E	EA	FA	PA	R
Bore size /item	Standard	With magnet	Standard	With magnet	AB	Standard	With magnet	Standard	With magnet	AF	E	EA	FA	PA	R
12	32.2	39.4	45.2	52.4	3.5	25.2	32.4	25.2	32.4	17	M3x0.5	6	4	9	M5X0.8
16	33	43	50	60	3.5	26	36	26	36	21	M4X0.7	8	5	9.5	M6X1.0
20	35	47	55	67	4.5	26	38	26	38	25	M5X0.8	7	6	9.5	M8X1.25
25	39	49	60.5	70.5	5	29	39	29	39	27	M6X1.0	9.5(St=5)/12(St＞5))	6	11	M10X1.25
32	44.5	54.5	64.9	74.9	7	30.5	40.5	30.5	40.5	28	M8X1.25	9(St≤10)/13(St＞10)	7	10	M12X1.25
40	54	64	74.5	84.5	7	40	50	40	50	28	M8X1.25	11(St≤10)/13(St＞10)	7	13	M12X1.25
50	56.5	66.5	77	87	8	40.5	50.5	40.5	50.5	29	M10X1.5	12(St≤10)/15(St＞10)	8	13.5	M16X1.5
63	58	68	78.4	88.4	8	42	52	42	52	29	M10X1.5	12(St≤10)/15(St＞10)	8	14.5(sT=5)/16(St＞5)	M16X1.5
80	71	81	95.8	105.8	10	51	61	51	61	35.5	M16X2.0	14(St≤15)/20(St＞15)	10	16	M20X1.5
100	84.5	94.5	114.3	124.5	12	60.5	70.5	60.5	70.5	42.5	M20X2.5	20(St≤25)/26(St＞25)	13.5	21	M27X2.0

Specification Download
