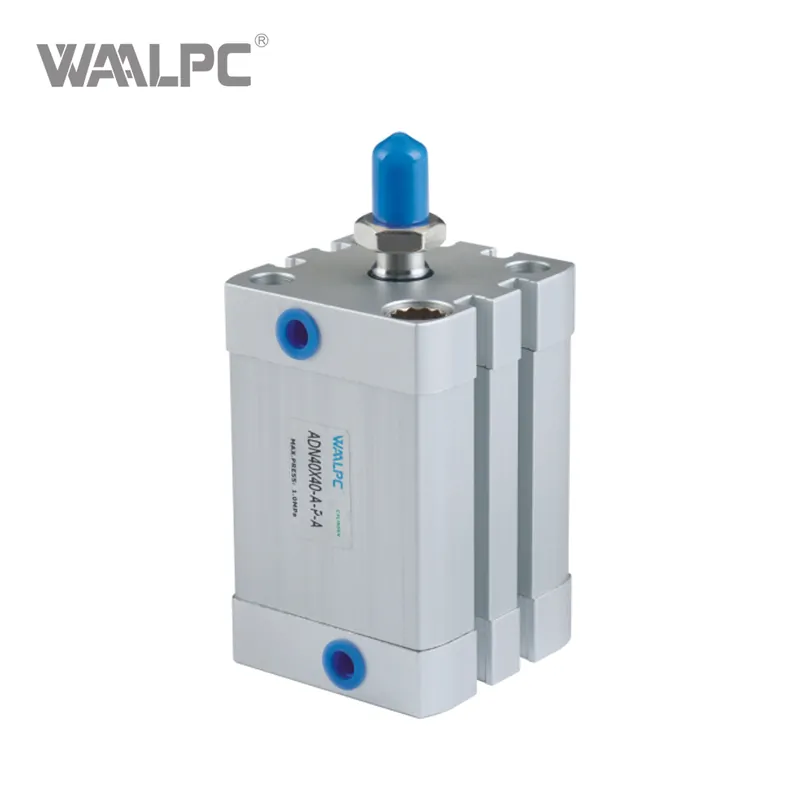

ADN Standard Compact Air Cylinder for Automotive Packaging & Pharmaceutical Industries

ADN Standard Compact Air Cylinder for Automotive Packaging & Pharmaceutical Industries


Availability:

Quantity:



Inquiry Add to Basket

The ADN Series comprises compact, double-acting pneumatic cylinders designed for high performance in limited spaces . A key design advantage is their significantly reduced installation length—up to 50% shorter than standard ISO 15552 cylinders with the same stroke . The series conforms to the international ISO 21287 standard for compact cylinders.

Model:
ADN
Brand:
WAALPC
Code:
8409919990

Product Description

1. Space-Efficient and Robust Design: The ADN series is engineered with a focus on reducing installation space without compromising performance. Its structure is reinforced and built to ISO standards, making it suitable for a wide range of applications.

2. Superior Cushioning for High Performance: The series offers excellent damping characteristics. The optional self-adjusting pneumatic cushioning (PPS) automatically adapts to the piston speed and load, eliminating the need for manual adjustment and ensuring process reliability. This allows for high-speed operation and short cycle times while reducing noise and vibration. Standard elastic cushioning is also available.

3. Easy Integration and Flexibility: A wide range of mounting accessories is available, enabling installation in almost any position. Sensor grooves on three sides of the cylinder barrel allow for easy and flush installation of proximity switches . Furthermore, the series boasts a wide variety of derivates and a modular product system, allowing for customization to meet specific needs.

4. Durable and Reliable Construction: Key components like the cylinder tube are made from high-quality, hard-anodized aluminum alloy, and the piston rod is made of hardened and chrome-plated steel, providing excellent corrosion resistance and a long service life. The cylinders feature a very low friction coefficient and are suitable for use with both lubricated and non-lubricated air.

Technical Parameters

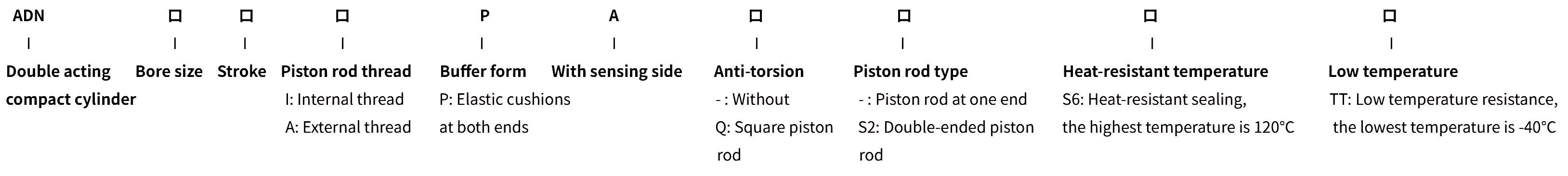

ORDERING CODE

ADN ordering_

SPECIFICATION

Bore(mm)

12

16

20

25

32

40

50

63

80

100

125

Working medium

Clean air(40um Filtration)

Acting type

Double acting

Single acting-Push type, Single acting-Pull type

-

Pressure

Double acting: 0.1 to 1.0 Mpa (14 to 145 psi)

Single acting: 0.2 to 1.0 Mpa (28 to 145 psi)

Working pressure

5 to 80 ℃

Guaranteed pressure

1.5 Mpa (215psi)

Speed range

Double acting: 30 to 500 mm/s Single acting: 50 to 500 mm/s

Tolerance of stroke

Stroke≤100^+1.0 Stroke>100^+1.5

Cushion type

Bumper

Port size

M5X0.8

G1/8

G1/4

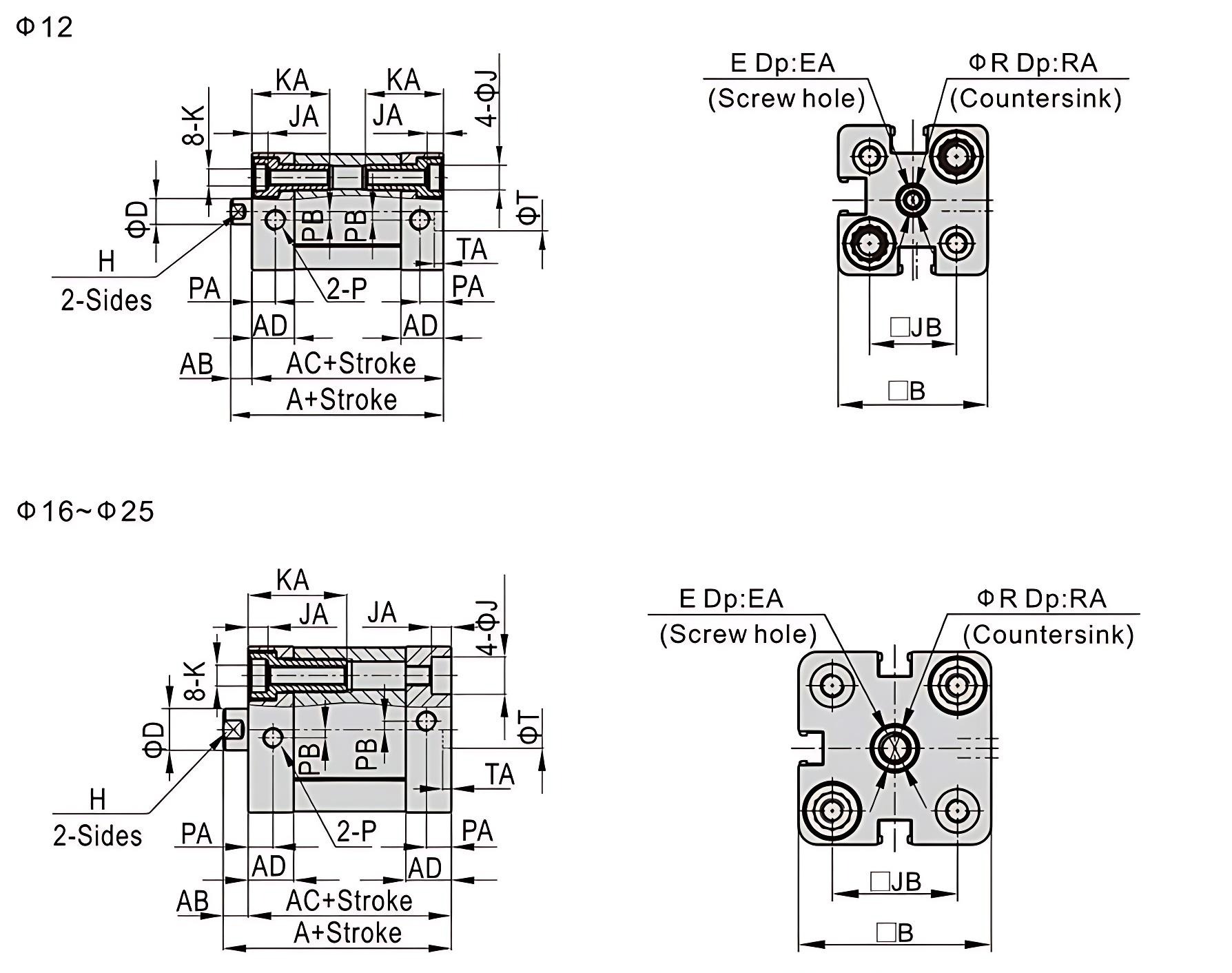

OVERALLDIMENSION&STRUCTURE

Bore/Sign	A	AB	AC	AD	B	D	E	EA	H	J	JA	JB	K	KA	P	PA	PB	R	RA	T	TA
12	40	5	35	10	27.5	6	M3X0.5	8	5	6	3.5	16	M4X0.7	18.5	M5X0.8	5.5	2	3.5	1.5	9	2.1
16	40	5	35	10	30	8	M4X0.7	10	7	6	3.5	18	M4X0.7	18.5	M5X0.8	5.5	2	4.5	1.5	9	2.1
20	43	6	37	10.5	35.5	10	M6X1.0	14	9	9	4.5	22	M5X0.8	23.5	M5X0.8	6	2	6.5	2.5	9	2.1
25	45	6	39	11	40	10	M6X1.0	14	9	9	4.5	26	M5X0.8	23.5	M5X0.8	6	2	6.5	2.5	9	2.1

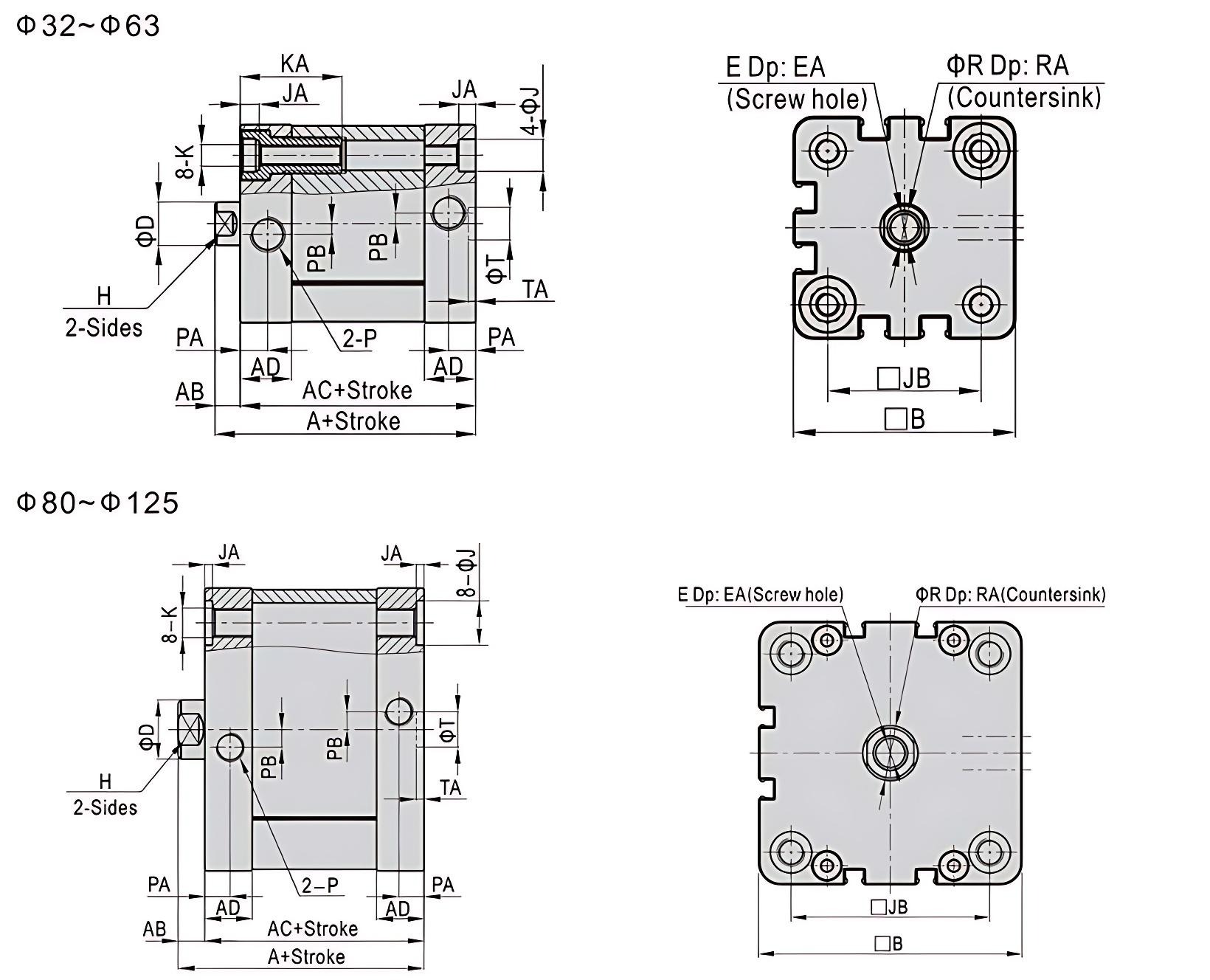

ADN Standard Compact Air Cylinder

Bore/Sign	A	AB	AC	AD	B	D	E	EA	H	J	JA	JB	K	KA	P	PA	PB	R	RA	T	TA
32	51	7	44	14	49.5	12	M8X1.25	16	10	9	4.5	32.5	M6X1.0	28.5	G1/8	7.5	3	8.5	3.5	9	2.1
40	52.5	7	45.5	14.5	55	12	M8X1.25	16	10	9	4.5	38	M6X1.0	28.5	G1/8	7.5	3	8.5	3.5	9	2.1
50	53.5	8	45.5	14.5	65.5	16	M10X1.5	20	13	11	4.5	46.5	M8X1.25	30.5	G1/8	7.5	3	10.5	4.5	12	2.6
63	57	8	49	15	75.5	16	M10X1.5	20	13	11	4.5	56.5	M8X1.25	30.5	G1/8	7.5	4	10.5	4.5	12	2.6
80	63	9	54	16	95.5	20	M12X1.75	20	17	15	2.5	72	M10X1.5	-	G1/8	8.5	6	12.5	6	12	2.6
100	76	9	67	19	113.5	20	M12X1.75	20	17	15	2.5	89	M10X1.5	-	G1/8	10.5	7	12.5	6	12	2.6
125	92	11	81	20	134.5	25	M16X2.0	25	21	-	-	110	M12X1.75	-	G1/4	10.5	8	16.5	7	12	2.6

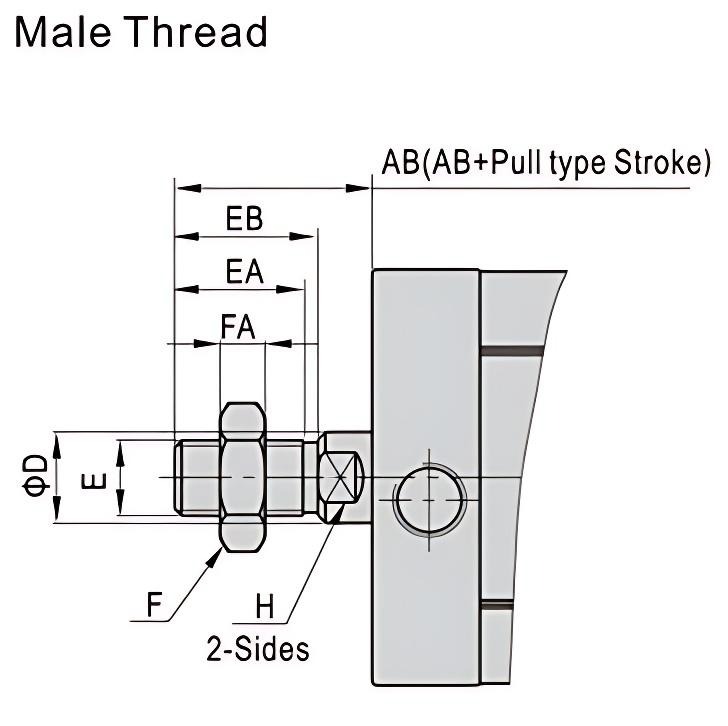

ADN Standard Compact Air Cylinder

Bore/Sign	AB	D	E	EA	EB	F	FA	H
12	15	6	M5X0.8	9	10	8	4	5
16	17	8	M6X1.0	11	12	10	5	7
20	22	10	M8X1.25	15	16	12	6	9
25	22	10	M8X1.25	15	16	12	6	9
32	26	12	M10X1.25	17	19	17	6	10
40	26	12	M10X1.25	17	19	17	6	10
50	30	16	M12X1.25	20	22	17	7	13
63	30	16	M12X1.25	20	22	17	7	13
80	37	20	M16X1.5	26	28	23	8	17
100	37	20	M16X1.5	26	28	23	8	17
125	51	25	M20X1.5	38	40	26	10	21

Specification Download
