You are here: Home » Products » Air Source Treatment Units » Stainless Steel Series » Industrial High-Pressure Gas Line Filter QSLH Series with Die-cast Aluminium 35bar Pressure Drop Automatic Condensate Drain

This product is no longer available

High-Pressure Air Filter 20μm 40μm Filtration 4.0 MPa Max Pressure Stainless Steel Series Body QSLH Series Equivalent for Industrial Automation

Industrial High-Pressure Gas Line Filter QSLH Series with 316 Stainless Steel Low Pressure Drop Automatic Condensate Drain

Industrial High-Pressure Gas Line Filter QSLH Series with Die-cast Aluminium 35bar Pressure Drop Automatic Condensate Drain


Size:	QSLH-20 QSLH-25
Availability:

High-Pressure Air Filter QSLH Series are rugged pneumatic components engineered to deliver clean, contaminant-free compressed air in high-pressure industrial systems. Designed for applications up to 4.0 MPa (58 psi), this series combines advanced filtration technology with robust construction to protect downstream equipment (e.g., valves, actuators, and tools) from damage caused by particulate matter and moisture. Ideal for demanding environments, the QSLH Series offers customizable configurations to meet diverse industry requirements.

Model:
QSLH-20/25
Brand:
WAALPC
Code:
8421299090

Product Description

High-Pressure Air Filter QSLH Series Advantages

1. Cost-Effective Performance

Extended filter element lifespan (up to 2,000 hours) minimizes replacement frequency.

2. User-Friendly Design

Quick-Connect Ports: Threaded in G1/4, G3/8, G1/2, NPT 1/4", and larger sizes for easy installation in existing pipelines .
Vertical Mounting: Must be installed vertically with the drain port at the bottom to ensure proper condensate removal .3. Reliable Support:

Dedicated technical teams provide assistance with model selection, installation, and troubleshooting.

3. Versatile Adaptability

Compatible with compressed air, nitrogen, and inert gases.
Customizable configurations (e.g., special threads, integrated pressure gauges) for unique applications .

High-Pressure Air Filter QSLH Series Applications

Industrial Production

Automation Equipment

Mechanical Equipment

Food Industry

Medical and Health Care

Electronic Industry

Textile Machinery

Packaging Machinery

Technical Parameters

DATA SHEET

Model	QSLH-08	QSLH-10	QSLH-15	QSLH-20	QSLH-25
Working Medium	Air
Port Size	G1/4	G3/8	G1/2	G3/4	G1
Filtering Eliment Roughness	20μm or 40μm
Pressure Regulating Range	1.5~35Bar
Max. Input Pressure	4MPa
Operating Temperature Range	5~80℃

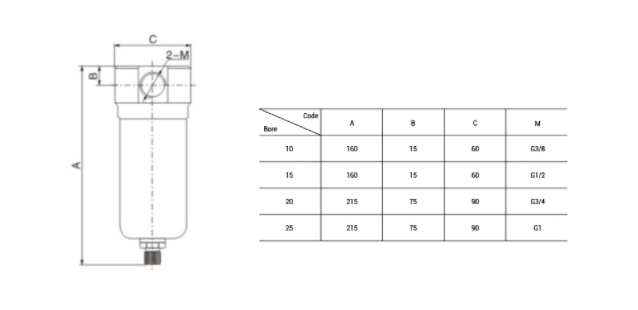

DIMENSION

High-Pressure Air Filter QSLH Series
