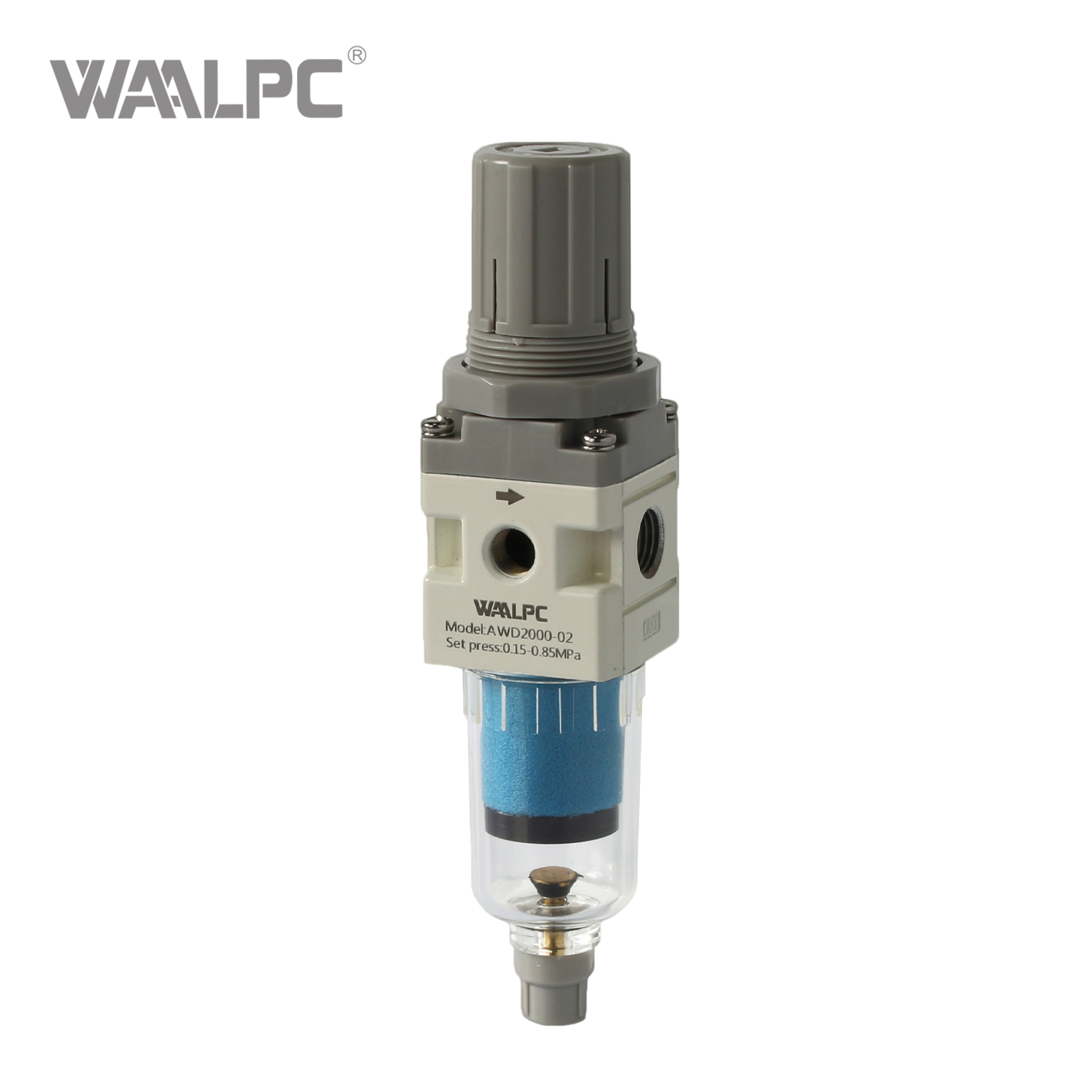

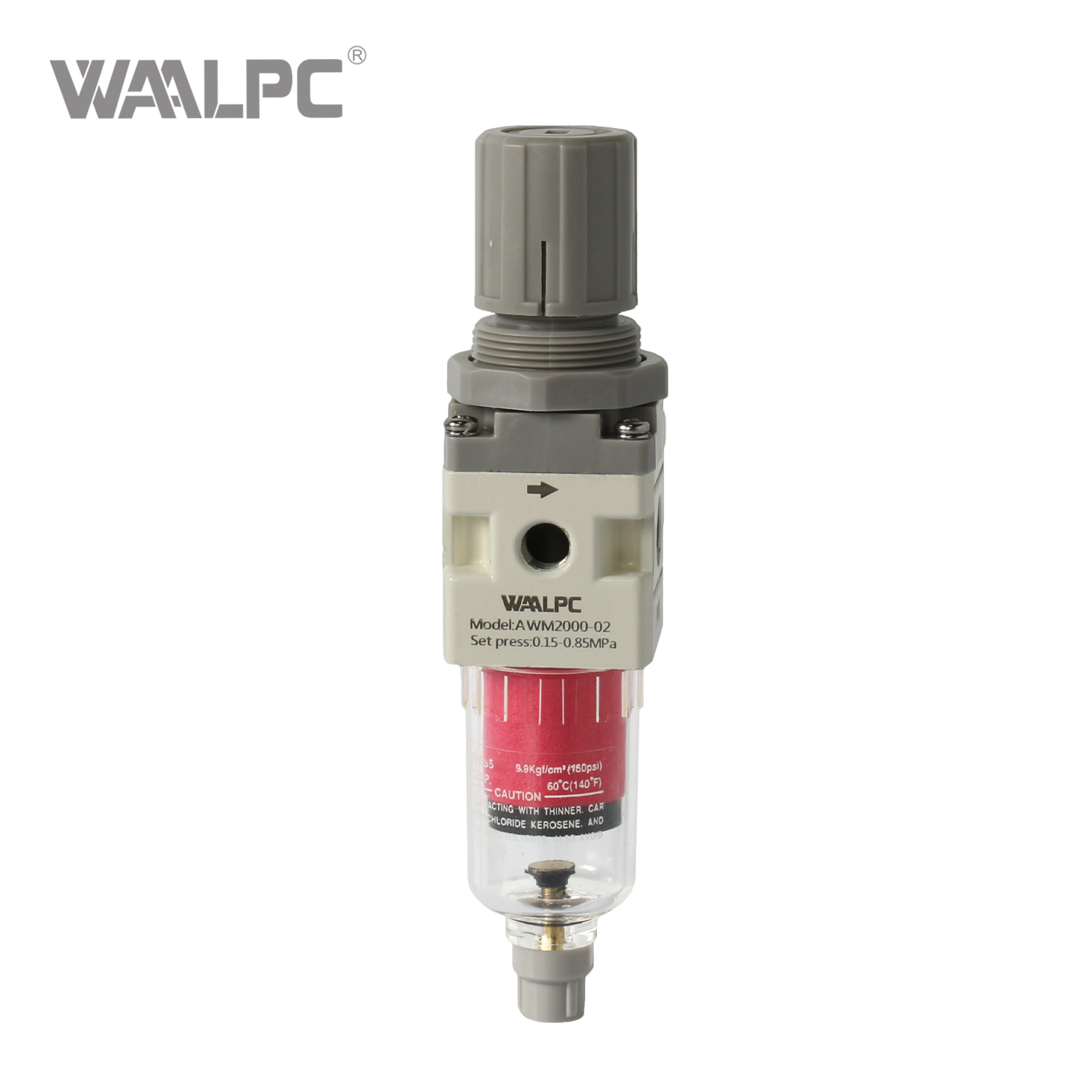

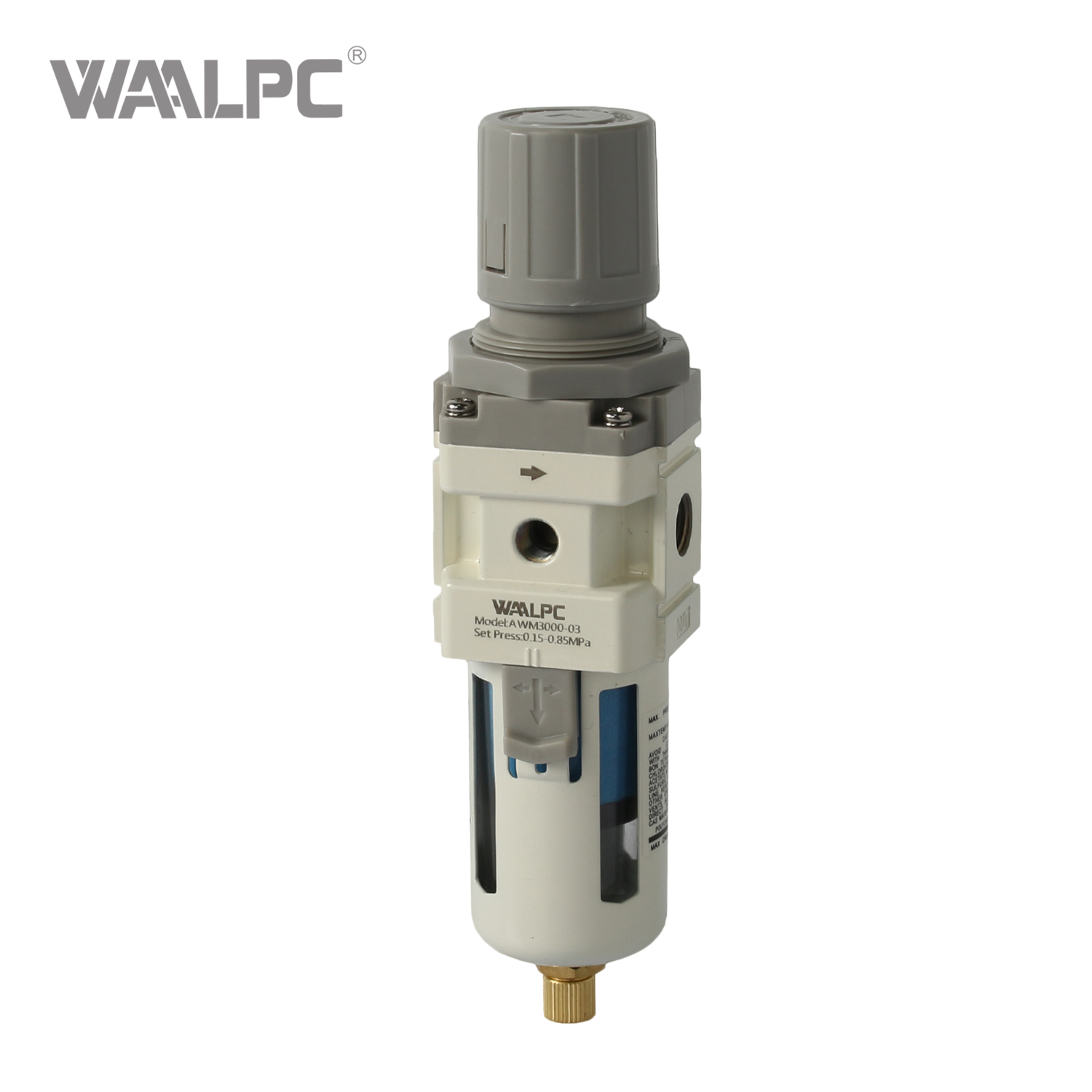

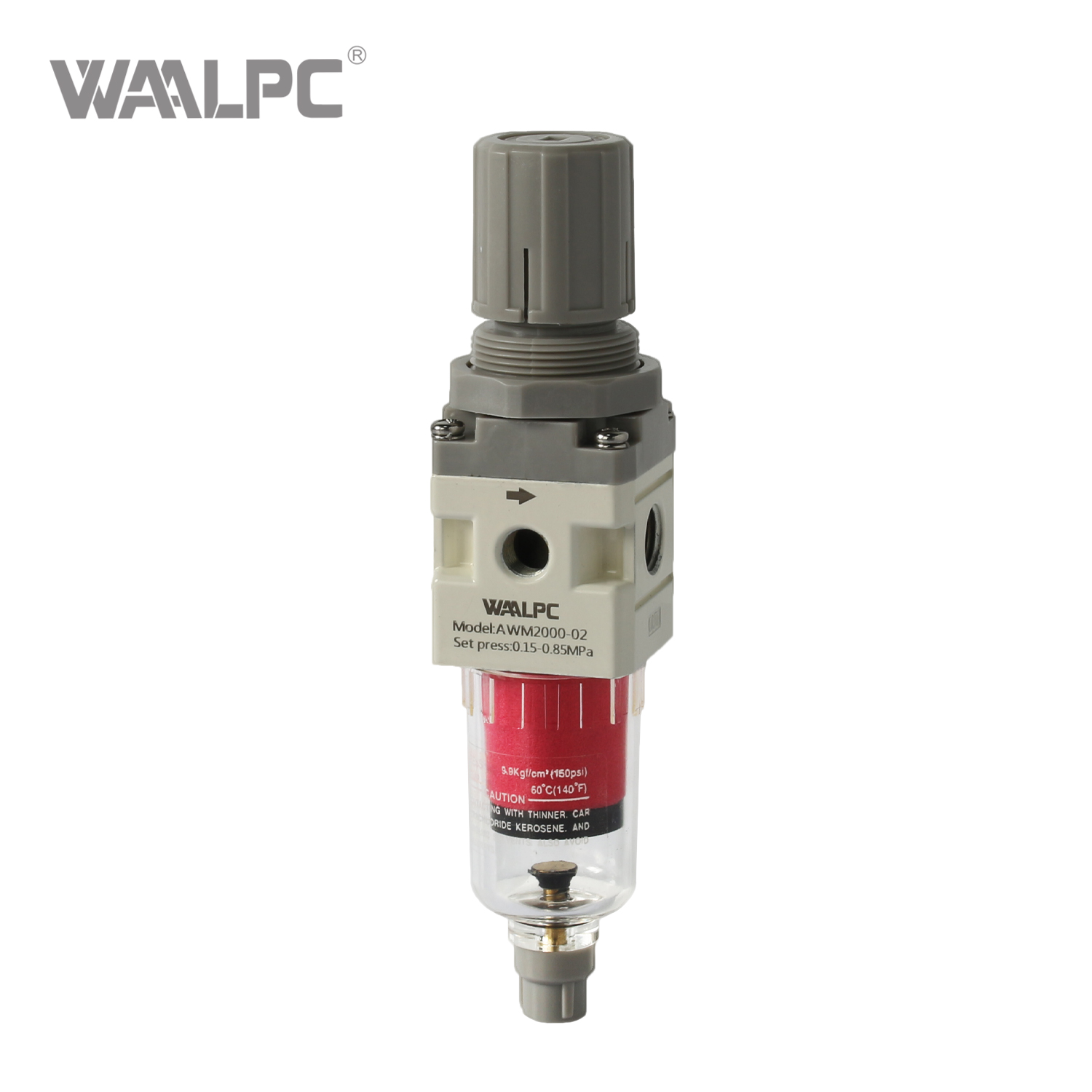

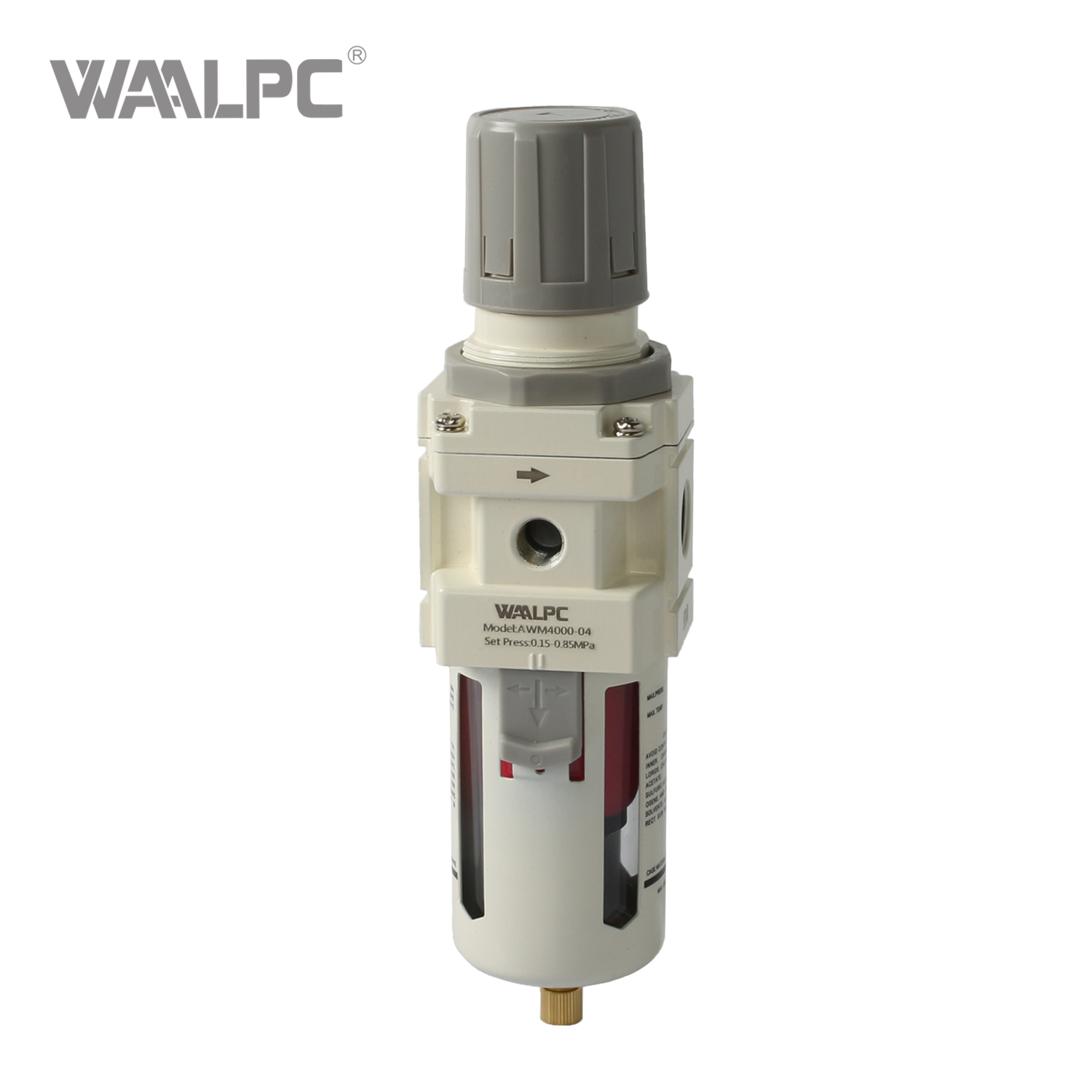

Micro-mist Separator Industrial Pneumatic FRL System with Oil Removal And Filtration


Availability:

Quantity:



Inquiry Add to Basket

This integrated unit is designed for compressed air systems, combining high-efficiency mist separation with precise pressure regulation in a single, compact device. It ensures the delivery of clean, dry, and pressure-stable air to protect downstream pneumatic equipment, tools, and processes.

Model:
AWM
Brand:
WAALPC
Code:
8421299090

Product Description

Space-Saving Design: The integrated unit saves significant space compared to installing two separate components, simplifying system layout.
Cost-Effective: Reduces installation time, piping, and potential leak points, lowering overall system cost.
Optimized Performance: Ensures the pressure regulator receives pre-cleaned air, which protects its internal mechanism from contamination and extends the service life of the entire air preparation system.
Easy Maintenance: Designed for straightforward filter element replacement and regulator adjustment.

Technical Parameters

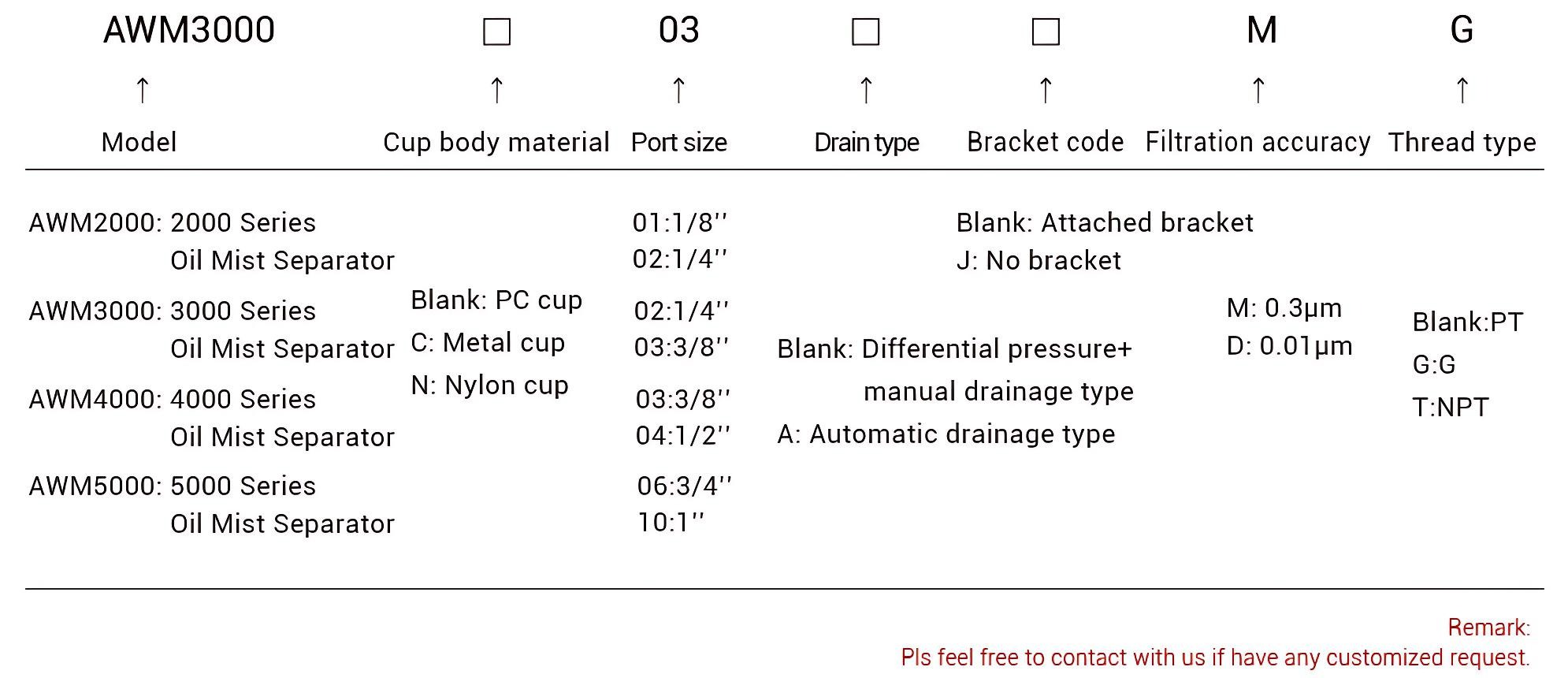

ORDERING CODE

Oil mist separator pressure reducer

DATA SHEET

Model		AWM2000-01	AWM2000-02	AWM3000-02	AWM3000-03	AWM4000-03	AWM4000-04	AWM5000-06	AWM5000-10
Medium		Air
Port Size(Note1)		G1/8	G1/4	G1/4	G3/8	G3/8	G1/2	G3/4	G1
Filter Element Accuracy		0.3µm or 0.01µm
Pressure Range		0.15~0.9MPa(20~130psi)
Max. Working Pressure		1.0MPa(145psi)
Proof Pressure		1.5MPa(215psi)
Temperature		-5~70℃(Unfrozen)
Rated Flow [Note2]	M	150L/min		330L/min		820L/min		-
	D	90L/min		180L/min		450L/min		-
Filter Cup Capacity		25CC		60CC		100CC		108CC

[Note1]PT thread, G thread and NPT thread are available

[Note2]Condition: Inlet pressure of 0.7MPa, outlet pressure of 0.5MPa.

The rated flow rate varies with the inlet pressure.If the flow rate exceeds the rated flow rate, oil will flow to the secondary side. Please note.

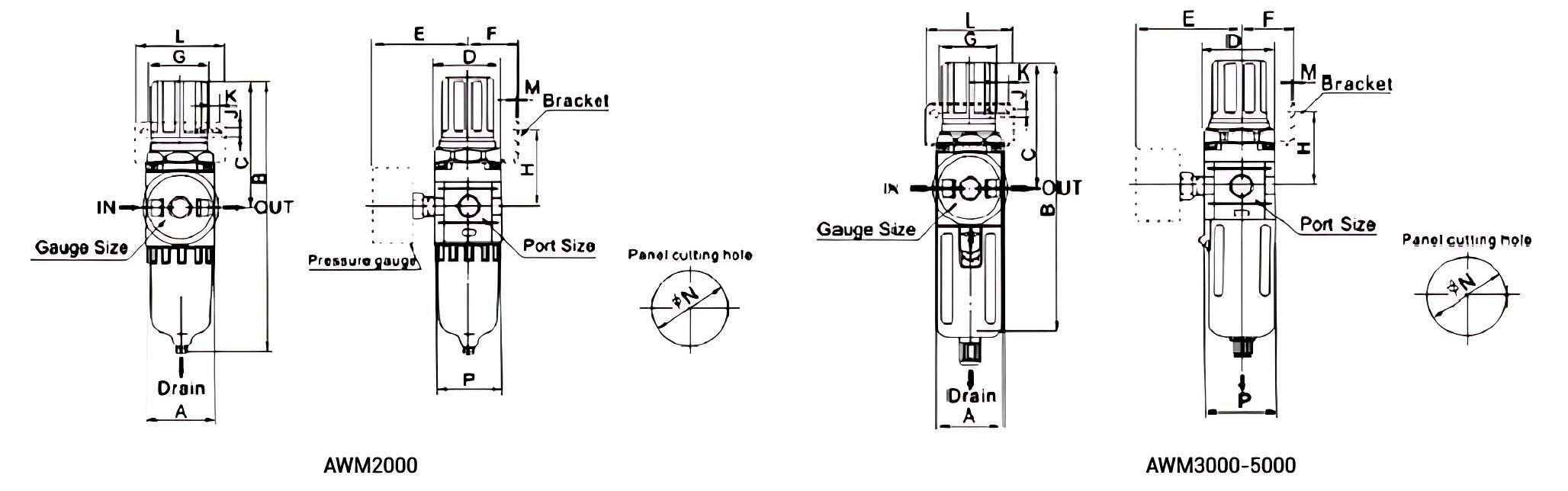

STRUCTURE

Oil mist separator pressure reducer

Model	Port size	A	B	C	D	E	F	G	H	J	K	L	M	N	P
AWM2000	G1/8-1/4	40	164.5	78	40	56.8	30	34	43.5	5.4	15.4	55	2.3	33.5	40
AWM3000	G1/4-3/8	53	211	92.5	53	60.8	39	40	46	6.5	8	53	2.3	42.5	56
AWM4000	G3/8-1/2	70	262	112	70	70.5	49.2	54	53.5	8.5	10.5	70	2.3	52.5	73
AWM5000	G3/4-1	90	336	116	90	75.5	49.2	54	62	8.5	10.5	70	2.3	52.5	90
