You are here: Home » Products » Pneumatic Cylinders » Standard Cylinder » Festo Type DSNU Series Modular Round Body Cylinder with Variety of Mounting Options And Accessories High Performance And Long Service Life

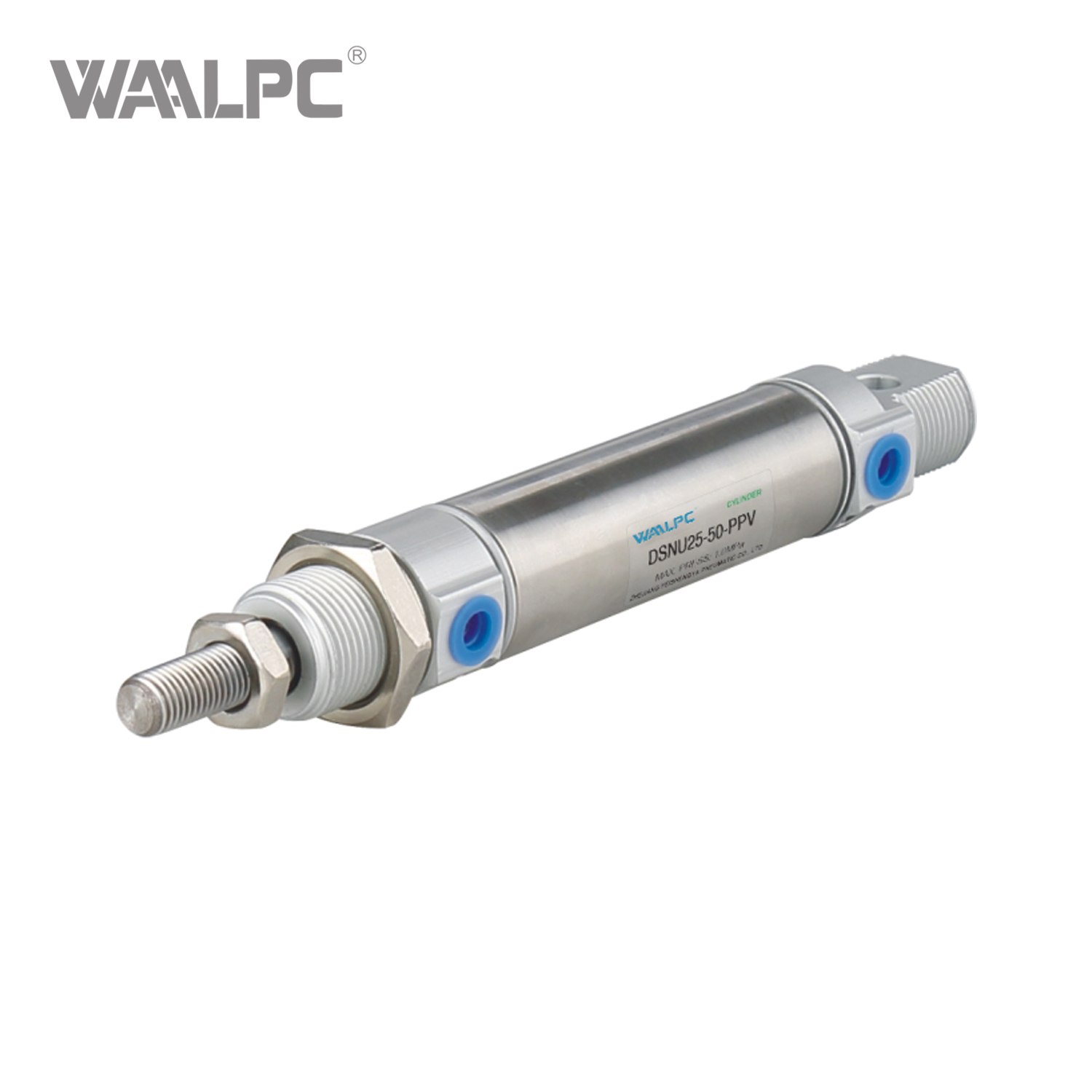

Festo Type DSNU Series Modular Round Body Cylinder with Variety of Mounting Options And Accessories High Performance And Long Service Life

Festo Type DSNU Series Modular Round Body Cylinder with Variety of Mounting Options And Accessories High Performance And Long Service Life


Availability:

Quantity:



Inquiry Add to Basket

The DSNU Series is a line of modular round-body pneumatic cylinders that conform to the ISO 6432 international standard. Designed as double-acting, rod-type cylinders with a magnetic piston, they are engineered for high performance, reliability, and versatility in a wide range of industrial automation applications. A key advantage of this series is its modular design, which offers a vast array of variants and mounting options, providing a technically and economically optimal solution for virtually any application.

Model:
DSNU
Brand:
WAALPC
Code:
8409919990

Product Description

Modularity & Extensive Variants: The DSNU series is built on a modular system, allowing for numerous derivates to meet customized application needs. This includes options for different end covers, piston rod types (internal or external threads), and a wide range of mounting accessories.
Self-Adjusting Cushioning: These cylinders feature a self-adjusting pneumatic end-position cushion that saves time during commissioning and optimally adapts to changes in load and speed. This ensures smooth operation and reduces impact at the end of the stroke.
High Performance & Long Service Life: The DSNU series is known for its high operational power and long service life. The cylinder tube is smooth and sturdy, contributing to excellent motion characteristics and durability.
Position Sensing Capability: Equipped with a magnetic piston, the DSNU series allows for non-contact position sensing using magnetic proximity switches. Please note that a minimum stroke of 10mm is required for reliable sensing on models with this feature.
Compact & Space-Saving Design: As round-body cylinders, they are ideal for space-saving installation, even in confined spaces. The DSNU-S short-stroke variant is an even more compact option, designed to be lighter and for use in particularly narrow spaces.
Durable Construction: Key components like the piston rod and cylinder tube are made of stainless steel, offering good corrosion resistance.

Technical Parameters

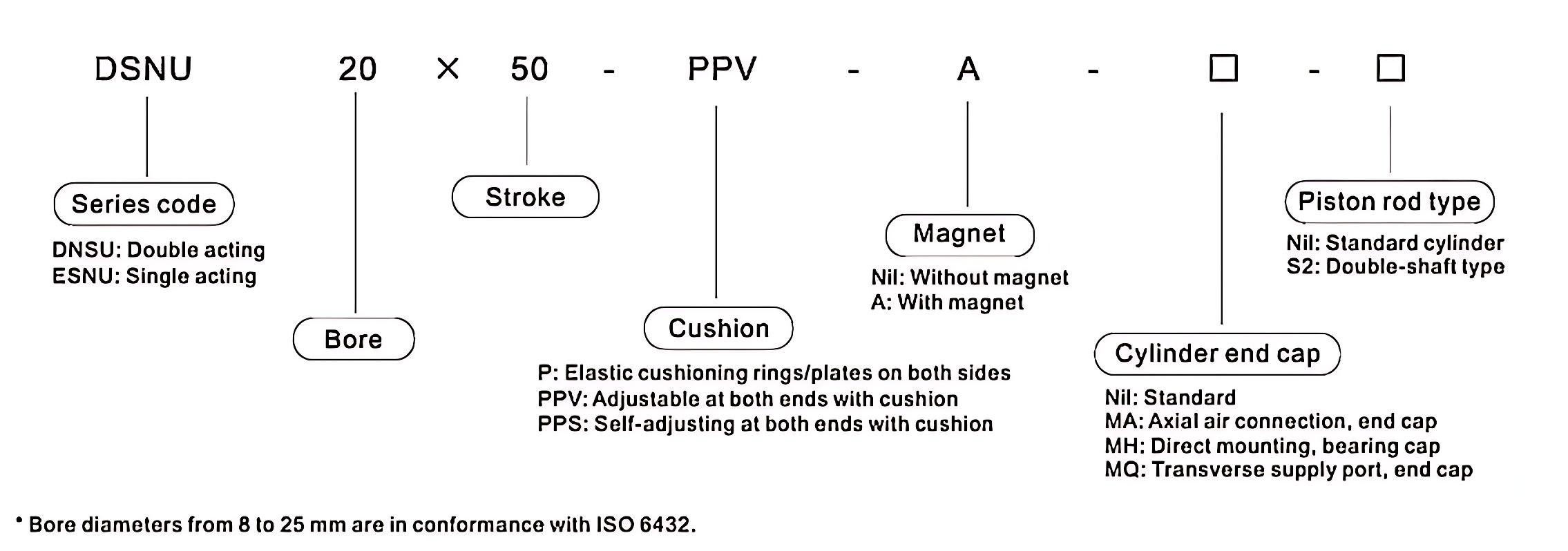

ORDERING CODE

DSNU Mini cylinder

Symbol

DSNU symbol

SPECIFICATION

Bore (mm)		6	10	12	16	20	25	32	40	50	63
Acting type		Double acting Single acting
Working medium		Clean Air (40um filtration)
Working pressure		0.15 to 1.0MPa			0.1 to 1.0MPa
Working temperature		-20 to 80℃
Lubrication		No required
Speed range		-			10 to 100mm/s			8 to 100mm/s			5 to 100mm/s
Cushion type	DSNU-口-P	Elastic cushion rings
	DSNU-口-PPV			Adjustable cushion
	DSNU-口-PPS	-			Self-adjustable cushion
Cushion stroke	DSNU-口-PPV	-		9mm	12mm	15mm	17mm	14mm	18mm	20mm	21mm
	DSNU-口-PPS	-			12mm	15mm	17mm	14mm	18mm	20mm	21mm
Port size		M5	M5	M5	M5	G1/8	G1/8	G1/8	G1/4	G1/4	G3/8
Piston rod thread		M4	M4	M6	M6	M8	M10x1.25	M10x1.25	M12x1.25	M16x1.5	M16x1.5
Mounting type		Direct mounting (variant MH only)
		With accessories

OVERALLDIMENSION&STRUCTURE

DSNU Mini cylinder

Bore (mm)	A	B	C	ΦD	ΦD4	E	F	G	G1	H	I	J	L	M	N	Φ O(H9)	ΦQ	ΦR (H9)	S	T	V	X
8	62	64	46	15	9.3	12	16	10	6	M5	2	M12X1.25	6	12	M4	4	4	12	19	8	-	6
10					11.3
12	72	75	50	20	13.3	16	22					M16X1.5	9	17	M6	6	6	16	24	12	5	8
16	78	82	56		17.3
20	92	95	68	27	21.3		24	16	8.2	G1/8		M22X1.5	12	20	M8	8	8	22	32	16	7	11
25	97.5	104	69.5		26.5		28							22	M10X1.25		10				9

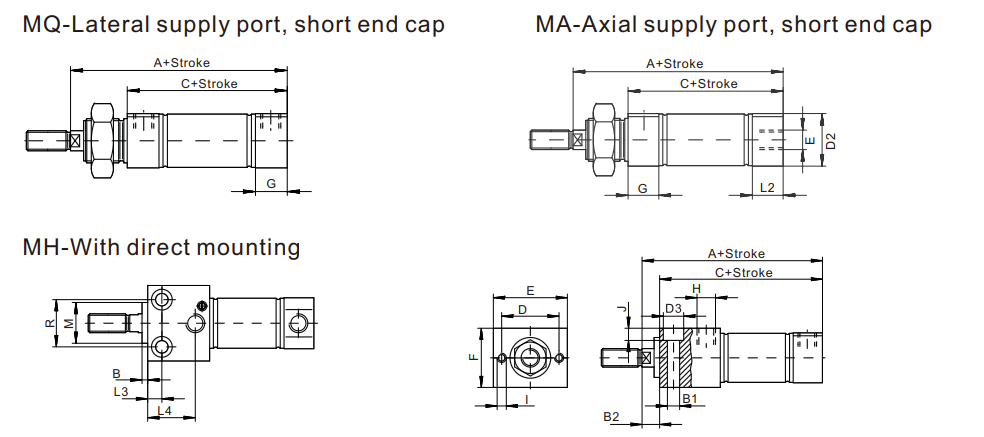

DSNU structure

Bore(mm)	A			B	ΦB1	B2	C			D	ΦD2	ΦD3	E	F	G	H	I	J	L2	L3	L4	M	R
	MQ	MA	MH				MQ	MA	MH
8	62	59.6	61.5	3	3.4	8	46	43.6	53.5	18	10.5	6	24	16	10	M5	M3	3.4	7.6	5	14	12	12
10		59.1	61.8					43.1	53.8		12.5								7.1
12	72	69.7	72		4.5	10	50	47.7	62	23	14.5	8	30	22			M4	4.5	7.7	6	18.1	16	16
16	78	75.7	77.8				56	53.7	67.5		17.5
20	92	90.5	91.5		5.5		68	66.5	81.8	31	21.7	10	40	28	16	G1/8	M5	5.5	14.5	7.5	22.4	22	22
25	97.5	96.5	97.2		6.6	11	69.5	68.5	86.2		26.7	11		32				6.6	14		25.2		25

DSNU structure

Bore(mm)	A			E	N	Z
Bore(mm)	MQ	MA	MH	E	Basic thread	Z
8	62	59.6	61.5	12	M4	78.4
10	62	59.1	61.8	12	M4	78.4
12	72	69.7	72	16	M6	94
16	78	75.7	77.8	16	M6	100
20	92	90.5	91.5	20	M8	116
25	97.5	96.5	97.2	22	M10x1.25	125.5

DSNU structure

Bore(mm)	A	B	C	AC	ΦD	ΦD1	ΦD4	E	F	G	G1	H	I
32	103.5	26	69.5	117.5	38	42	33.6	22	34	19	9	G1/8	2
40	123.6	30	84.6	139.6	46	50	41.6	24	39	25	12	G1/4	3
50	130.2	33	86.2	147.2	57	60	52.4	32	44	25	12	G1/4
63	139.2	33	94.2	156.2	70	60	65.4	32	45	28	13	G3/8

Bore(mm)	J	K	L	M	N	Φ O(H10)	ΦQ	ΦR (H9)	T	V	X
32	5	16	13	M30x1.5	M10x1.25	10	12	30	16	10	8
40	6	18	15	M38x1.5	M12x1.25	12	16	38	18	13	10
50	8	24	16	M45x1.5	M16x1.5	16	20	45	21	17
63	8	24	16	M45x1.5	M16x1.5	16	20	45	21	17

Φ32 to Φ63

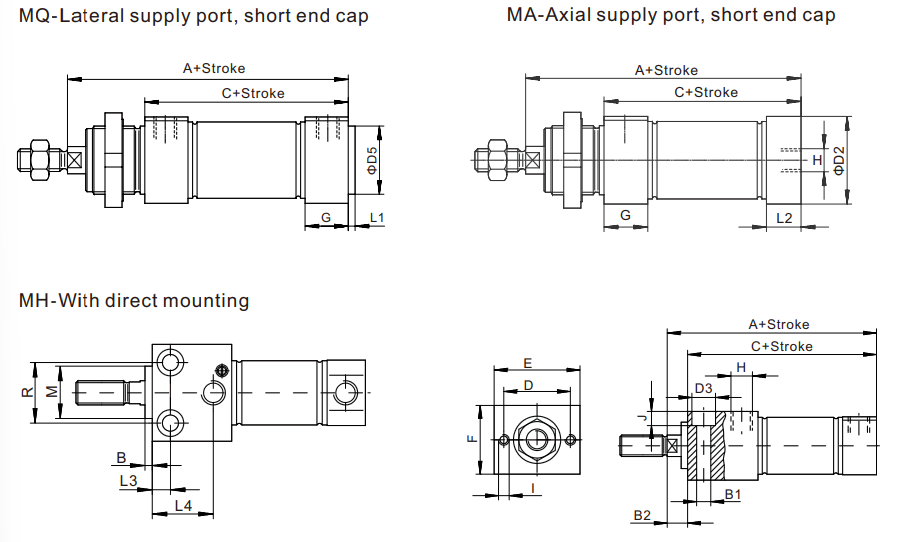

DSNU structure

Bore(mm)	A			B	ΦB1	B2	C			D	ΦD2	D3	ΦD5	E	F	G	H	I	J	L1	L2	L3	L4	M	R
	MQ	MA	MH				MQ	MA	MH
32	103.5	99.5	97.5	4	6.6	12	69.5	65.5	85.5	38	34	11	30	48	40	19	G1/8	M5	6.6	3	15	12	25	30	30
40	123.6	116.5	116.5		9		84.6	77.6	104.6	42	42	14	38	54	48	25	G1/4		9	4	18	15	32	38	38
50	130.2	130.2	124.2			15	86.2	86.2	109.2	50	53		45	64	58			M6			25		35	45	42
63	139.2	139.2	132.2		11		94.2	94.2	117.2	52	66	18		72	72	28	G3/8	M8	11		28		36		44

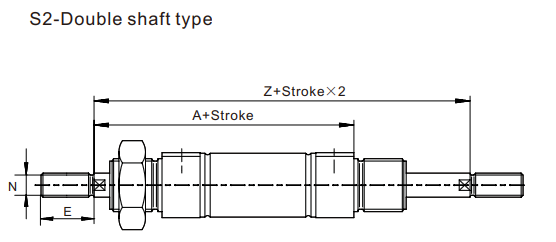

DSNU Mini cylinder

Bore(mm)	A			E	N	Z
Bore(mm)	MQ	MA	MH	E	Basic thread	Z
32	103.5	99.5	97.5	22	M10x1.25	137.5
40	123.6	111.6	116.6	24	M12x1.25	162.6
50	130.2	130.2	124.2	32	M16x1.5	174.2
63	139.2	139.2	132.2	32	M16x1.5	184.2
