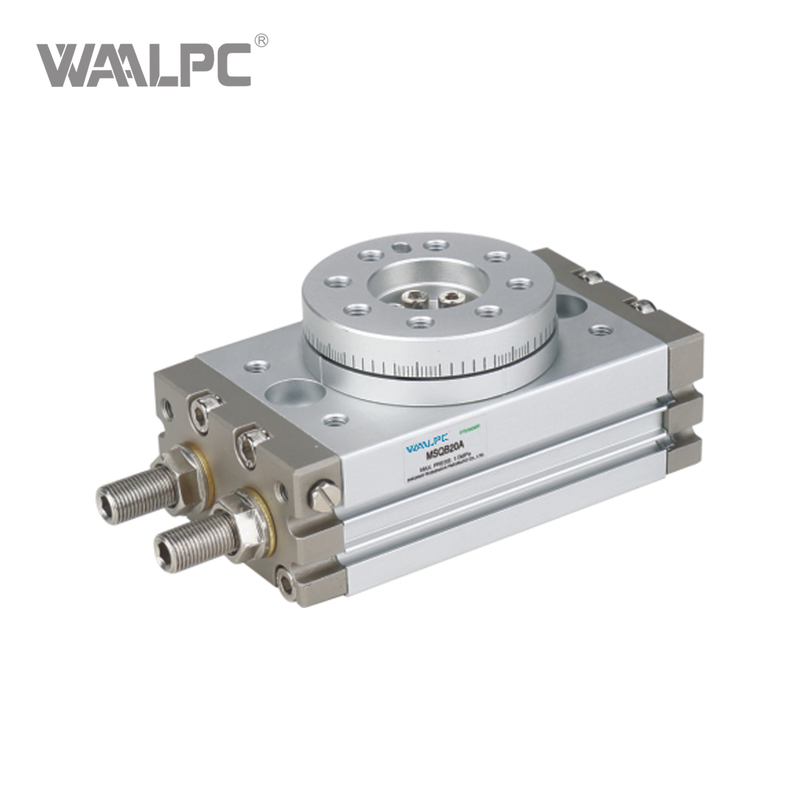

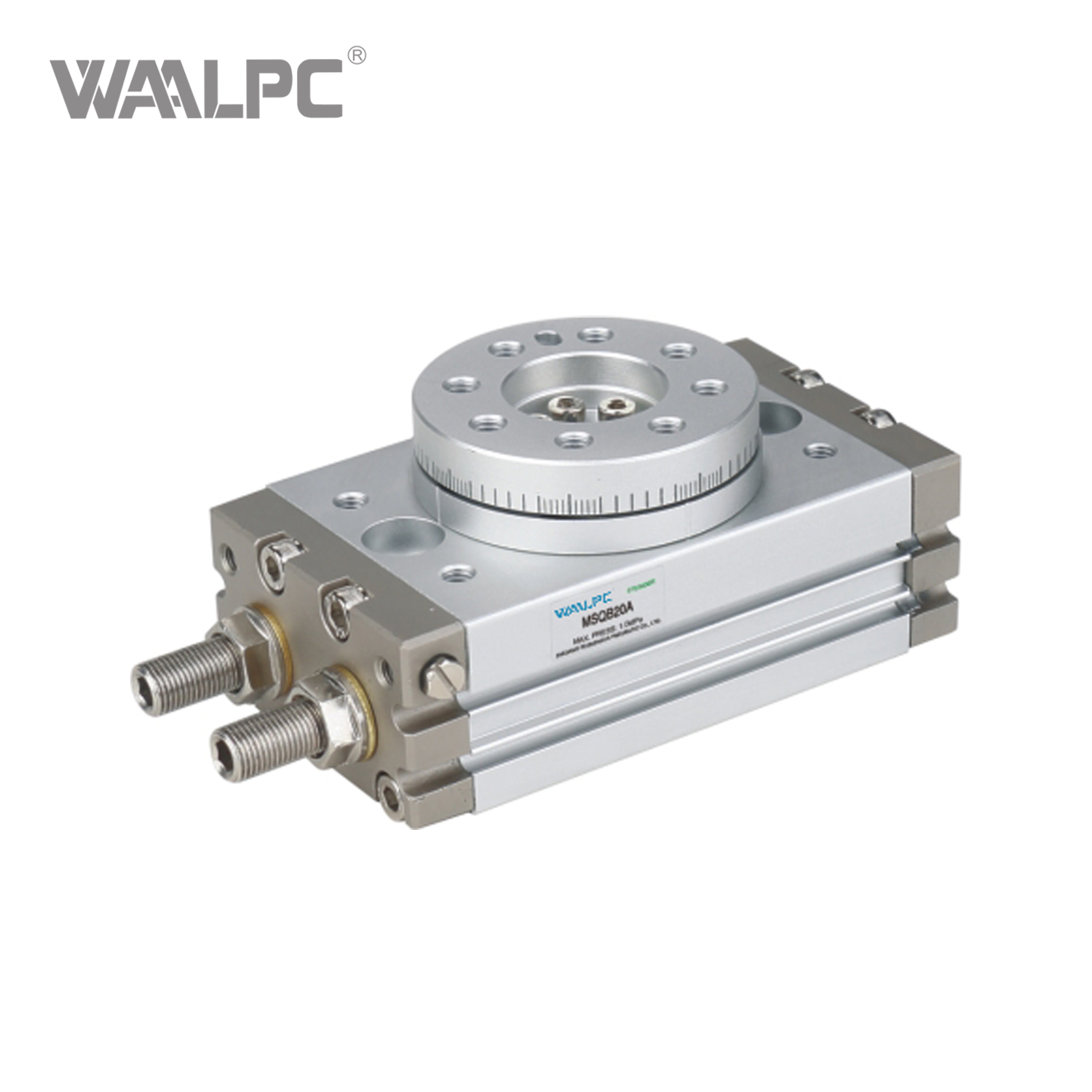

MSQ Series Compact Rotary Actuator Table with Integrated Platform Double Rack And Pinion 0-190° Adjustable Angle Double Acting

MSQ Series Compact Rotary Actuator Table with Integrated Platform Double Rack And Pinion 0-190° Adjustable Angle Double Acting


Availability:

Quantity:



Inquiry Add to Basket

The MSQ compact rotary table is ideal for material transfer applications. It incorporates load bearings and a mounting face with a rack-and-pinion style rotary actuator.

The seven sizes are 10, 20, 30, 50, 70, 100, and 200 with rotational adjustments from 0-190 degrees, and auto switch capability. Additional features include a hollow shaft and direct load mounting possibility.

Model:
MSQ
Brand:
WAALPC
Code:
8409919990

Product Description

Integrated Platform Design: The actuator and platform are a single, compact unit . This simplifies design and installation, allows for direct load mounting, and makes centering the unit during installation easier.
Built-in Angle Adjustment Unit: The series comes with an angle adjustment mechanism, allowing the swing angle to be finely tuned within a range, such as 0 to 190 degrees for many models . This provides flexibility for various application requirements.
High Precision and Rigidity: The dual rack and pinion design ensures high torque output, good rigidity, and helps minimize backlash, contributing to precise and repeatable positioning.
Multiple Cushioning Options: To ensure smooth operation and absorb energy at the end of a stroke, the MSQ series offers various buffering choices. These include built-in hydraulic shock absorbers and models with external buffers (series MSQ□L and MSQ□H) for higher energy applications.
Compact and Lightweight: The design is focused on saving space and reducing weight, with some newer versions boasting a reduction in overall height by up to 28% and mass by up to 28% compared to previous models.
Position Sensing Capability: Many models are equipped with a built-in magnet in the piston, enabling the use of magnetic switches for position detection and feedback into the control system.

Technical Parameters

ORDERING CODE

MSQ B 50 A

I I I

Basic Bore A: With adjustable angle screw

R: With shock absorber

SPECIFICATION

Bore (mm)		10	20	30	50	70	100	200
Working medium		Clean Air (40 um filtration)
Working pressure range		A with adjustable angle screw: 0.1~1.0Mpa, B with shock absorber: 0.1~0.6Mpa
Cushion type		Cushion rubber cushion (standard)/shock absorber (optional)
Allowed power	with adjustable angle screw	0.007J	0.025J	0.048J	0.081J	0.24J	0.32J	0.56J
	with shock absorber	0.039J	0.116J		0.294J	1.1J	1.6J	2.9J
Angle adjustable range		0~190°
Steady swing time range		A 0.2~1.0S/90°				0.2~1.5S/90°	0.2~2.0S/90°	0.2~2.5S/90°
		B 0.2~0.7S/90°				0.2~1.0S/90°
Piston diameter		Ф15	Ф18	Ф21	Ф25	Ф28	Ф32	Ф40
Port size		M5x0.8		G1/8

OVERALLDIMENSION&STRUCTURE

Rotary Actuator

Size(mm)	AA	A	AU	AV	AW	AX	AY	BA	BB	BC	BD	BE	CA	CB	D	DD	DF	DG	FA	FB	FC	FU	H	J	JA	JB	JC	JD
10	54.4	50	6.6	22	9.8	12	4	8	35	22.2	60	27	4	22.2	26h9	46h9	7	12H9	2	2.7	1.3	32	6	6.8	11	6	M8x1.25	12
20	69.4	65	7.6	30	11.1	14	5	10	50.2	23.6	76	34	5	23.6	36h9	61h9	12	20H9	4	2.5	1.3	36	8	8.6	14	8.5	M10x1.5	15
30	74.4	70	7.6	36.5	13.8	14	5	12	49	30	84	37	6	31	41h9	67h9	13	20H9	4	2.5	2.3	34	8	8.6	14	8.5	M10x1.5	15
50	84.	80	10	42	17.5	19	6	12	62	35	100	50	6	35	46h9	77h9	14	21H9	4.5	2.5	2.7	54	8.5	10.5	18	10.5	M12x1.75	18

Size(mm)	JJ	JK	JU	P	Q	S	SB	SD	SE	SF	SU*1	UU	WA	WB	WC	WD	WE	WF	XA	XB	XC	YA	YB	YC
10	M5x0.8	6	M8x1	M5x0.8	29.5	92	47.2	8.6	5.2	45.6	18	35.5	6	2H9	2.5	M3x0.5	5	13	27	3H9	3.5	19	3H9	3.5
20	M6x1	6	M10x1	M5x0.8	31	117	59.9	10.1	5.2	59.4	26	39	9.5	3H9	3.5	M4x0.7	7	20	36	4H9	4.5	24	4H9	4.5
30	M6x1	6	M10x1	Rc1/8*2	38	127	65.3	10.3	14	65	24	46	10.5	4H9	3.5	M5x0.8	9	22	39	4H9	4.5	28	4H9	4.5
50	M8x1.25	8	M14x1.5	Rc1/8*2	43	152	77.7	11.3	16	75	34	51.5	11.5	4H9	3.5	M6x1	10	24	45	5H9	5.5	33	5H9	5.5

*1 SU dimension is not the dimension at the time of shipment, since its dimension is for adjustment parts.

*2 In addition to Rc1/8, G1/8, NPT1/8, and NPTF1/8 are also available.
