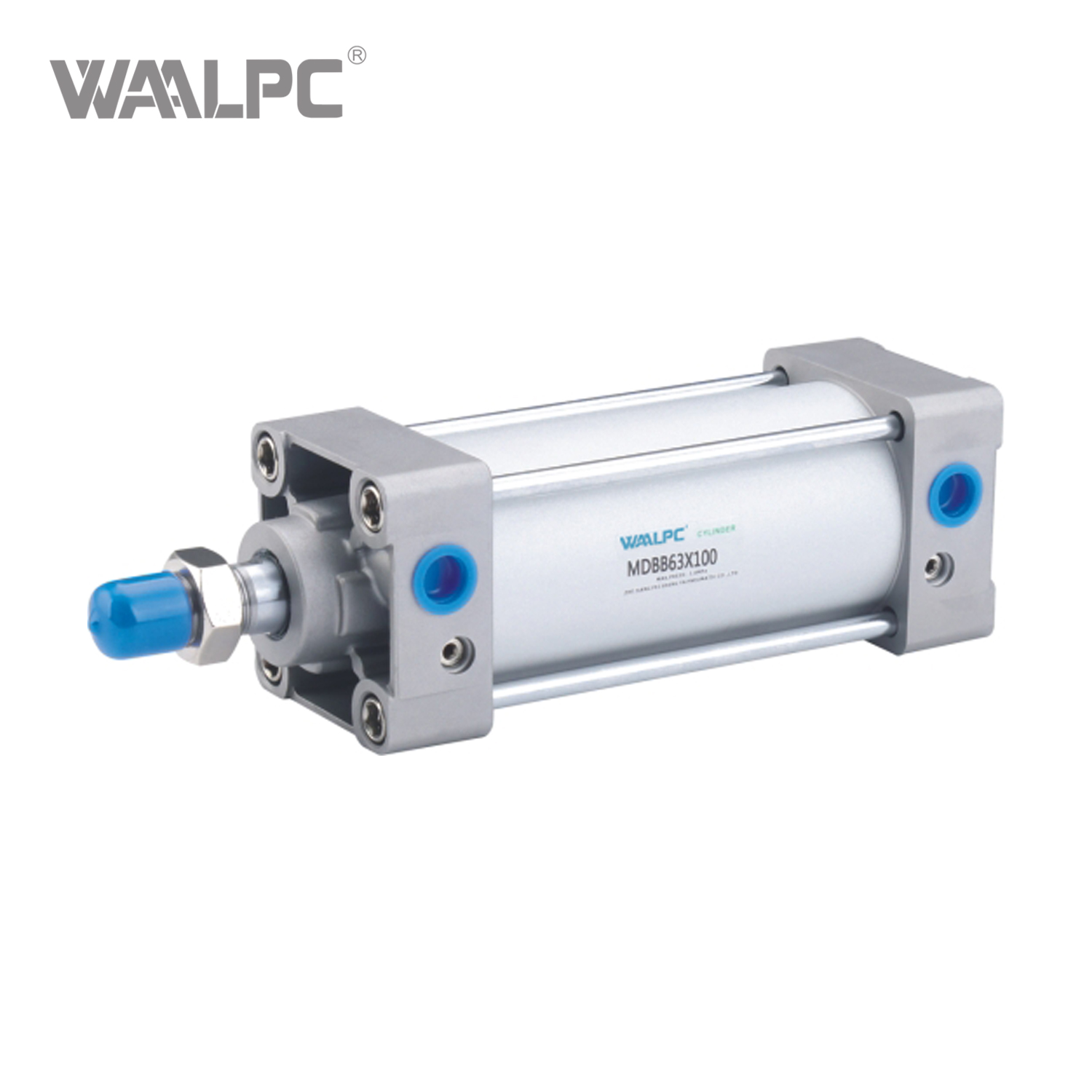

Slide Guide Air Cylinder MB Series with High Accuracy Linear Motion Double Acting Operation And Multiple Mounting Options

Slide Guide Air Cylinder MB Series with High Accuracy Linear Motion Double Acting Operation And Multiple Mounting Options


Availability:

Quantity:



Inquiry Add to Basket

The MB Series is a line of high-precision, guided pneumatic actuators that integrate a standard air cylinder with a high-rigidity linear motion guide mechanism. This unique design provides exceptional resistance to rotational and lateral forces, making it the ideal solution for applications requiring precise, stable, and repeatable linear motion.

Model:
MB
Brand:
WAALPC
Code:
8409919990

Product Description

Integrated Linear Motion Guide: The MB series incorporates a precision ball bushing guide system, which effectively prevents piston rod rotation and absorbs substantial moment loads. This ensures perfectly straight, accurate movement without the need for external guides.
High Rigidity and Accuracy: The robust guide structure offers significantly higher rigidity compared to standard cylinders, minimizing deflection under load and guaranteeing high positional accuracy and repeatability.
Exceptional Load Capacity: Thanks to the guide mechanism, the MB series can handle high moment loads (Mx, My, Mz) and lateral forces (Cy). This allows for direct mounting of tools, grippers, or workpieces, simplifying machine design.
Smooth and Stable Operation: The precision-ground guide shafts and ball bushings provide smooth, low-friction movement, even at high speeds, resulting in stable operation and reduced vibration.
Space-Saving Design: By combining the cylinder and guide into a single, compact unit, the MB series saves valuable space and reduces the number of components, simplifying assembly and lowering overall costs.

Technical Parameters

ORDERING CODE

M口B 口 32 X 50

I I I I

Magnet Mounting type Bore Stroke

Blank: Without Magnet B: Standard cylinder 32: Φ32mm

D: With Magnet 40: Φ40mm

50: Φ50mm

63: Φ63mm

80: Φ80mm

100: Φ100mm

125: Φ125mm

SPECIFICATION

Bore(mm)	32	40	50	63	80	100	125
Working medium	Clean air
Acting type	Double acting
Max. working pressure	1.0Mpa
Min. working pressure	0.05Mpa
Speed range(mm/s)	50~1000						50~70
Cushion	Cushion both side
Lubrication	NO
Port size	G1/8	G1/4		G3/8		G1/2

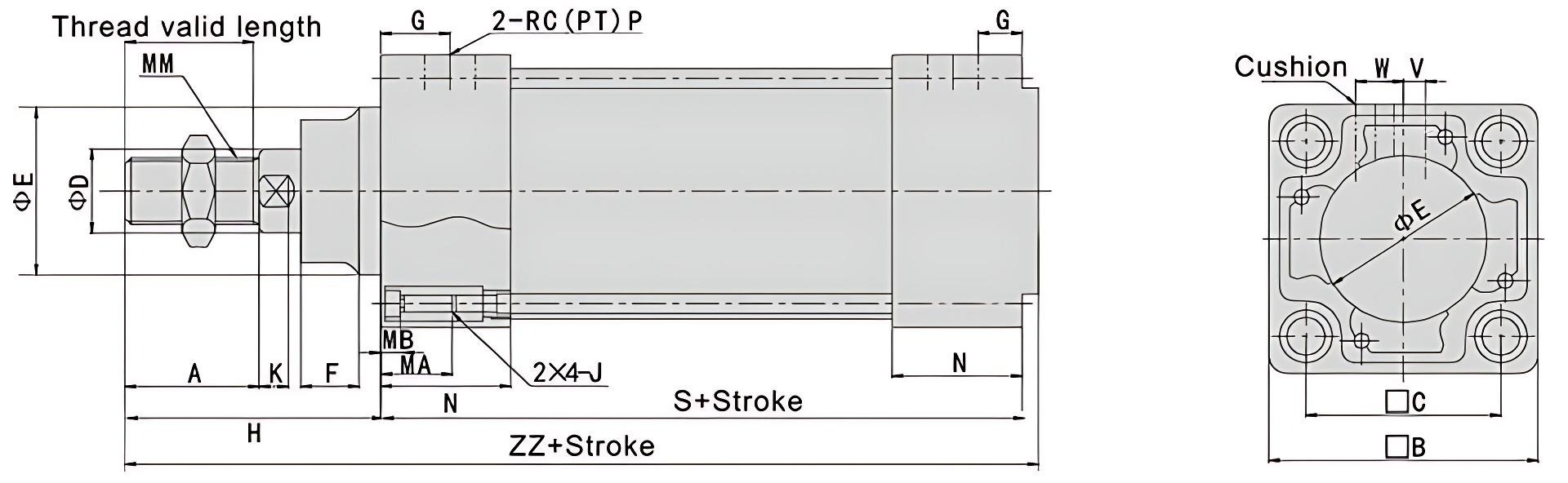

OVERALLDIMENSION&STRUCTURE

MB Series Slide Guide Air Cylinder

Bore	Stroke range	Thread length	A	口B	口C	ΦD	ΦE	F	G	MA	MB	J	K	MM	N	P	S	V	W	H	ZZ
32	~500	19.5	22	46	32.5	12	30	13	13	16	4	M6X1.0	6	M10X1.25	27	1/8	84	4	6.5	47	135
40	~500	27	30	52	38	16	35	13	14	16	4	M6X1.0	6	M14X1.5	27	1/4	84	4	9	51	139
50	~600	32	35	65	46.5	20	40	14	15.5	16	5	M8X1.25	7	M18X1.5	31.5	1/4	94	5	10.5	58	156
63	~600	32	35	75	56.5	20	45	14	16.5	16	5	M8X1.25	7	M18X1.5	31.5	3/8	114	11.5	14	72	190
80	~800	37	40	95	72	25	45	20	19	16	5	M10X1.5	10	M22X1.5	38	3/8	114	11.5	14	72	190
100	~800	37	40	114	89	30	55	20	19	16	5	M10X1.5	10	M26X1.5	38	1/2	114	17	15	72	190
125	~1000	50	54	136	110	32	60	27	19	20	6	M12X1.75	13	M27X2.0	38	1/2	120	17	15	97	223

Specification Download
