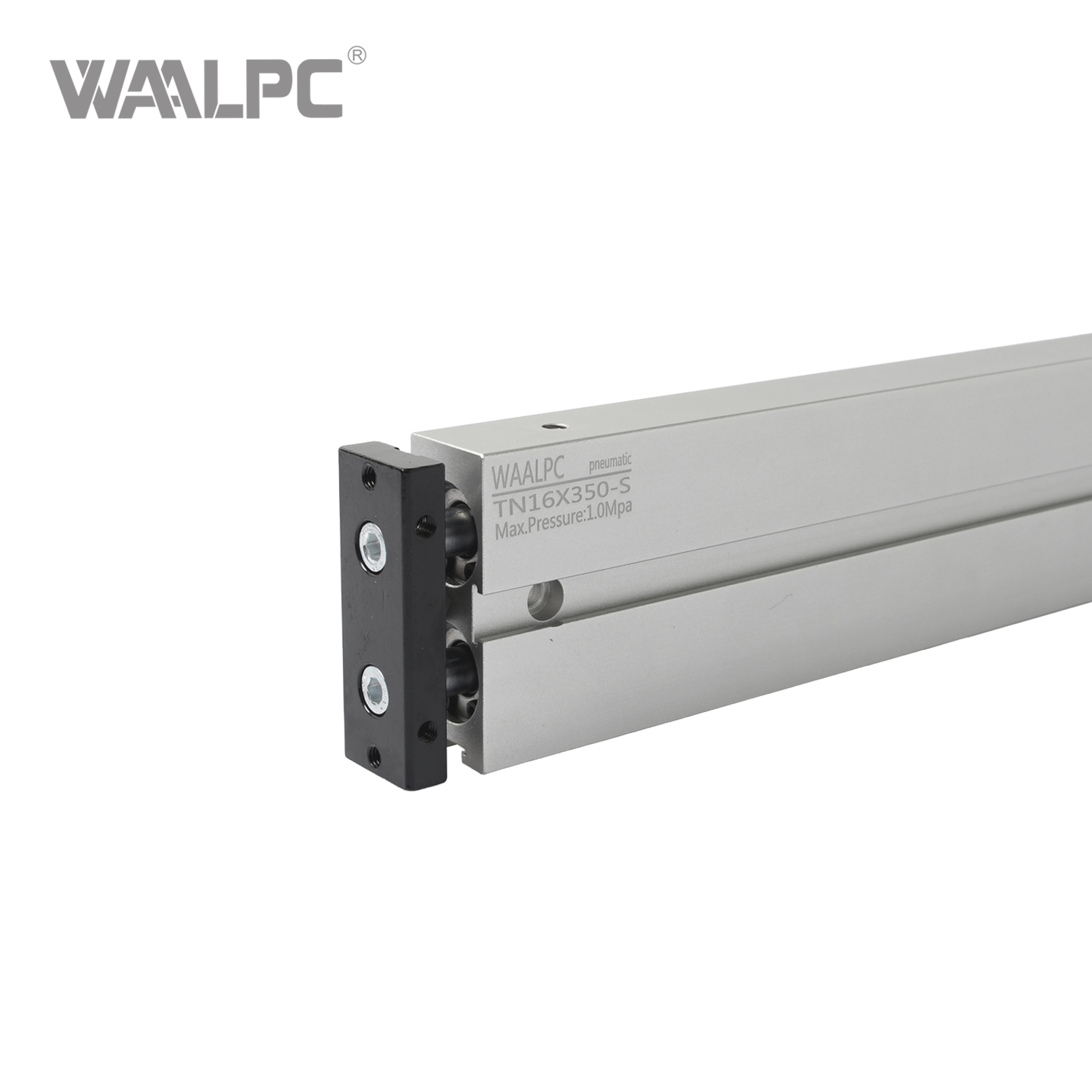

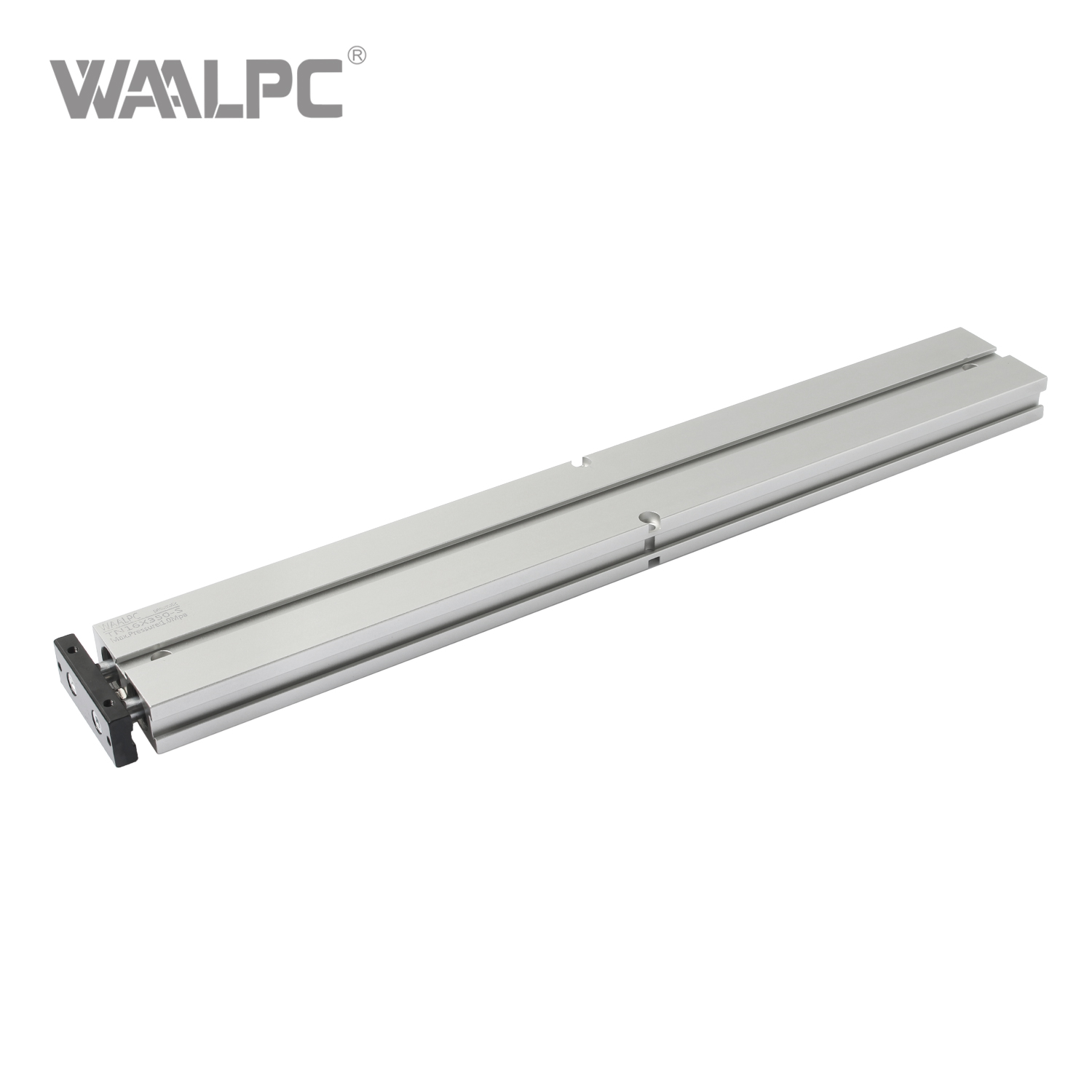

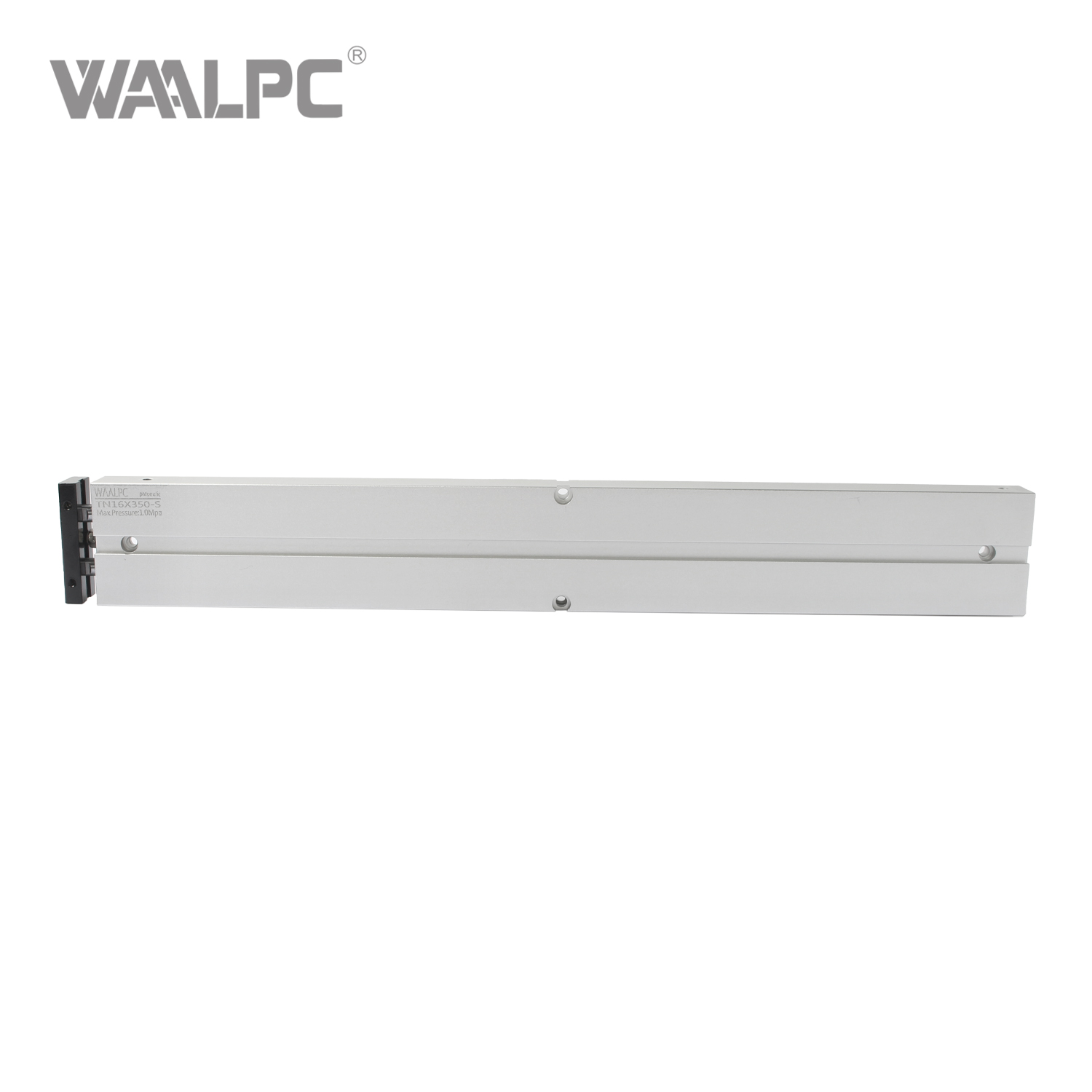

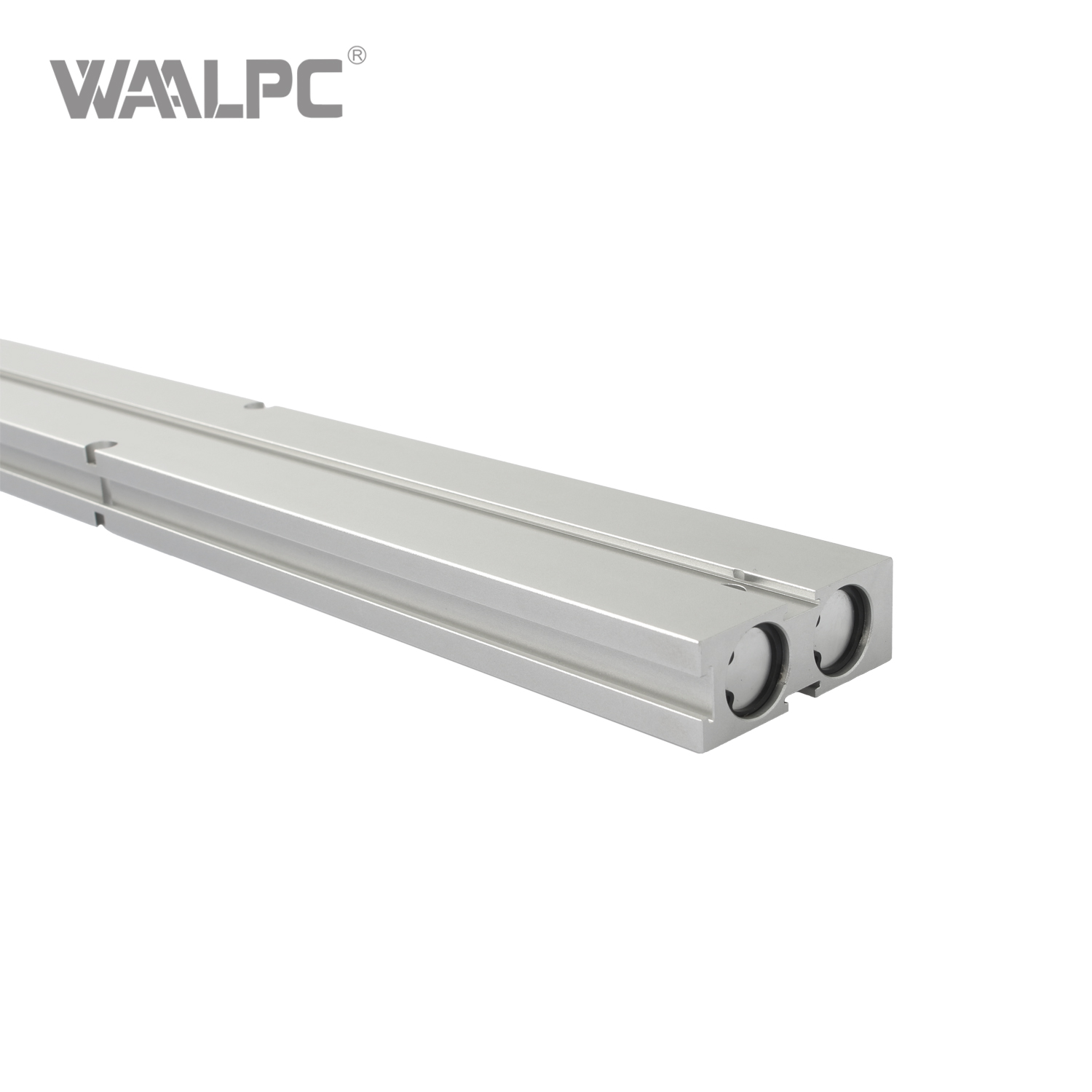

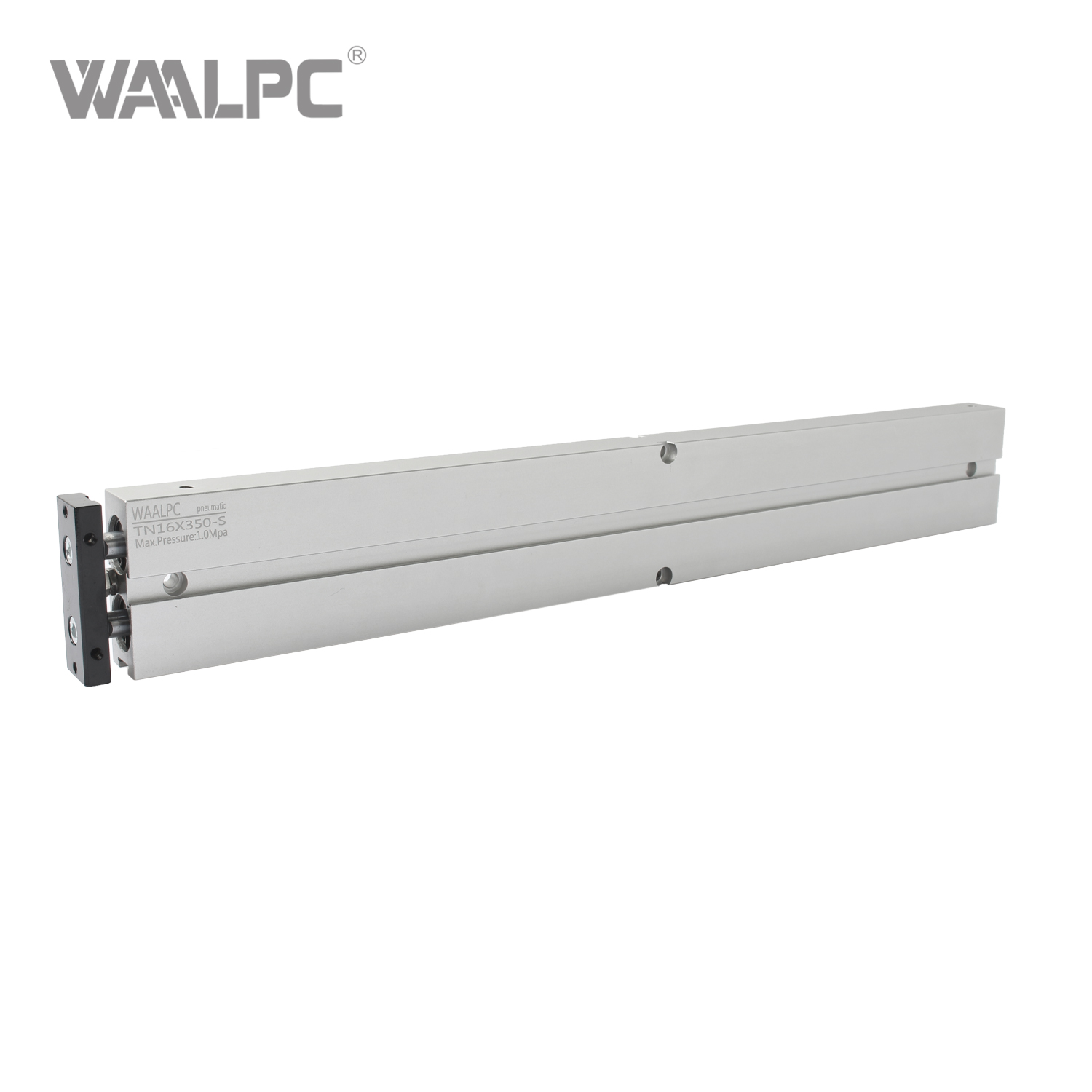

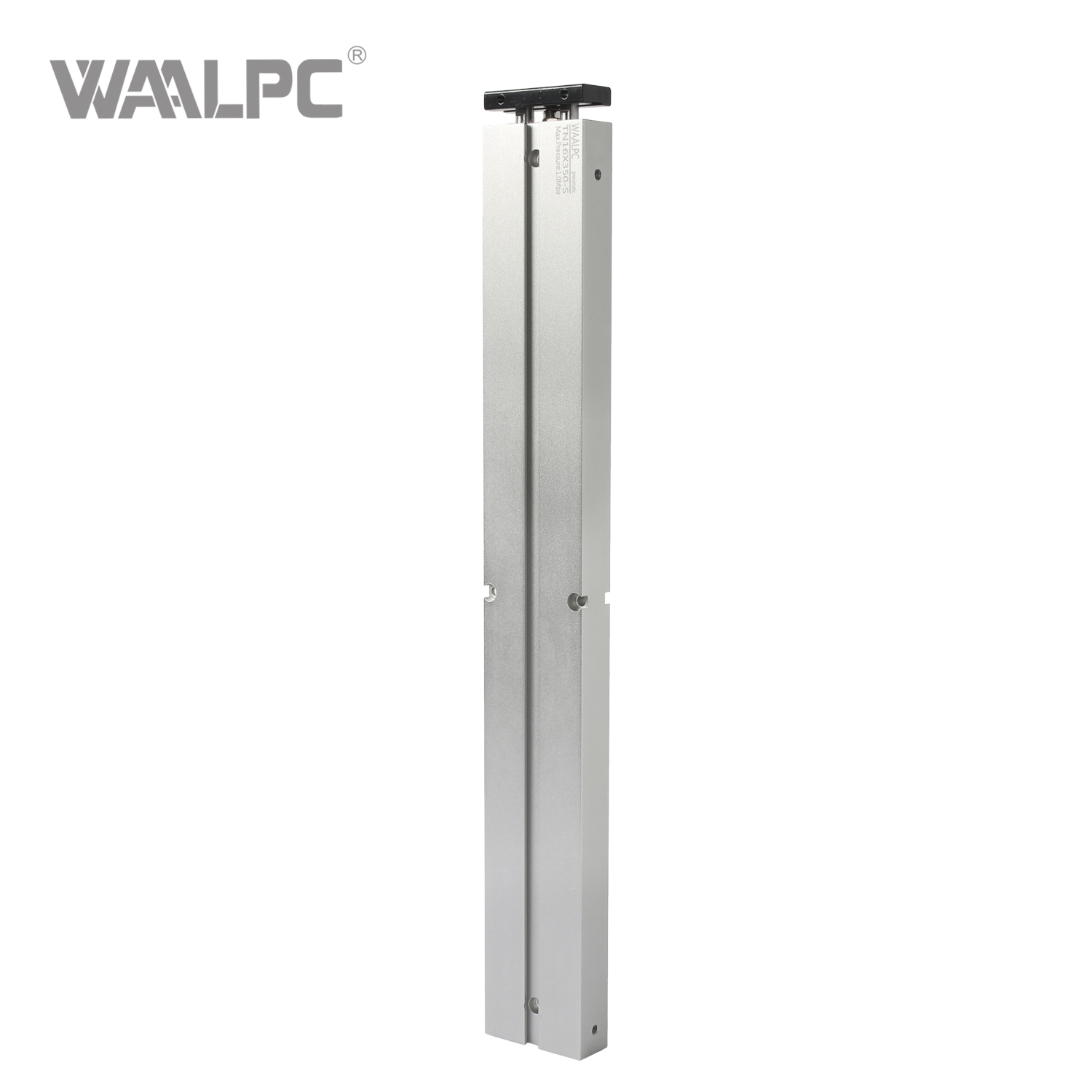

TN Series Twin Rod Air Cylinder, Double Acting Dual Shaft Pneumatic Cylinder


Availability:

Quantity:



Inquiry Add to Basket

TN series twin rod cylinder is a double-acting pneumatic cylinder with two parallel piston rods. It features anti‑rotation performance and delivers higher thrust than single rod cylinders. Optional built-in magnet supports magnetic switch for position detection. Widely used for clamping, positioning and material handling in automation machinery.

Model:
TN Series
Brand:
WAALPC
Code:
8409919990

Product Description

Double thrust force: Two parallel rods provide greater and balanced output at the same bore size.
Anti‑rotation design: Eliminates piston rotation without extra guiding accessories.
Compact structure: Saves installation space for narrow-space equipment.
Magnetic version optional: Built-in magnet for stroke sensing with magnetic switches.
Smooth & durable: Aluminum barrel and high-quality seals ensure long service life.
Interchangeable: Drop-in replacement for standard Airtac-type TN cylinders.

Technical Parameters

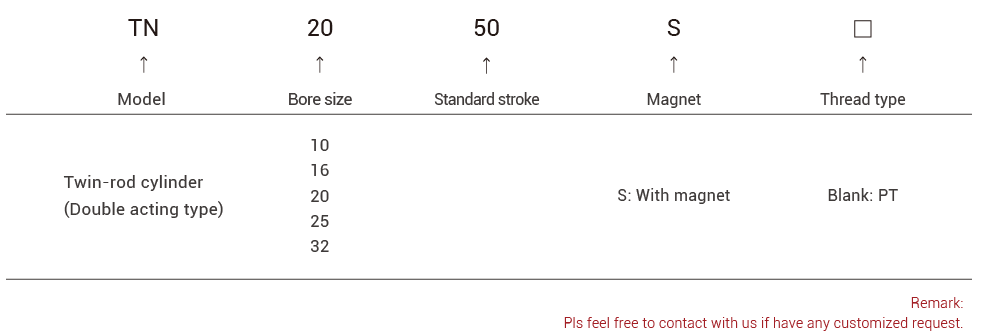

ORDERING CODE

ordering code

SPECIFICATION

Bore Size(mm)	10	16	20	25	32
Acting Type	Double acting
Fluid	Air(to be filtered by 40um filter element)
Operating Pressure	0.2~1.0MPa(29~145psi)	0.15~1.0MPa(22~145psi)
Temperature	-20~70℃
Speed Range(mm/s)	30~500
Adjustable Stroke(mm)	-5~0
Stroke Tolerance	≤100(0~+1.0) >100(0~+1.5)
Cushion Type	Bumper
Non-rotating Tolerance [Note⊃1;]	±0.4°	±0.3°
Port Size [Note2]	M5×0.8

[Note1]Retract position.

[Note2]PT thread is avaliable.

OVERALLDIMENSION&STRUCTURE

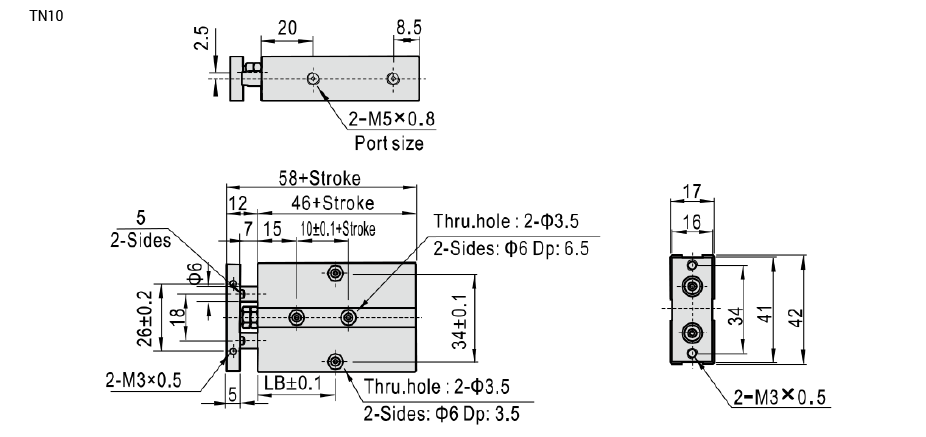

TN10

Stroke	10	20	30	40	50	60	70	80	90	100	125	150	175	200	250	300	350	400	450	500
LB	30	30	35	40	45	50	55	60	65	70	82.5	95	107.5	120	145	170	195	220	245	270

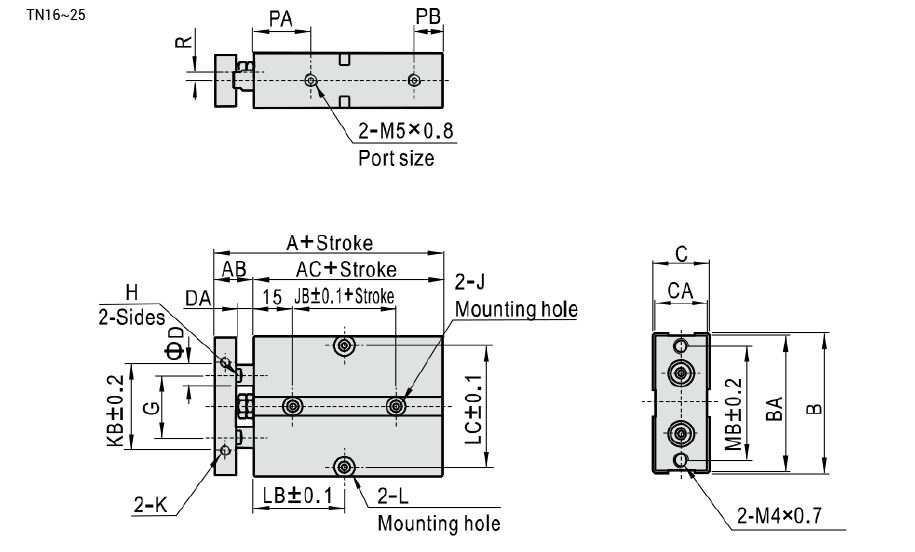

TN16-25

Bore size	A	AB	AC	B	BA	C	CA	D	DA	G	H	J
16	68	15	53	54	53	21	20	8	8.2	24	6	Both sides:φ7.5Dp:7.5Thru.hole:φ4.5
20	78	20	58	62	61	25	24	10	10.2	28	8	Both sides:φ7.5Dp:7.5Thru.hole:φ4.5
25	81	19	62	73	72	30	29	12	10.2	34	10	Both sides:φ7.5Dp:7.5Thru.hole:φ4.5

Bore size	JB	K	KB	PA	PB	L	LC	MB	R
16	20	M4×0.7 Dp:5	34	22	11	Both sides:φ8Dp:4.5Thru.hole:φ4.5	47	47	3
20	20	M4×0.7 Dp:5	44	25	12	Both sides:φ8Dp:4.5Thru.hole:φ4.5	55	55	3.5
25	30	M4×0.7 Dp:5	56	27	12	Both sides:φ8Dp:4.5Thru.hole:φ4.5	66	66	6

Bore size	LB
Stroke≤	10	20	30	40	50	60	70	80	90	100	125	150	175	200	250	300	350	400	450	500
16	30	35	40	45	50	55	60	65	70	75	87.5	100	112.5	125	150	175	200	225	250	275
20	35	35	40	45	50	55	60	65	70	75	87.5	100	112.5	125	150	175	200	225	250	275
25	40	40	45	50	55	60	65	70	75	80	92.5	105	117.5	130	155	180	205	205	255	288

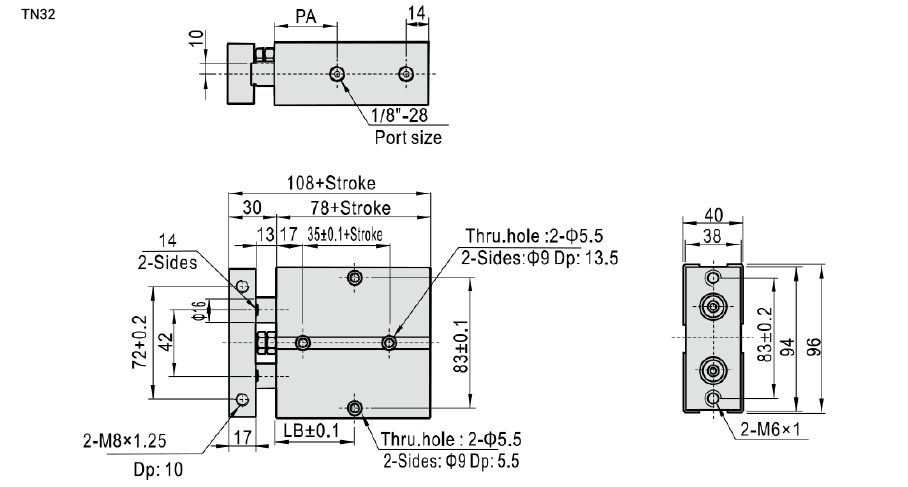

TN32

Stroke	10	20	30	40	50	60	70	80	90	100	125	150	175	200	250	300	350	400	450	500
LB	45	50	55	60	65	70	75	80	85	90	102.5	115	127.5	140	165	190	215	240	265	290
PA	35	40
