The ADVC Series is a line of short-stroke, double-acting pneumatic cylinders renowned for their exceptionally compact design. A key advantage of this series is its significantly reduced installation space – these cylinders are up to 60% more compact than standard pneumatic cylinders, making them ideal for machinery with severe spatial constraints.

Model:
ADVC
Brand:
WAALPC
Code:
8409919990

Product Description

1. Space-Efficient and Compact Design: The ADVC series is engineered with a primary focus on minimizing installation space and overall height. This makes them a perfect solution for compact machinery and applications like clamping and ejecting in confined areas.

2. Durable and Reliable Construction: Key components like the cylinder covers and body are constructed from high-quality forged aluminum alloy with an anodized surface, offering excellent corrosion resistance (CRC class 1). The piston rod is made of high-alloy steel, ensuring strength and durability.

3. Enhanced Buffering and Smooth Operation: The cylinders are equipped with an elastic polymer buffer (cushioning) at both ends. This design effectively minimizes impact, noise, and vibration at the end of the stroke, contributing to a longer service life and improved performance. The buffering characteristics are significantly improved compared to previous model series.

4. Easy Integration and Flexibility: The series offers multiple piston rod thread options (internal or external) for versatile connectivity. From a bore size of 32mm, the cylinders feature two sensor slots for easy integration of non-contact proximity switches, enabling straightforward position sensing. A wide variety of mounting options is available, allowing for installation in virtually any position.

Technical Parameters

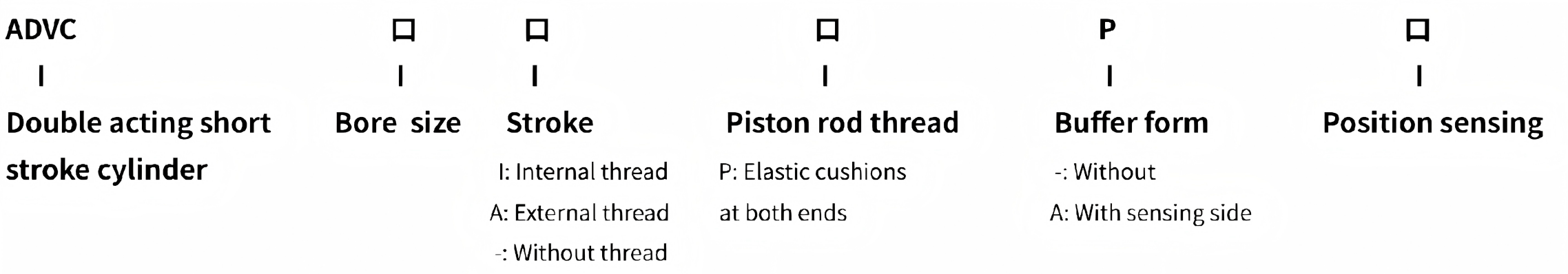

ORDERING CODE

ADVC Compact Cylinder

SPECIFICATION

Bore(mm)		4	6	10	12	16	20	25	32	40	50	63	80	100
Air port		M3	M3	M5	M5	M5	M5	M5	G1/8	G1/8	G1/8	G1/8	G1/8	G1/4
Piston rod thread	Internal thread	-	-	-	M3	M4	M5	M5	M6	M6	M8	M8	M10	M12
Piston rod thread	External thread	M2	M2	M4	M5	M6	M8	M8	M10X1.25	M10X1.25	M12X1.25	M12X1.25	M16X1.5	M20X1.5
Buffer form		Elastic cushions at both ends
Theoretical value at 6bar, propulsion		5	11	41	59	105	170	270	450	700	1120	1800	2900	4500
Theoretical value at 6bar, return force		1	3	3	4	5	10	15	22	28	40	50	85	140
Material		Cylinder barrel, end cover: Piston rod: Piston Rod Seal: anodized aluminum Φ4: Anodized aluminum Φ4: Nitrile rubber Φ6...100: High quality alloy steel Φ6...100: Polyurethane
Operating pressure		2.5~8	2...8	1.5...8	1.5...10				1...10
Temperature(℃)		-20...+80

OVERALLDIMENSION&STRUCTURE

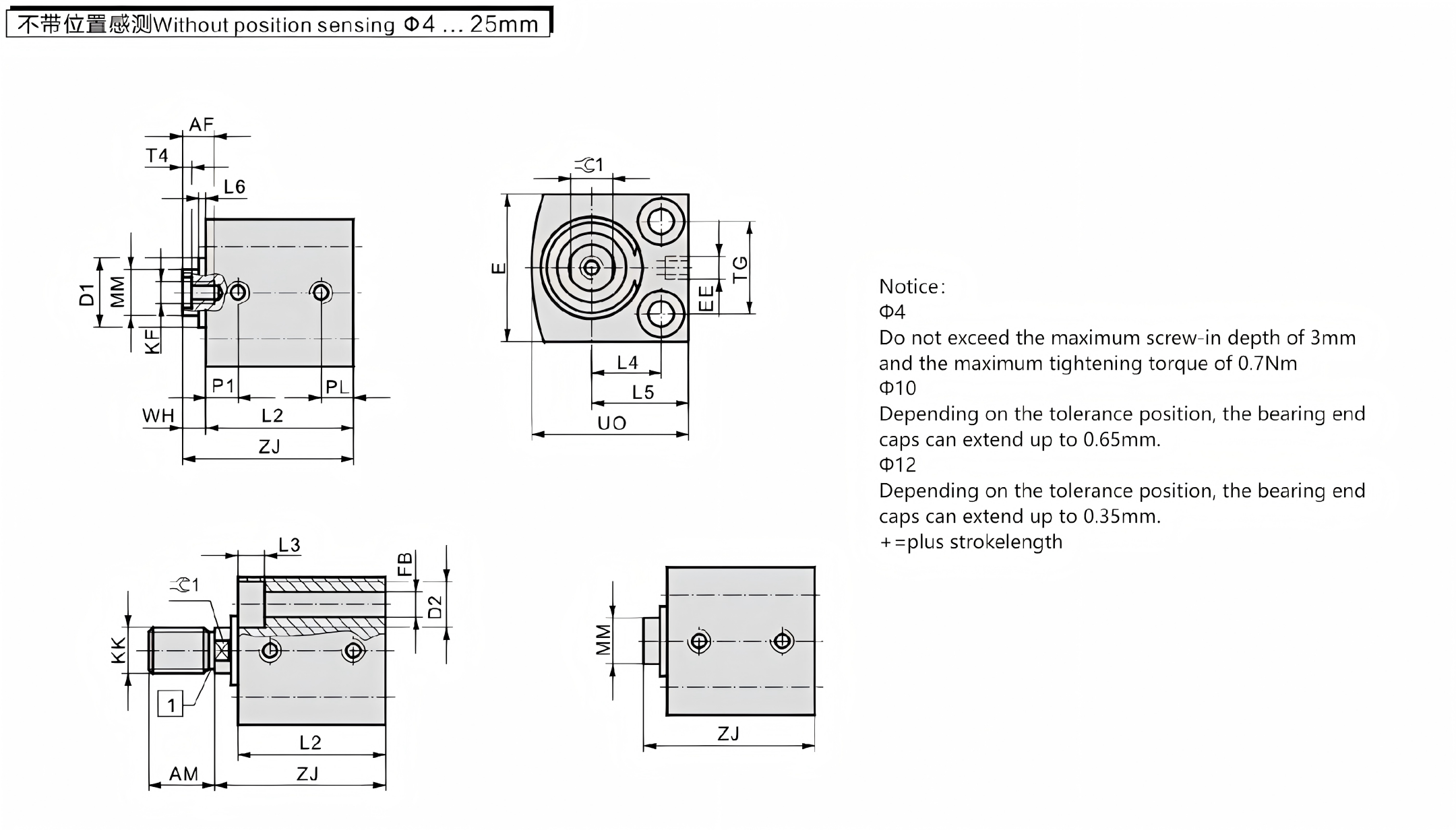

ADVC Compact Short-Stroke Cylinder

Φ(mm)	Stroke(mm)	AF min.	AM -0.5	D1 Φmax.	D2 Φ	E max.	EE	FB Φ	KF	KK	L2 +0.2	L3
4	2.5	-	6	-	3.3^+0.1	10	M3	1.8	-	M2	13	1.8
	5										15.5
6	5	-	6	-	5^+0.1	13	M3	2.9	-	M3	16	2.9
	10										21
10	5	-	8	7.5	5.8^+0.1	18	M5	3.4	-	M4	21	3.4
	10										24
12	5	8	8	10.7	6H13	20	M5	3.4	M3	M5	23	3.4
	10										28
16	5	10	12	-	8H13	25	M5	4.5	M4	M6	23	4.6
	10										28
	15										33
	20										38
	25										43
20	5	12	12	-	10H13	32	M5	5.5	M5	M8	27	5.7
	10										32
	15										37
	20										42
	25										47
25	5	12	12	-	10H13	38	M5	5.5	M5	M8	27.5	5.7
	10										32.5
	15										37.5
	20										42.5
	25										47.5

Φ(mm)	Stroke(mm)	L4	L5	L6 max.	MM Φ	P1	PL	T4	TG±0.1	UO max.	WH	ZJ ±0.8	1
4	2.5	4	6.5	-	2	3.7	3.2	-	5.8	10	1	14	-
	5											16.5
6	5	6	9	-	3	4.7	3	-	7	14	1	17	-
	10											22
10	5	8	11.5	0.7	4	5.2	5.2	-	11	19	1.5	22.5	-
	10					6	5.5					25.5
12	5	9	13	0.4	6	5.75	5.75	1.5	13	22	4	27	5
	10					9	6					32
16	5	11.5	16.5	-	8	6	6	2	15	27	4	27	7
	10					7.5						32
	15											37
	20											42
	25											47
20	5	15	21	-	10	7.5	7	2	20	34	5	32	9
	10											37
	15											42
	20											47
	25											52
25	5	15.5	21.5	-	10	8	6.5	2	26	37	5	32.5	9
	10											37.5
	15											42.5
	20											47.5
	25											52.5

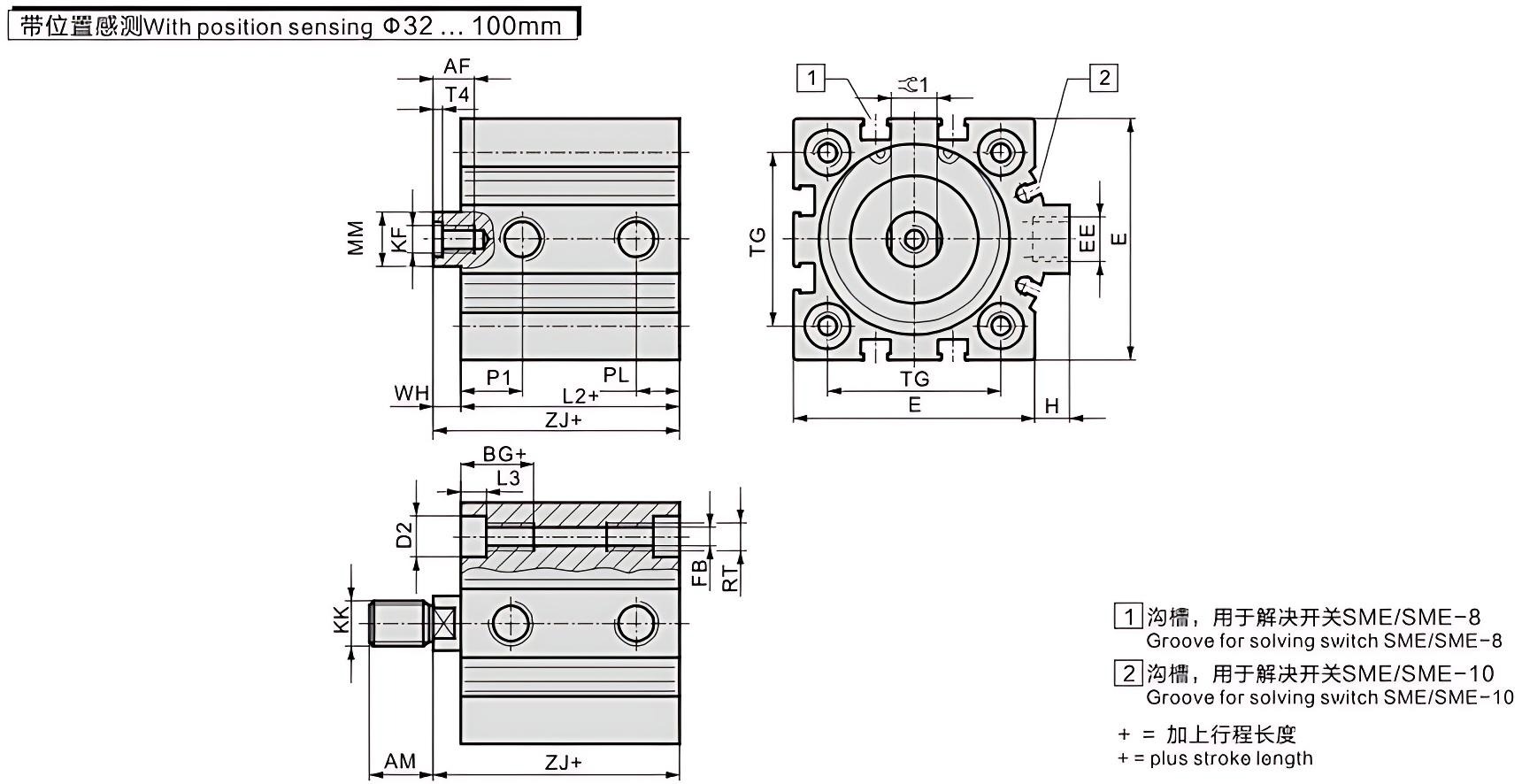

ADVC Compact Short-Stroke Cylinder

Φ(mm)	AF min.	AM -0.5	BG* min.	D2 ΦF9	E max.	EE	FB Φ	H	KF	KK**
32	12	14	21.7	9	45	G1/8	5.2	7	M6	M10x1.25

40	12	14	21.7	9	53.5	G1/8	5.2	7	M6	M10x1.25
50	16	16	22.8	11	63.5	G1/8	6.8	7.5	M8	M12x1.25

63	16	16	22.8	11	75	G1/8	6.8	7.5	M8	M12x1.25

80	20	22	25	14	93	G1/8	8.5	7	M10	M16x1.5

100	24	28	25	14	113	G1/4	8.5	13	M12	M20x1.5

Φ(mm)	Stroke(mm)	L2 +0.2	L3	MM Φ	P1	PL	RT	T4	TG±0.1	WH	ZJ±0.8	1
32	5	34	5.7	12	9	8.5	M6	2.6	32.5	6	40	10
	10	39									45
	15	44									50
	20	49									55
	25	54									60
40	5	34.5	5.7	12	11	9	M6	2.6	38	6	40.5	10
	10	39.5									45.5
	15	44.5									50.5
	20	49.5									55.5
	25	54.5									60.5
50	10	38	6.8	16	11.3	9.5	M8	3.3	46.5	8	46	13
	15	43									51
	20	48									56
	25	53									61
63	10	45	6.8	16	12.5	11.5	M8	3.3	56.5	8	53	13
	15	50									58
	20	55									63
	25	60									68
80	10	45	6.8	16	12.5	11.5	M8	3.3	56.5	8	53	13
	15	50									58
	20	55									63
	25	60									68
100	10	59	9	25	16.5	19	M10	6.1	89	10	69	22
	15	64									74
	20	69									79
	25	74									84

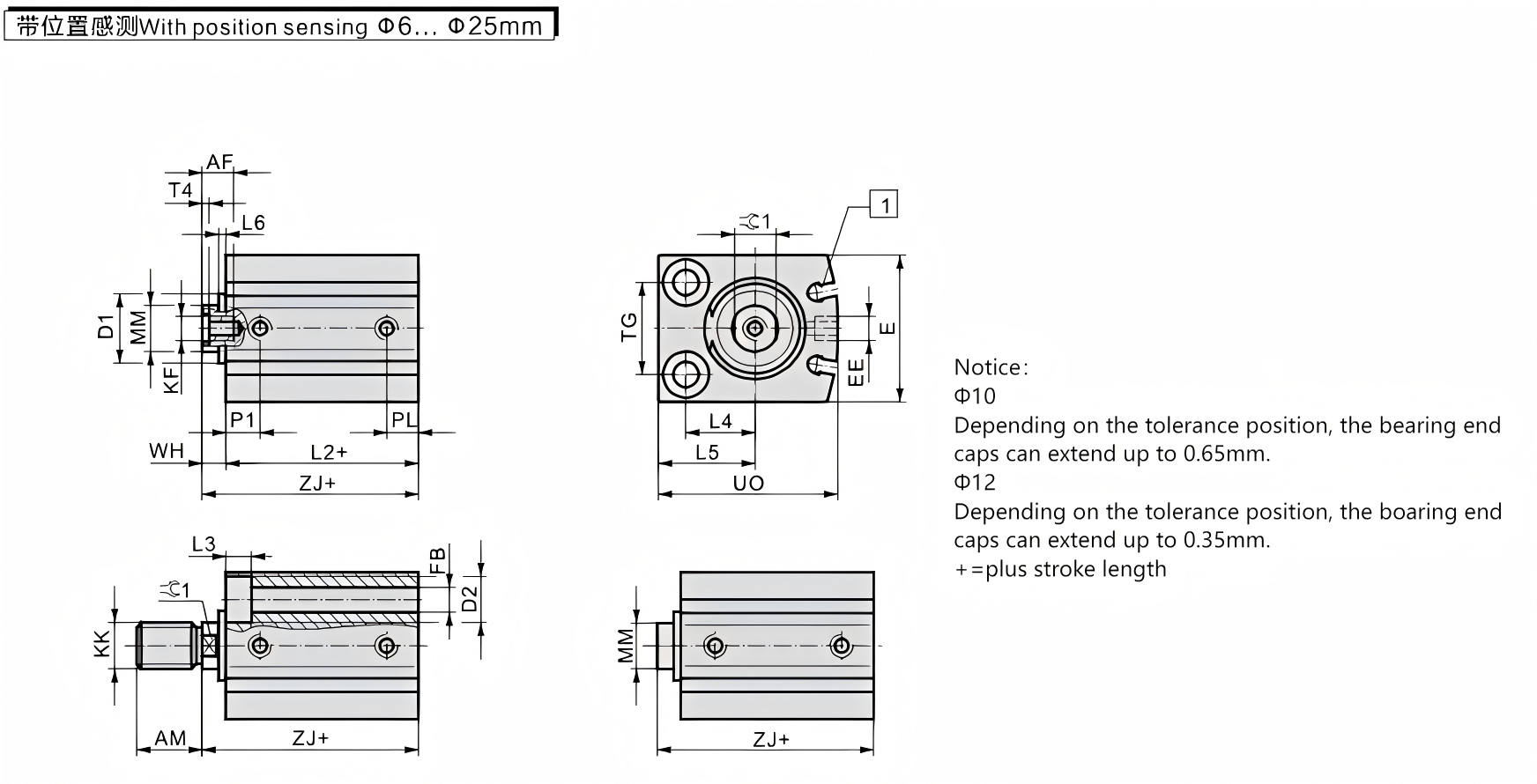

ADVC Compact Short-Stroke Cylinder

Φ(mm)	AF min.	AM -0.5	D1 Φ max.	D2 Φ	E max.	EE	FB Φ	KF	KK	L3	L4
6	-	6	-	5+0.1	16	M3	2.9	-	M3	2.9	5
10	-	8	7.5	5.8+0.1	21	M5	3.4	-	M4	3.4	7
12	8	8	10.7	6H13	24	M5	3.4	M3	M5	3.4	8
16	10	12	-	8H13	28	M5	4.5	M4	M6	4.6	12
20	12	12	-	10H13	32	M5	5.5	M5	M8	5.7	15
25	12	12	-	10H13	38	M5	5.5	M5	M8	5.7	15.5

Φ(mm)	Stroke(mm)	L2 +0.2	L5	L6 max.	MM Φ	P1	PL	T4	TG±0.1	UO	WH	ZJ±0.8	1
6	5	25.5	8	-	3	5.2	3	-	10	16	1	26.5	-
	10	30.5										31.5
10	5	27	10.5	0.7	4	6	6	-	14	22	1.5	28.5	-
	10	32										33.5
12	5	36	12	0.4	6	7	6	1.5	16	26	4	40	5
	10	41										45
16	5	35	17	-	8	8	6	2	18	32	4	39	7
	10	40										44
	15	45										49
	20	50										54
	25	55										59
20	5	37	21	-	10	7.5	7	2	20	39	5	42	9
	10	42										47
	15	47										52
	20	52										57
	25	57										62
25	5	37	21.5	-	10	10	6	2	26	42	5	42	9
	10	42										47
	15	47										52
	20	52										57
	25	57										62

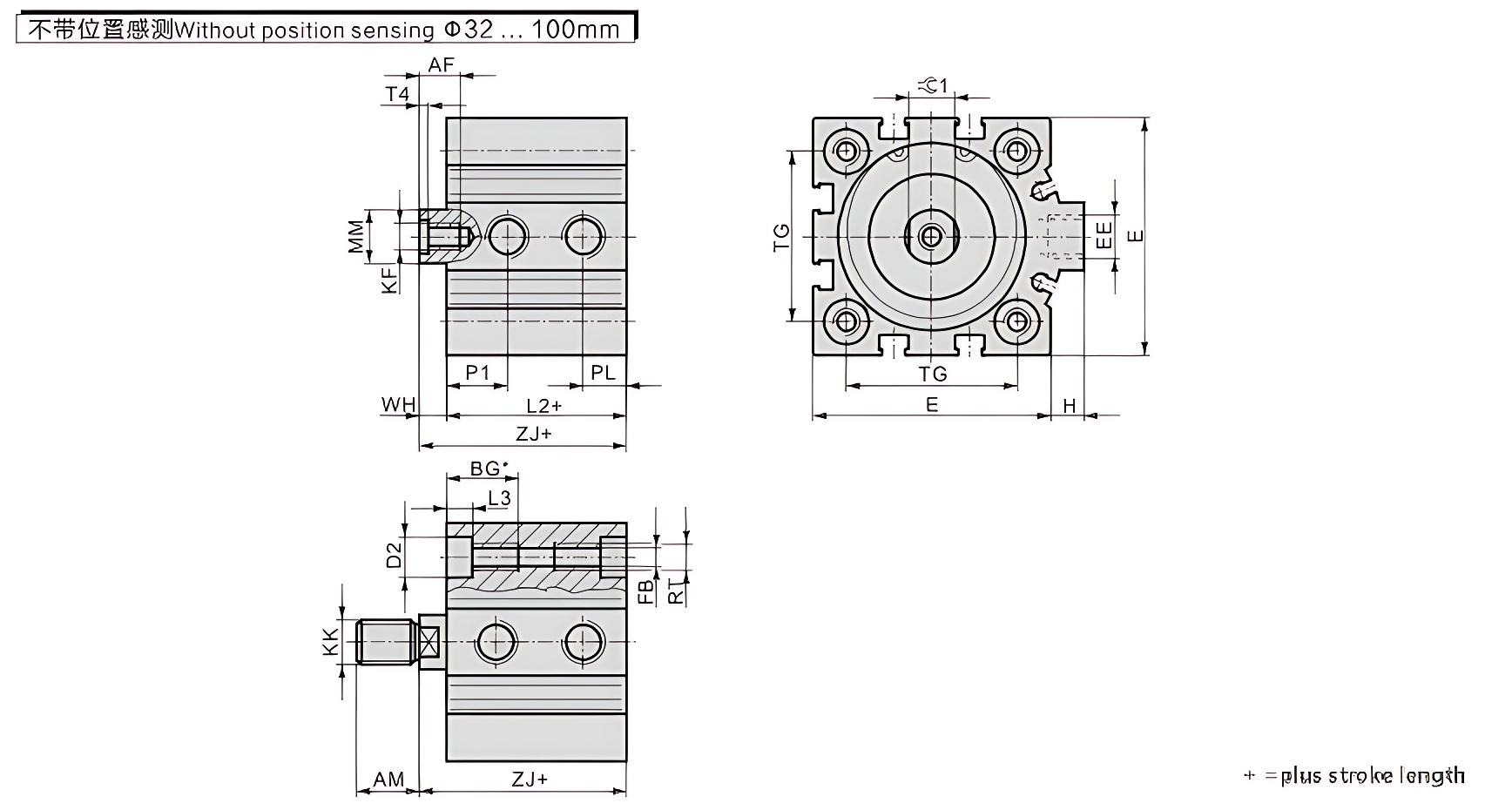

ADVC Compact Short-Stroke Cylinder

Φ(mm)	AF min.	AM -0.5	BG* min.	D2 Φ F9	E max.	EE	FB Φ	H	KF	KK**
32	12	14	21.7	9	45	G1/8	5.2	7	M6	M10x1.25
40	12	14	21.7	9	53.5	G1/8	5.2	7	M6	M10x1.25
50	16	16	22.8	11	63.5	G1/8	6.8	7	M8	M12x1.25
63	16	16	22.8	11	75	G1/8	6.8	7.5	M8	M12x1.25
80	20	22	25	14	93	G1/8	8.5	7	M10	M16x1.5
100	24	28	25	14	113	G1/4	8.5	13	M12	M20x1.5

Φ(mm)	Stroke(mm)	L2 +0.2	L3	MM Φ	P1	PL	RT	T4	TG±0.1	WH	ZJ ±0.8	1
32	5	38	5.7	12	9	8.5	M6	2.6	32.5	6	44	10
	10	43									49
	15	48									54
	20	53									59
	25	58									64
40	5	43	5.7	12	13.5	9.5	M6	2.6	38	6	49	10
	10	48									54
	15	53									59
	20	58									64
	25	63									69
50	10	48	6.8	16	11.3	9.5	M8	3.3	46.5	8	56	13
	15	53									61
	20	58									66
	25	63									71
63	10	51	6.8	16	12.5	10.5	M8	3.3	56.5	8	59	13
	15	56									64
	20	61									69
	25	66									74
80	10	59	9	20	15	8.5	M10	4.7	72	8	67	17
	15	64									72
	20	69									77
	25	74									82
100	10	68	9	25	16.5	10.5	M10	6.1	89	10	78	22
	15	73									83
	20	78									88
	25	83									93

Specification Download
