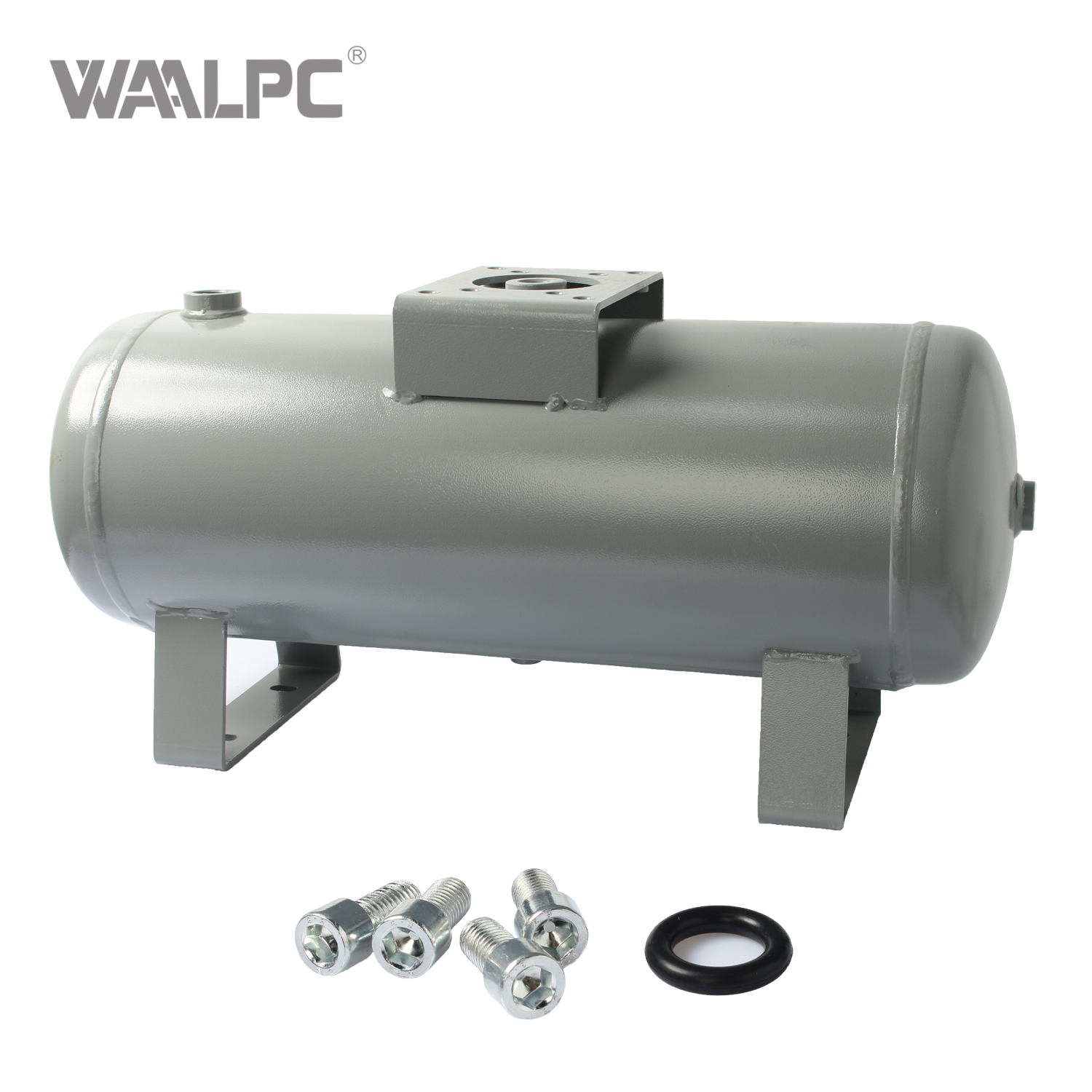

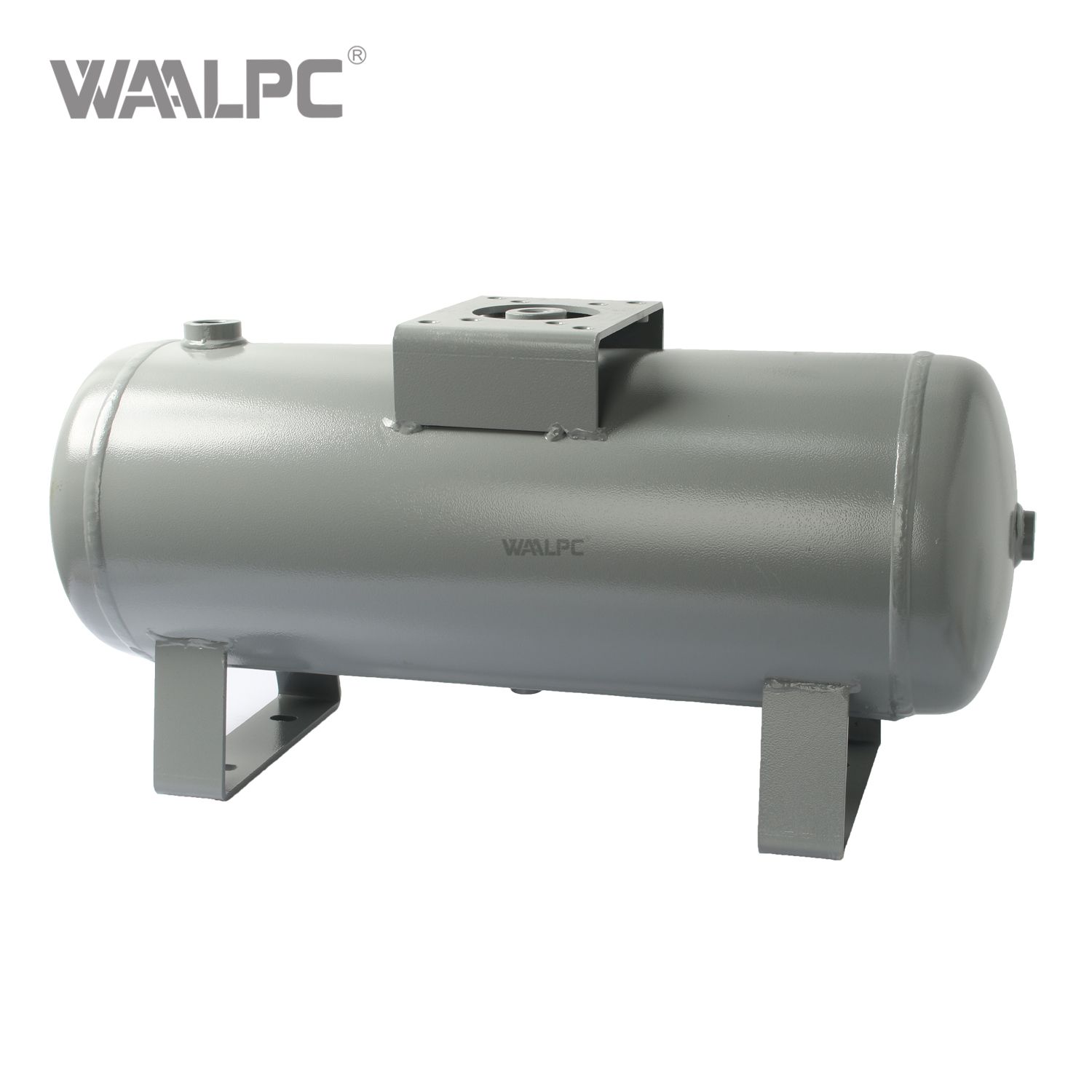

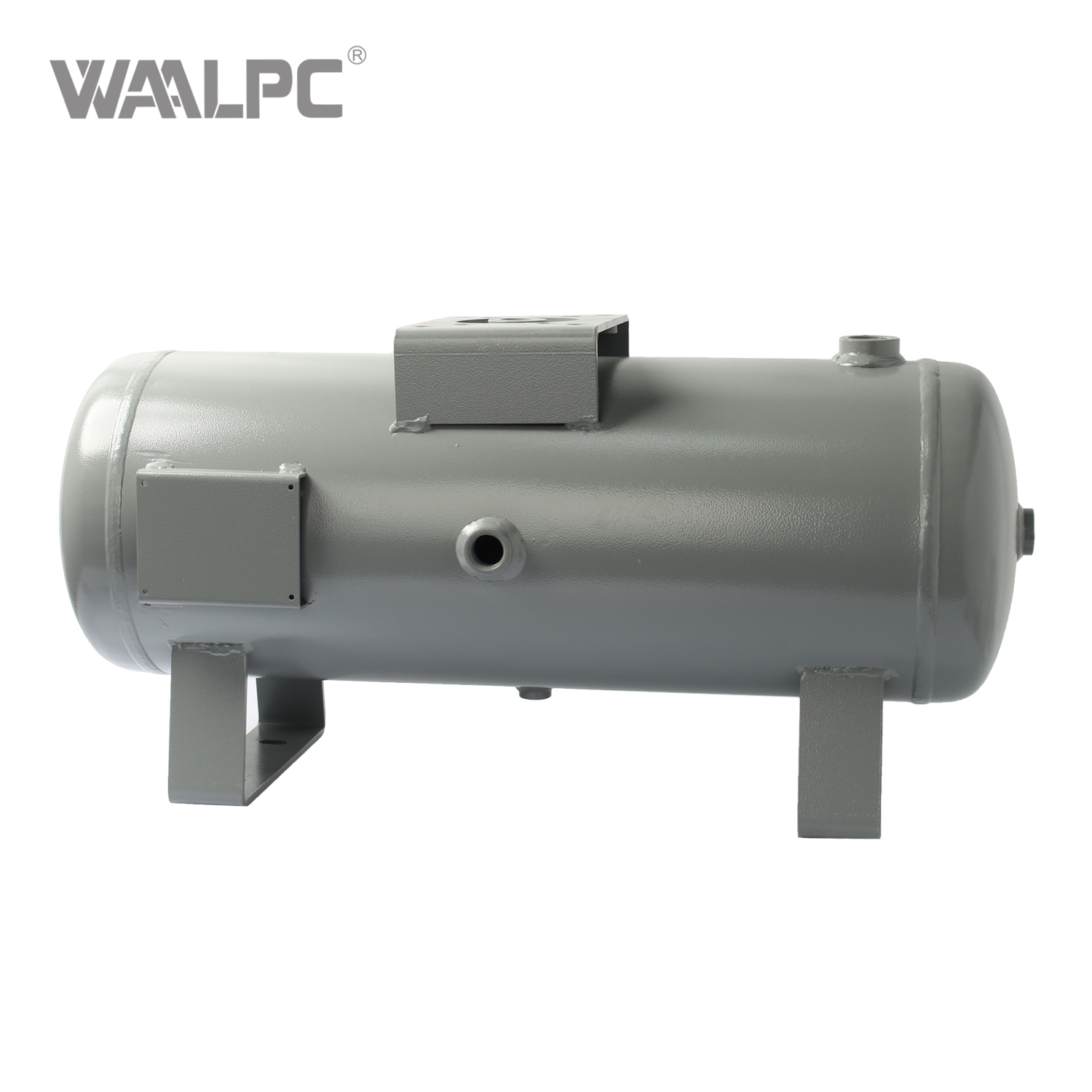

Compact Air Tank VBAT Series for Booster Regulators ASME Certified


Availability:

Quantity:



Inquiry Add to Basket

VBAT Series Air Tank – Compact pneumatic air receiver for booster regulators. Small capacity (5-38L), carbon/stainless steel, CE & ASME certified. Ideal for air storage and pressure stabilization in industrial systems.

Model:
VBAT
Brand:
WAALPC
Code:
7311009000

Product Description

Compact & Space-Saving: Designed for compact, direct connection with booster regulators, saving valuable space in industrial setups.
Flexible Application: Can be used as a standalone air tank or in conjunction with a booster regulator, offering versatility for various system designs.
Wide Capacity Range: Available in four sizes: 5, 10, 20, and 38 liters, to meet diverse application requirements.
Multiple Material Options: Offered in carbon steel (SS400) and stainless steel (SUS304), allowing selection based on environmental needs like corrosion resistance.

Technical Parameters

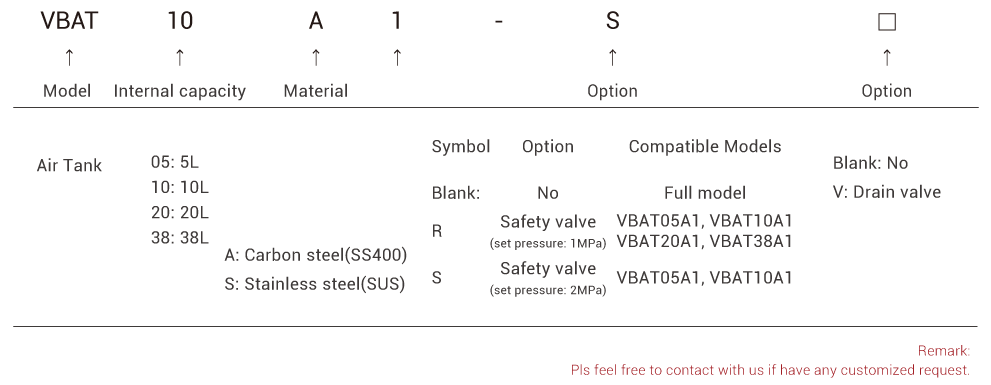

ORDERING CODE

VBAT

DATA SHEET

Model		VBAT05口1	VBAT10口1	VBAT20口1	VBAT38口1
Fluid		Compressed air
Internal Capacity(L)		5	10	20	38
Max. Operating Pressure	VBAT口A1	2.0MPa		1.0MPa
	VBAT口S1	2.0MPa
IN Port Size		3/8	3/8	1/2	1/2
OUT Port Size		3/8	1/2	1/2	3/4
Temperature		0~75℃
Weight(kg)	VBAT口A1	6.6	10	14	21
	VBAT口S1	3.2	4.9	12	19
Material	VBAT口A1	Carbon steel(SS400)
	VBAT口S1	Stainless steel(SUS)
Paint	VBAT口A1	Outer: Silver paint; Inside: Rustproof paint
	VBAT口S1	Not have

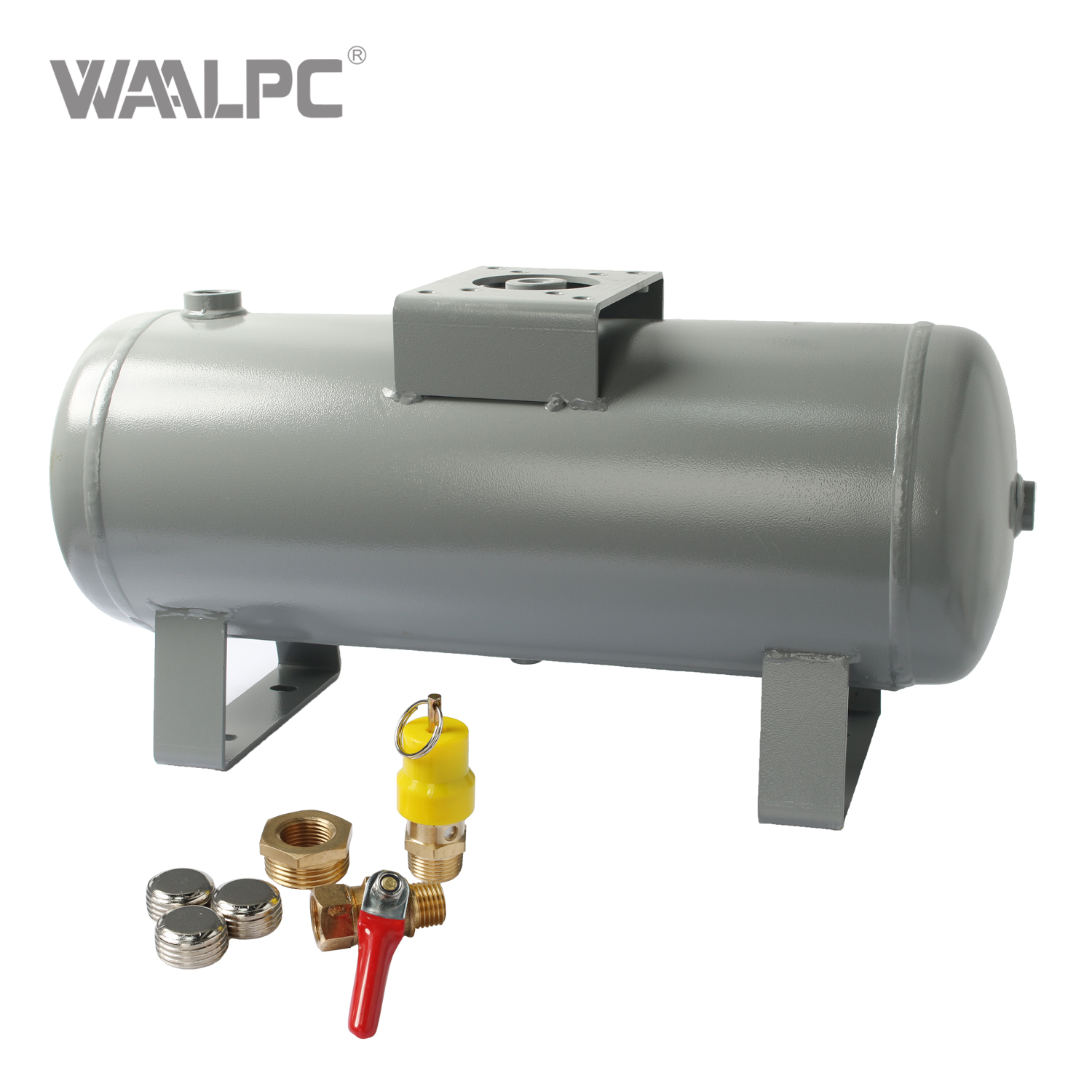

ACCESSORIES/PART NO.

For VBAT口A1 (Carbon Steel)

Model	VBAT05A1-口	VBAT10A1-口	VBAT20A1-口	VBAT38A1-口
Accessory kit	VBAT 5A-Y-3	VBAT10A-Y-3	VBAT20A-Y-3
Safety valve	VBAT-R (set pressure: 1MPa) VBAT-S (set pressure: 2MPa)		VBAT-R (set pressure: 1MPa)
Drain valve	VBAT-V1

Note 1) A safety valve is a device used to protect the pressure inside a gas cylinder.

Note 2) When the pressure reaches the set value, the safety valve automatically opens to release excessive pressure inside the gas cylinder; when the pressure falls below the set value, the safety valve closes.

Select the safety valve according to the maximum operating pressure of the gas cylinder.

For VBAT口S1 (Stainless Steel)

Model	VBAT05S1-口	VBAT10S1-口	VBAT20S1-口	VBAT38S1-口
Accessory kit	VBAT5S-Y-4	VBAT10S-Y-4	VBAT20A-Y-4
Drain valve	VBAT-V1

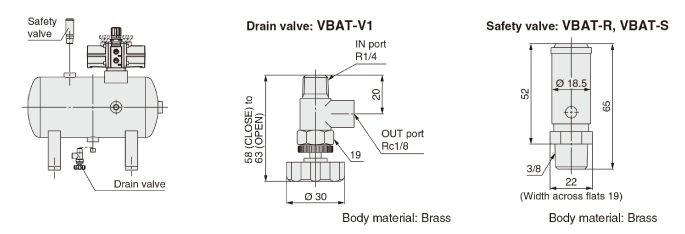

VBAT accessories

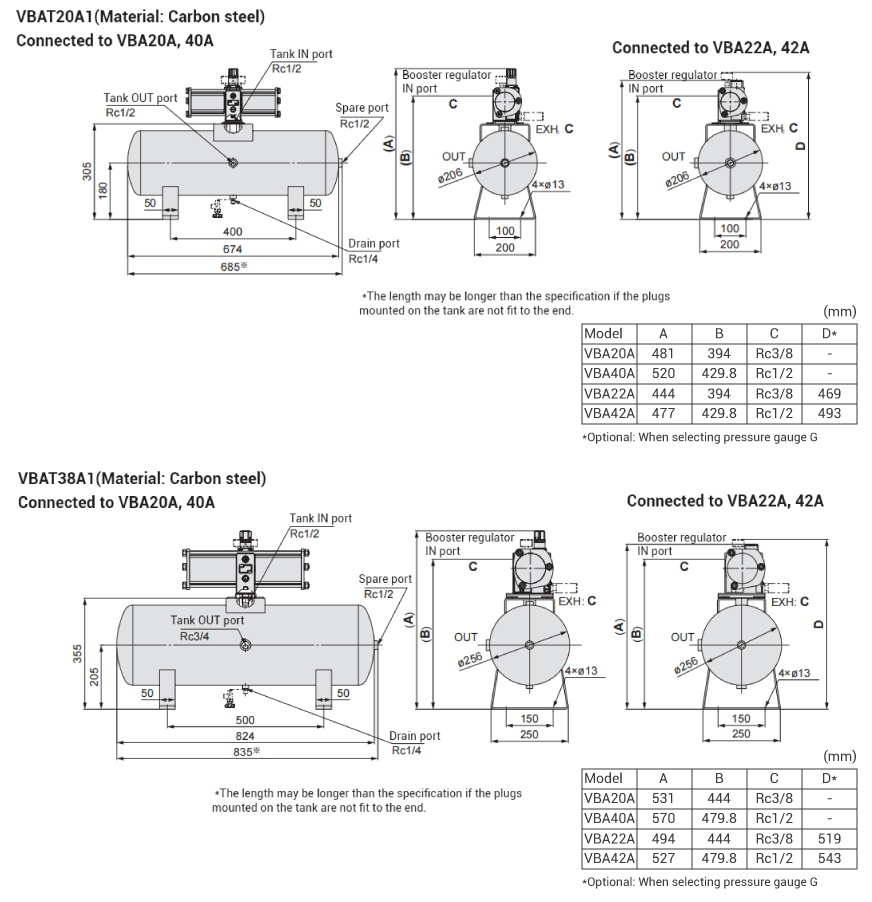

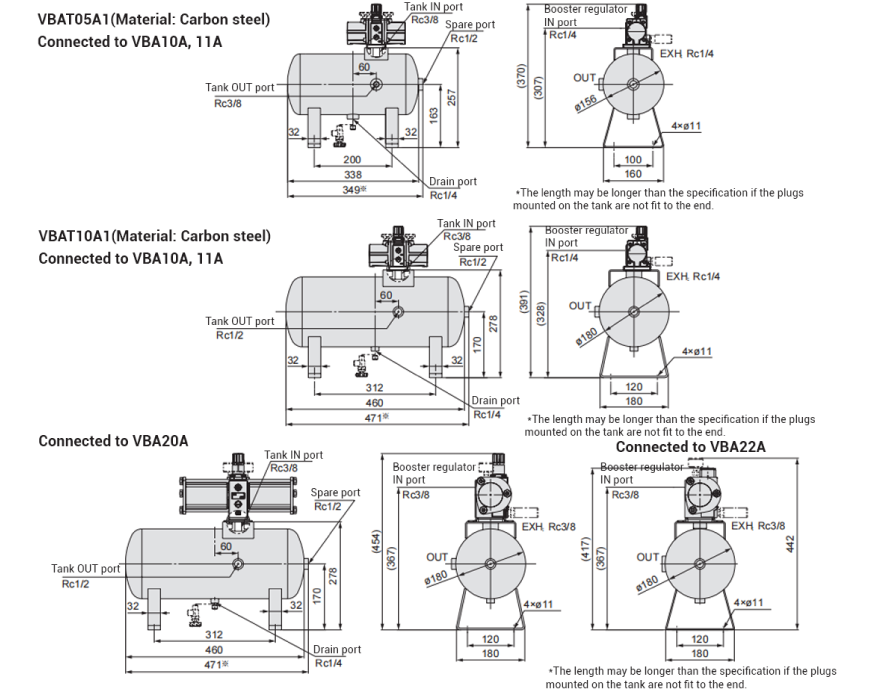

OVERALLDIMENSION&STRUCTURE

VBAT air tank

Specification Download

VBAT Air Tank.pdf
