| Size: | |
|---|---|

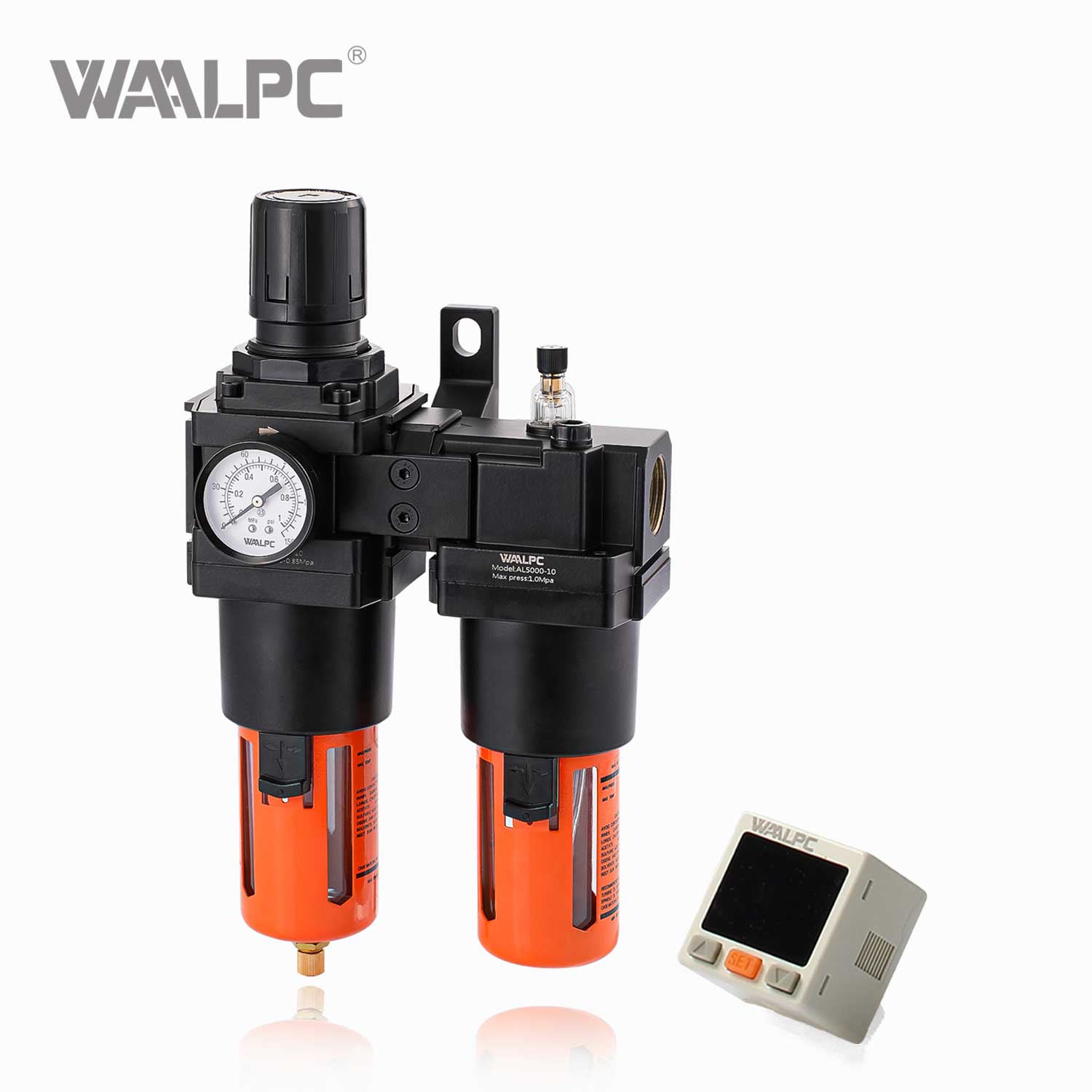

AC5010-10
WAALPC
8481100090
| 1. Prepare air for all types of compressed air tools and equipment;2. Compressed air with filters to remove solid particles and condensate;3. Regulator valves accurately maintain air pressure over a wide flow range;4. The lubricator supplies lubricating oil to the pneumatic equipment which is in operation in appropriate proportions;5. Protect your pneumatic tools for longer lifespan. |
Industrial Production
Automation Equipment
Mechanical Equipment
Food Industry
Medical and Health Care
Electronic Industry
Textile Machinery
Packaging Machinery
DATA SHEET
| Type-name | Air Regulater | |||||||||
Model | AC1010-M5 | AC2010-01 | AC2010-02 | AC3010-02 | AC3010-03 | AC4010-03 | AC4010-04 | AC4010-06 | AC5010-06 | AC5010-10 |
Port Size (G) | M5*0.8 | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 |
| Cup Protective Cover | AC1010-2010(W/0) | AC3010-5010(W) | ||||||||
| Drain Type | Manual drain, auto drain and diferential pressure drain (optional) | |||||||||
Grade Of Filtration | 5um,25μm,40um | |||||||||
| Working Medium | Air | |||||||||
| Pressure Regulating Range | 0.05-0.07MPa | 0.05-0.85MPa | ||||||||
| Max. Operating Pressure | 1.0MPa(145Psi) | |||||||||
| Pressure Resistance | 1.5MPa(215Psi) | |||||||||
| Operating Temperature Range | 5-60℃ | |||||||||
| Filter Cup Capacity | 10 | 15 | 15 | 20 | 20 | 45 | 45 | 45 | 130 | 130 |
| Lubricator Cup Capacity | 10 | 15 | 15 | 20 | 20 | 45 | 45 | 45 | 130 | 130 |
| Recommended Oil | Oil for turbine 1 ISOVG32 | |||||||||
| Pressure Range | Y40-01 | Y50-02 | ||||||||
| L-type Bracket | L10 | L20 | L20 | L30 | L30 | L40 | L40 | L50 | L50 | L60 |
| Material | Housing: Aluminum die-casting molding; Container Cup: PE; Protective cover: iron | |||||||||
| Weight | 400g | 470g | 470g | 950g | 950g | 1810g | 1810g | 1910g | 3150g | 3150g |

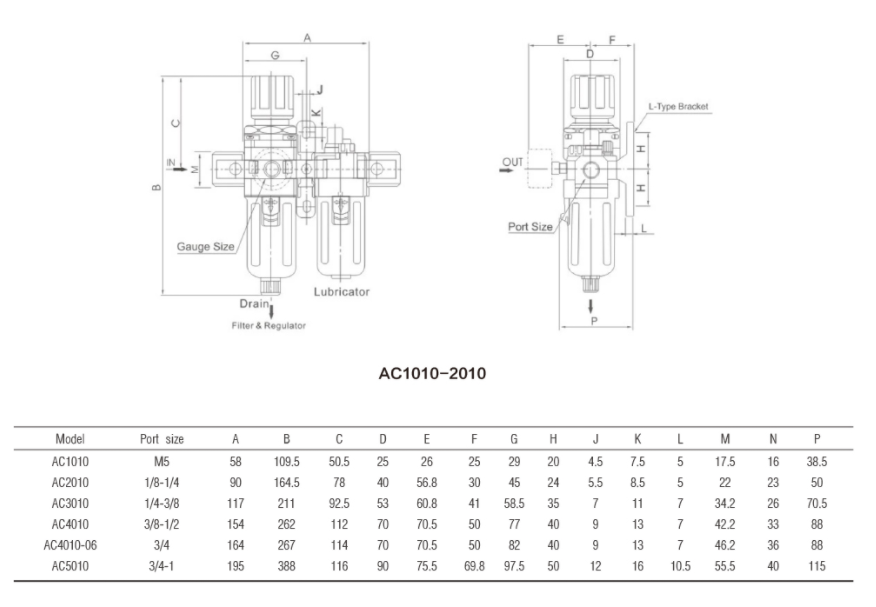

STRUCTURE
